MikroTik RB962UiGS-5HacT2HnT - hAP ac
Product.Nr.: RB962UiGS-5HacT2HnT
Manufacturer: MikroTik
https://mikrotik.com/product/RB962UiGS-5HacT2HnT
115,43 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- weight 0,55 kg
product description

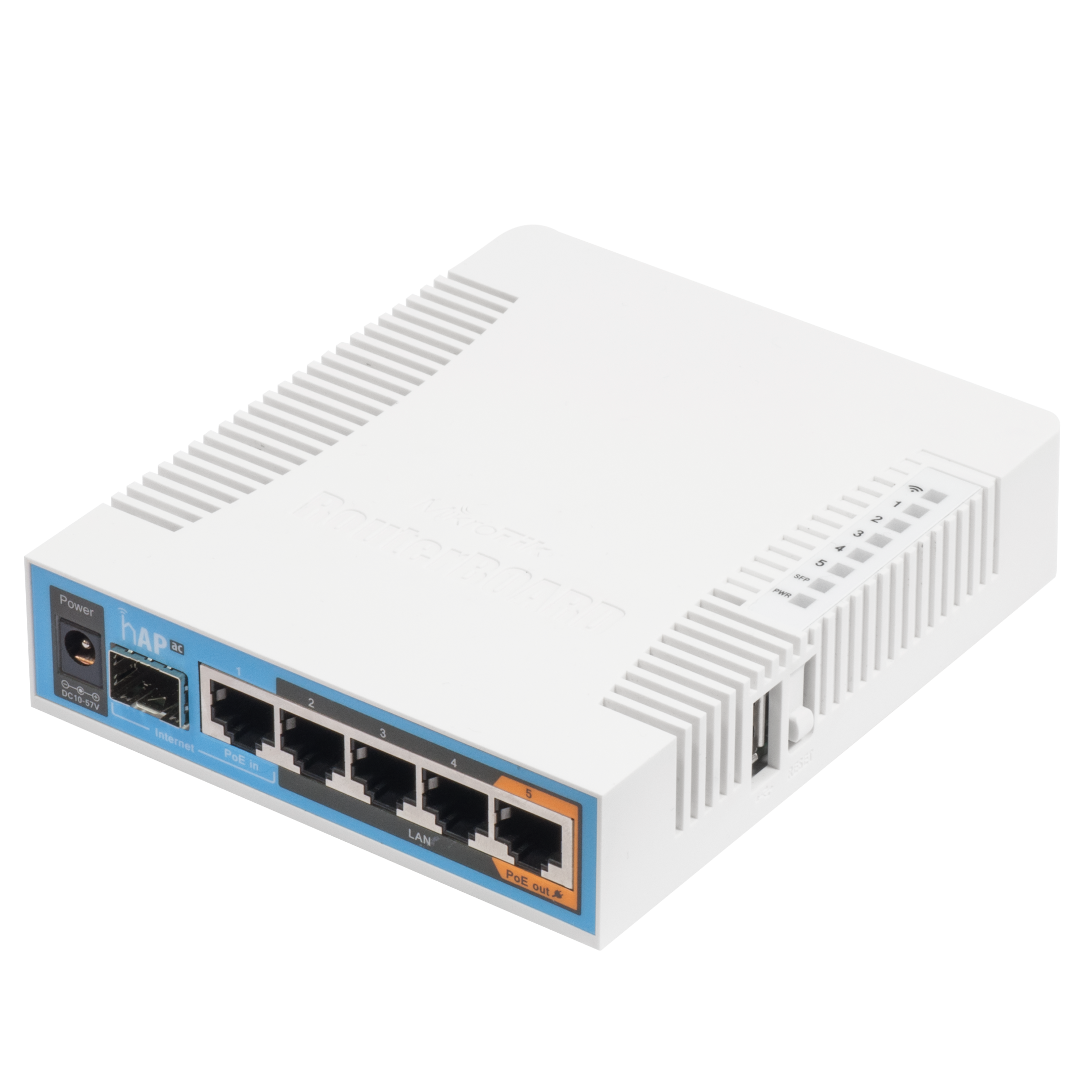

#1: RB962UiGS-5HacT2HnT - hAP ac
The hAP ac is MikroTiks most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.
The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.
Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and an SFP cage, for connecting active or passive optical network modules.
- RB962UiGS-5HacT2HnT (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RB962UiGS-5HacT2HnT (hAP ac) | |
| 1x | 24V 1,2A Netzteil | (24V 1.2A power adapter) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RB962UiGS-5HacT2HnT
Architecture MIPSBE
CPU QCA9558
CPU core count 1
CPU nominal frequency 720 MHz
Switch chip model QCA8337
Dimensions 114 x 137 x 29mm
RouterOS license 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 450 Mbit/s
Wireless 2.4 GHz Number of chains 3
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model QCA9558
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 1300 Mbit/s
Wireless 5 GHz Number of chains 3
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9880
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1750
Ethernet
10/100/1000 Ethernet ports 5
Fiber
SFP ports 1
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-57 V
Max power consumption 17 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 11-57 V
PoE-out
PoE-out ports Ether5
PoE out Passive PoE
Low voltage PoE-Out current limit 700 mA
High voltage PoE-Out current limit 350 mA
Max total out (A) 700 mA
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RB962UiGS-5HacT2HnT | QCA9558 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1,966.1 | 345.5 | 1,415.2 | 435.6 | 223.0 |
| Bridging | 25 bridge filter rules | 125.5 | 1,524.1 | 126.5 | 518.1 | 128.8 | 65.9 |
| Routing | none (fast path) | 161.9 | 1,966.1 | 334.2 | 1,368.9 | 397.9 | 203.7 |
| Routing | 25 simple queues | 161.9 | 1,966.1 | 183.9 | 753.3 | 203.3 | 104.1 |
| Routing | 25 ip filter rules | 78.1 | 948.4 | 77.8 | 318.7 | 77.5 | 39.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 29 | -100 |
| 11Mbit/s | 29 | -94 |
| 6Mbit/s | 29 | -96 |
| 54Mbit/s | 26 | -81 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -77 |
| 5GHz | Transmit (dBm) | Receive Sensitivity |
| 6Mbit/s | 28 | -96 |
| 54Mbit/s | 25 | -81 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 21 | -72 |
