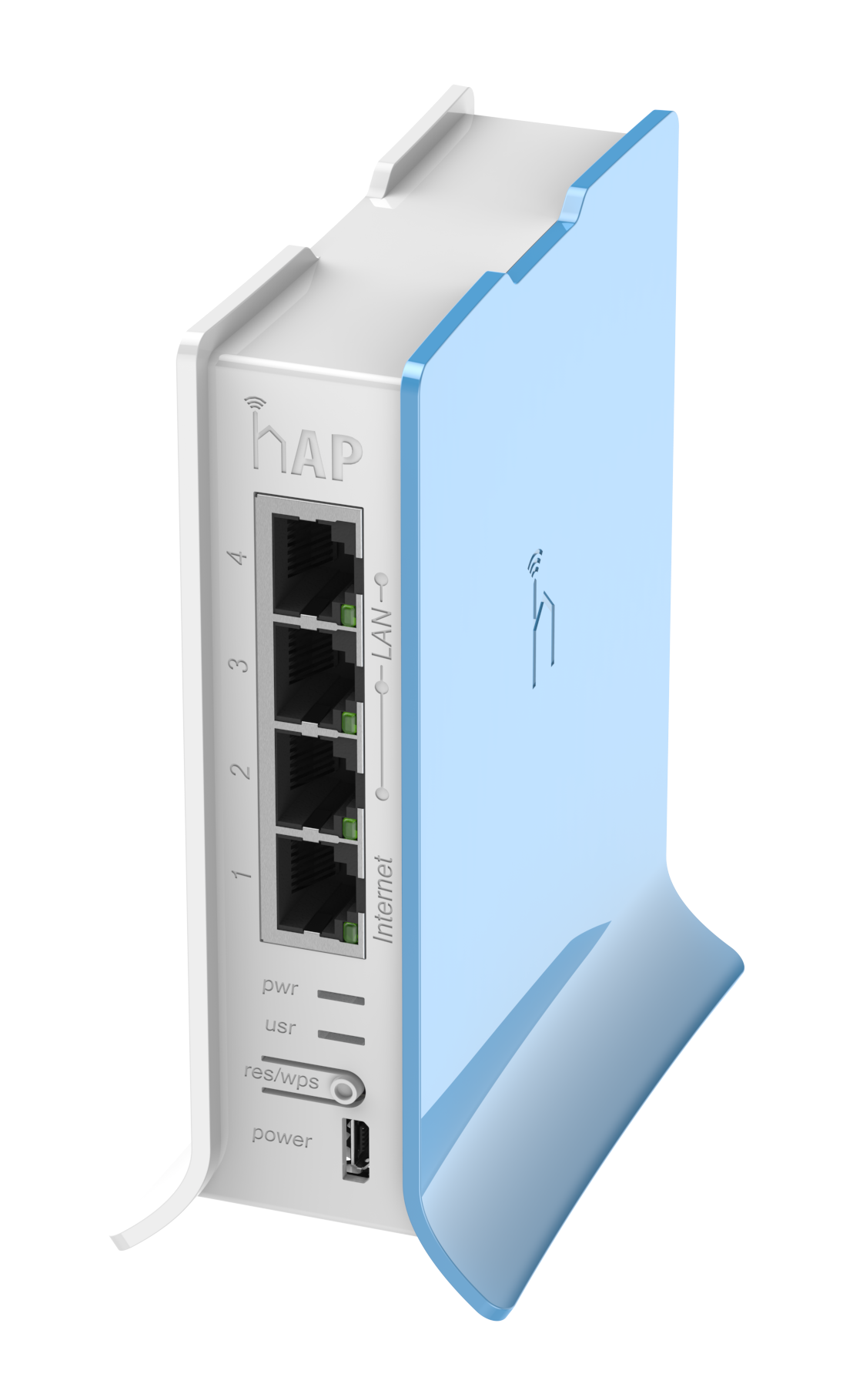

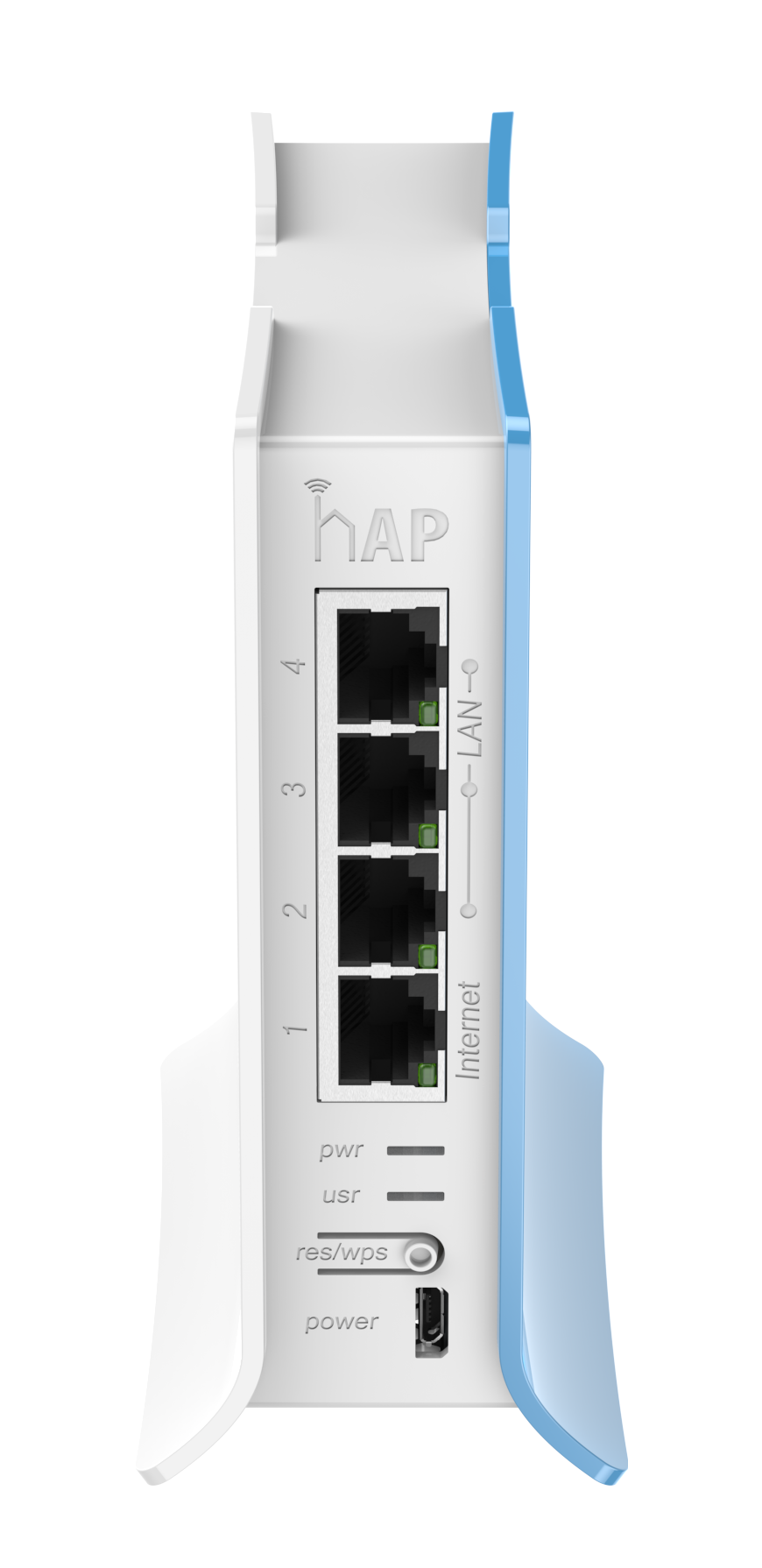

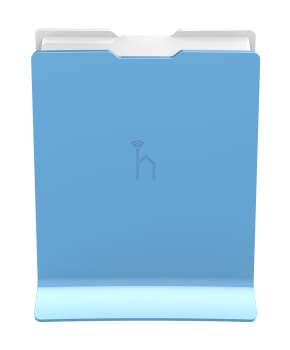

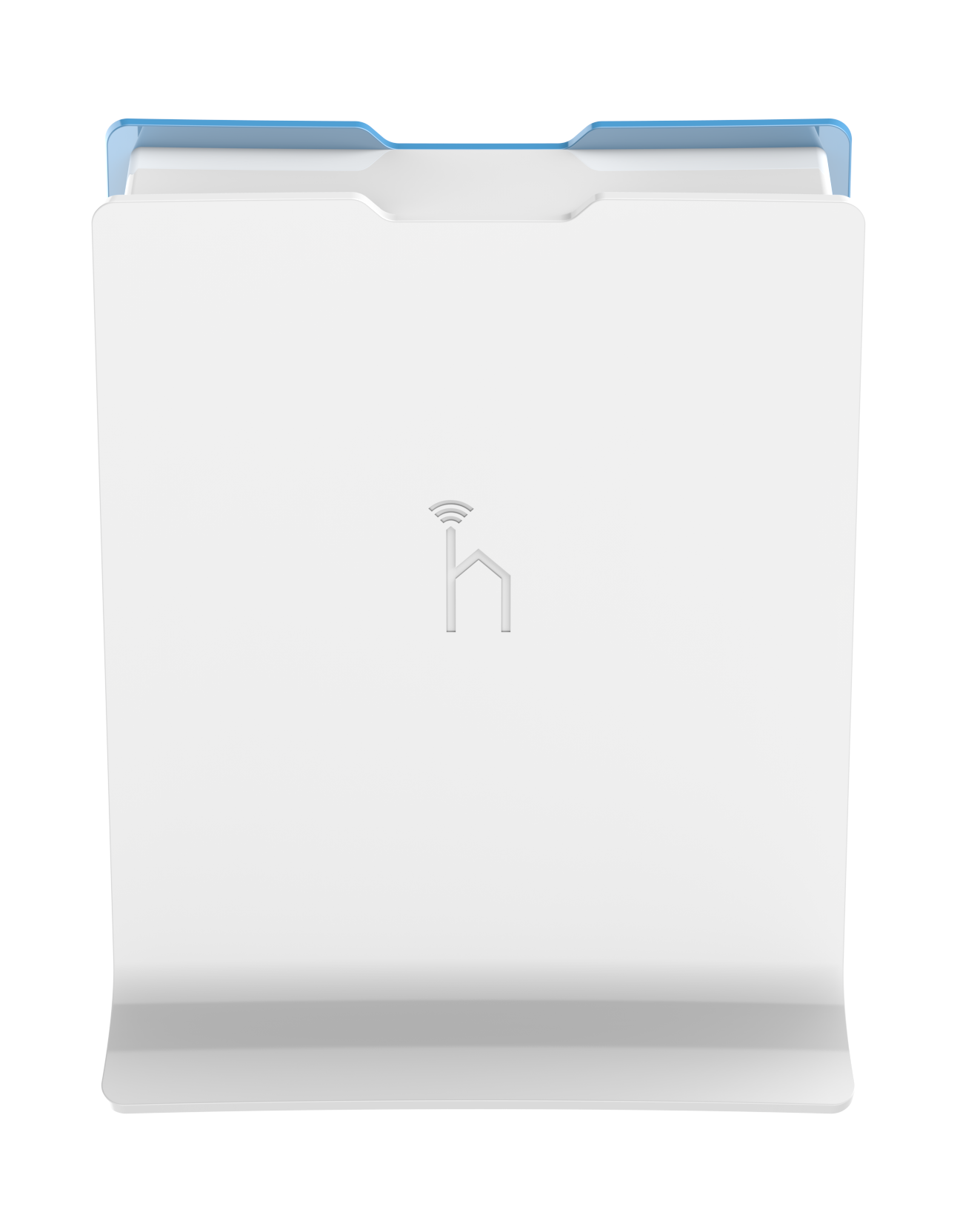

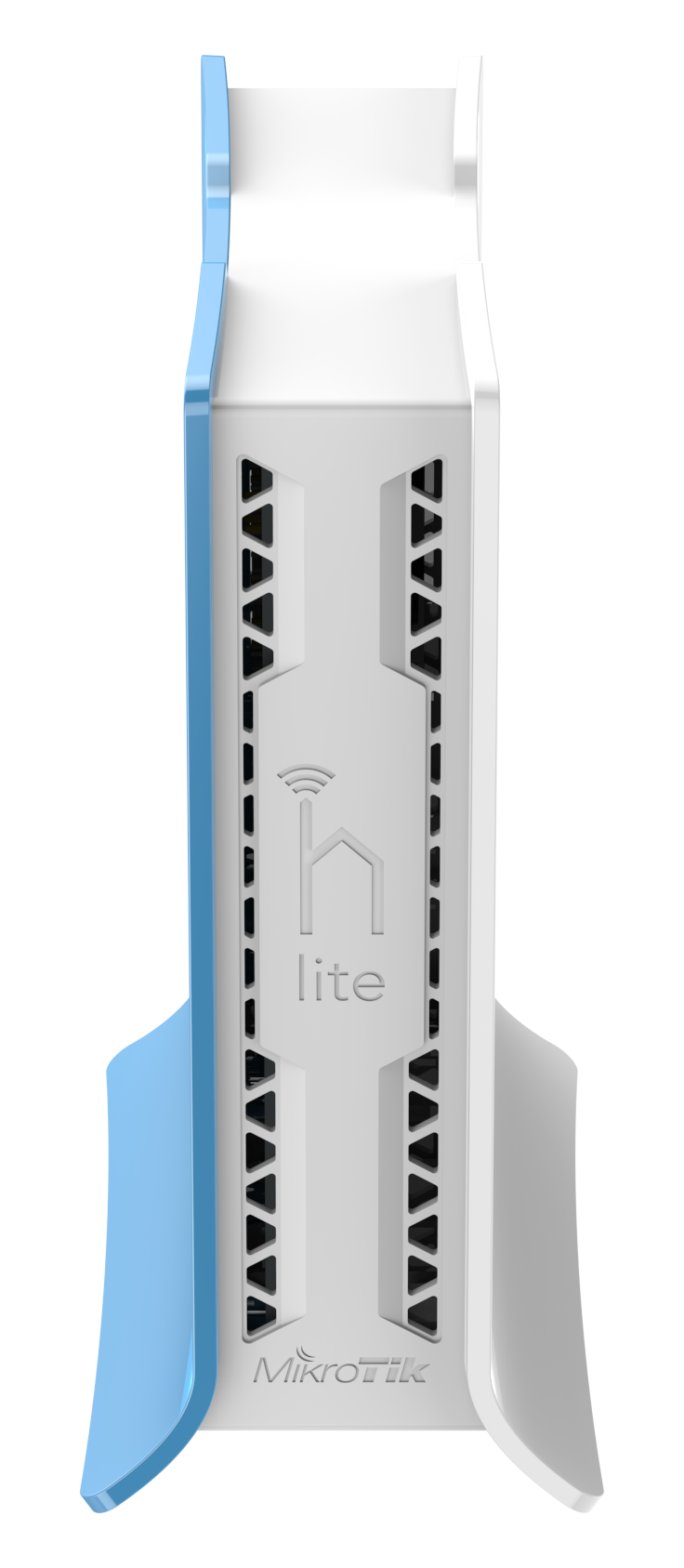

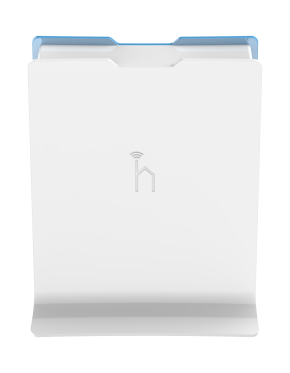

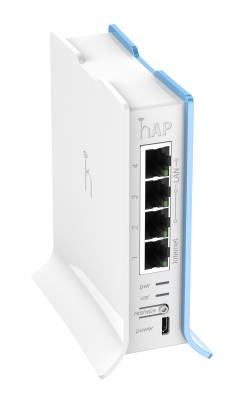

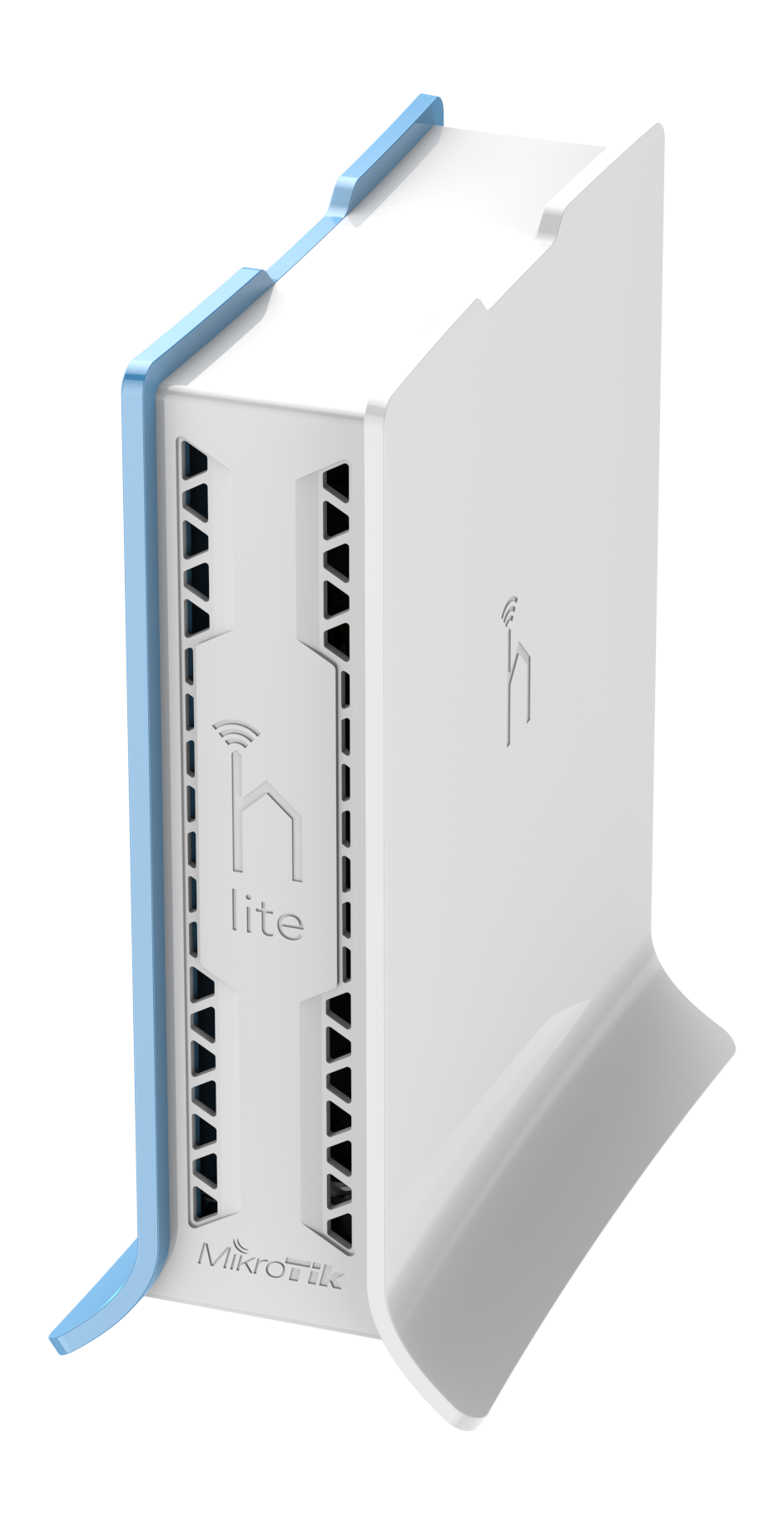

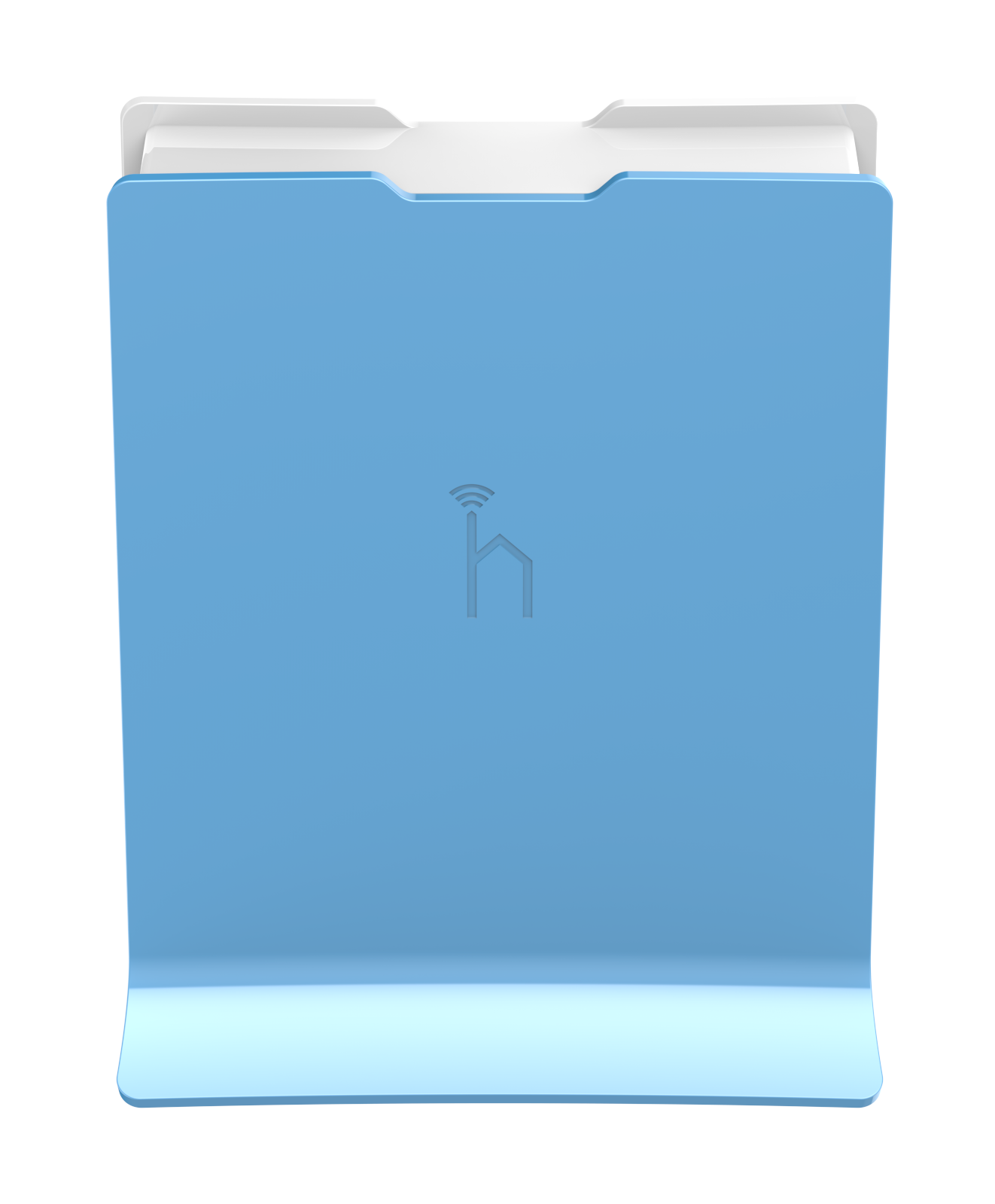

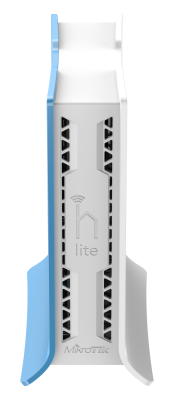

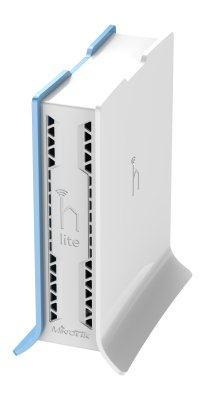

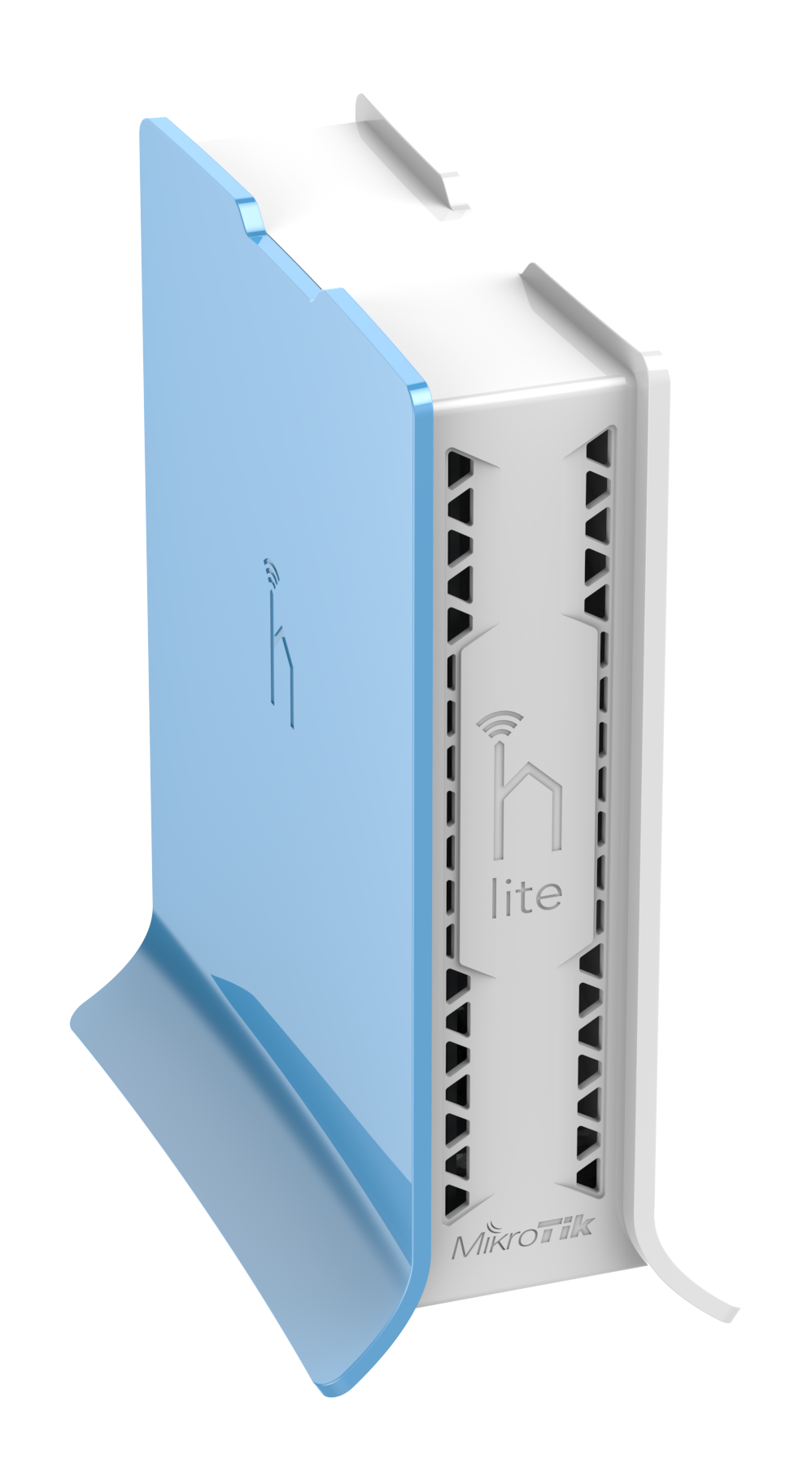

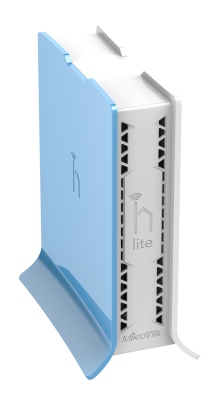

MikroTik RB941-2nD-TC - hAP lite TC
Product.Nr.: RB941-2nD-TC
Manufacturer: MikroTik
https://mikrotik.com/product/RB941-2nD-TC
23,50 EUR
incl. 19 % VAT
-
Bestellung möglich, geringer Lagerbestand.
- weight 0,25 kg
product description
#1: RB941-2nD-TC - hAP lite TC
The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RB941-2nD-TC (hAP lite TC) | |
| 1x | 5V 1A Netzteil | (5V 1A power adapter) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RB941-2nD-TC
Architecture SMIPS
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9533-BL3A
RouterOS license 4
Operating System RouterOS
Size of RAM 32 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet

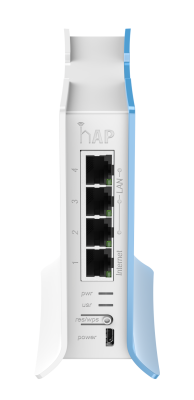

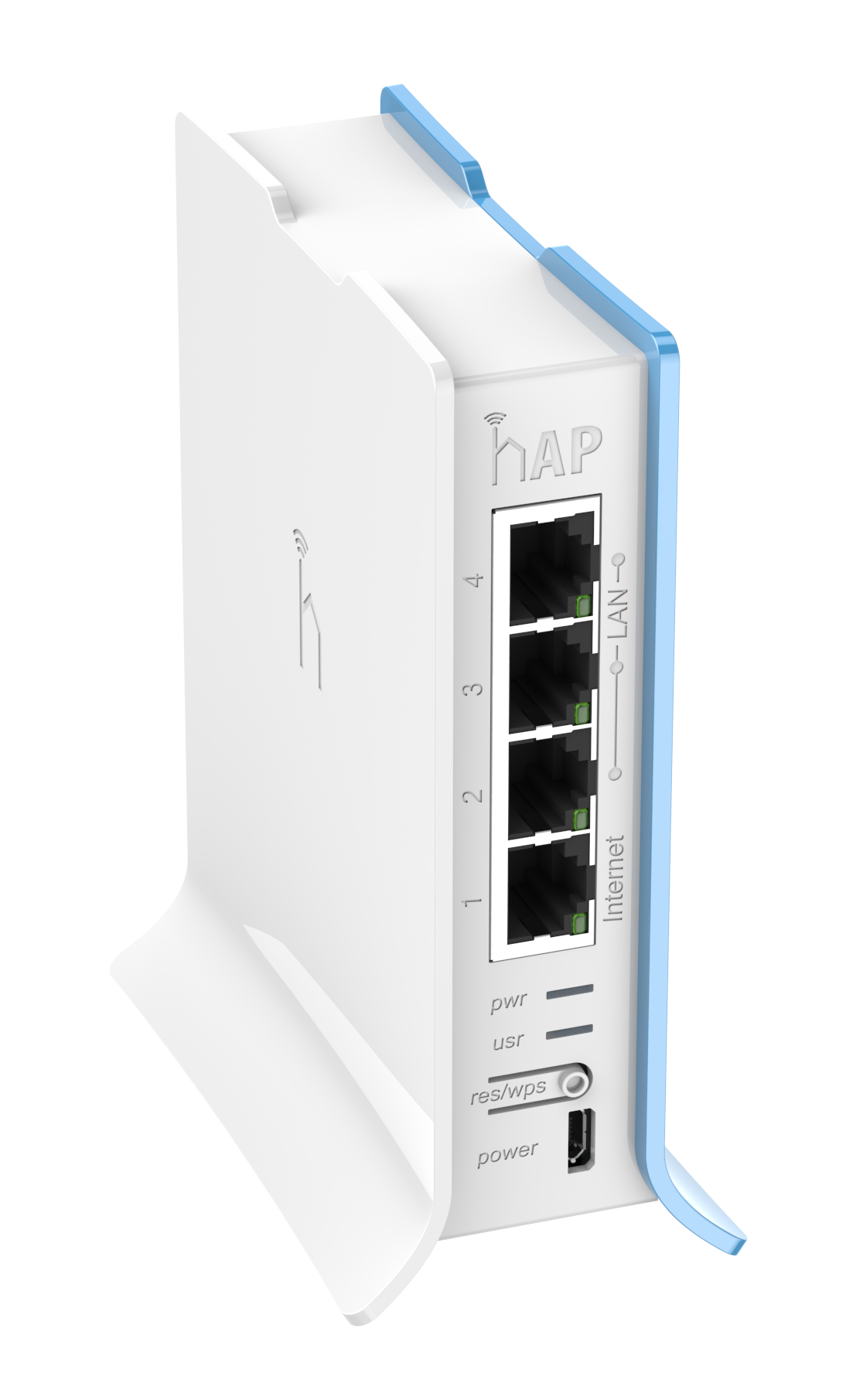

10/100 Ethernet ports 4
Powering
MicroUSB input Voltage 5 V
Number of DC inputs 1 (MicroUSB)
Max power consumption 3.5 W
Cooling type Passive
Certification & Approvals
Certification FCC, IC
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RB941-2nD-TC | QCA953x 100M four port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 32.5 | 394.7 | 93.9 | 384.6 | 430.2 | 220.3 |
| Bridging | 25 bridge filter rules | 32.5 | 394.7 | 83.4 | 341.6 | 82.2 | 42.1 |
| Routing | none (fast path) | 32.5 | 394.7 | 93.9 | 384.6 | 221.1 | 113.2 |
| Routing | 25 simple queues | 32.5 | 394.7 | 93.9 | 384.6 | 118.7 | 60.8 |
| Routing | 25 ip filter rules | 32.5 | 394.7 | 53.9 | 220.8 | 53.9 | 27.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 22 | -96 |
| 11Mbit/s | 22 | -89 |
| 6Mbit/s | 20 | -93 |
| 54Mbit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
#5: Produktinformationen & Hilfe | Product informations & Help
Produktspezifische Links - Product-specific links:
| Bedienungsanleitung | User Manual | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Konformitätserklärung | Declaration of Conformity (DoC) | Öffnen | Open |
| FCC 2.4GHz Genehmigung | FCC 2.4GHz | Öffnen | Open |
