MikroTik E60iUGS - hEX S - 2025
Product.Nr.: E60iUGS
Manufacturer: MikroTik
https://mikrotik.com/product/hex_s_2025
66,64 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 0,45 kg
product description
#1: E60iUGS - hEX S - 2025
Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

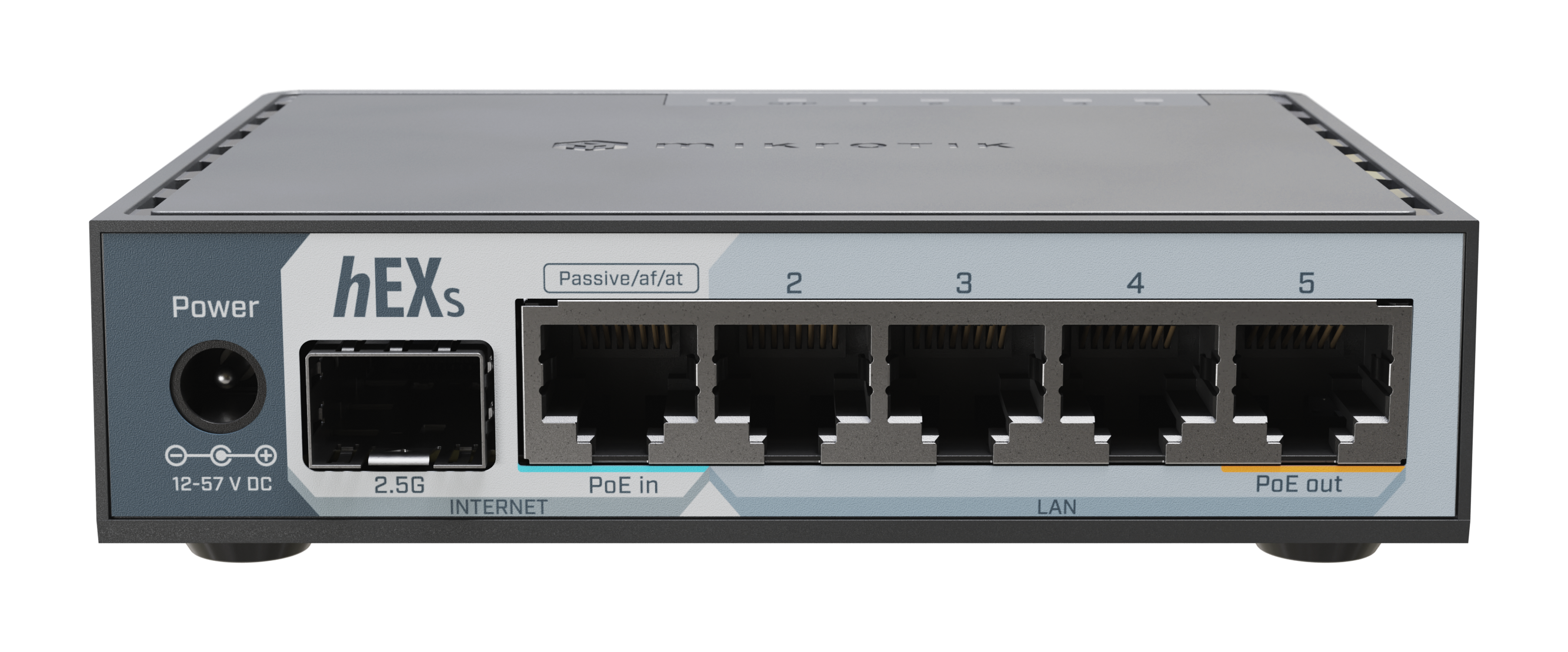

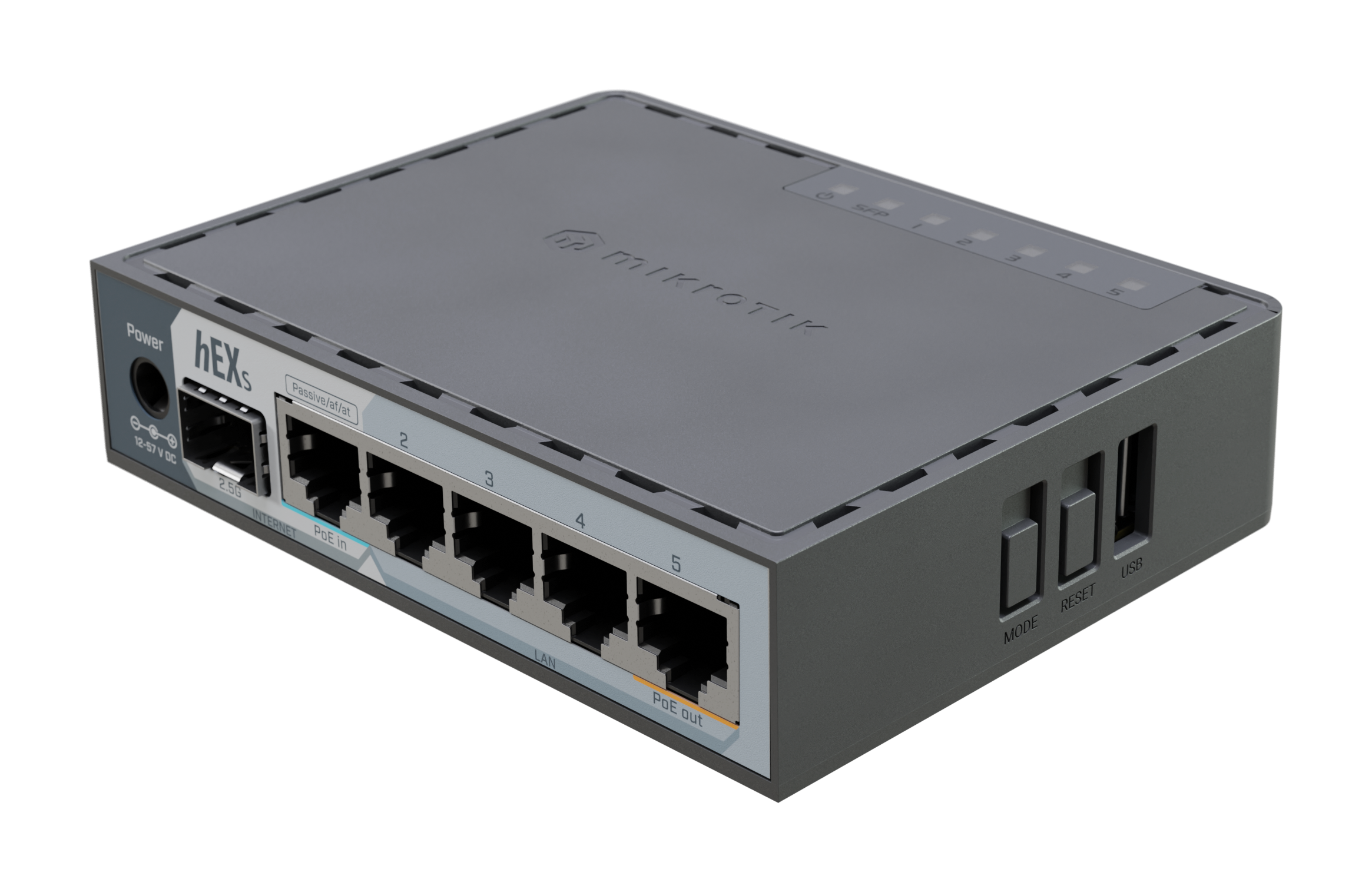

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more — so you can build the wired network you’ve always wanted.
#2: Included in delivery
- 1x E60iUGS
- 1x 24V 1,2A power supply
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | E60iUGS |
| Architecture | ARM 64bit |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7562CT |
| RouterOS license | 4 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
#4: Test results according to RFC2544
Ethernet test results
| E60iUGS | EN7562CT 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219 |
| Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5 |
| Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1 |
| Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5 |
| Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| E60iUGS | EN7562CT IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#5: Product video, files & tips
- Product video: https://youtu.be/viJ3td6GsYI
- SFP compatibility list: https://help.mikrotik.com/docs/display/ROS/MikroTik+wired+interface+compatibility
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
E60iUGS-Brochure.pdf (2.09 MB)
E60iUGS-Declaration-of-conformity-CE.pdf (2.30 MB)
E60iUGS-Block-Diagramm.pdf (0.02 MB)
