MikroTik RBwAPG-60ad kit - Wireless Wire
Product.Nr.: RBwAPG-60adkit
Manufacturer: MikroTik
https://mikrotik.com/product/wireless_wire
214,20 EUR
incl. 19 % VAT
-
- delivery time sofort lieferbar
- weight 1,5 kg

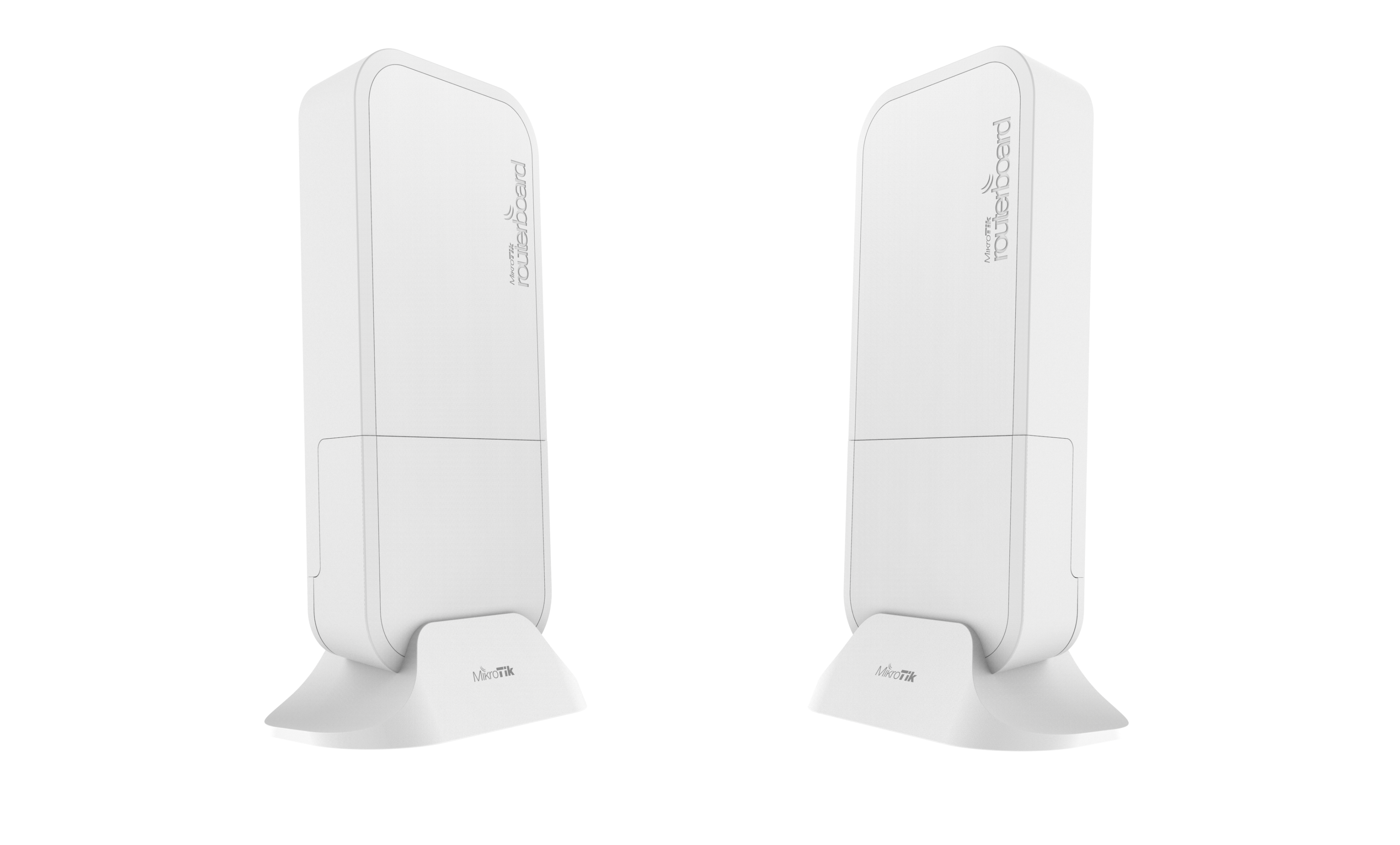

#1: RBwAPG-60ad kit - Wireless Wire
The Wireless Wire is a ground breaking solution which offers fiber speed and quality for a fraction of the price. This amazing kit replaces your Gigabit ethernet cable with two small devices that connectto each other over a 60 GHz wireless link.Simply point the included devices at one another and power them on, it will make a 1 Gbit full duplex link to instantly replace your cable - this is why we call it the Wireless Wire!
The Wireless Wire makes secure AES encrypted 60 GHzwireless link that is not affected by the crowded WiFi spectrum, offering a stable and fast link for distances of 200 meters or more. The box includes twowAP60G devices that are already paired together,a wall mounting kit, straps for pole mounting andalso a pair of table stands for using the devicesindoors. The link will even work through mostwindows, depending on their material.
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBwAPG-60adkit (Wireless Wire) | |
| 1x | 24V 0,38A Netzteil | (24V 0.38A power supply) |
| 1x | Gigabit PoE Injektor | (Gigabit PoE injector) |
| 1x | Kabelbinder | (Plastic zip tie) |
| 1x | wAP Tischaufsteller | (wAP desktop stand) |
| 1x | wAP Deckenhalterung | (wAP ceiling mount bracket) |
| 1x | Ringschelle aus Metall | (Metal ring (one)) |
| 1x | K-52 Befestigungsset | (K-52 fastening set) |
- Es handelt sich um ein Set aus zwei Geräten, die ab Werk vorkonfiguriert und einsatzbereit sind
- In unserem Blog finden Sie viele Hinweise zur bestmöglichen Montage und auf was es ankommt: 60GHz - Best practise
#3: Spezifikationen - Technische Details
Product code RBwAPG-60adkit
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
CPU Threads count 4
Dimensions 185 x 85 x 30 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 5 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 12-57 V
Ethernet
10/100/1000 Ethernet ports 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP55
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

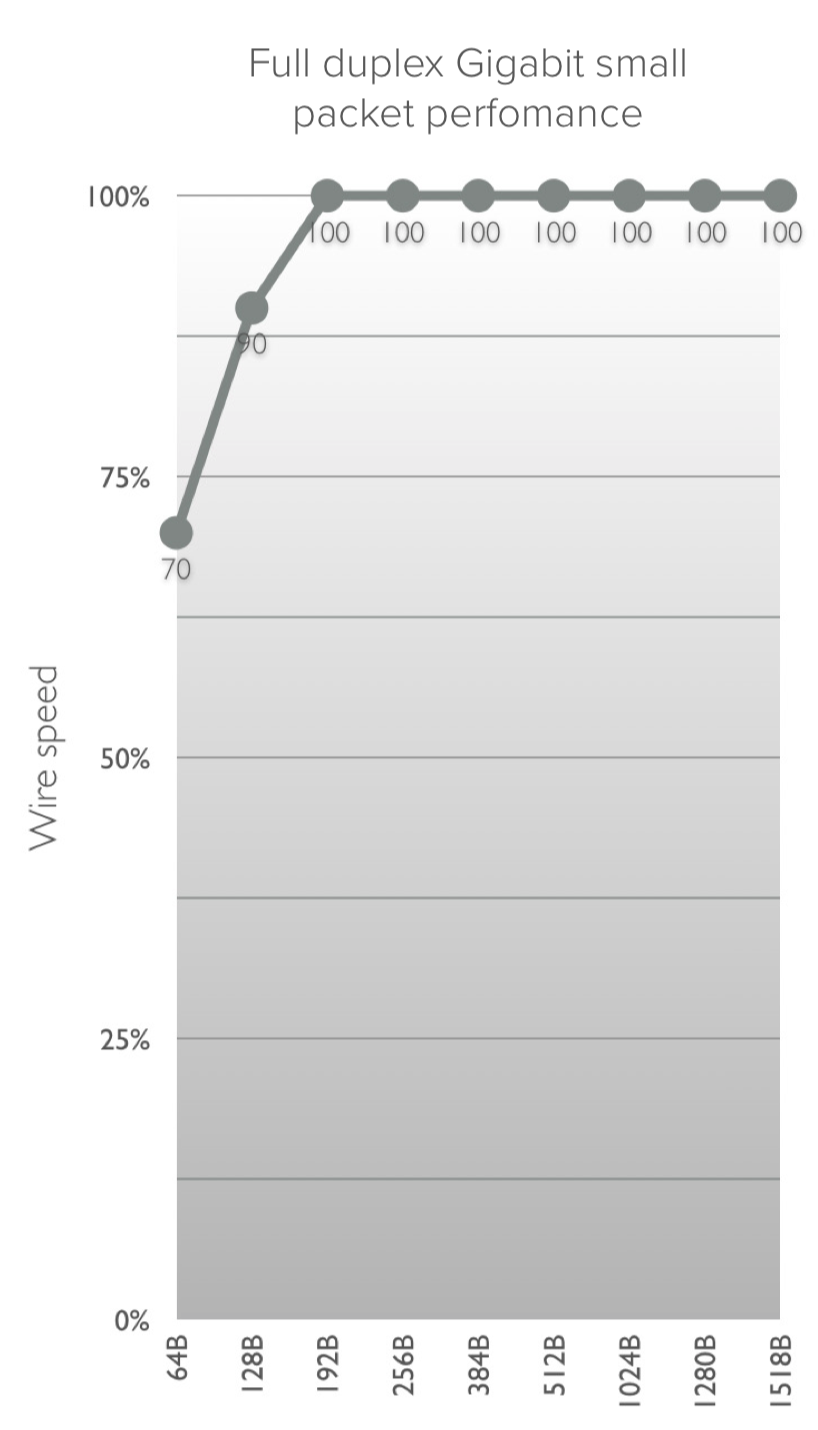

#4: Test Resultate nach RFC2544 | Test results according to RFC2544
-
#5: Produktinformationen & Hilfe | Product informations & Help
Produktspezifische Links - Product-specific links:
| Konformitätserklärung | Declaration of Conformity (DoC) | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Bedienungsanleitung | User Manual | Öffnen | Open |
| FCC Genehmigung | FCC | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
Sonstige, hilfreiche Links - Other useful links:
| Softwarehandbuch [RouterOS] | Software manual [RouterOS] | Öffnen | Open |
| Software/Updates [RouterOS, SwOS & CHR] | Software/Updates [RouterOS, SwOS & CHR] | Öffnen | Open |
| Kompatibilität mit SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56-DD | Compatibility with SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56-DD | Öffnen | Open |
| Blog [RouterOS, 60GHz, RMA, ...] | Blog [RouterOS, 60GHz, RMA, ...] | Öffnen | Open |
