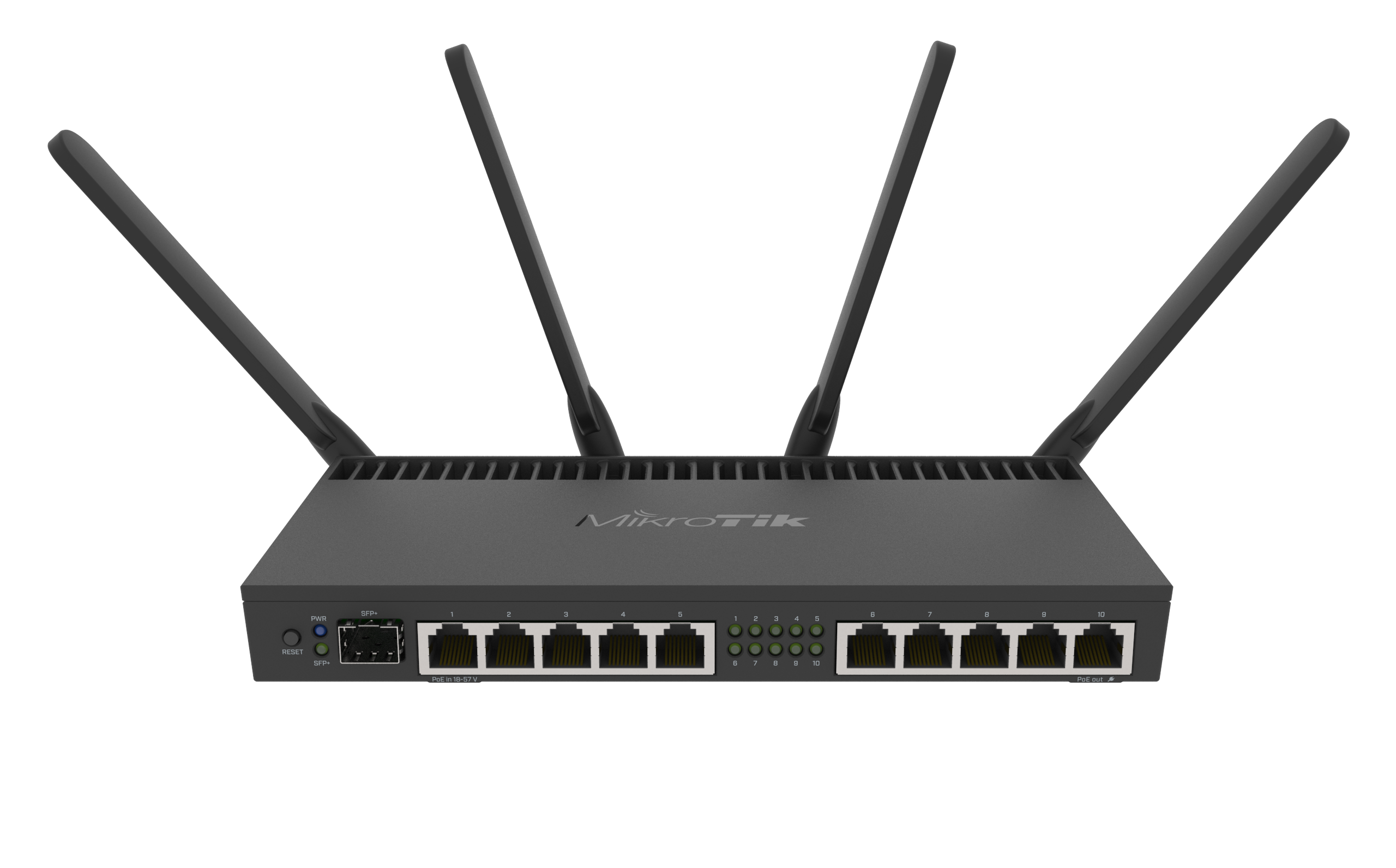

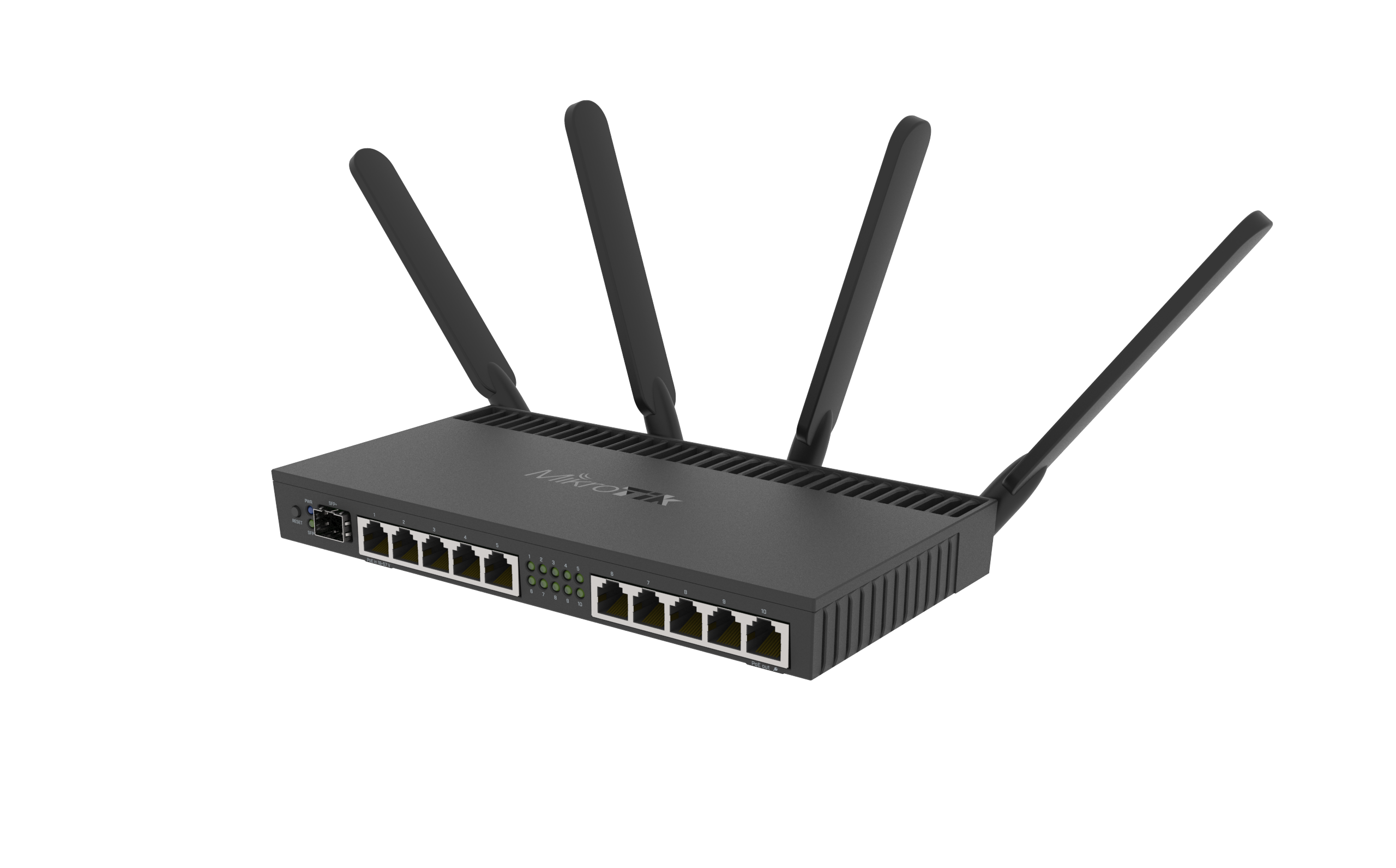

MikroTik RB4011iGS+5HacQ2HnD-IN
Product.Nr.: RB4011iGS+5HacQ2HnD-IN
Manufacturer: MikroTik
https://mikrotik.com/product/rb4011igs_5hacq2hnd_in
253,99 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- delivery time available
- weight 1,4 kg
product description
#1: RB4011iGS+5HacQ2HnD-IN
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
- RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RB4011iGS+5HacQ2HnD-IN | |
| 1x | 24V 2,5A Netzteil | (24V 2.5A power adapter) |
| 1x | Kaltgerätekabel | (IEC cord) |
| 1x | Befestigungsschrauben-Set K-59 | (K-59 kit) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RB4011iGS+5HacQ2HnD-IN
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency auto (533 - 1900) MHz
CPU Threads count 4
Switch chip model RTL8367SB
Dimensions 228 x 120 x 30 mm
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 45°C
Wireless capabilities
Wireless 5 GHz Max data rate 1733 Mbit/s
Wireless 5 GHz Number of chains 4
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model QCA9984
Wireless 5 GHz generation Wi-Fi 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model R11e-2HnD
Wireless 2.4 GHz generation Wi-Fi 4
WiFi speed AC2000
Ethernet
10/100/1000 Ethernet ports 10
Fiber
SFP+ ports 1
Peripherals
MiniPCI-e slots 1
Serial console port RJ45
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 44 W
Max power consumption without attachments 23 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 18-57 V
PoE-out
PoE-out ports Ether10
PoE out Passive PoE up to 57V
Low voltage PoE-Out current limit 600 mA
High voltage PoE-Out current limit 420 mA
Max total out (A) 600 mA
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RB4011iGS+5HacQ2HnD-IN | AL21400 1G/S+ all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 806,4 | 9,792.9 | 2312,9 | 9,473.6 | 5509,7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 806,4 | 9,792.9 | 1037,4 | 4,249.2 | 1153,2 | 590.4 |
| Routing | none (fast path) | 806,4 | 9,792.9 | 1923,3 | 7,877.8 | 5092,3 | 2,607.3 |
| Routing | 25 simple queues | 806,4 | 9,792.9 | 1046,6 | 4,286.9 | 960,3 | 491.7 |
| Routing | 25 ip filter rules | 593,7 | 7,209.9 | 625,2 | 2,560.8 | 564,6 | 289.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RB4011iGS+5HacQ2HnD-IN | AL21400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 92.1 | 1031.5 | 93.1 | 381.3 | 92.3 | 47.3 |
| 256 tunnels | AES-128-CBC + SHA1 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-128-CBC + SHA256 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
