Manufacturer: MikroTik

MikroTik RB750r2 - hEX lite

Product.Nr.: RB750r2

Manufacturer: MikroTik

43,90 EUR
incl. 19 % VAT

  • Sofort versandfähig Sofort versandfähig
  • weight 0,28 kg

product description

#1: RB750r2 - hEX lite

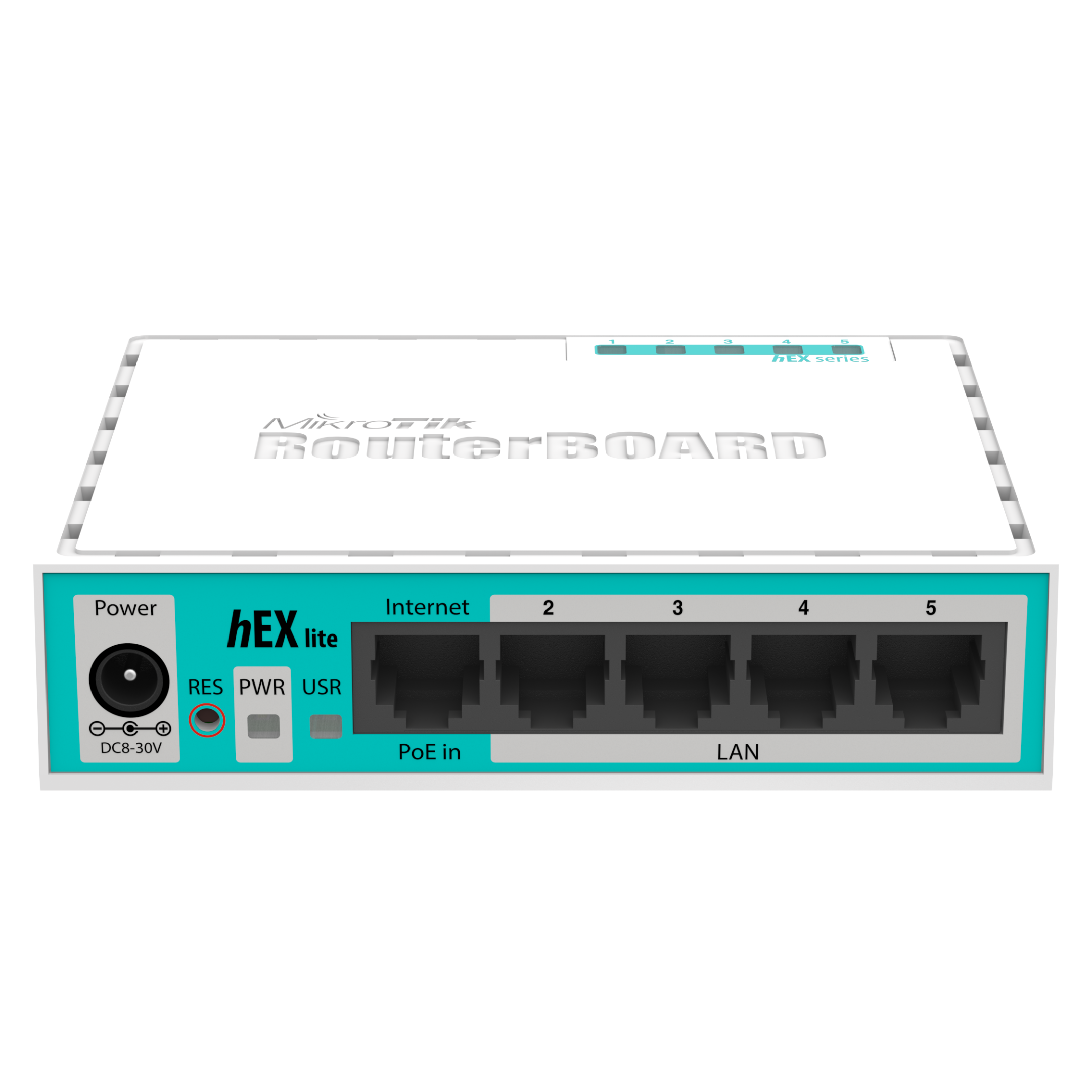

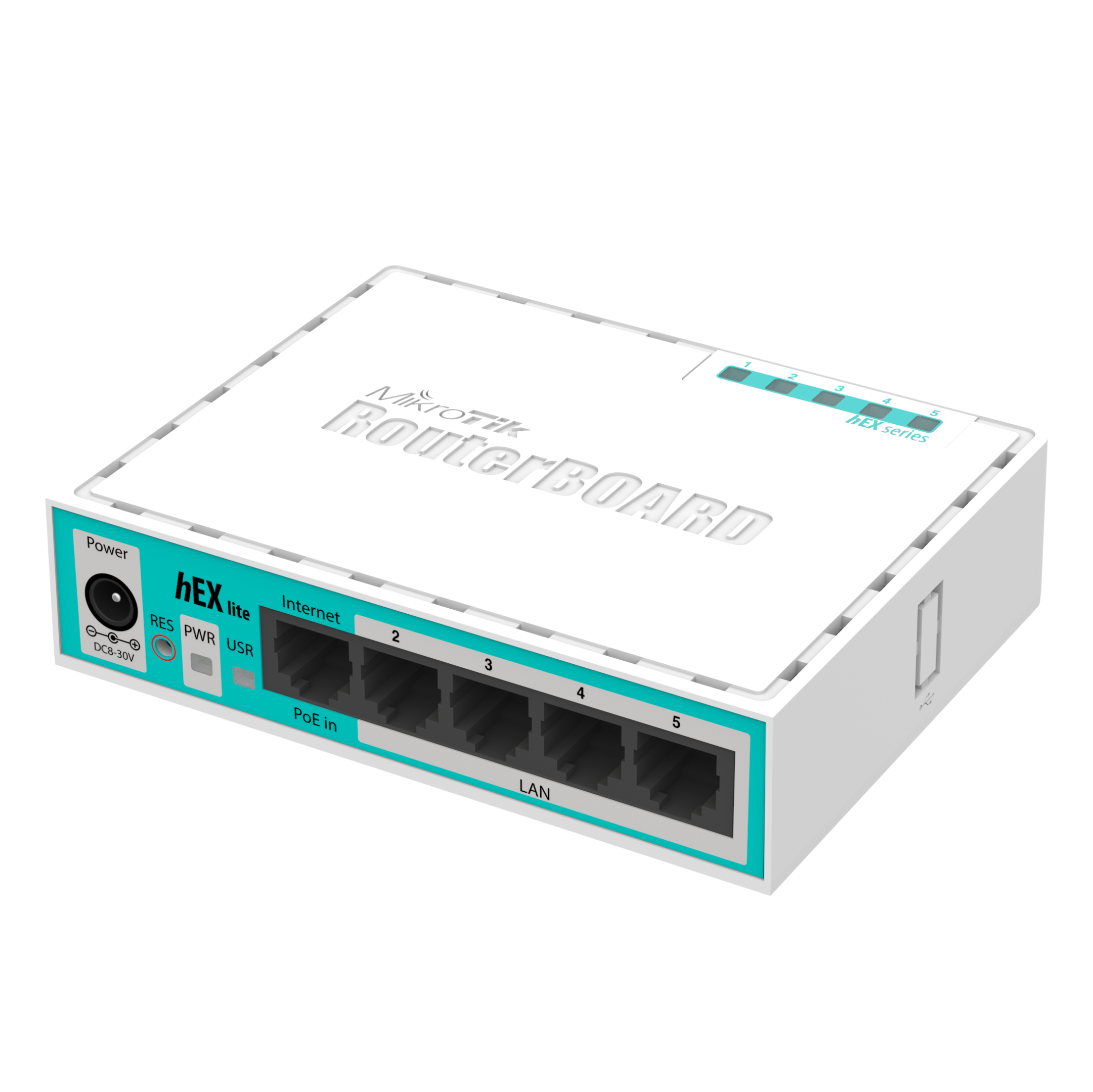

hEX lite is a small five port ethernet router in a nice plastic case. Its price is lower than the RouterOS license alone - there simply is no choice when it comes to managing your wired home network, the RB750r2 (hEX lite) has it all. Not only it’s affordable, small, good looking and easy to use - It’s probably the most affordable MPLS capable router on the market! No more compromise between price and features - RB750r2 has both. With its compact design and clean looks, it will fit perfectly into any SOHO environment. Box contains: hEX lite in a plastic case, power supply.


#2: Included in delivery

  • 1x RB750r2 (hEX lite)
  • 1x 24V 0,38A power supply


#3: Specifications - Technical details

Details
Product code RB750r2
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 850 MHz
Switch chip model QCA9533
Dimensions 113x89x28mm. Weight without packaging and cables: 129g
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 6-30 V
Max power consumption 2 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 6-30 V

Ethernet

Details
10/100 Ethernet ports 5

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20



#4: Test results according to RFC2544

Ethernet test results

RB750r2 QCA9531 (850Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 234.8 120.2
Bridging 25 bridge filter rules 40.6 493.0 90.4 370.3 94.3 48.3
Routing none (fast path) 40.6 493.0 117.4 480.9 217.8 111.5
Routing 25 simple queues 40.6 493.0 98.9 405.1 101.2 51.8
Routing 25 ip filter rules 40.6 493.0 52.0 213.0 52.7 27.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



#5: Product video, files & tips


Downloads
