MikroTik RB960PGS - hEX PoE
Product.Nr.: RB960PGS
Manufacturer: MikroTik
https://mikrotik.com/product/RB960PGS
81,52 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- delivery time available
- weight 0,76 kg
product description
#1: RB960PGS - hEX PoE

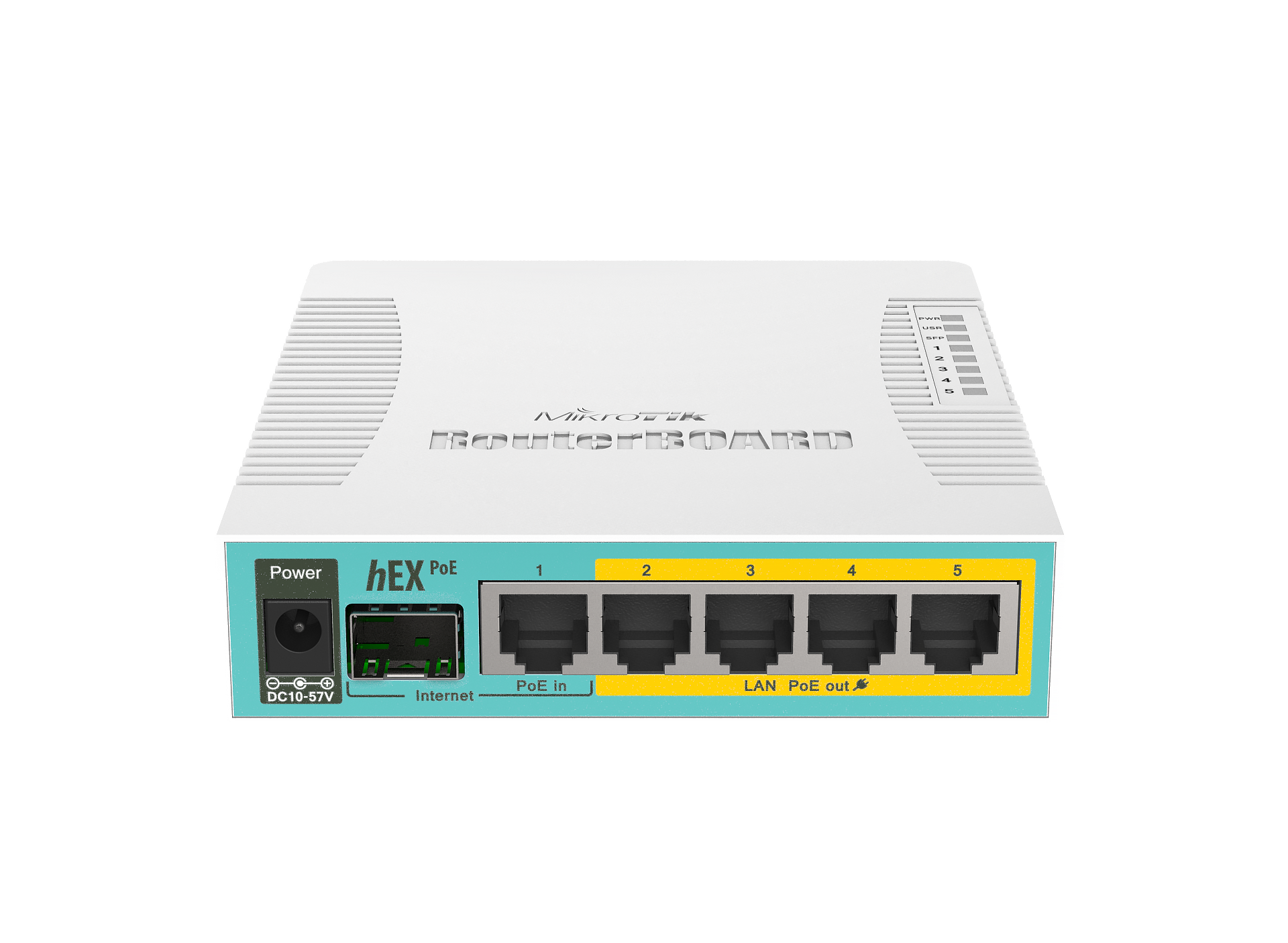

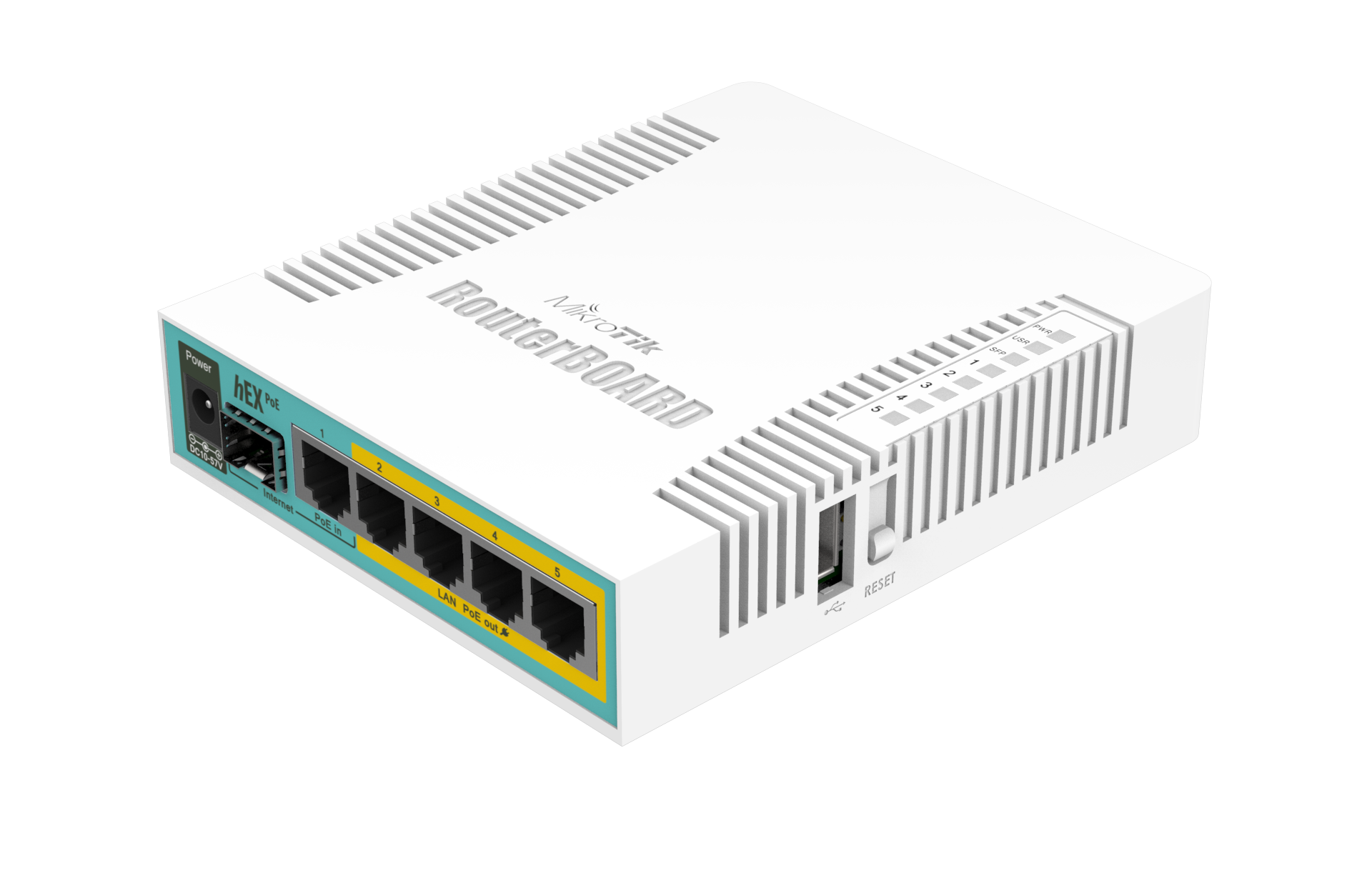

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | hEX PoE - RB960PGS | |
| 1x | 24V 2,5A Netzteil | 24V 2.5A power adapter) |
| 1x | Kaltgerätekabel | (IEC cord) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RB960PGS
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model QCA8337
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 12-57 V
PoE-out
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Low voltage PoE-Out current limit 1 A
High voltage PoE-Out current limit 450 mA
Max total out (A) 2 A
Ethernet
10/100/1000 Ethernet ports 5
Fiber
SFP ports 1
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP IP20
Note
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RB960PGS | QCA9557 (800Mhz) 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1,966.1 | 401.5 | 1,644.5 | 542.3 | 277.7 |
| Bridging | 25 bridge filter rules | 143.2 | 1,739.0 | 145.5 | 596.0 | 146.2 | 74.9 |
| Routing | none (fast path) | 161.9 | 1,966.1 | 396.3 | 1,623.2 | 521.7 | 267.1 |
| Routing | 25 simple queues | 161.9 | 1,966.1 | 217.2 | 889.7 | 216.0 | 110.6 |
| Routing | 25 ip filter rules | 74.6 | 905.9 | 78.0 | 319.5 | 76.5 | 39.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
