MikroTik CRS354-48P-4S+2Q+RM
Product.Nr.: CRS354-48P-4S+2Q+RM
Manufacturer: MikroTik
https://mikrotik.com/product/crs354_48p_4s_2q_rm
928,20 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- In stock 6
- weight 8,4 kg
product description
#1: CRS354-48P-4S+2Q+RM
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

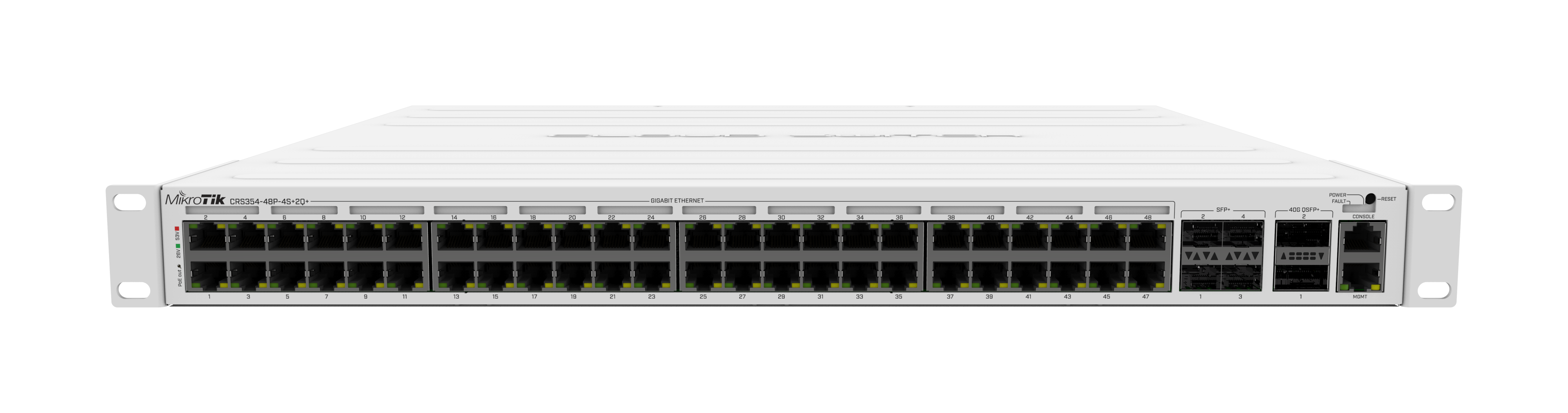

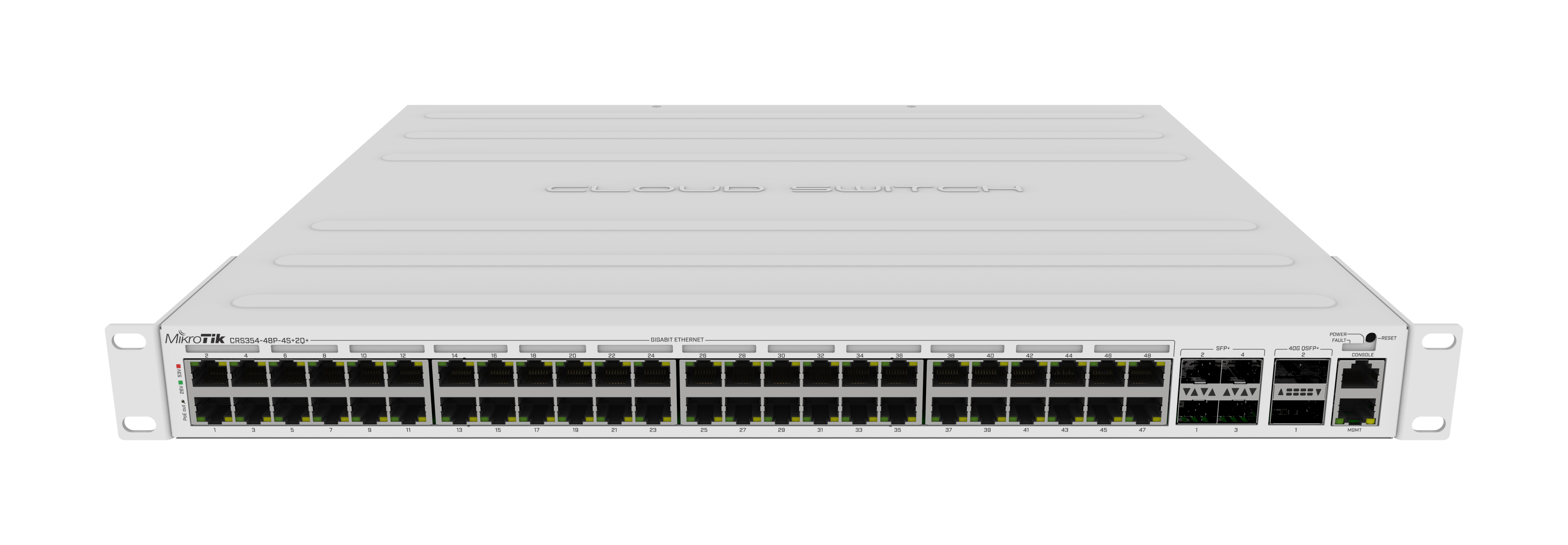

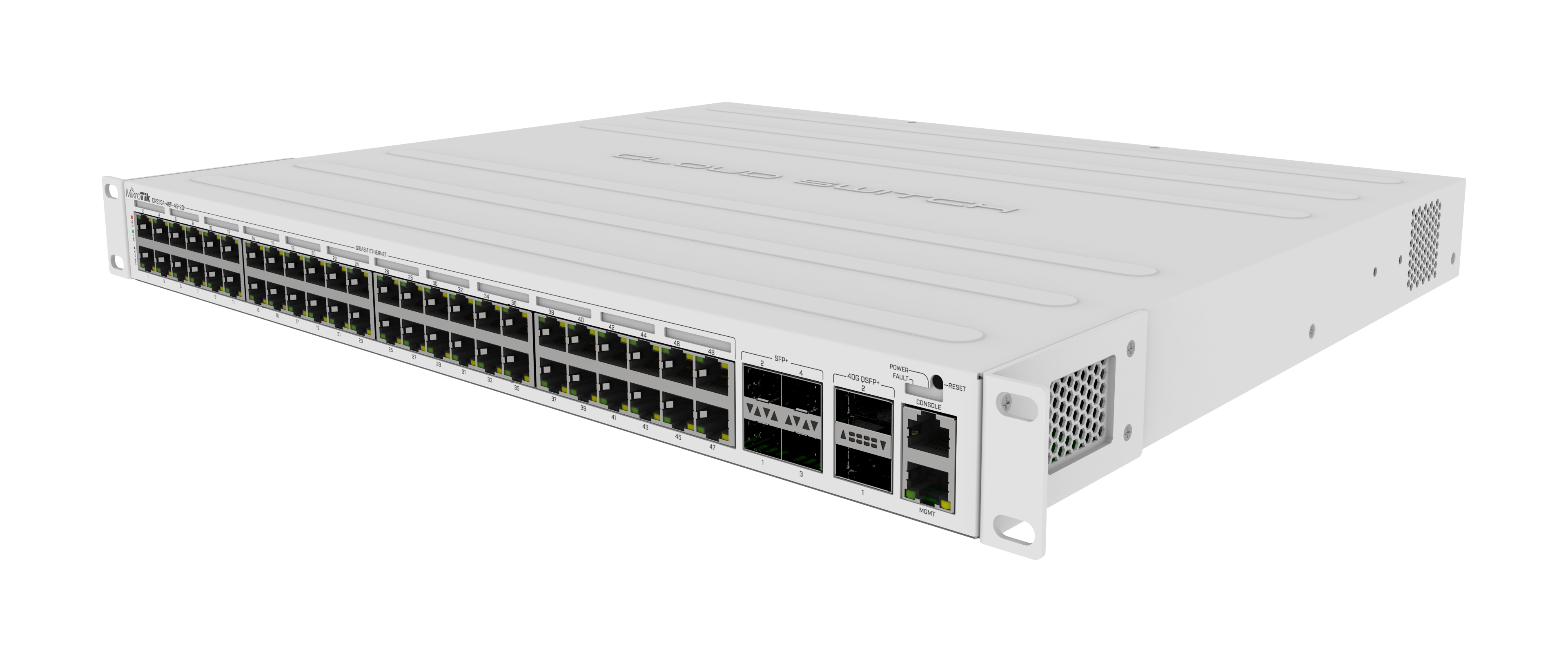

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
#2: Included in delivery
- 1x CRS354-48P-4S+2Q+RM
- 1x IEC Cord
- 1x Cable management brackets
- 1x rackmount ears (CRS354)
- 2x rackmount rear support ears
- 1x K-48 fastening set
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | CRS354-48P-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | 98DX3257 |
| Dimensions | 443 x 382 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Max power consumption | 800 W |
| Max power consumption without attachments | 85 W |
| Cooling type | 4 fans |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether48 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 570 mA |
| Total output current | 27A at 26V OR 13.2A at 53V |
| Total output power | 700W |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
#4: Test results according to RFC2544
Switching results
| CRS354-48P-4S+2Q+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13,662.2 | 165,914.0 | 39,497.2 | 161,780.5 | 250,148.8 | 128,076.2 |
| Switching | Non blocking Layer 2 capacity | 13,662.2 | 331,828.1 | 39,497.2 | 323,560.9 | 250,148.8 | 256,152.4 |
| Switching | Non blocking Layer 1 throughput | 13,662.2 | 168,100.0 | 39,497.2 | 168,100.0 | 250,148.8 | 168,100.0 |
| Switching | Non blocking Layer 1 capacity | 13,662.2 | 336,200.0 | 39,497.2 | 336,200.0 | 250,148.8 | 336,200.0 |
Ethernet test results
| CRS354-48P-4S+2Q+RM | QCA9531 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 37,4 | 454.2 | 82,8 | 339.1 | 162,5 | 83.2 |
| Bridging | 25 bridge filter rules | 33,8 | 410.5 | 47,8 | 195.8 | 75,6 | 38.7 |
| Routing | none (fast path) | 37,2 | 451.8 | 73,3 | 300.2 | 144,9 | 74.2 |
| Routing | 25 simple queues | 36,4 | 442.0 | 52,4 | 214.6 | 54,4 | 27.9 |
| Routing | 25 ip filter rules | 33,8 | 410.5 | 41,4 | 169.6 | 41,7 | 21.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Product video: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
Downloads
CRS354-48P-4S2QRM-Brochure.pdf (0.63 MB)
CRS354-48P-4S2QRM-Block-Diagramm.pdf (0.12 MB)
