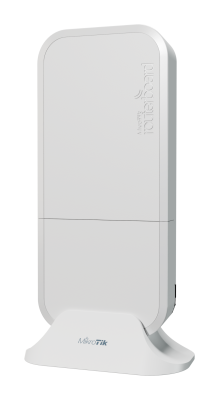

MikroTik RBwAPG-5HaxD2HaxD - wAP ax
Product.Nr.: wAPG-5HaxD2HaxD
Manufacturer: MikroTik
https://mikrotik.com/product/wap_ax
75,90 EUR
RRP 83,18 EUR
you save 8.8% (7,28 EUR)
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 0,8 kg
product description
#1: wAPG-5HaxD2HaxD - wAP ax
wAP ax: Fast and Reliable Wi-Fi 6 for Challenging Environments
wAP ax brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environments – like a rural gas station or a bus stop. wAP’s legendary weatherproof form-factor has been tested for several generations all across the globe, and remains a favorite among MikroTik users for its simplicity and durability.
A mighty dual-band, dual-chain (2x2 MIMO) radio ensures fast and reliable wireless connection both indoors and outdoors.
Wi-Fi 6: More Than Just Speed
Without a doubt – Wi-Fi 6 is much faster in both 2.4 GHz spectrum (speed increase up to 90%!) and 5 GHz spectrum (up to 40% faster!), but there’s so much more to it. Wi-Fi 6 offers significantly improved energy efficiency and security. OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection help prevent all sorts of attacks, like brute-forcing and Deauthentication Attacks.
And, if you have multiple wAP ax devices over a larger area, you’ll enjoy the improved seamless fast transition roaming – your devices will switch to the strongest signal… seamlessly!
Enhanced Hardware for Uninterrupted Connectivity and Simple Management
This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks.
The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.
Stealthy Design – Weatherproof and Vandalproof

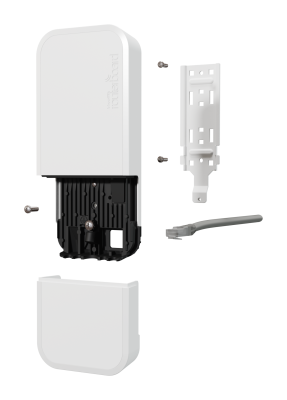

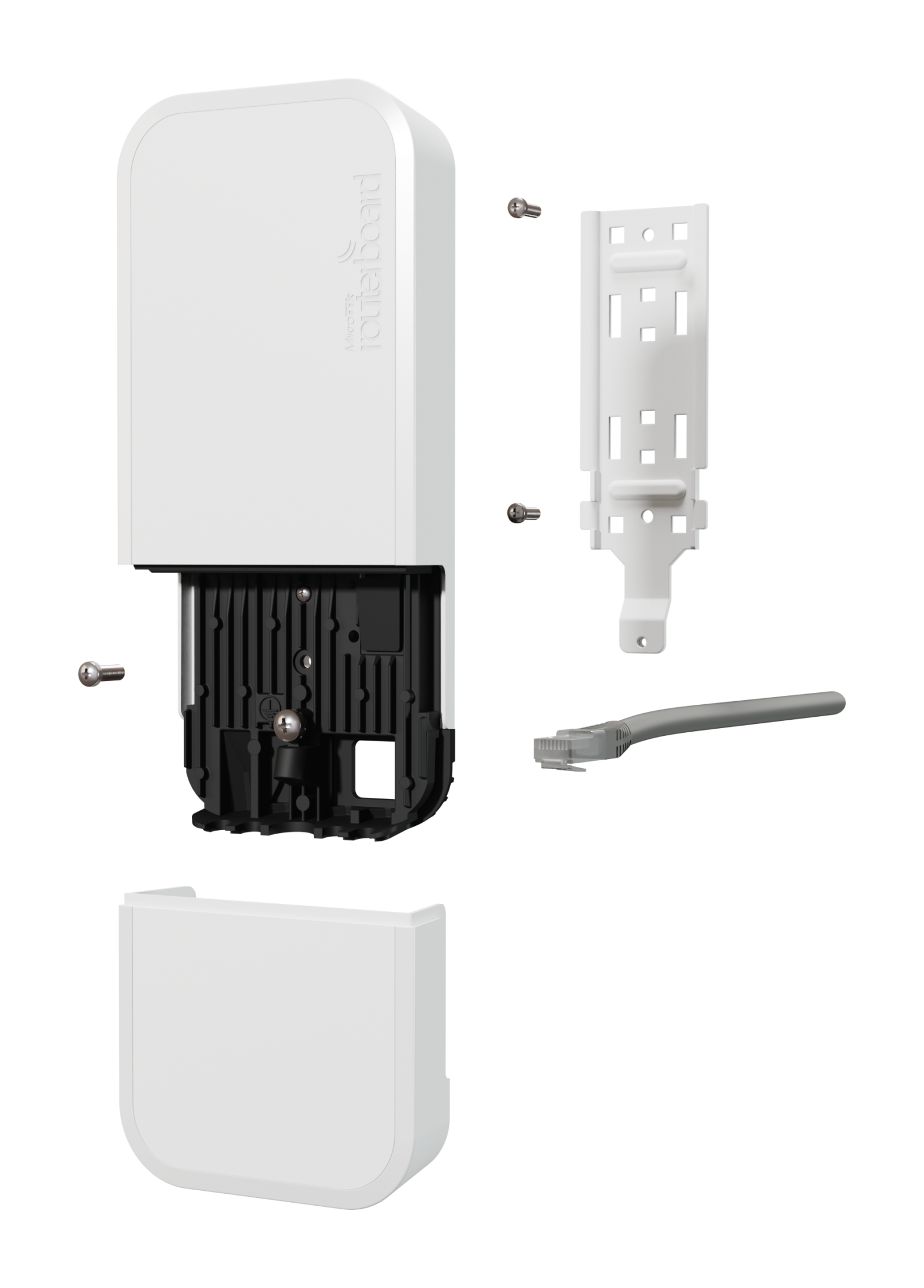

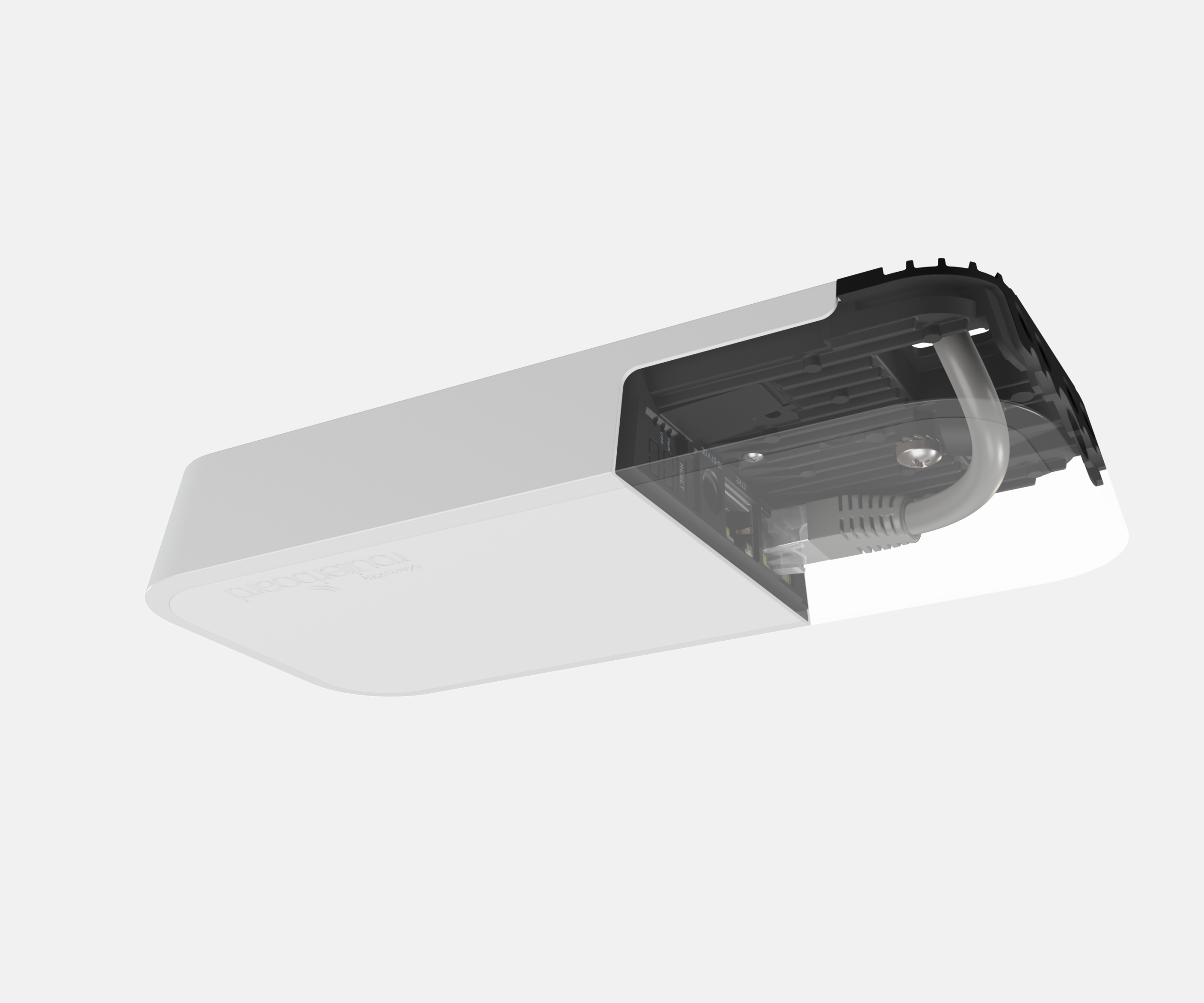

wAP ax is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case, and there is an opening at the back of the case for running the Ethernet cable directly through the wall, keeping the setup extra discreet and secure.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | wAPG-5HaxD2HaxD (wAP ax) | |
| 1x | 24V 0,8A Netzteil | (24V 0.8A power adapter) |
| 1x | Gigabit PoE Injektor | (Gigabit PoE injector) |

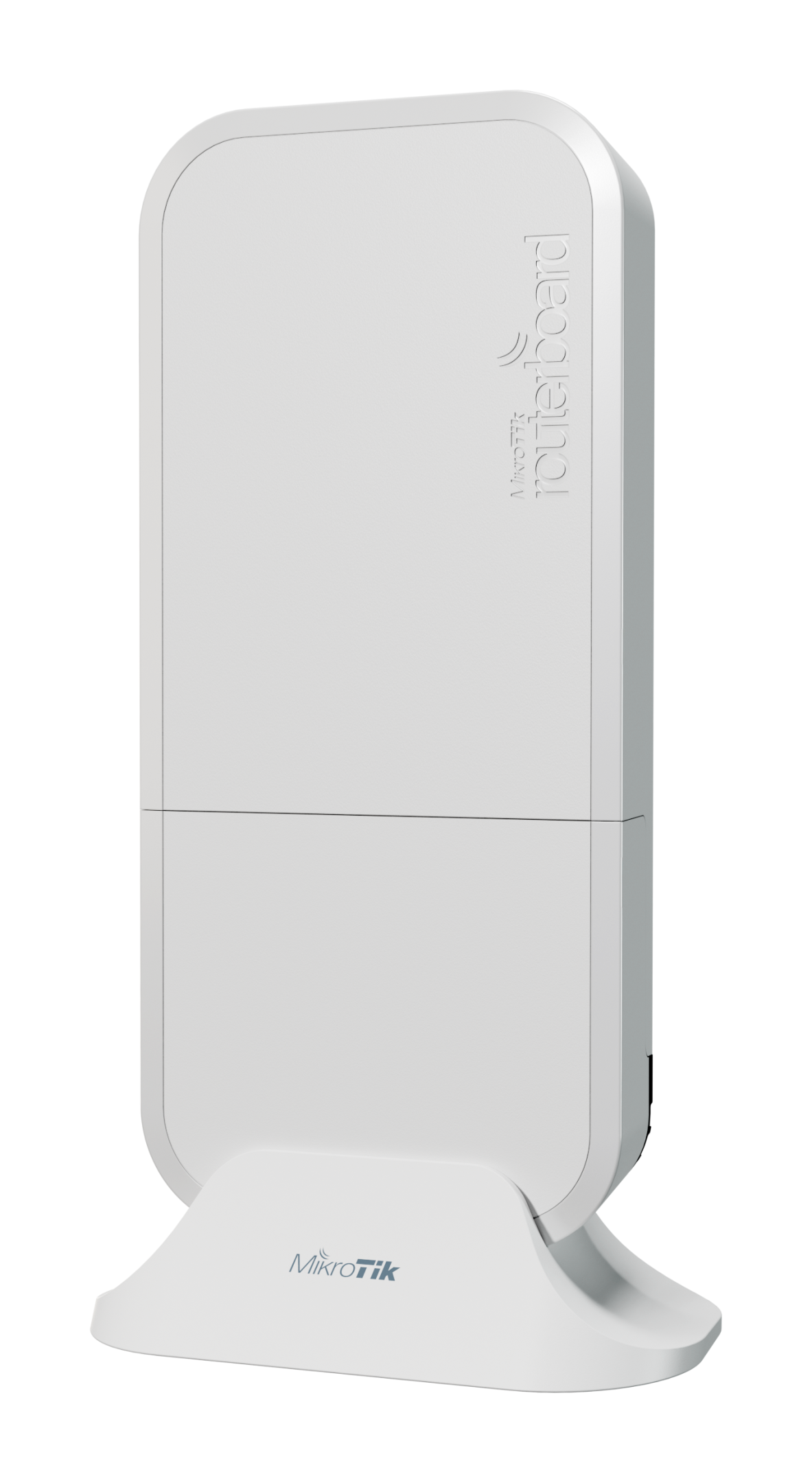

| 1x | wAP Tischständer | (wAP desktop stand) |
| 1x | K-52 Befestigungs-Set | (K-52 fastening set) |
| 1x | wAP Deckenhalterung | (wAP ceiling mount bracket) |
| 1x | wAP Halterung | (wAP mount) |
| 1x | Schlauchschelle (Metall) | (Hose clamp) |
| 1x | Kunststoff-Kabelbinder | (Plastic zip tie) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code wAPG-5HaxD2HaxD
Architecture ARM 32bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
CPU Threads count 2
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 6.9
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 7
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX3000
Ethernet
10/100/1000 Ethernet ports 2
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 9 W
Max power consumption without attachments 9 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 18-57 V
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 54
Other
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| wAPG-5HaxD2HaxD | IPQ-5010 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 158.8 | 1928.5 | 412.9 | 1691.2 | 481.2 | 246.4 |
| Bridging | 25 bridge filter rules | 158.4 | 1923.6 | 212.2 | 869.2 | 217.1 | 111.2 |
| Routing | none (fast path) | 158.7 | 1927.3 | 258 | 1056.8 | 467.6 | 239.4 |
| Routing | 25 simple queues | 153.7 | 1866.5 | 168.3 | 689.4 | 169.2 | 86.6 |
| Routing | 25 ip filter rules | 117.3 | 1424.5 | 121 | 495.6 | 116.3 | 59.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 23 | -100 |
| 11Mbit/s | 23 | -94 |
| 6Mbit/s | 24 | -96 |
| 54Mbit/s | 20 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 18 | -70 |
| MCS11 | 17 | -67 |
| 5GHz | Transmit (dBm) | Receive Sensitivity |
| 6Mbit/s | 23 | -96 |
| 54Mbit/s | 20 | -78 |
| MCS0 | 23 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 18 | -70 |
| MCS11 | 16 | -67 |
