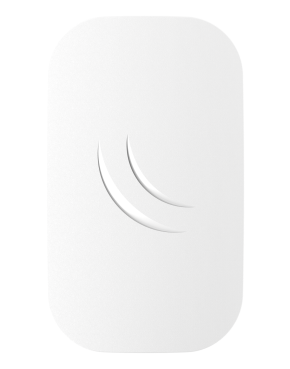

MikroTik RBcAPL-2nD - cAP lite
Product.Nr.: RBcAPL-2nD
Manufacturer: MikroTik
https://mikrotik.com/product/RBcAPL-2nD-307
29,50 EUR
incl. 19 % VAT
-
- weight 0,25 kg
#1: RBcAPL-2nD - cAP lite

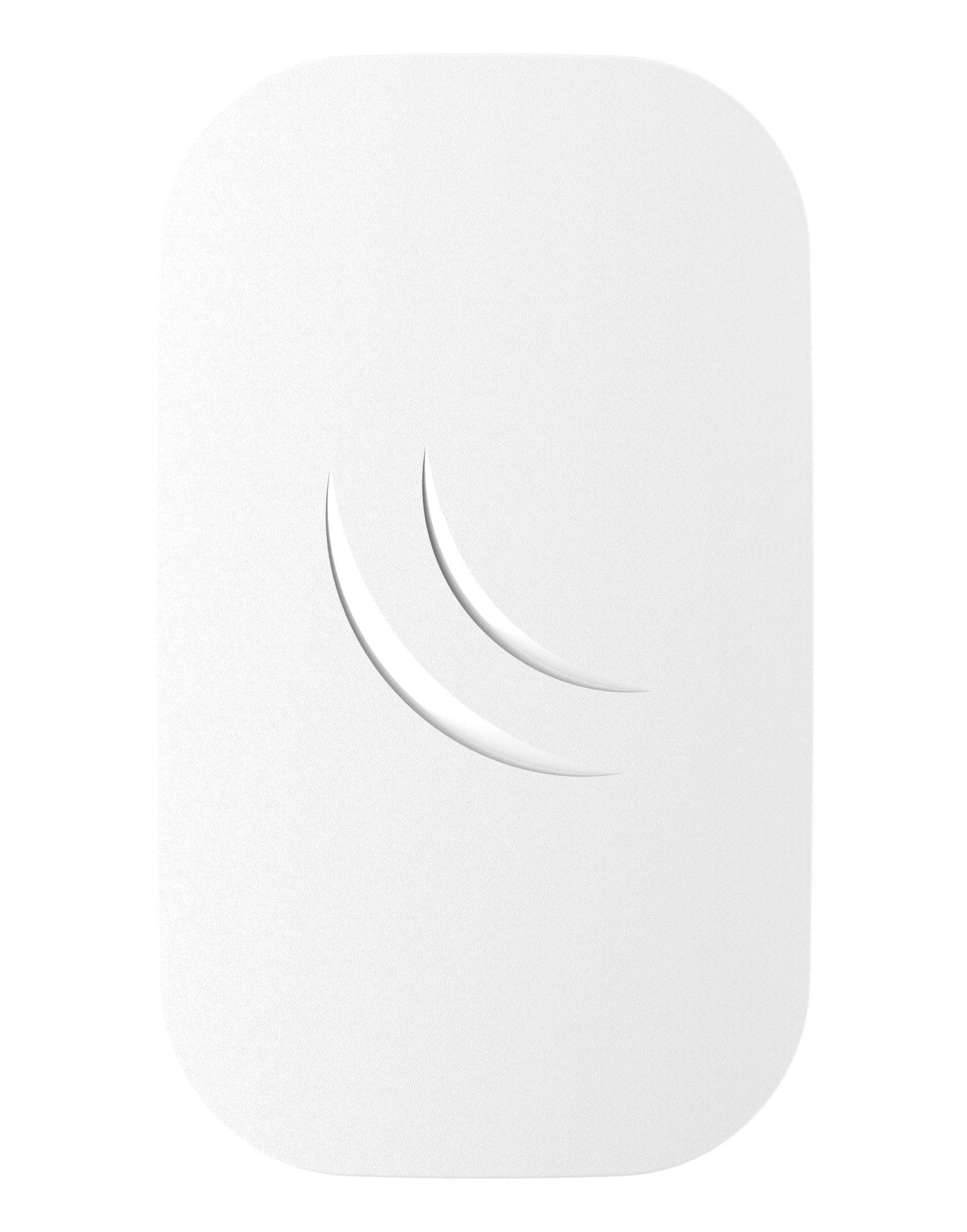

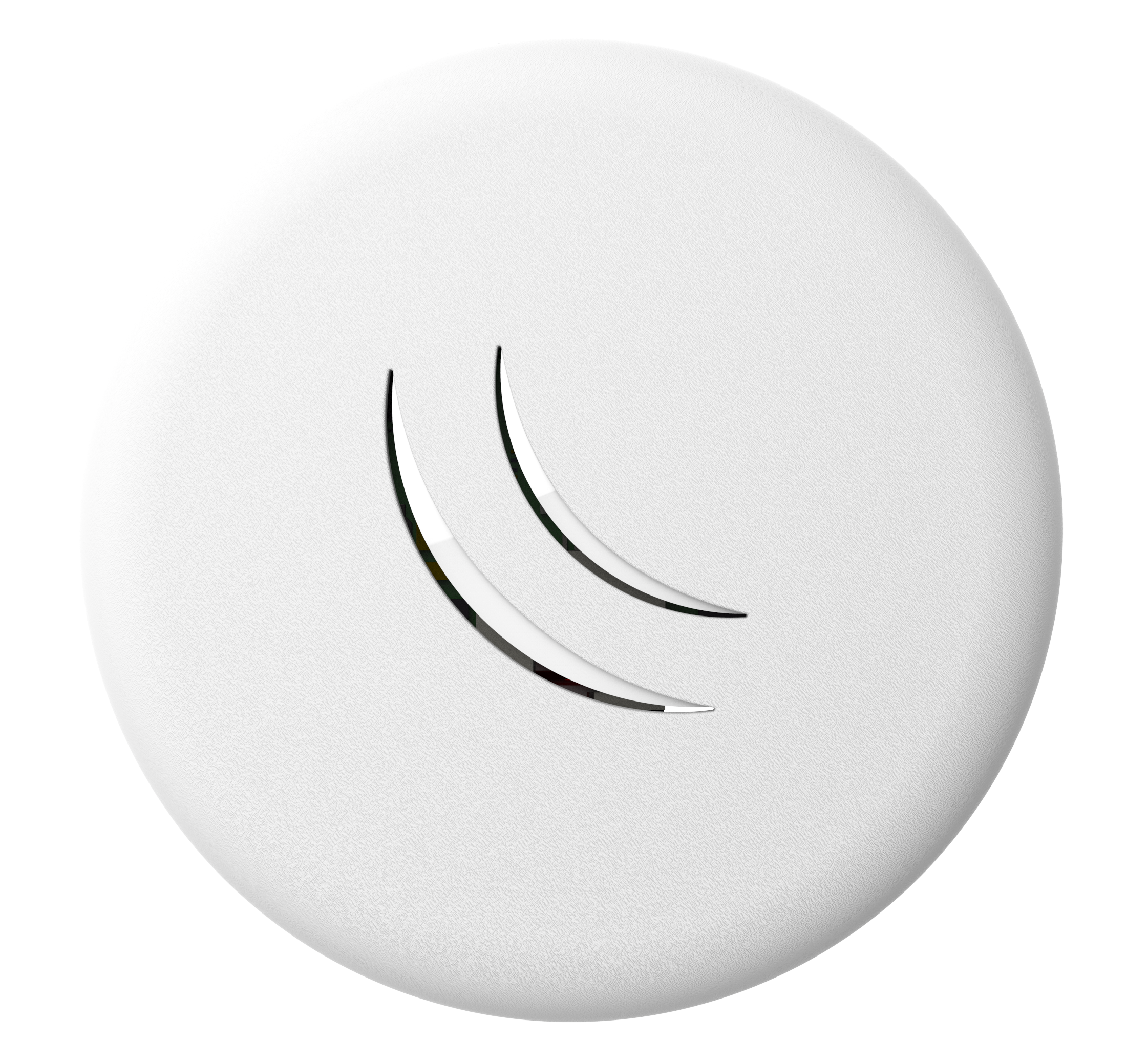

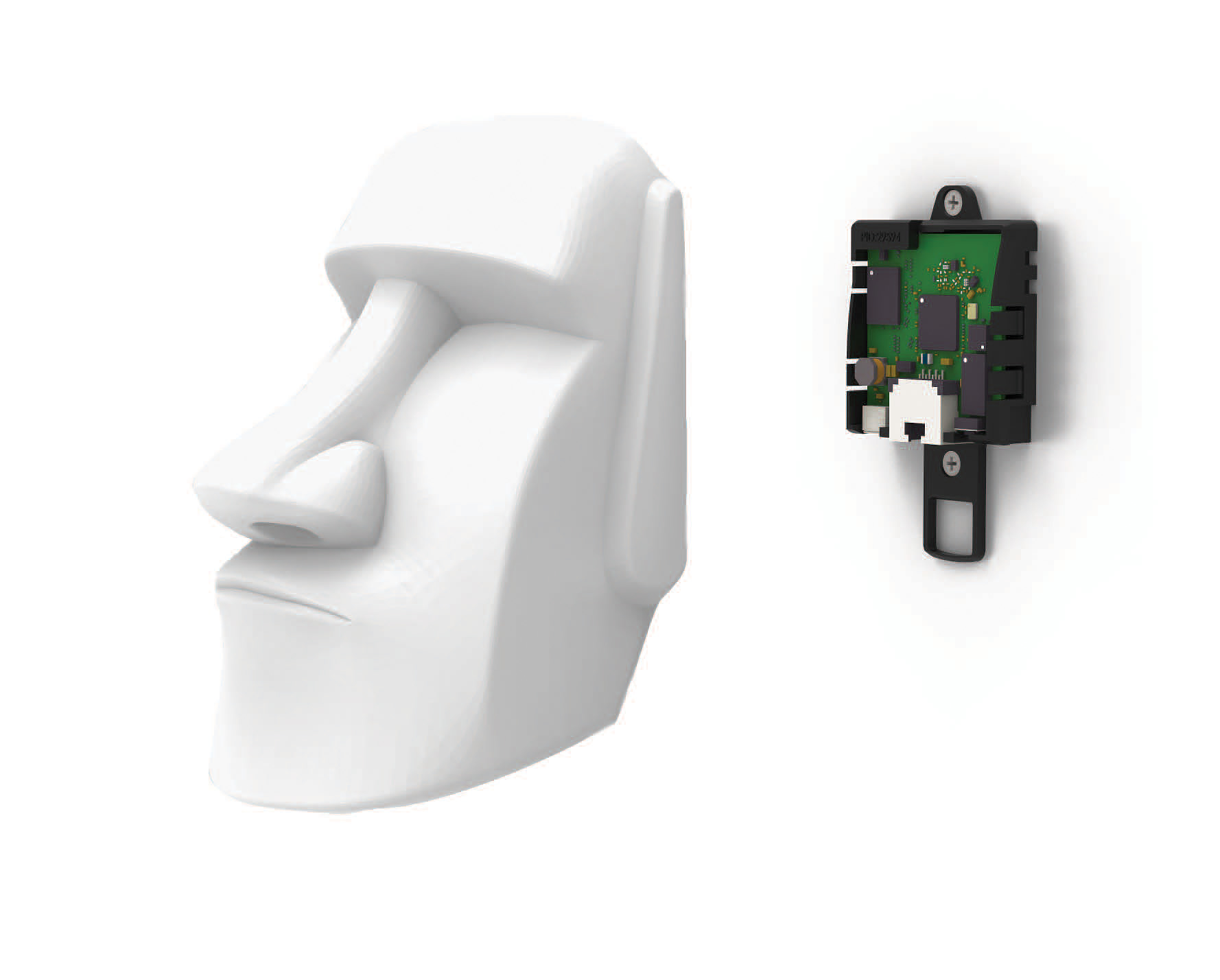

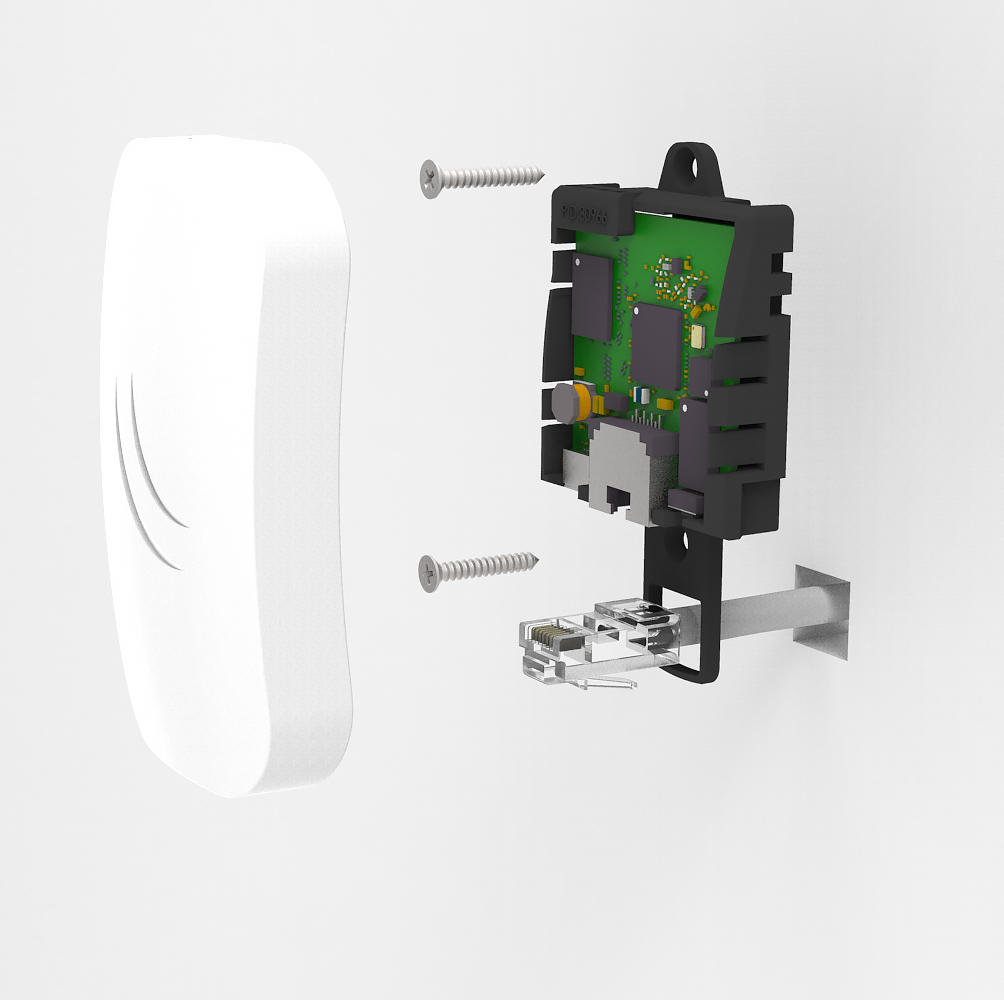

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, MikroTiks provides 3D printer friendly design files (please see below, at the end of this article).
The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBcAPL-2nD (cAP lite) | |
| 1x | 24V 0,2A Netzteil | (24V 0.2A power adapter) |
| 1x | Befestigungsset | (Fastening set) |
| 1x | PoE Injektor | (PoE injector) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RBcAPL-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
10/100 Ethernet ports 1
Powering
MicroUSB input Voltage 5 V
Number of DC inputs 2 (PoE-IN, MicroUSB)
Max power consumption 4 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 10-60 V
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RBcAPL-2nD | QCA9533 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 82.2 | 42.1 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 118.7 | 60.8 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 53.9 | 27.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 22 | -96 |
| 11Mbit/s | 22 | -89 |
| 6Mbit/s | 20 | -93 |
| 54Mbit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
