MikroTik CRS320-8P-8B-4S+RM
Product.Nr.: CRS320-8P-8B-4S+RM
Manufacturer: MikroTik
https://mikrotik.com/product/crs320_8p_8b_4s_rm
499,80 EUR
incl. 19 % VAT
-
- delivery time available
- weight 3,4 kg
#1: CRS320-8P-8B-4S+RM
CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!

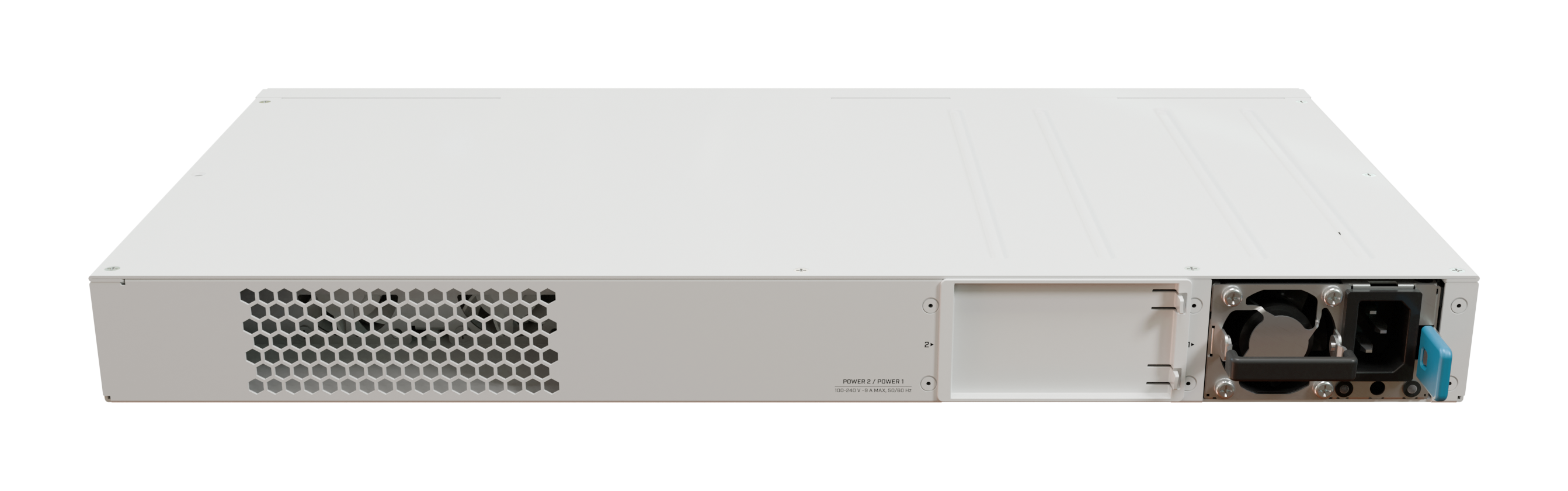

4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

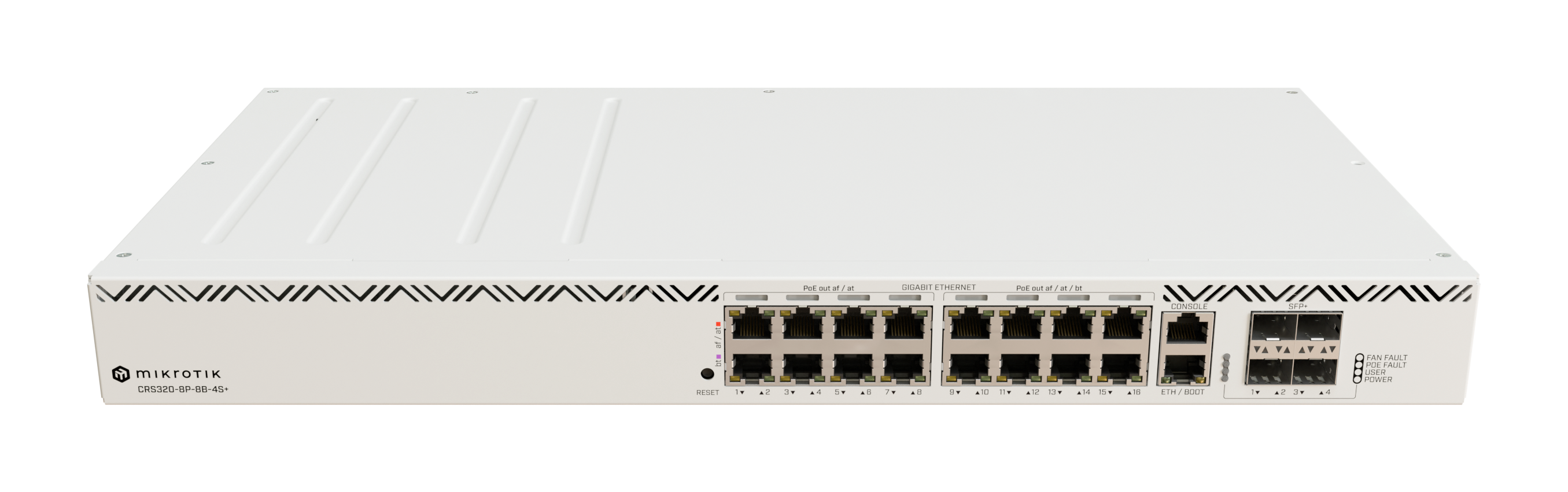

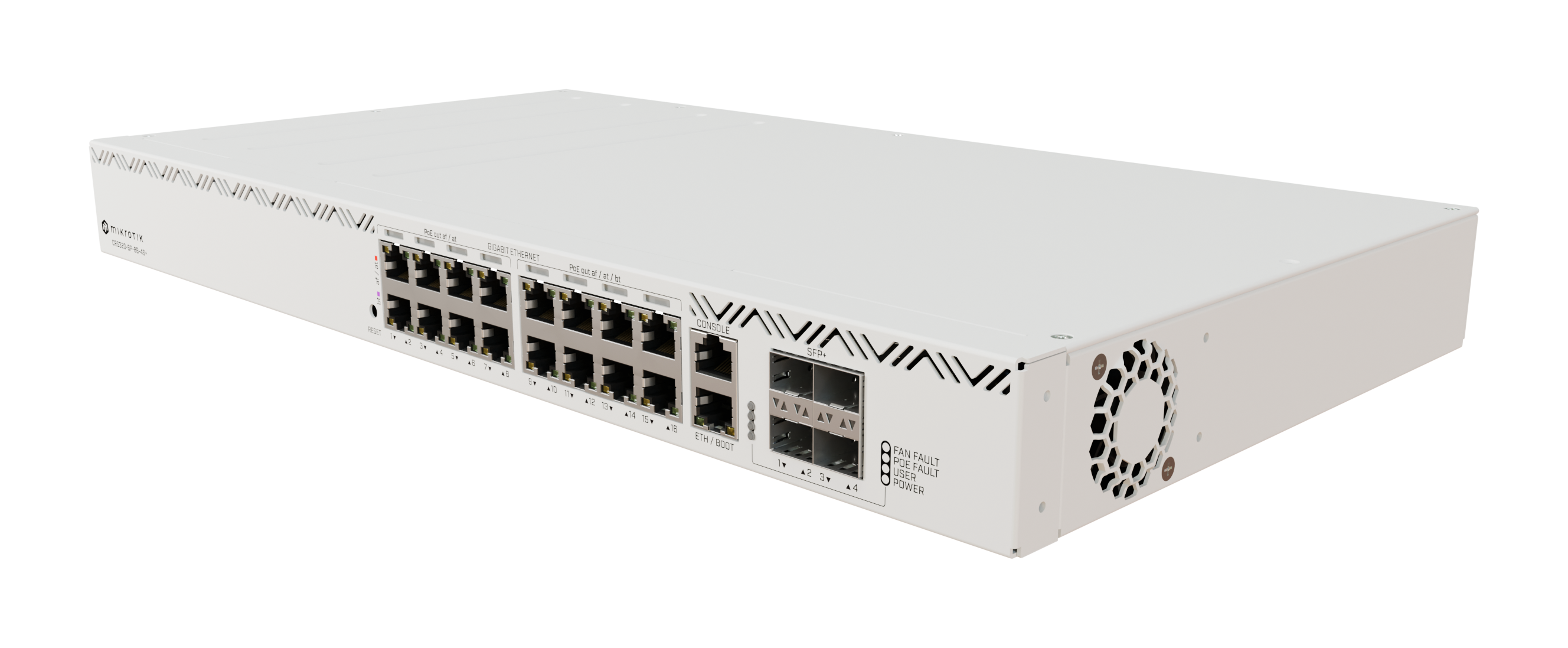

There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios. Please refer to the official Help page..
| Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios. >>>>>>>>>> Please refer to the official Help page.. <<<<<<<<<< |
A hot-swappable PSU is included.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | CRS320-8P-8B-4S+RM | |
| 1x | Kaltgerätekabel | (IEC cord) |
| 1x | Rack-Halterung (CRS) | (Rackmount ears (CRS)) |
| 1x | Kabel-Management-Halterung | (Cable management brackets) |
| 1x | K-57 Befestigungs-Set | (K-57 kit) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code CRS320-8P-8B-4S+RM
Architecture ARM 32bit
CPU 98DX226S
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
RouterOS license 5
Operating System RouterOS v7 / SwitchOS
Size of RAM 256 MB
Storage size 32 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -10°C to 50°C
Powering
Number of AC inputs 1
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 600W (1150W with additional PSU)
Max power consumption without attachments 36 W
Cooling type 3 fans
PoE-out
PoE-out ports Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
PoE out 802.3af/at/bt
High voltage PoE-Out current limit 560 (af/at) / 1667 (bt) mA
Max total out (A) 17.82 A
Total output current 17.82
Total output power 963
Ethernet
10/100/1000 Ethernet ports 17
Number of 1G Ethernet ports with PoE-out 16
Fiber
SFP+ ports 4
Peripherals
Serial console port RJ45
Other
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP 20
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| CRS320-8P-8B-4S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 4,632.6 | 56,258.8 | 13,392.9 | 54,857.1 | 84,821.4 | 43,428.6 |
| Switching | Non blocking Layer 2 capacity | 4,632.6 | 112,517.6 | 13,392.9 | 109,714.3 | 84,821.4 | 86,857.1 |
| Switching | Non blocking Layer 1 throughput | 4,632.6 | 57,000.0 | 13,392.9 | 57,000.0 | 84,821.4 | 57,000.0 |
| Switching | Non blocking Layer 1 capacity | 4,632.6 | 114,000.0 | 13,392.9 | 114,000.0 | 84,821.4 | 114,000.0 |
| CRS320-8P-8B-4S+RM | 98DX226S - all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104.3 | 1266.4 | 273.7 | 1121.2 | 321.2 | 174.7 |
| Bridging | 25 bridge filter rules | 96.5 | 1171.7 | 107.2 | 439.1 | 106.6 | 58 |
| Routing | none (fast path) | 104.2 | 1265.2 | 274.3 | 1123.5 | 387.6 | 210.9 |
| Routing | 25 simple queues | 95.8 | 1163.2 | 101.4 | 415.4 | 102 | 55.5 |
| Routing | 25 ip filter rules | 63.4 | 769.7 | 64.4 | 263.8 | 63.5 | 34.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#5: Produktinformationen & Hilfe | Product informations & Help
Produktspezifische Links - Product-specific links:
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Abmessungen | Dimensions | Öffnen | Open |
| Konformitätserklärung | Declaration of Conformity (DoC) | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Bedienungsanleitung | User Manual | Öffnen | Open |
Sonstige, hilfreiche Links - Other useful links:
| Softwarehandbuch [RouterOS] | Software manual [RouterOS] | Öffnen | Open |
| Software/Updates [RouterOS, SwOS & CHR] | Software/Updates [RouterOS, SwOS & CHR] | Öffnen | Open |
| Kompatibilität mit SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56-DD | Compatibility with SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56-DD | Öffnen | Open |
| Blog [RouterOS, 60GHz, RMA, ...] | Blog [RouterOS, 60GHz, RMA, ...] | Öffnen | Open |
CRS320-8P-8B-4SRM-brochure.pdf (3.54 MB)
