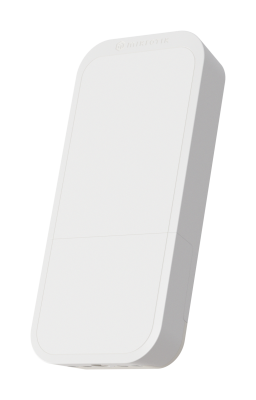

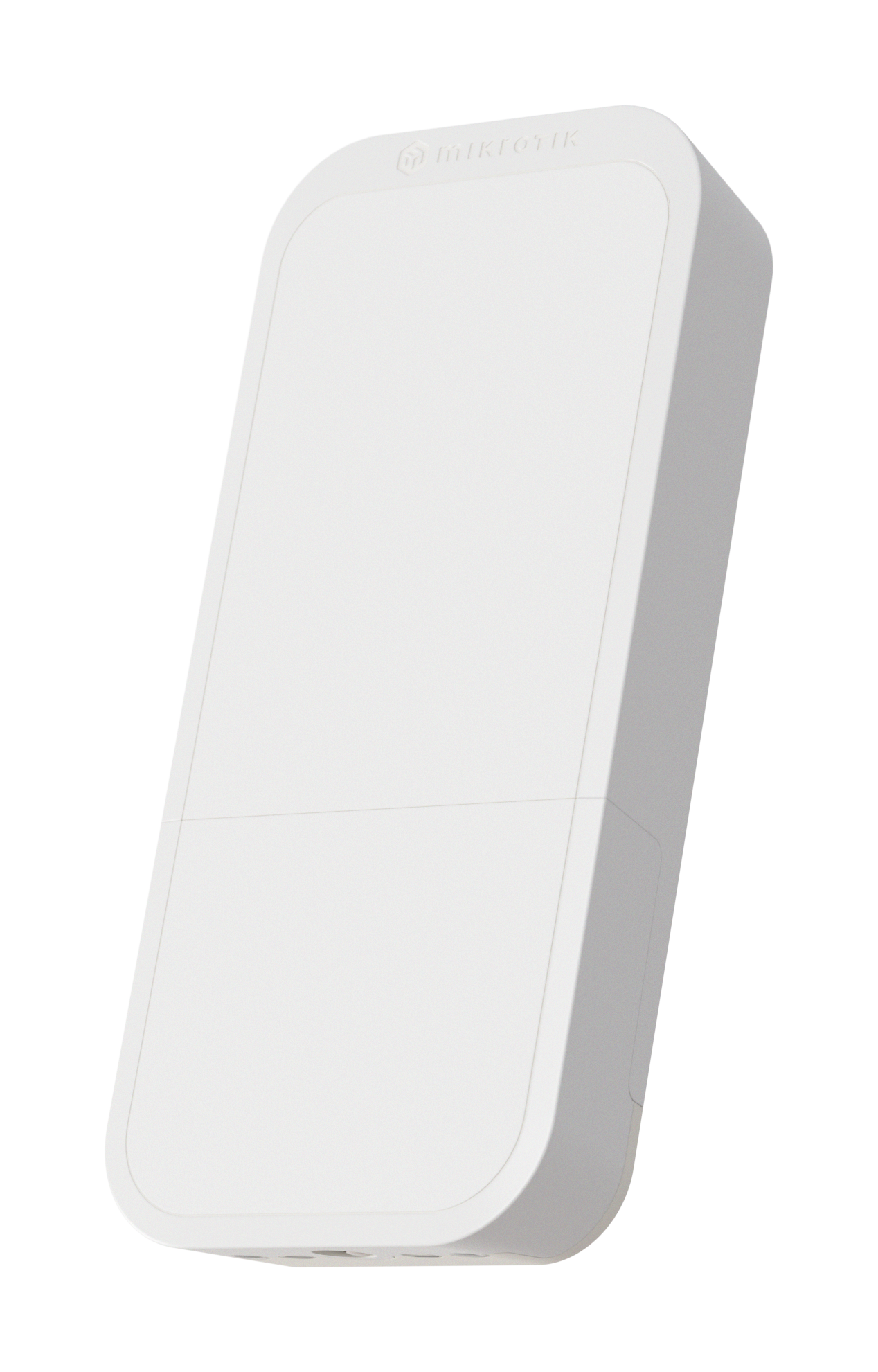

MikroTik RBwAPR-2nD&R11e-LR8G - wAP LR8G kit
Product.Nr.: RBwAPR-2nD&R11e-LR8G
Manufacturer: MikroTik
136,85 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- delivery time available
- weight 0,7 kg
product description
#1: RBwAPR-2nD&R11e-LR8G - wAP LR8G kit
A compact, weatherproof outdoor gateway for LoRa® technology. The updated 868MHz LoRa® module delivers enhanced Rx sensitivity, extending your range and improving reliability—even in rough conditions. This versatile device also includes:
- Built-in GPS
- A 2.4 GHz WiFi interface and Ethernet port for seamless integration
- Durable design, tested to perform in various weather conditions
The Things Network
Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.
The setup is so easy - anyone can learn it. No need to reinvent the wheel, join “The Things Network” to save time and energy with smart solutions!
*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBwAPR-2nD&R11e-LR8G (wAP LR8G Kit) | |
| 2x | 24V 0,8A Netzteil | (24V 0,8A power adapter) |
| 1x | K-52 Befestigungsset | (K-52 fastening set) |
| 1x | wAP Tischständer | (wAP desktop stand) |
| 1x | wAP Deckenhalterung | (wAP ceiling mount bracket) |
| 1x | Schlauchschelle | (Metal ring (one)) |
| 1x | PoE Injektor | (PoE injector) |
| 1x | 0,35 m 4-poliges Kfz-Adapterkabel | (0.35m 4pin Automotive adapter cable) |
- Alle verfügbaren MikroTik [SFP/QSFP]-Module finden Sie hier bei uns im Shop: [SFP/QSP]
#3: Spezifikationen - Technische Details | Specifications - Technical details
| Details | |
|---|---|
| Product code | RBwAPR-2nD&R11e-LR8G |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
Powering
| Details | |
|---|---|

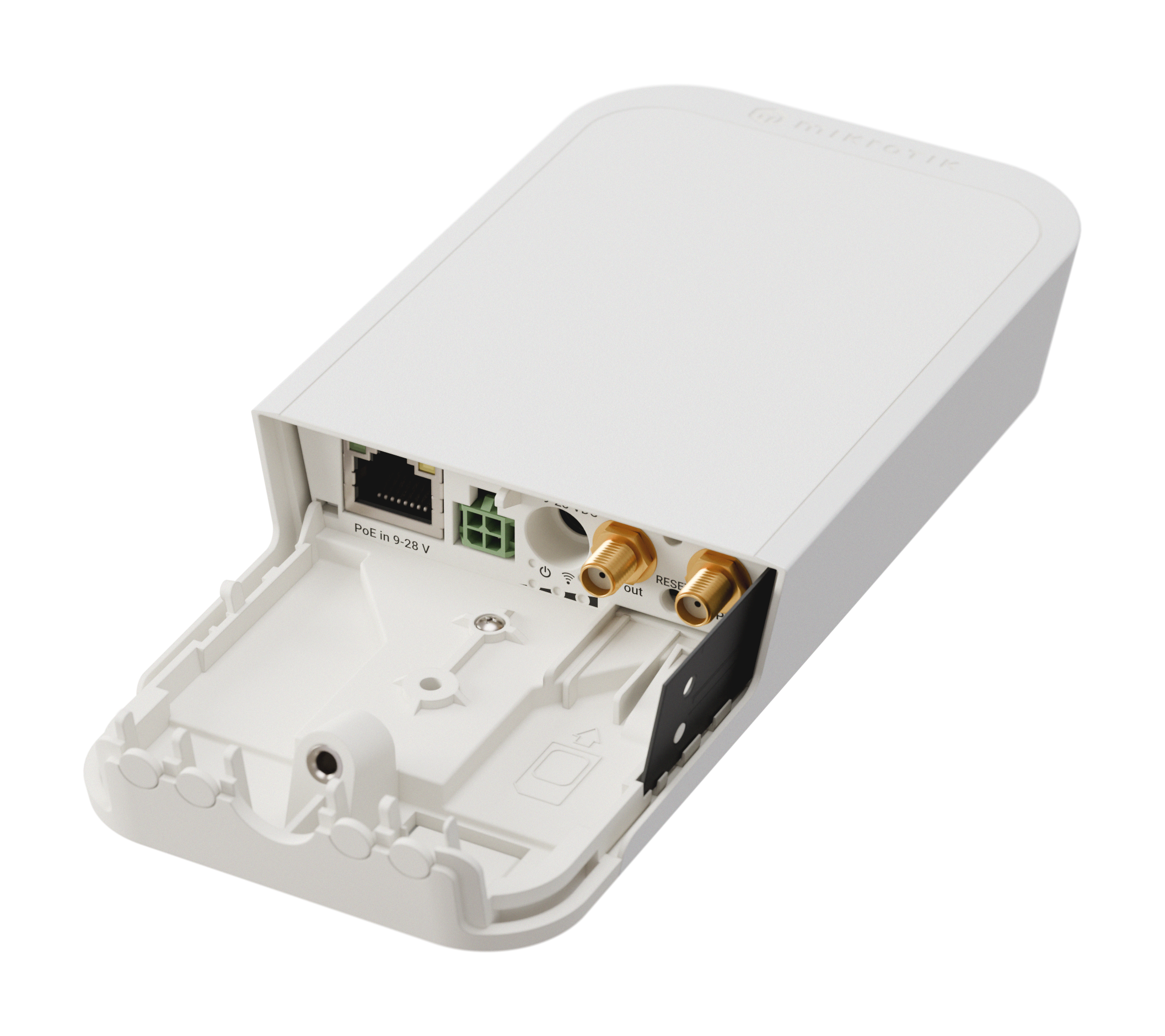

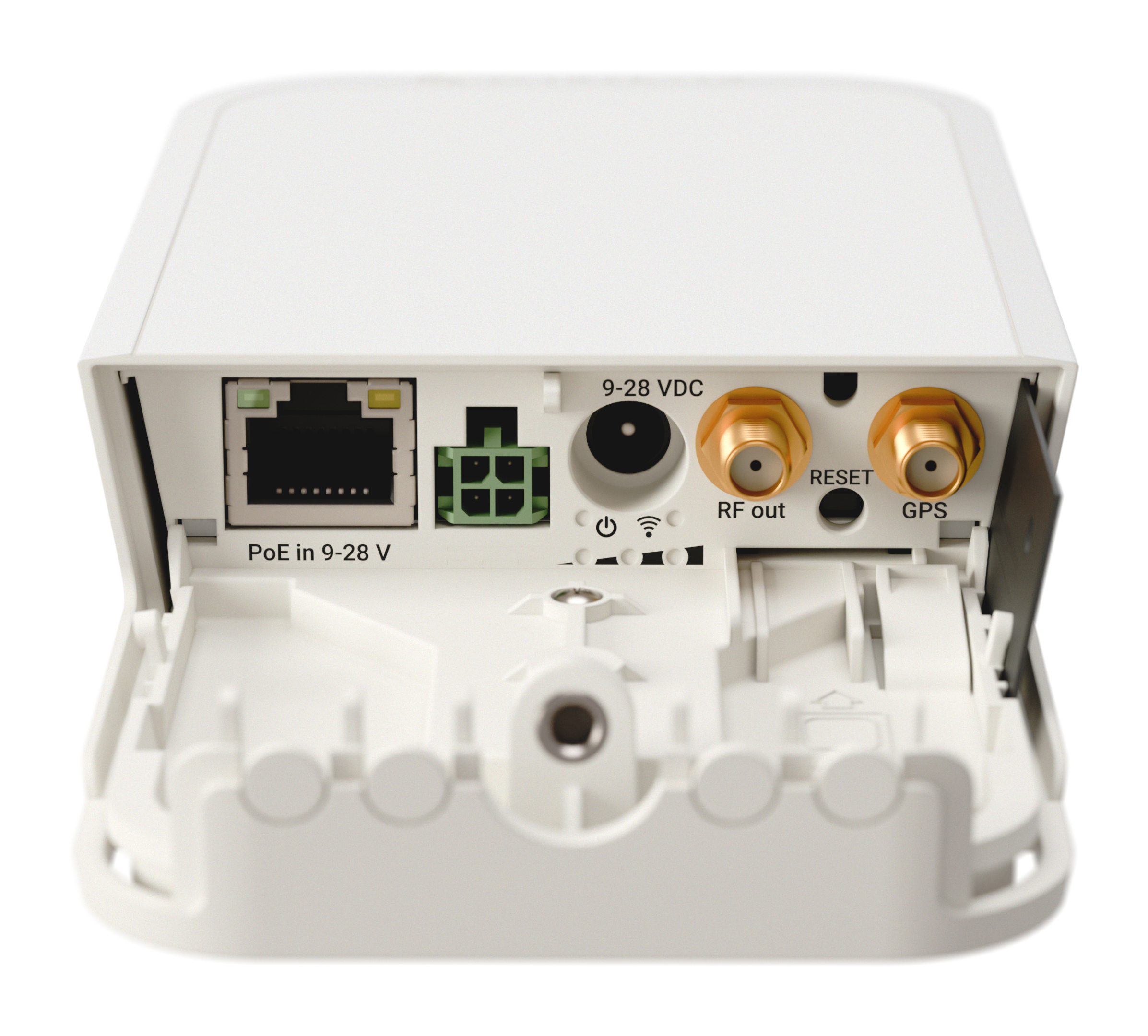

| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-30 V |
| Automotive input Voltage | 12-30 V |
| Max power consumption | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 9-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GPS RF connector type | uUFL |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
Ethernet test results
| RBwAPR-2nD&R11e-LR8G | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
