MikroTik RB960PGS-PB - PowerBox Pro
Product.Nr.: RB960PGS-PB
Manufacturer: MikroTik
https://mikrotik.com/product/RB960PGS-PB
105,91 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 1,2 kg
product description

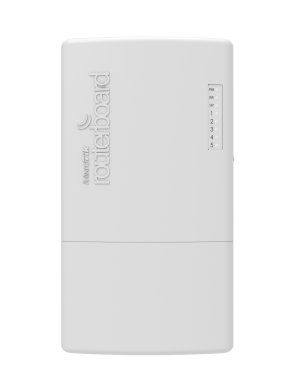

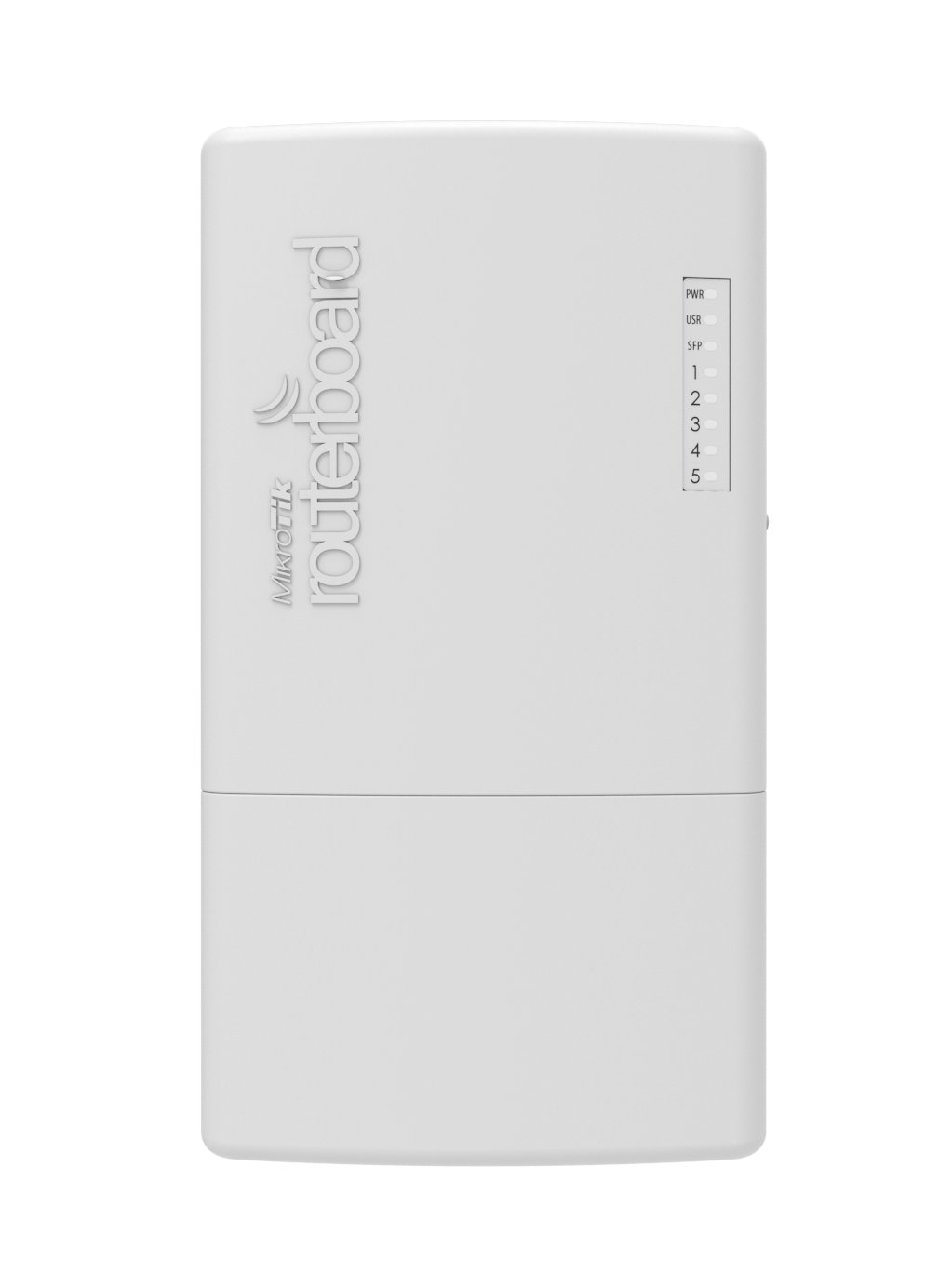

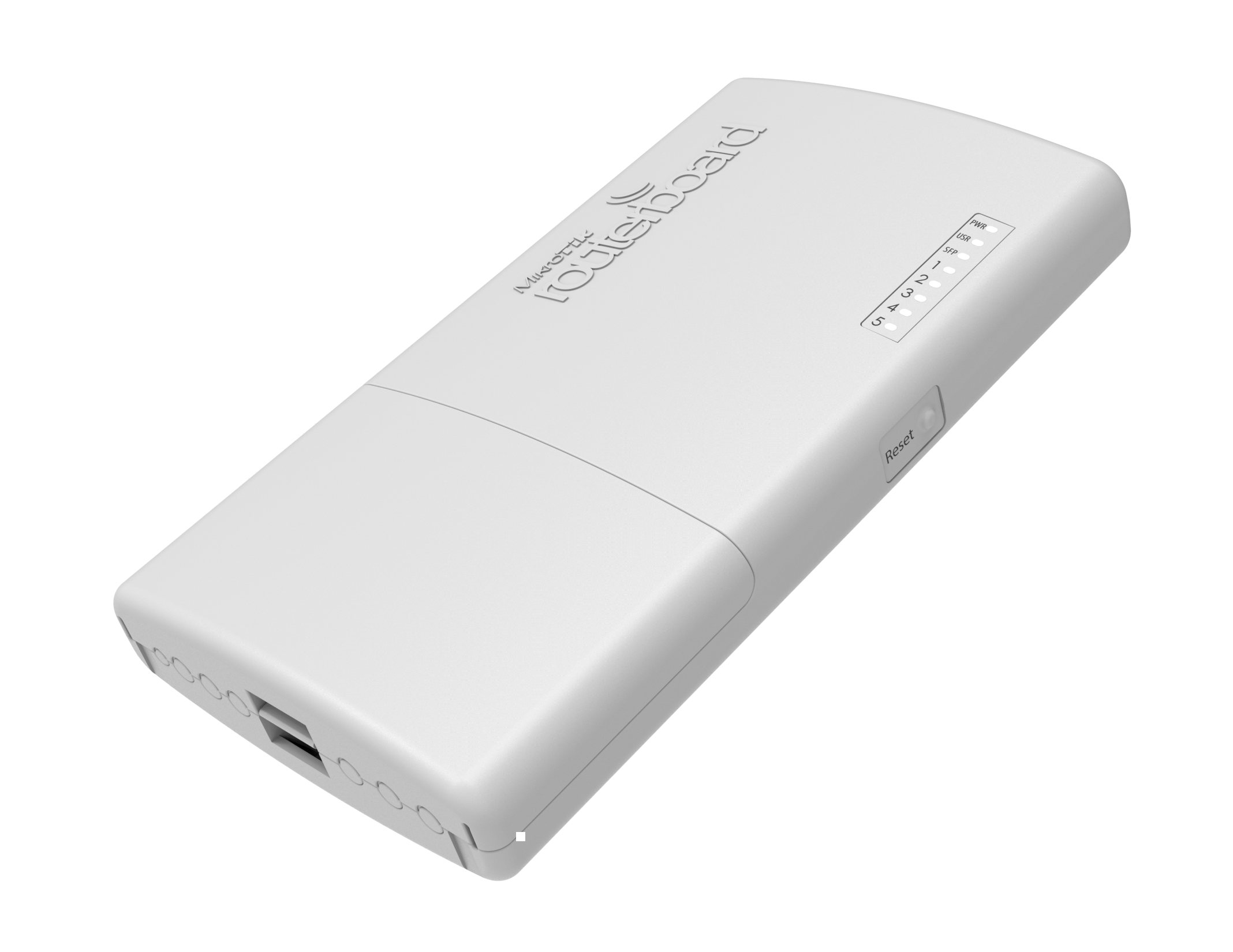

#1: RB960PGS-PB - PowerBox Pro

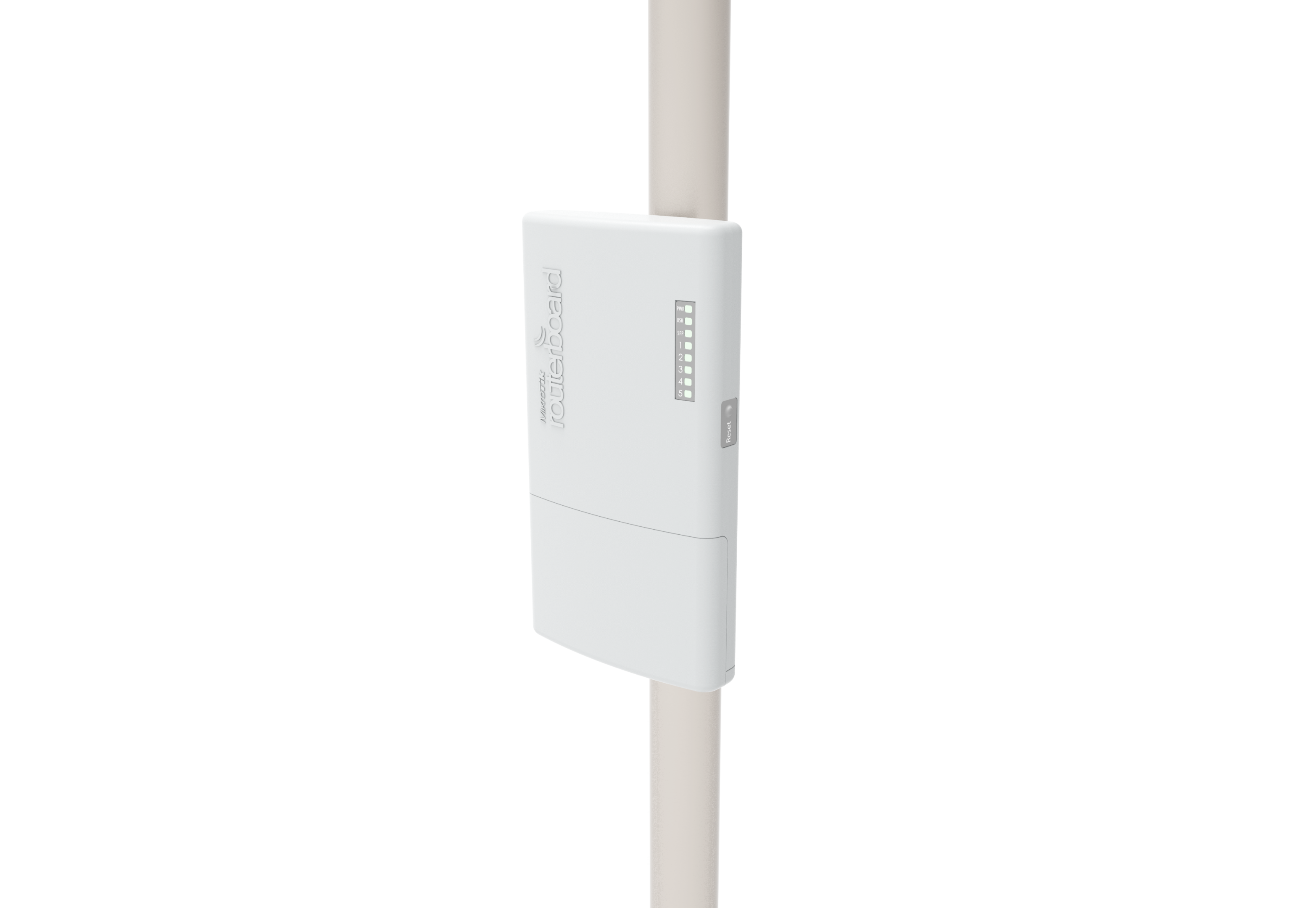

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RB960PGS-PB | |
| 1x | 24V 2,5A Netzteil | (24V 2.5A power supply) |
| 1x | DIN Montageteil (K-27) | (DIN mount (K-27)) |
| 1x | Kaltgerätekabel | (IEC cord) |
| 1x | Gigabit PoE Injektor | (Gigabit PoE injector) |
| 1x | Ringschelle (Metall) | (Metal ring (one)) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RB960PGS-PB
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model QCA8337
Dimensions 125 x 52 x 225 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 12-57 V
PoE-out
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Low voltage PoE-Out current limit 1 A
High voltage PoE-Out current limit 450 mA
Max total out (A) 2 A
Ethernet
10/100/1000 Ethernet ports 5
Fiber
SFP ports 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RB960PGS-PB | QCA9557 (800Mhz) 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1,966.1 | 401.5 | 1,644.5 | 542.3 | 277.7 |
| Bridging | 25 bridge filter rules | 143.2 | 1,739.0 | 145.5 | 596.0 | 146.2 | 74.9 |
| Routing | none (fast path) | 161.9 | 1,966.1 | 396.3 | 1,623.2 | 521.7 | 267.1 |
| Routing | 25 simple queues | 161.9 | 1,966.1 | 217.2 | 889.7 | 216.0 | 110.6 |
| Routing | 25 ip filter rules | 74.6 | 905.9 | 78.0 | 319.5 | 76.5 | 39.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
