MikroTik CRS112-8P-4S-IN
Product.Nr.: CRS112-8P-4S-IN
Manufacturer: MikroTik
https://mikrotik.com/product/crs112_8p_4s_in
208,25 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- delivery time available
- weight 1,7 kg
product description
1: CRS112-8P-4S-IN

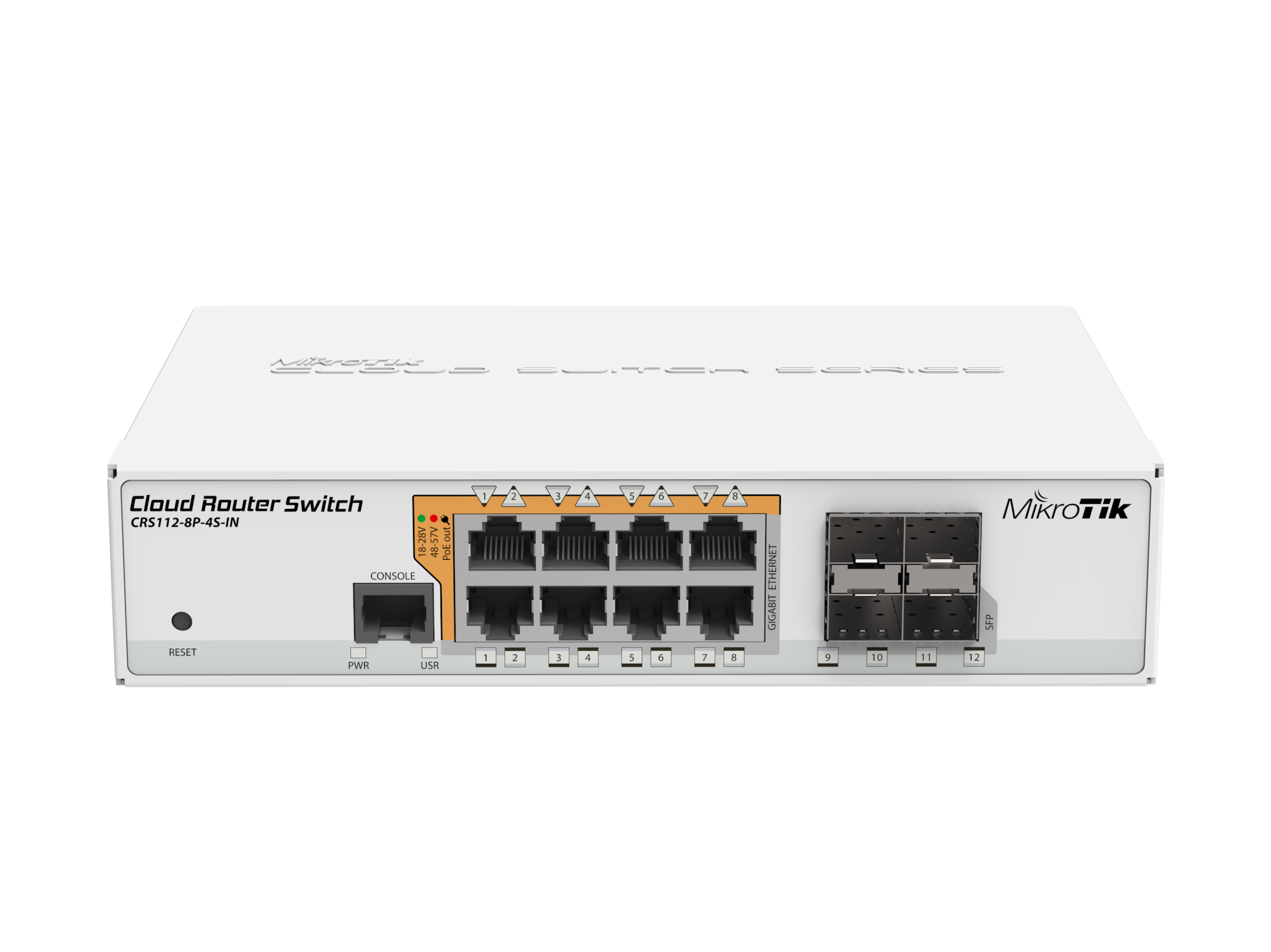

Mikrotiks CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

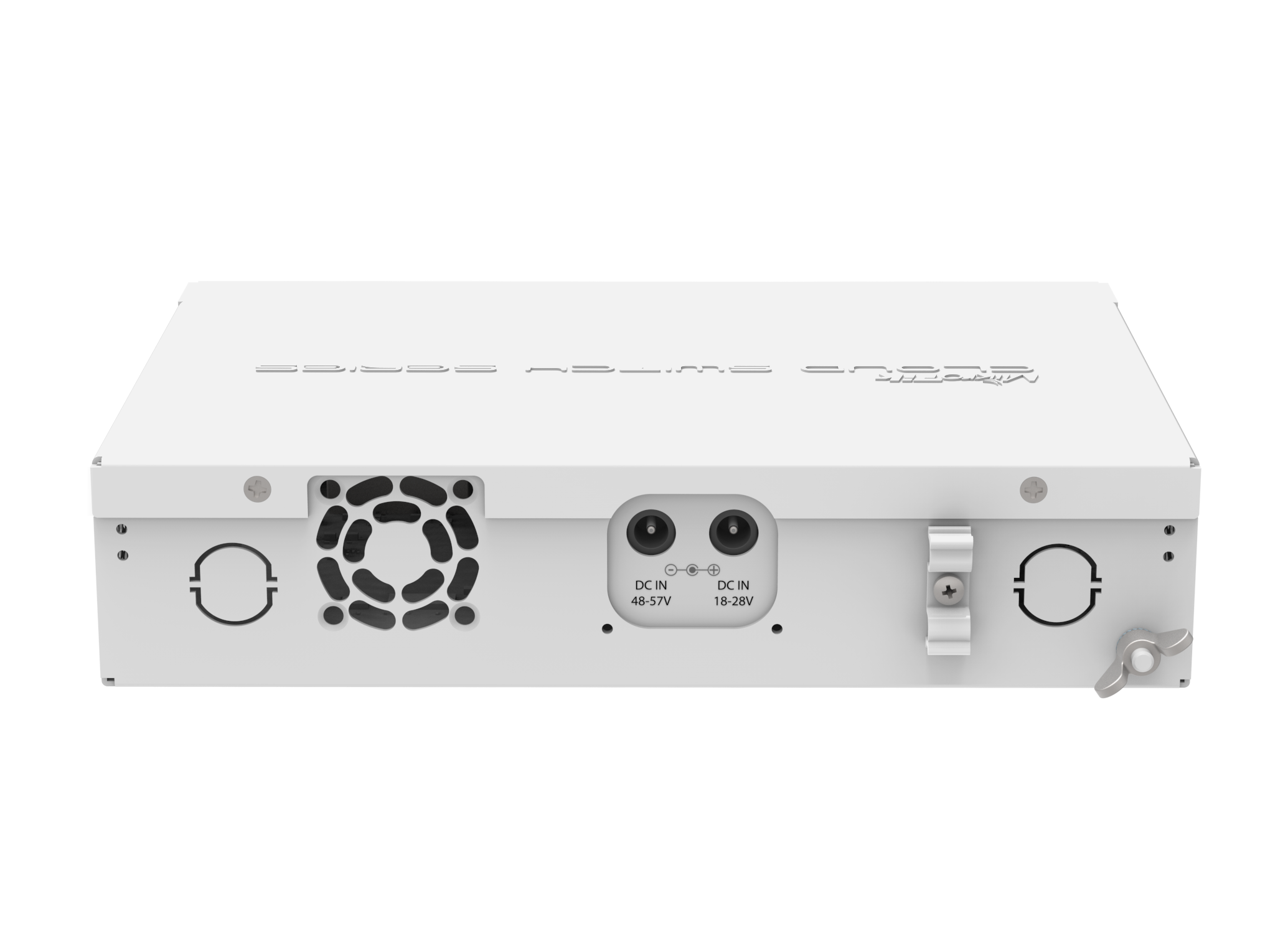

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
- The maximum current output is 1 A per port when the input voltage is 18-28 V, 450 mA at 48-57V.
- -
- Note: PoE-Out according to 802.3af/at is possible, but for this you still need the optional power supply unit, which is linked below.
- The supplied (28V) and optional power supply units can be plugged in at the same time. The supplied power supply unit (28V) supplies the Mikrotik components and the optional one supplies IP telephones/cameras, etc.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | CRS112-8P-4S-IN | |
| 1x | Kaltgerätekabel | (IEC cords) |
| 1x | 28V 3,4A Netzteil | (28V 3.4A power adapter) |
| 1x | Rackmount Halterung | (Rackmount ears) |
| 1x | Befestigungsset K-42 | (K-42 fasten set) |
- Alle verfügbaren MikroTik [SFP/QSFP]-Module finden Sie hier bei uns im Shop: [SFP/QSP]
#3: Spezifikationen - Technische Details | Specifications - Technical details
| Details | |
|---|---|
| Product code | CRS112-8P-4S-IN |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Switch chip model | QCA8511 |
| Dimensions | 200 x 142 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18-28 V / 48-57 V |
| Max power consumption | 160 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1 A |
| High voltage PoE-Out current limit | 450 mA |
| Max total out (A) | 2.8A (18V-28V) & 1.4A (48V-57V) A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| Details | |
|---|---|
| SFP ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
Switching results
| CRS112-8P-4S-IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 975.3 | 11,844.0 | 2,819.5 | 11,548.9 | 17,857.1 | 9,142.9 |
| Switching | Non blocking Layer 2 capacity | 975.3 | 23,687.9 | 2,819.5 | 23,097.7 | 17,857.1 | 18,285.7 |
| Switching | Non blocking Layer 1 throughput | 975.3 | 12,000.0 | 2,819.5 | 12,000.0 | 17,857.1 | 12,000.0 |
| Switching | Non blocking Layer 1 capacity | 975.3 | 24,000.0 | 2,819.5 | 24,000.0 | 17,857.1 | 24,000.0 |
Ethernet test results
| CRS112-8P-4S-IN | QCA8511 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 48.0 | 582.9 | 73.5 | 301.1 | 78.0 | 39.9 |
| Bridging | 25 bridge filter rules | 26.1 | 317.0 | 28.6 | 117.1 | 29.6 | 15.2 |
| Routing | none | 46.5 | 564.7 | 65.7 | 269.1 | 71.1 | 36.4 |
| Routing | 25 simple queues | 14.5 | 176.1 | 16.1 | 65.9 | 16.8 | 8.6 |
| Routing | 25 ip filter rules | 7.8 | 94.7 | 8.0 | 32.8 | 8.3 | 4.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Produktinformationen & Hilfe | Product informations & Help
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Benutzerhandbuch | User Manual | Öffnen | Open |
| Softwarehandbuch [RouterOS] | Software manual [RouterOS] | Öffnen | Open |
| Blog [RouterOS, 60GHz, RMA, ...] | Blog [RouterOS, 60GHz, RMA, ...] | Öffnen | Open |
| Software/Updates [RouterOS, SwOS & CHR] | Software/Updates [RouterOS, SwOS & CHR] | Öffnen | Open |
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Kompatibilitätsliste [SFP/QSP] | Compatibility list [SFP/QSFP] | Öffnen | Open |
| Einbauabmessungen | Mounting dimensions | Öffnen | Open |
| Konformitätserklärung (CE) | Declaration of conformity (CE) | Öffnen | Open |
#2: Included in delivery
- 1x CRS112-8P-4S-IN
- 1x 28V 3,4A power supply
- 1x Rack Ears
- 1x K-48 fastening set
Optional 48V power supply units are linked under the article (product codes: 48POW (1.46A 70W) und 48V2A96W (2A 96W)).
#3: Specifications - Technical details
| Details | |
|---|---|
| Product code | CRS112-8P-4S-IN |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| License level | 5 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20 to 60° C |
Powering
| Details | |
|---|---|
| Max Power consumption | 10W |
| PoE out | 802.3af/at |
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18 - 57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
#4: Test results according to RFC2544
Switching results
| CRS112-8P-4S-IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 975.3 | 11,844.0 | 2,819.5 | 11,548.9 | 17,857.1 | 9,142.9 |
| Switching | Non blocking Layer 2 capacity | 975.3 | 23,687.9 | 2,819.5 | 23,097.7 | 17,857.1 | 18,285.7 |
| Switching | Non blocking Layer 1 throughput | 975.3 | 12,000.0 | 2,819.5 | 12,000.0 | 17,857.1 | 12,000.0 |
| Switching | Non blocking Layer 1 capacity | 975.3 | 24,000.0 | 2,819.5 | 24,000.0 | 17,857.1 | 24,000.0 |
Ethernet test results
| CRS112-8P-4S-IN | QCA8511 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 48.0 | 582.9 | 73.5 | 301.1 | 78.0 | 39.9 |
| Bridging | 25 bridge filter rules | 26.1 | 317.0 | 28.6 | 117.1 | 29.6 | 15.2 |
| Routing | none | 46.5 | 564.7 | 65.7 | 269.1 | 71.1 | 36.4 |
| Routing | 25 simple queues | 14.5 | 176.1 | 16.1 | 65.9 | 16.8 | 8.6 |
| Routing | 25 ip filter rules | 7.8 | 94.7 | 8.0 | 32.8 | 8.3 | 4.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Product video & tips
- Produktvideo: -
- Hints for starting and handling RouterOS in our Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
