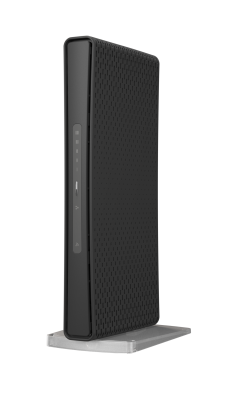

MikroTik RBD53iG-5HacD2HnD - hAP ac³
Product.Nr.: RBD53iG-5HacD2HnD
Manufacturer: MikroTik
https://mikrotik.com/product/hap_ac3
112,00 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- weight 1,2 kg
product description
#1: RBD53iG-5HacD2HnD - hAP ac³
Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

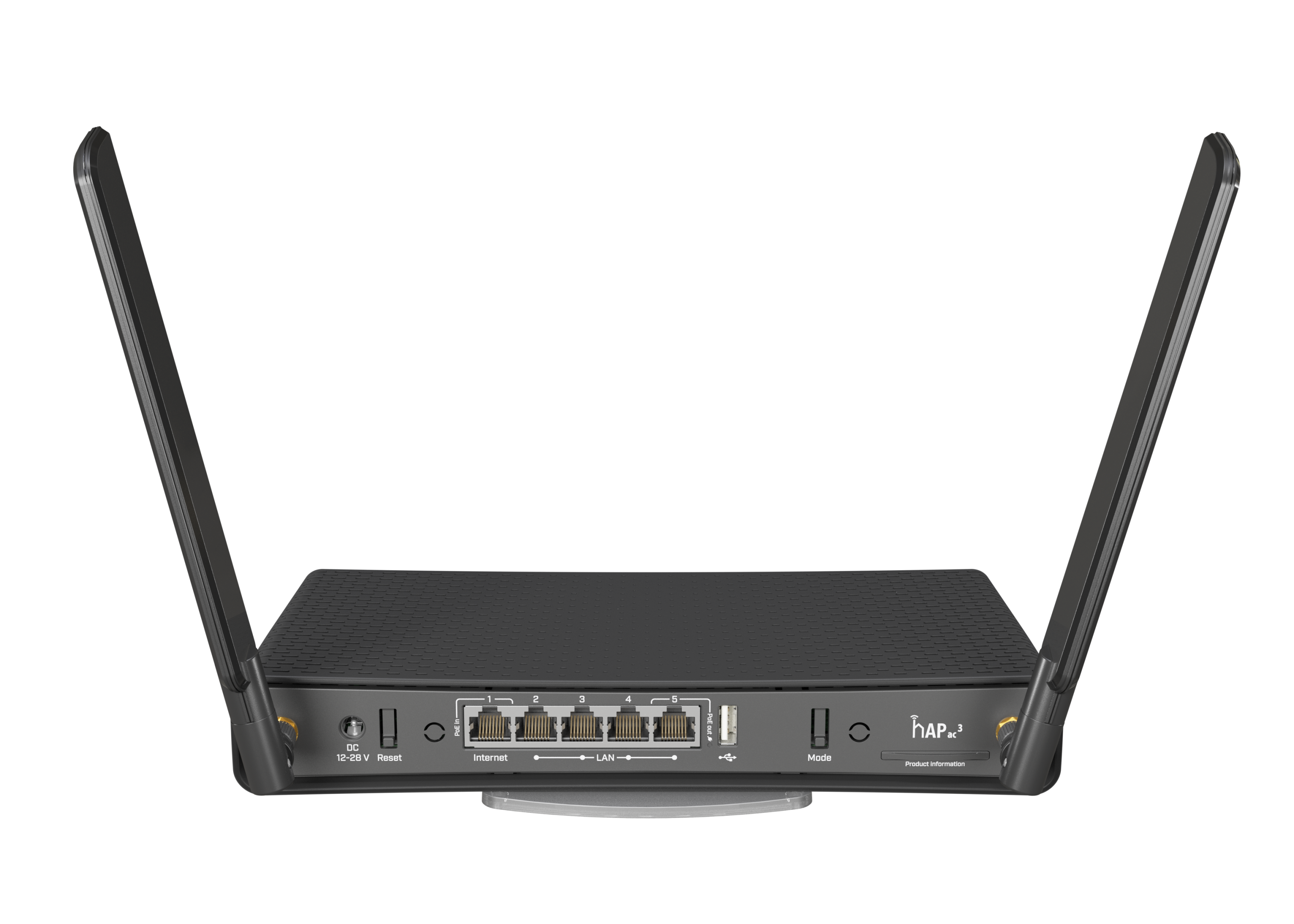

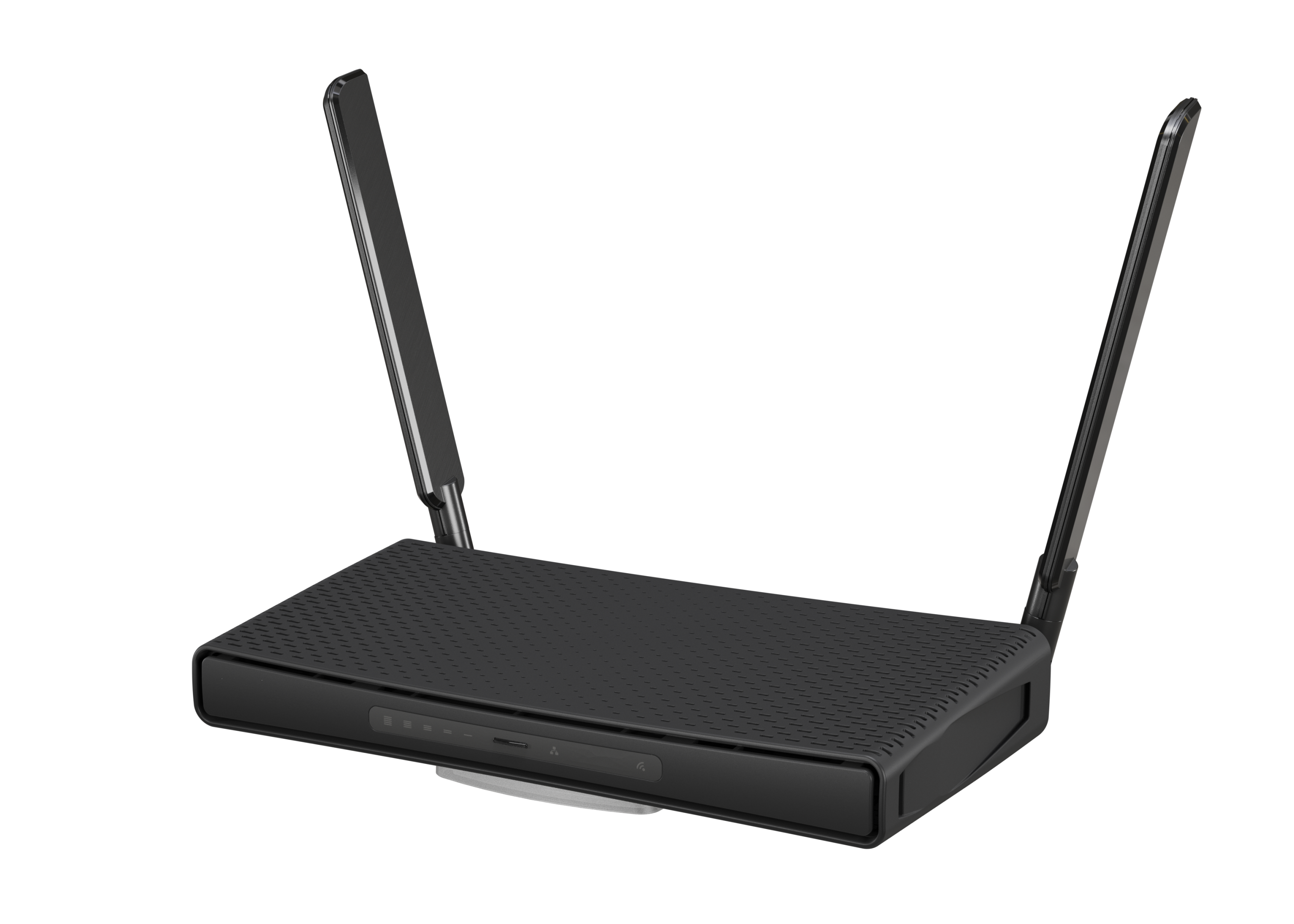

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on! Also, you can use the built-in RP-SMA female connectors to supercharge the coverage even further by adding an external antenna of your choice.

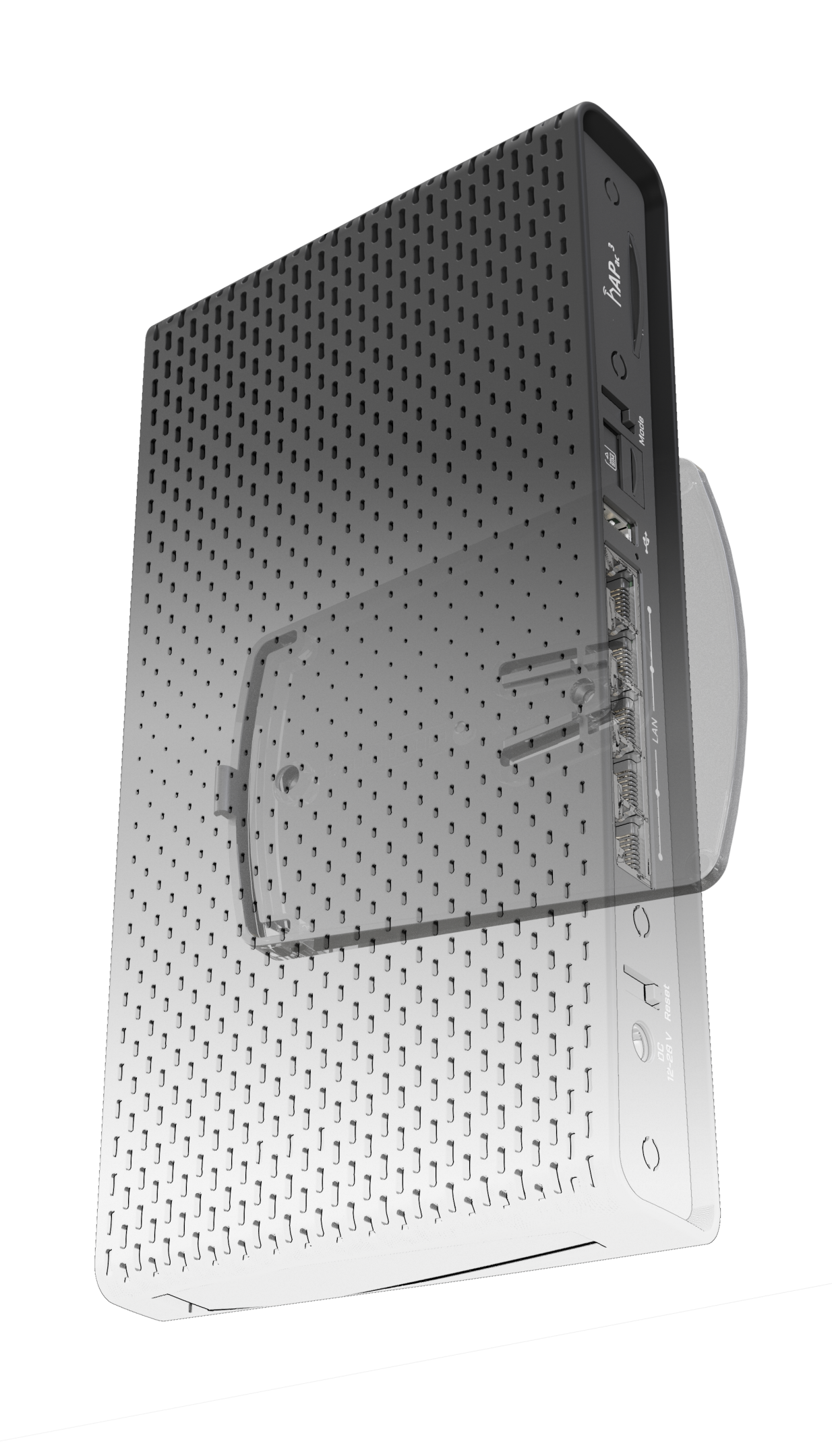

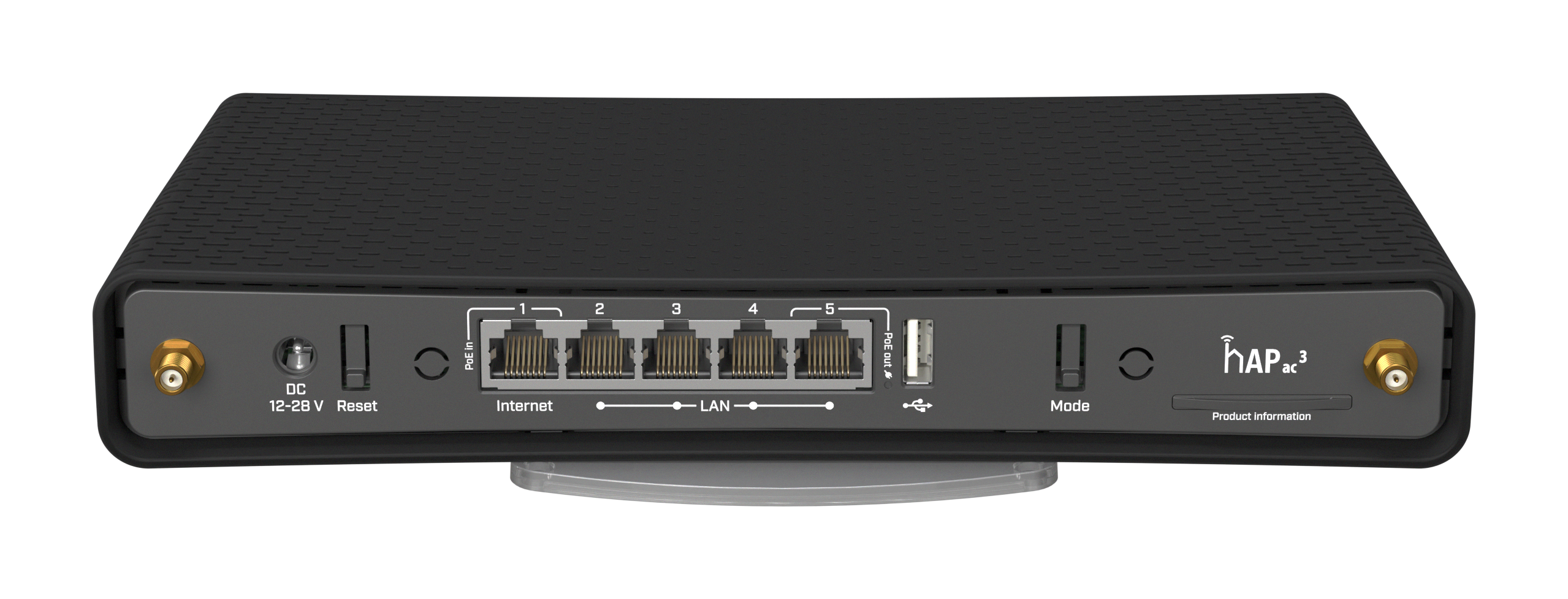

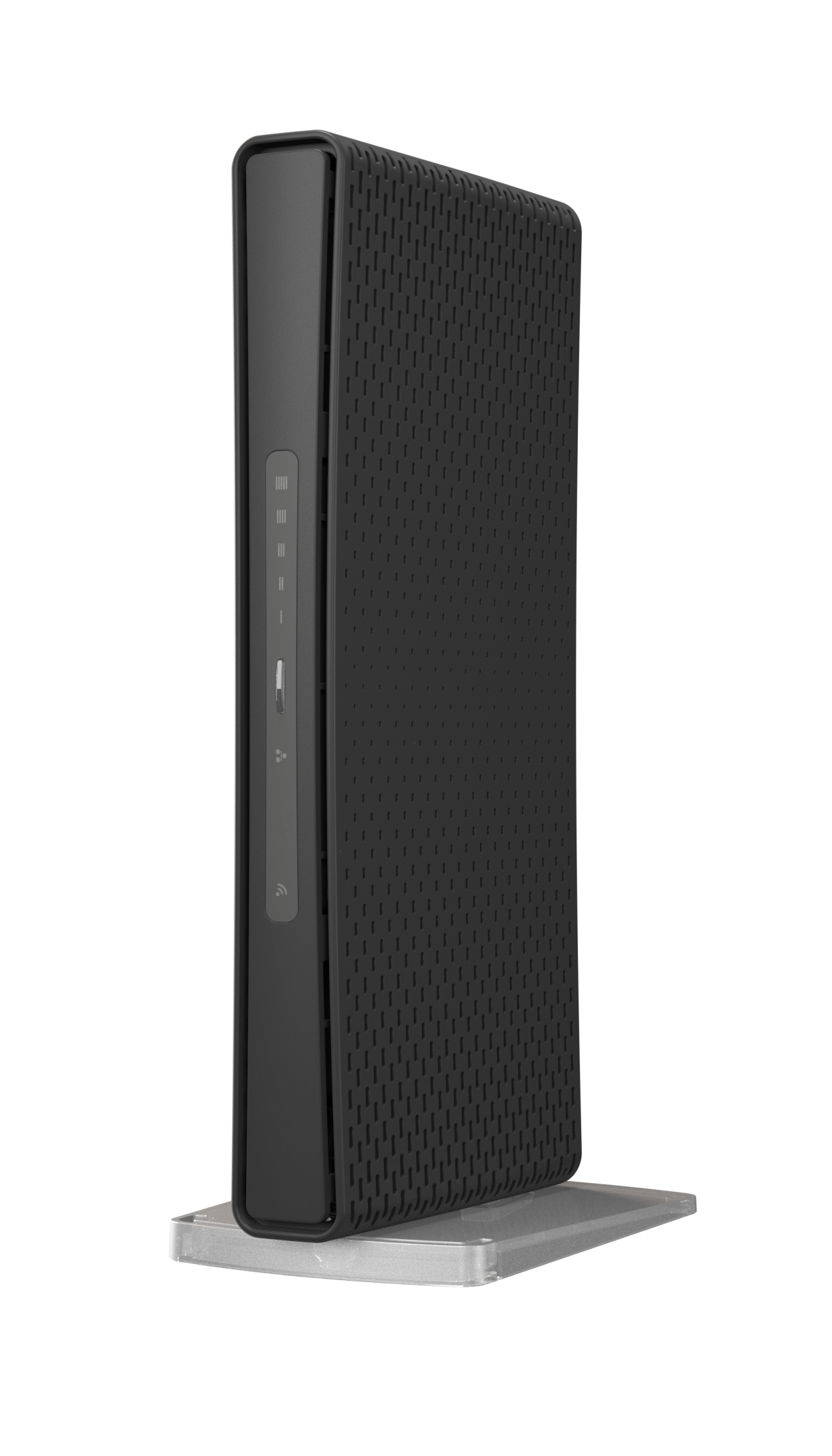

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBD53iG-5HacD2HnD (hAP ac³) | |
| 1x | 24V 1,5A Netzteil | (24V 1.5A power adapter) |
| 1x | Basisstandhalterung | (Base leg) |
| 1x | K-47 Befestigungs-Set | (K-47 wall mount set) |
| 1x | HGO Indoor Antennen-Set | (HGO indoor antenna kit) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RBD53iG-5HacD2HnD
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
CPU Threads count 4
Switch chip model IPQ-4019
Dimensions 251 x 129 x 39 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200
Ethernet
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 30 W
Max power consumption without attachments 12 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 18-28 V
PoE-out
PoE-out ports Ether5
PoE out Passive PoE
Low voltage PoE-Out current limit 0.5 A
Max total out (A) 0.5 A
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Other
Mode button Yes
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RBD53iG-5HacD2HnD | IPQ-4019 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Bridging | 25 bridge filter rules | 162,5 | 1973.4 | 351,2 | 1438.5 | 352,1 | 180.3 |
| Routing | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Routing | 25 simple queues | 162,5 | 1973.4 | 468,6 | 1919.4 | 493,4 | 252.6 |
| Routing | 25 ip filter rules | 162,5 | 1973.4 | 222,8 | 912.6 | 227,4 | 116.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RBD53iG-5HacD2HnD | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 25 | -100 |
| 11Mbit/s | 25 | -94 |
| 6Mbit/s | 26 | -96 |
| 54Mbit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5GHz | Transmit (dBm) | Receive Sensitivity |
| 6Mbit/s | 26 | -96 |
| 54Mbit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
