MikroTik RB1100AHx4
Product.Nr.: RB1100x4
Manufacturer: MikroTik
https://mikrotik.com/product/rb1100ahx4
279,65 EUR
incl. 19 % VAT
-
Product is available - Low Stock!
- delivery time available
- weight 2 kg
product description
#1: RB1100AHx4

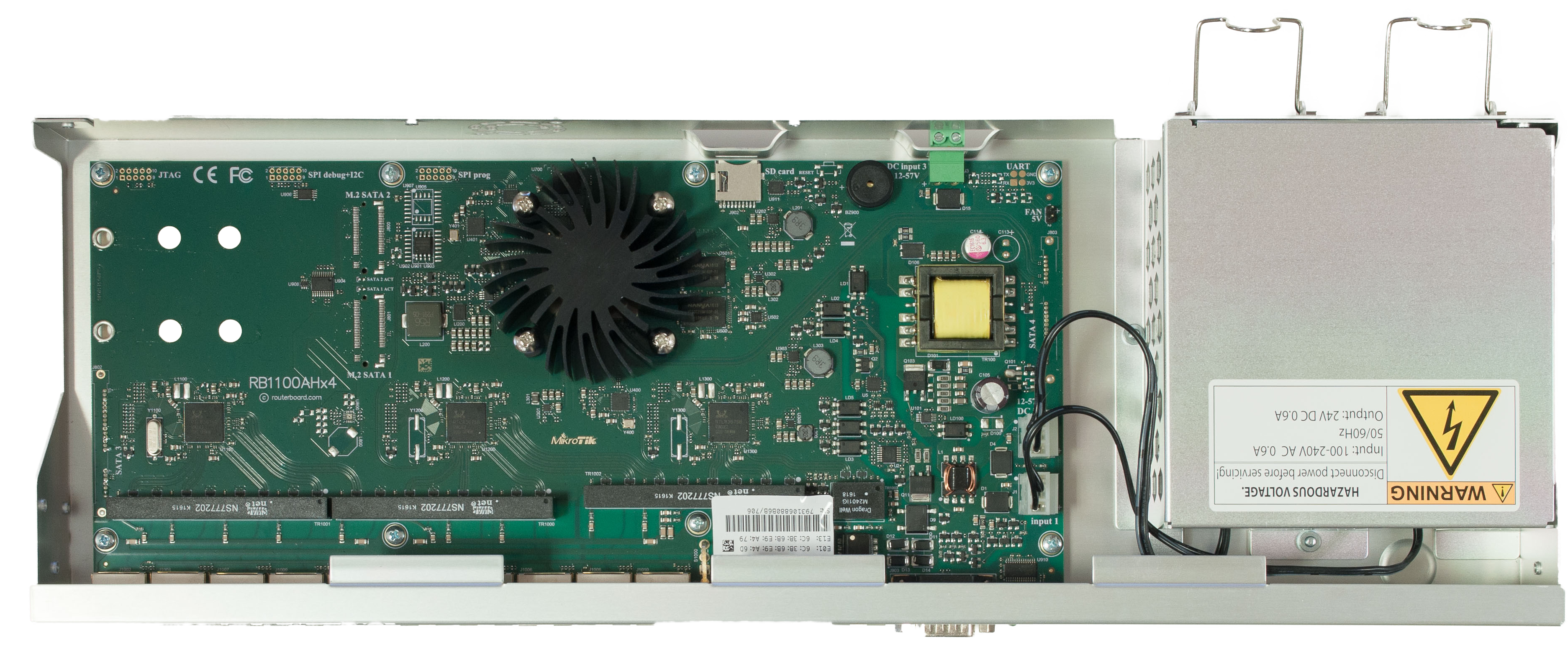

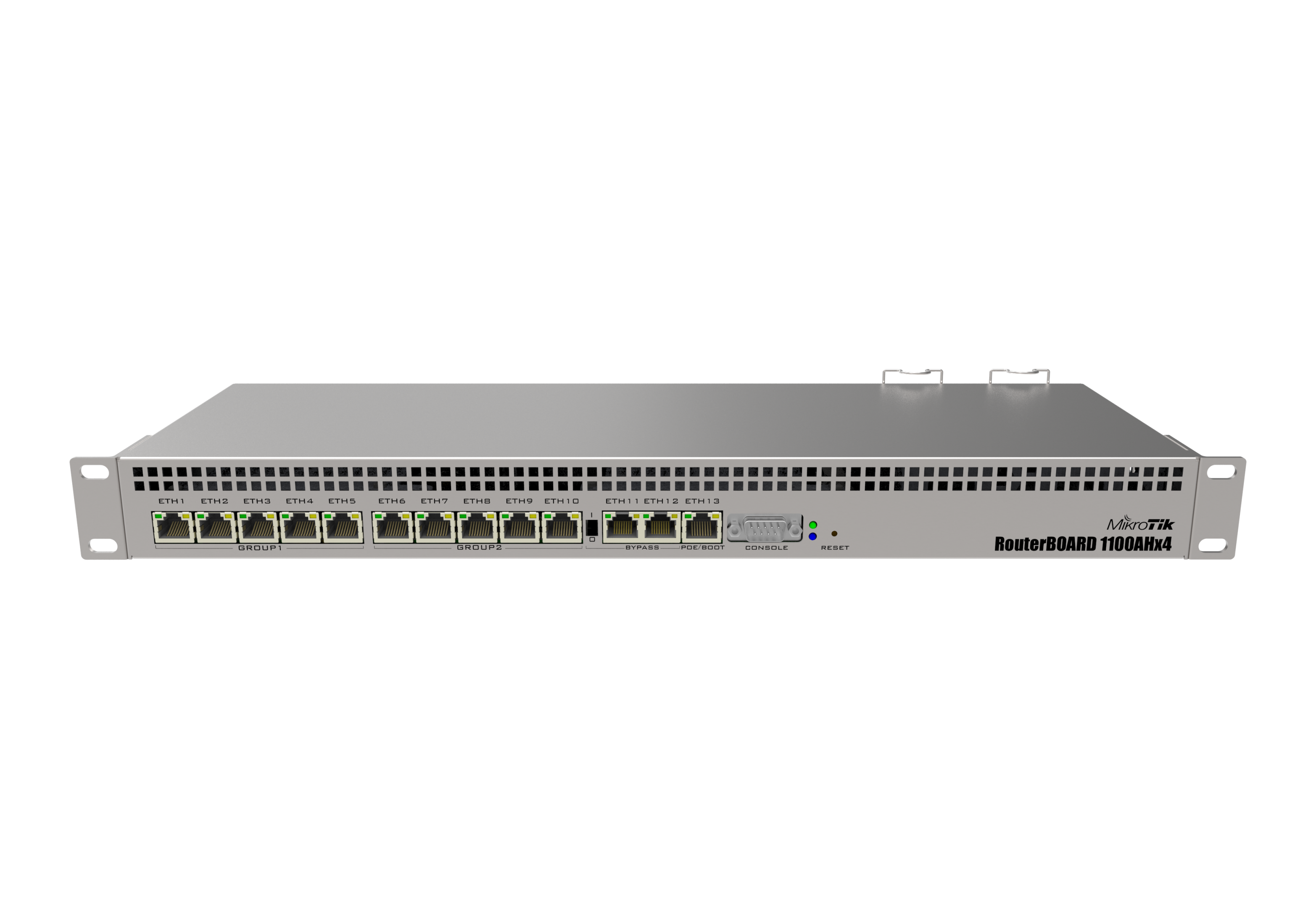

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

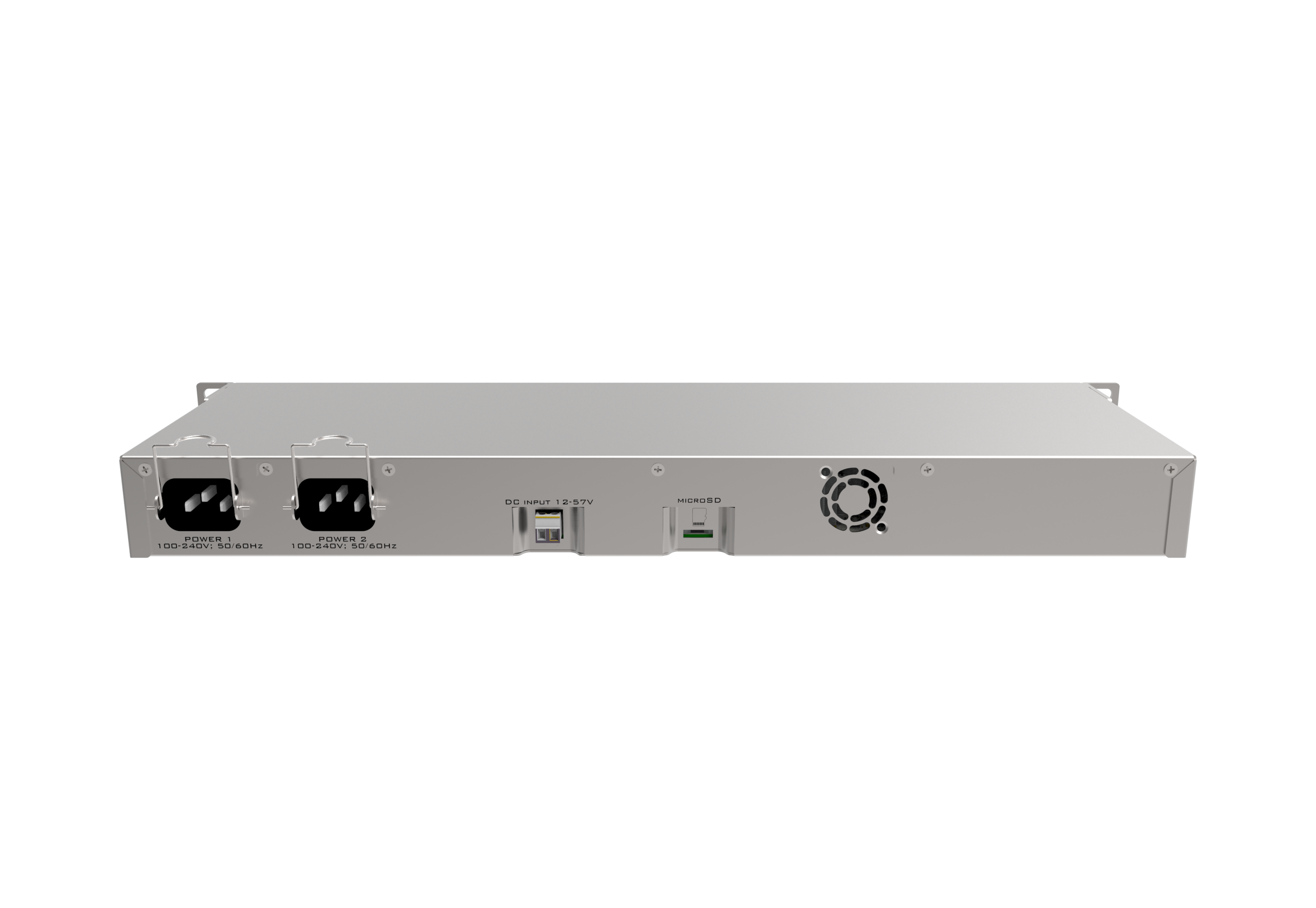

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

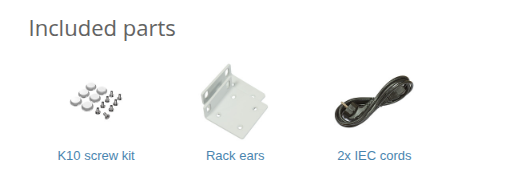

#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RB1100x4 (RB1100AHx4) | |
| 2x | Kaltgerätekabel | (IEC cords) |
| 1x | Rackmontage-Halterungen | (Rackmount ears) |
| 1x | Schrauben- und Füßchen Set K10 | (K10 screw kit) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
| Details | |
|---|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
Other
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
Ethernet test results
| RB1100x4 | AL21400 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5,509.7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 606.5 | 7,365.3 | 1,107.8 | 4,537.5 | 1,153.2 | 590.4 |
| Routing | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5092.3 | 2,607.3 |
| Routing | 25 simple queues | 606.5 | 7,365.3 | 933.6 | 3,824.0 | 960.3 | 491.7 |
| Routing | 25 ip filter rules | 543.7 | 6,602.7 | 561.8 | 2,301.1 | 564.6 | 289.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| RB1100x4 | AL21400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 92.1 | 1031.5 | 93.1 | 381.3 | 92.3 | 47.3 |
| 256 tunnels | AES-128-CBC + SHA1 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-128-CBC + SHA256 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Produktvideo, Hinweise & Tipps | Product video & tips
| Broschüre | Brochure | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Benutzerhandbuch | User manual | Öffnen | Open |
| RouterOS-Softwarehandbuch | RouterOS software manual | Öffnen | Open |
| RouterOS, SwOS & CHR [Software/Updates] | RouterOS, SwOS & CHR [current releases] | Öffnen | Open |
| SFP, SFP+, SFP28, SFP56, QSFP+, QSFP28, QSFP56 - Kompatibilitätsliste | SFP, SFP+, SFP28, SFP56, QSFP+, QSFP28, QSFP56 - Compatibility list | Öffnen | Open |
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Konformitätserklärung (CE) | Declaration of conformity (CE) | Öffnen | Open |
| Hinweise für den Start und Umgang mit RouterOS in unserem Blog | Hints for starting and handling RouterOS in our Blog | Öffnen | Open[EN] |
