MikroTik CRS317-1G-16S+RM

Name: MikroTik CRS317-1G-16S+RM
Brand: MikroTik
SKU: CRS317-1G-16S+RM
Price: 450.89 EUR
Availability: LimitedAvailability

Product.Nr.: CRS317-1G-16S+RM

Manufacturer: MikroTik

https://mikrotik.com/product/crs317_1g_16s_rm

450,89 EUR
incl. 19 % VAT

excl. shipping costs

Bestellung möglich, geringer Lagerbestand.
delivery time sofort lieferbar
weight 2,51 kg

product description

#1: CRS317-1G-16S+RM

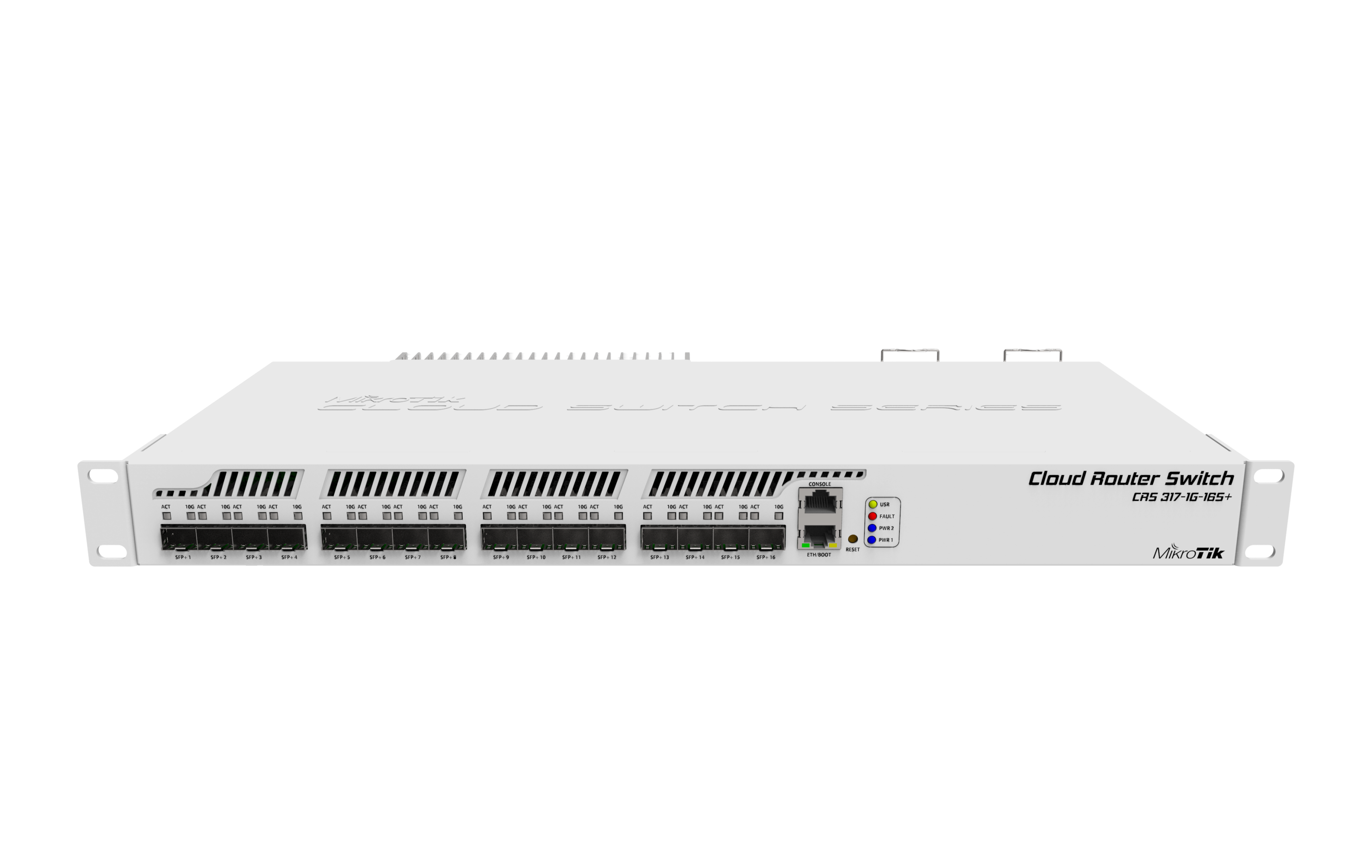

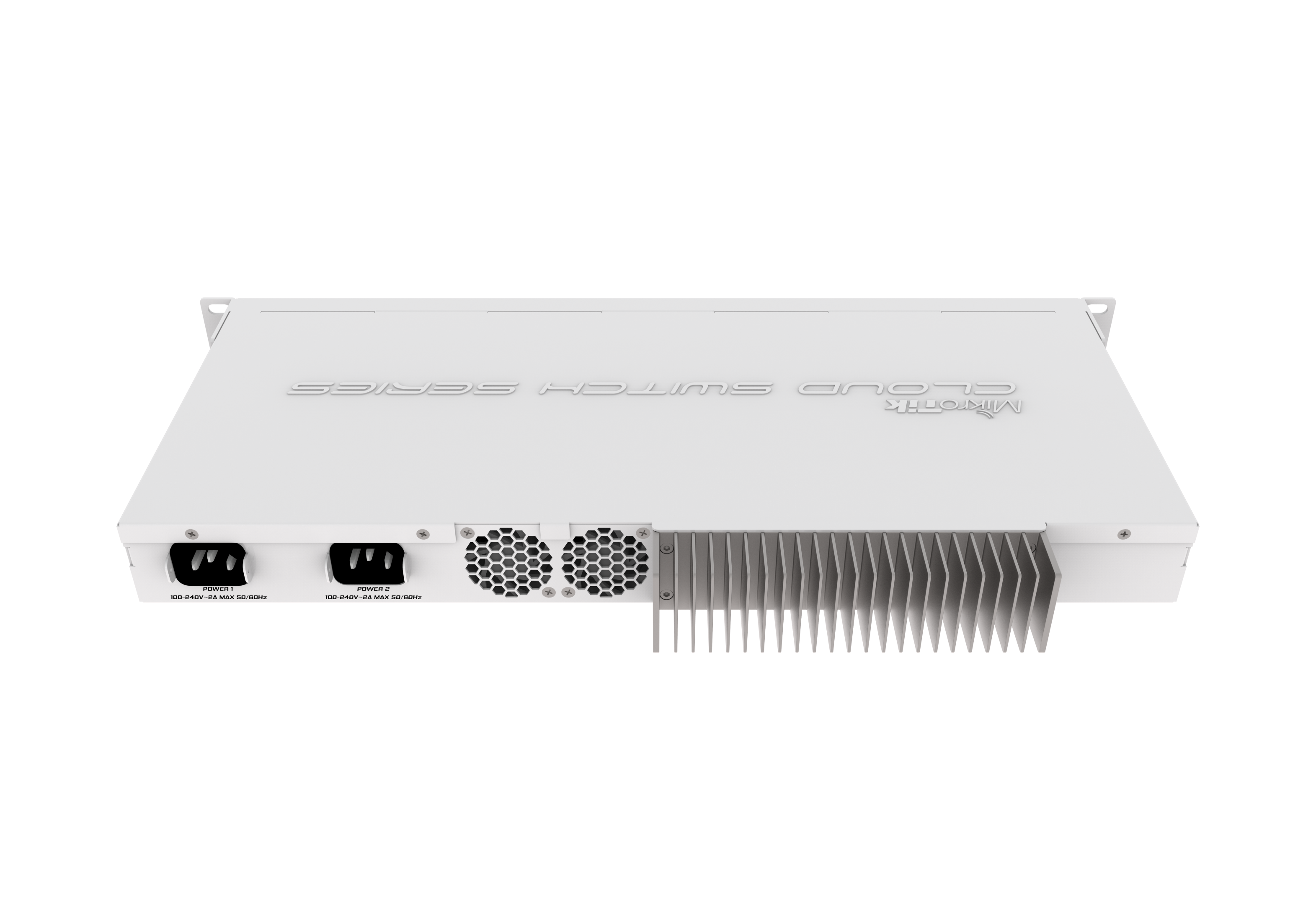

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management. CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network. The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.

#2: Included in delivery

1x CRS317-1G-16S+RM
1x Set of rack ears
2x IEC cords
1x K10 screw kit

#3: Specifications - Technical details

Details
Product code	CRS317-1G-16S+RM
Architecture	ARM 32bit
CPU	98DX8216
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX8216
Dimensions	443 x 224 x 44 mm
RouterOS license	6
Operating System	RouterOS / SwitchOS
Size of RAM	1 GB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C

Powering

Details
Number of AC inputs	2
AC input range	100-240
Max power consumption	44 W
Cooling type	2 fans

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	16

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS

#4: Test results according to RFC2544

Switching results

CRS317-1G-16S+RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	13,085.2	158,906.4	37,828.9	154,947.4	239,583.3	122,666.7
Switching	Non blocking Layer 2 capacity	13,085.2	317,812.7	37,828.9	309,894.7	239,583.3	245,333.3
Switching	Non blocking Layer 1 throughput	13,085.2	161,000.0	37,828.9	161,000.0	239,583.3	161,000.0
Switching	Non blocking Layer 1 capacity	13,085.2	322,000.0	37,828.9	322,000.0	239,583.3	322,000.0

Ethernet test results

CRS317-1G-16S+RM		98DX8216B0 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	268.3	3258.2	361.2	1479.5	355.2	181.9
Bridging	25 bridge filter rules	98.4	1195.0	98.6	403.9	98	50.2
Routing	none (fast path)	254.4	3089.4	309.8	1268.9	315.4	161.5
Routing	25 simple queues	104.6	1270.3	104.4	427.6	104.6	53.6
Routing	25 ip filter rules	104.6	1270.3	103.4	423.5	103.9	53.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
