MikroTik hap be³ Media
Product.Nr.: MA53UG+HbeH
Manufacturer: MikroTik
https://mikrotik.com/product/hap_be3_media
169,46 EUR
incl. 19 % VAT
product description
#1: hAP be³ Media
A powerful Wi-Fi 7 home router and media hub combining triple-band wireless, five 2.5G Ethernet ports, built-in Matter/Thread smart home support, and a quad-core ARM CPU for containers, storage, and advanced networking.
Triple-band 2x2 MIMO Wi-Fi 7 - Is this heaven?
- Triple band 2x2 MIMO Wi-Fi 7
- 5 x 2.5G Ethernet
- Quad-core up to 1.5 GHz ARM CPU
- USB-C + 2x USB-A
- Thread radio
- PoE-in and DC jack
- Bluetooth 5.4
- Container support
- microSD card slot
The hAP be³ Media delivers true Wi-Fi 7 performance across the 2.4, 5, and 6 GHz bands.
Expect higher throughput, lower latency, improved security, and better spectral efficiency. The wide 6 GHz band offers more clean spectrum, helping reduce congestion in busy environments
Also, hAP be³ Media supports Wi-Fi 7 Multi-Link Operation (MLO) in TR-MLMR (AP mode).
Whether you are running a multi-device home, a home lab, workstations, VR headsets, NAS backups, cloud sync, or high-resolution media streaming, everything can run simultaneously without competing for airtime. More bands mean more capacity, smoother performance, and a wireless experience that finally keeps up with modern workloads.
2.5 Gigabit Ethernet on all ports
That’s right – no more bottlenecks! Ultra-fast ISP uplink, NAS servers, workstations – you can have it all
A modern home media center

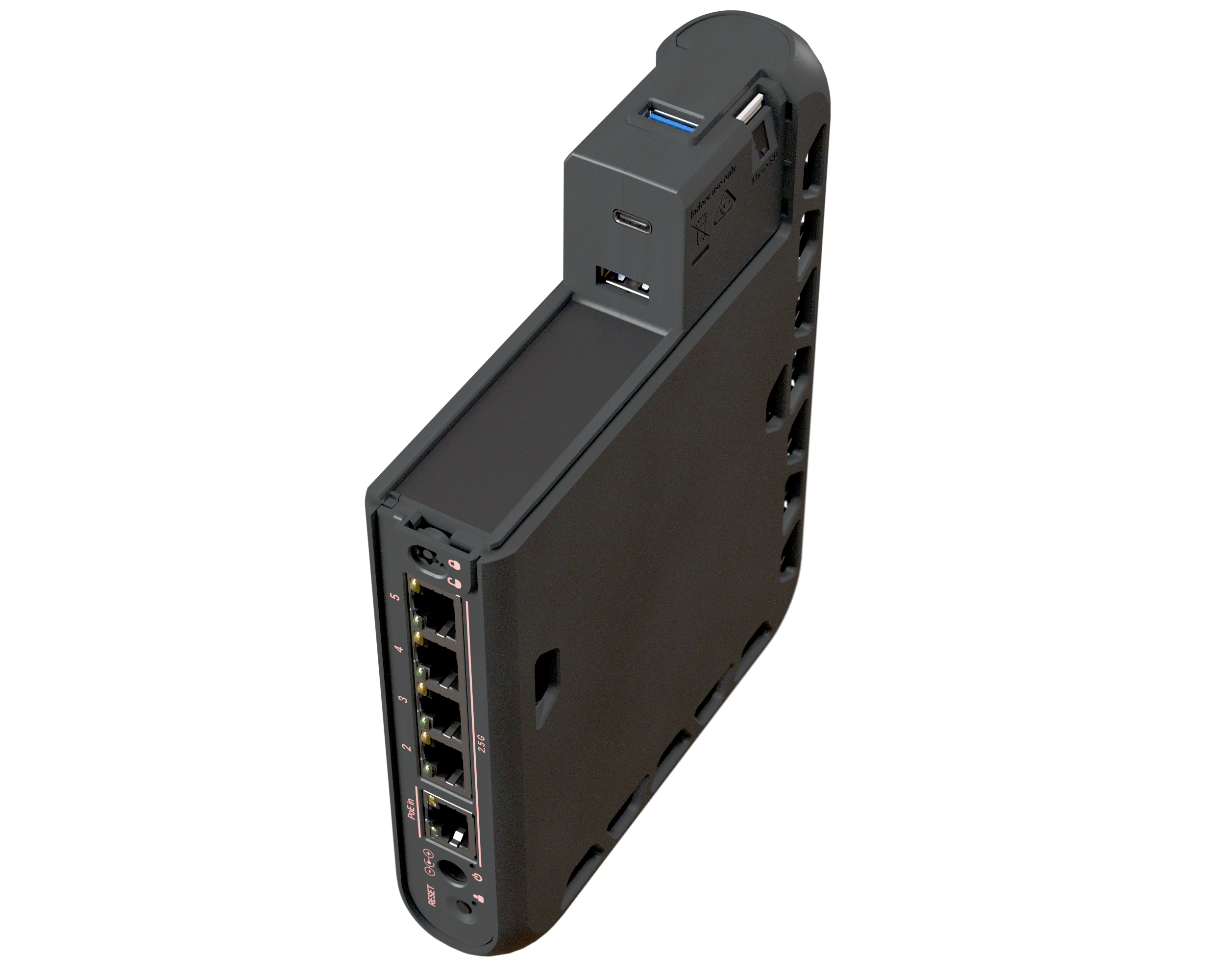

With USB-C, two USB-A ports, and a microSD card slot, hAP be³ Media becomes the heart of your local media storage. Use flash storage for backups, photos, home surveillance footage or a private family cloud
Self-hosted password managers, documents and services – that is the way in 2026, if you care about privacy and security. Store automation data and container workloads without relying on external servers. Everything stays fast, local, and fully under your control. Also, with the MikroTik BackToHome app and the improved File share functionality in WinBox, you can share large files without worrying about expired links, delays or privacy.
Matter matters - smart home integration has never been easier
With Wi-Fi 7, Bluetooth 5.4, and RouterOS v7, hAP be³ Media provides a solid foundation for modern smart homes.
A built-in Thread radio and full container support allow users to deploy Matter-over-Thread home automation solutions that remain local, private, and fully customizable.
Impressive quad-core performance - for container-heavy, creative workflows
Powered by a modern 1.5 GHz quad core CPU and built on an efficient ARM64 architecture, hAP be³ Media is ready for far more than traditional networking. Containers, local dashboards, scripting, complex firewall rules, encryption, multiple VPNs, BGP and advanced routing all run smoothly on a single, compact device. This is performance you can rely on today, and capacity that will stay ahead of your everyday needs for years to come.
And if you think containers are complicated – think again! We’ve included a simple one-click setup page in WinBox where you can enable the desired container apps.
From visualizing network topology and hosting lightweight websites to running custom dashboards, security tools or even experimental local AI assistants, containers open the door to a whole new set of possibilities.
As always, the full feature set of hAP be³ Media is available to you - without any subscriptions or paywalls. You buy it – you own it, that’s a MikroTik guarantee! |
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | MA53UG+HbeH | |

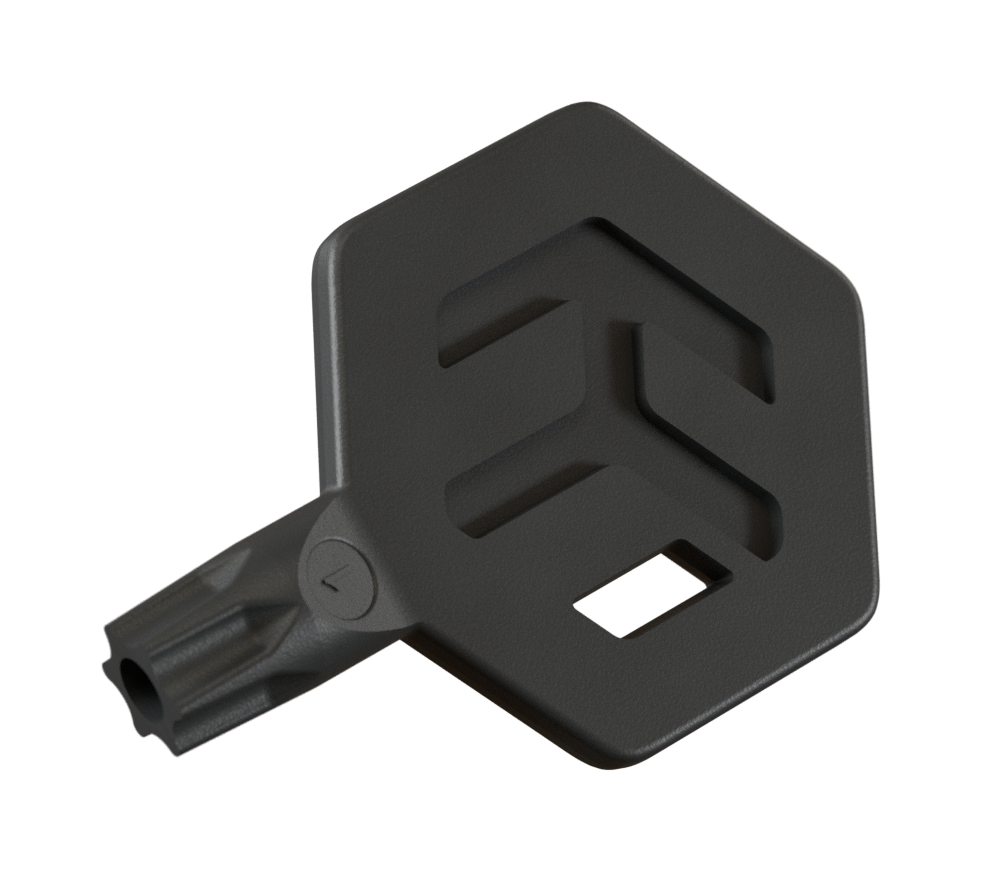

| 1x | MT Torx (T30 PIN) | (MT Torx (T30 PIN)) |

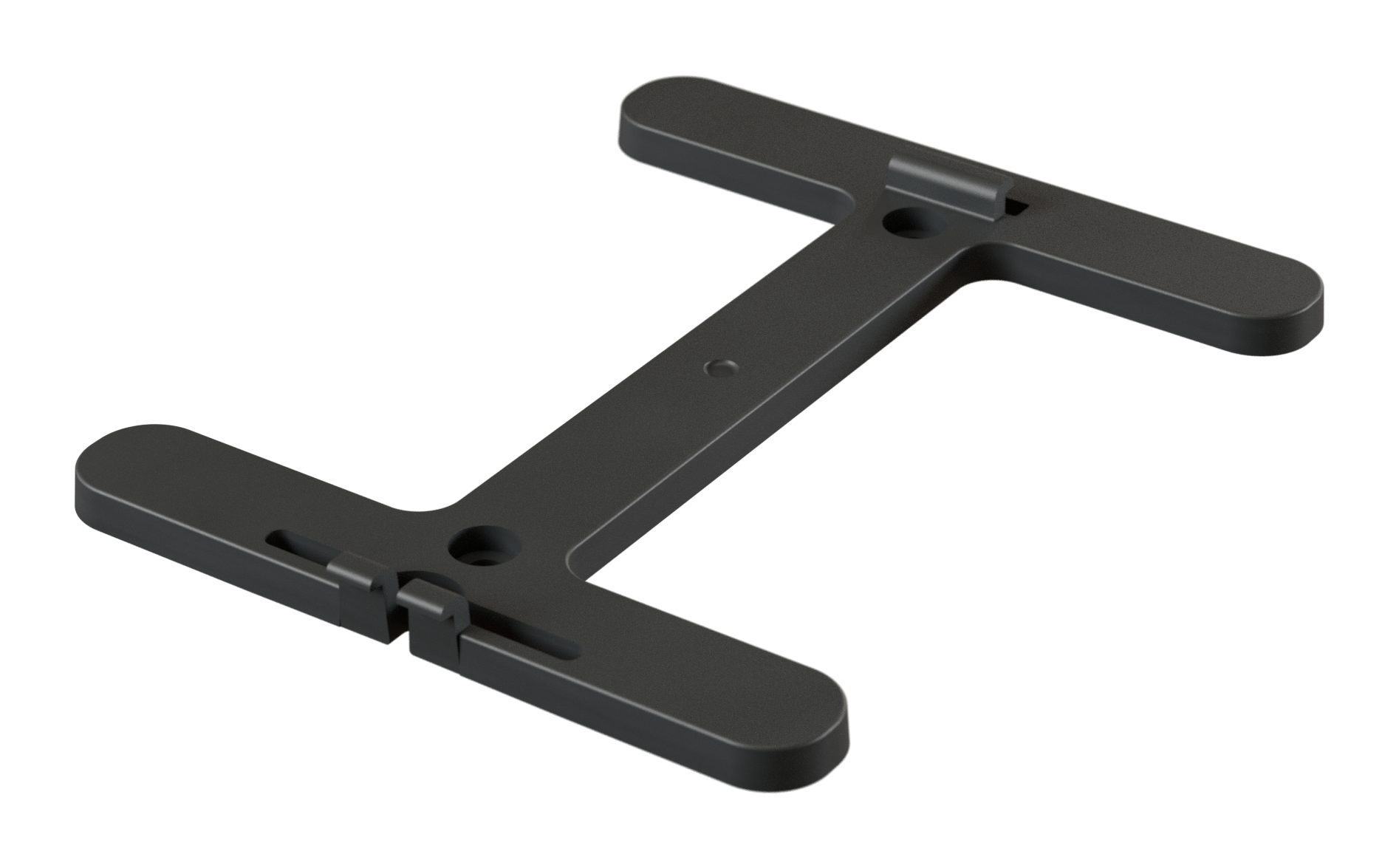

| 1x | hAP be³ Gehäusehalter | (hAP be³ Case Base) |
| 1x | 24V 1.5A Netzteil | (24V 1.5A power adapter) |
- All available MikroTik [SFP/QSFP]-modules here in our shop: [SFP/QSP]
#3: Spezifikationen - Technische Details | Specifications - Technical details
Specifications
Product code MA53UG+HbeH
Architecture ARM 64bit
CPU IPQ-5322
CPU core count 4
CPU nominal frequency Up to 1.5 GHz (auto)
CPU Threads count 4
Switch chip model QCA8386
RouterOS license 6
Operating System RouterOS v7
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 50°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax/be
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model IPQ-5322
Wireless 2.4 GHz generation Wi-Fi 7
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax/be
Antenna gain dBi for 5 GHz 7.5
Wireless 5 GHz chip model QCM-8083
Wireless 5 GHz generation Wi-Fi 7
WiFi speed AX1800
Wireless 6 GHz Max data rate 5764 Mbit/s
Wireless 6 GHz Number of chains 2
Wireless 6 GHz standards 802.11ax/be
Antenna gain dBi for 6 GHz 8
Wireless 6 GHz chip model QXM-8086
Wireless 6 GHz generation Wi-Fi 7
Ethernet
Number of 2.5G Ethernet ports 5
Peripherals
Number of USB ports 3
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-57 V
Max power consumption 29 W
Max power consumption without attachments 20 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 24-57 V
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 20
Other
CPU temperature monitor Yes
Bluetooth version 5.4
Note
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| MA53UG+HbeH | IPQ-5322 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 400.3 | 4861.2 | 756.6 | 3099.0 | 853.8 | 437.1 |
| Bridging | 25 bridge filter rules | 321.0 | 3898.2 | 346.7 | 1420.1 | 435.4 | 222.9 |
| Routing | none (fast path) | 394.2 | 4787.2 | 775.2 | 3175.2 | 916.2 | 469.1 |
| Routing | 25 simple queues | 313.9 | 3812.0 | 352.9 | 1445.5 | 336.7 | 172.4 |
| Routing | 25 ip filter rules | 279.2 | 3390.6 | 295.1 | 1208.7 | 254.3 | 138.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| MA53UG+HbeH | IPQ-5322 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 73.1 | 818.7 | 83.8 | 343.2 | 81.1 | 44.1 |
| 256 tunnels | AES-128-CBC + SHA1 | 44.4 | 497.3 | 46.9 | 192.1 | 52.6 | 28.6 |
| 256 tunnels | AES-128-CBC + SHA256 | 44.6 | 499.5 | 49.2 | 201.5 | 53.4 | 29.0 |
| 256 tunnels | AES-256-CBC + SHA1 | 44.9 | 502.9 | 49.2 | 201.5 | 54.2 | 29.5 |
| 256 tunnels | AES-256-CBC + SHA256 | 45.3 | 507.4 | 50.1 | 205.2 | 53.4 | 29.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
