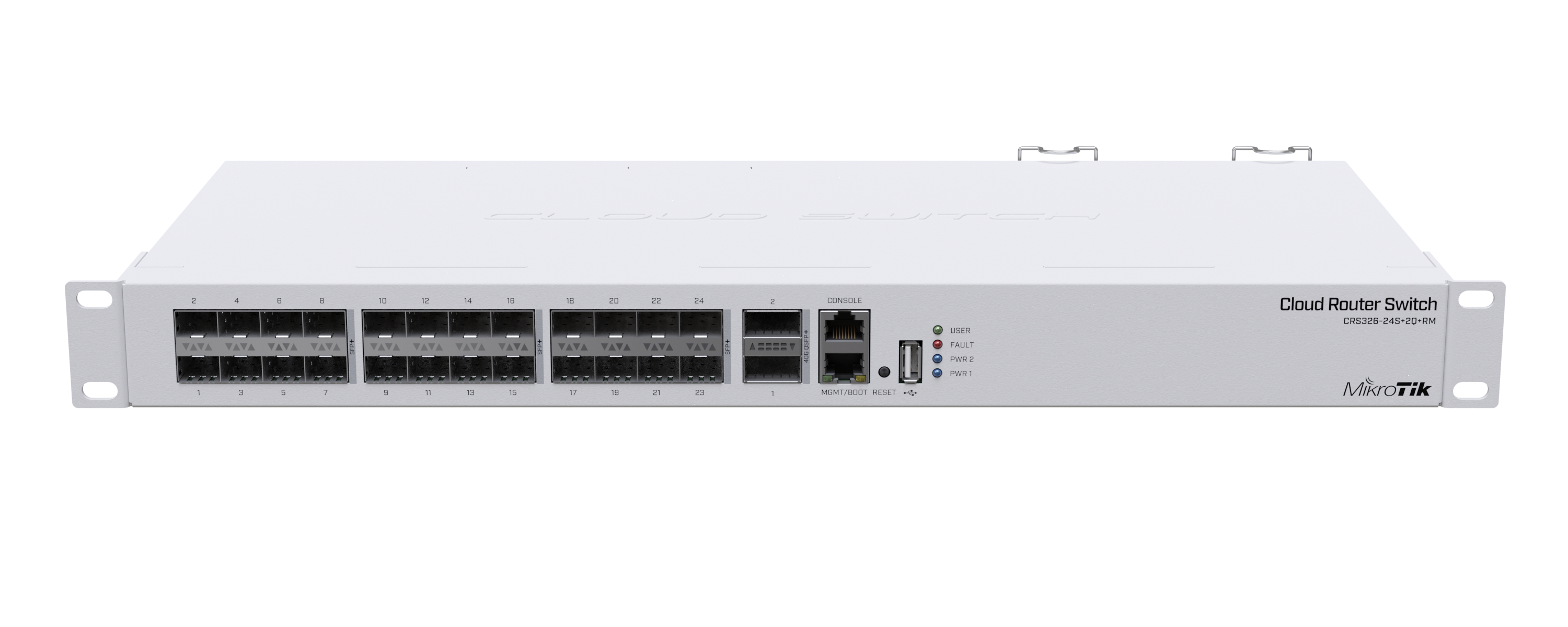

MikroTik CRS326-24S+2Q+RM

Name: MikroTik CRS326-24S+2Q+RM
Brand: MikroTik
SKU: CRS326-24S+2Q+RM
Price: 553.35 EUR
Availability: InStock

Product.Nr.: CRS326-24S+2Q+RM

Manufacturer: MikroTik

https://mikrotik.com/product/crs326_24s_2q_rm

553,35 EUR
incl. 19 % VAT

excl. shipping costs

Sofort versandfähig
delivery time sofort lieferbar
weight 3 kg

product description

#1: CRS326-24S+2Q+RM

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

#2: Included in delivery

1x CRS326-24S+2Q+RM
1x screw and feet kit (K10)
2x IEC cords
1x set of rack ears

#3: Specifications - Technical details

Details
Product code	CRS326-24S+2Q+RM
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX8332
Dimensions	443 x 200 x 44 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C

Powering

Details

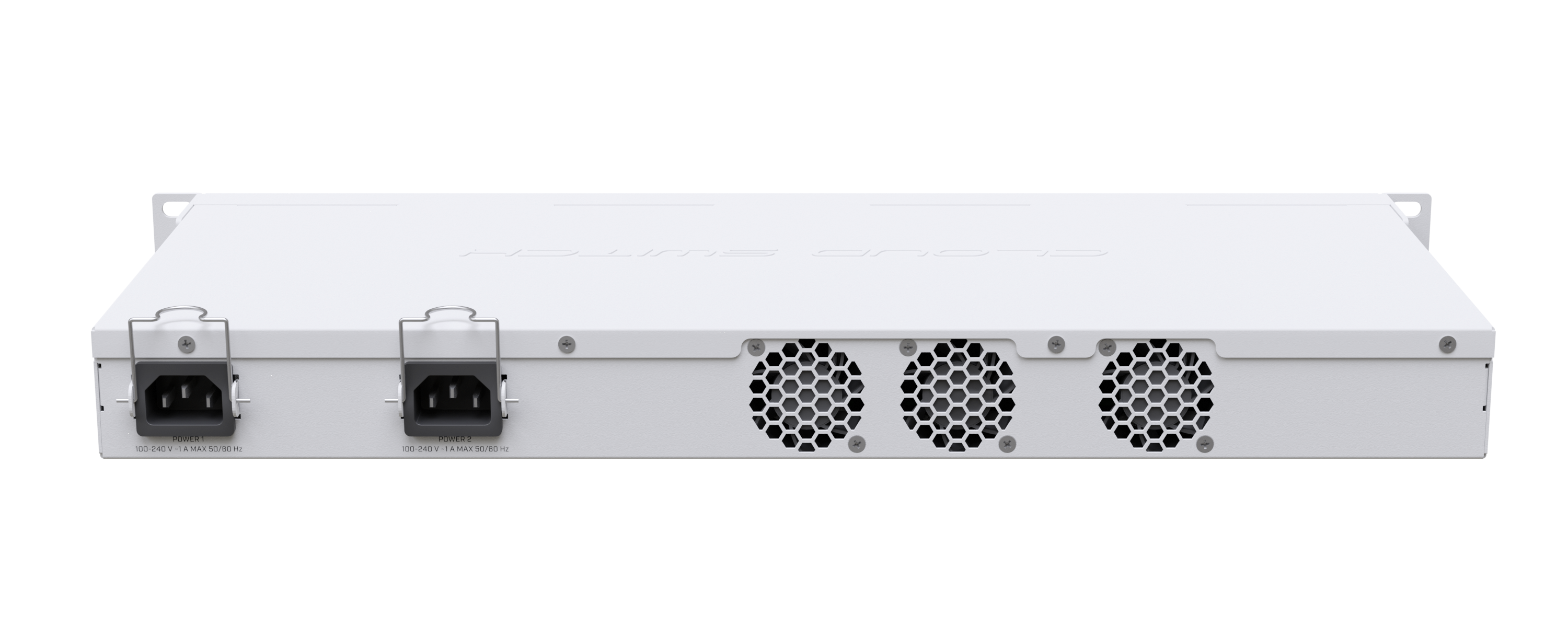

Number of AC inputs	2
AC input range	100-240
Max power consumption	69 W
Max power consumption without attachments	42 W
Cooling type	3 fans

Ethernet

Details
10/100 Ethernet ports	1

Fiber

Details
SFP+ ports	24
Number of 40G QSFP+ ports	2

Peripherals

Details
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

#4: Test results according to RFC2544

Switching results

CRS326-24S+2Q+RM		CRS326-24S+2Q+RM switching results
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	26015,9	315937,5	75211,5	308066,2	240652.5	123214,1
Switching	Non blocking Layer 2 capacity	26015,9	616132,3	75211,5	616132,3	240652.5	246428,2
Switching	Non blocking Layer 1 throughput	26015,9	320100,0	75211,5	320100,0	240652.5	123214,1
Switching	Non blocking Layer 1 capacity	26015,9	640200,0	75211,5	640200,0	240652.5	246428,2

Ethernet test results

CRS326-24S+2Q+RM		QCA9531 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	37,4	454.2	82,8	339.1	162,5	83.2
Bridging	25 bridge filter rules	33,8	410.5	47,8	195.8	75,6	38.7
Routing	none (fast path)	37,2	451.8	73,3	300.2	144,9	74.2
Routing	25 simple queues	36,4	442.0	52,4	214.6	54,4	27.9
Routing	25 ip filter rules	33,8	410.5	41,4	169.6	41,7	21.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
