MikroTik EC25-EU&KNe - KNOT Embedded LTE4
Product.Nr.: EC25-EU&KNe
Manufacturer: MikroTik
https://mikrotik.com/product/knot_embedded_lte4
72,59 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 0,2 kg
product description
#1: EC25-EU&KNe - KNOT Embedded LTE4

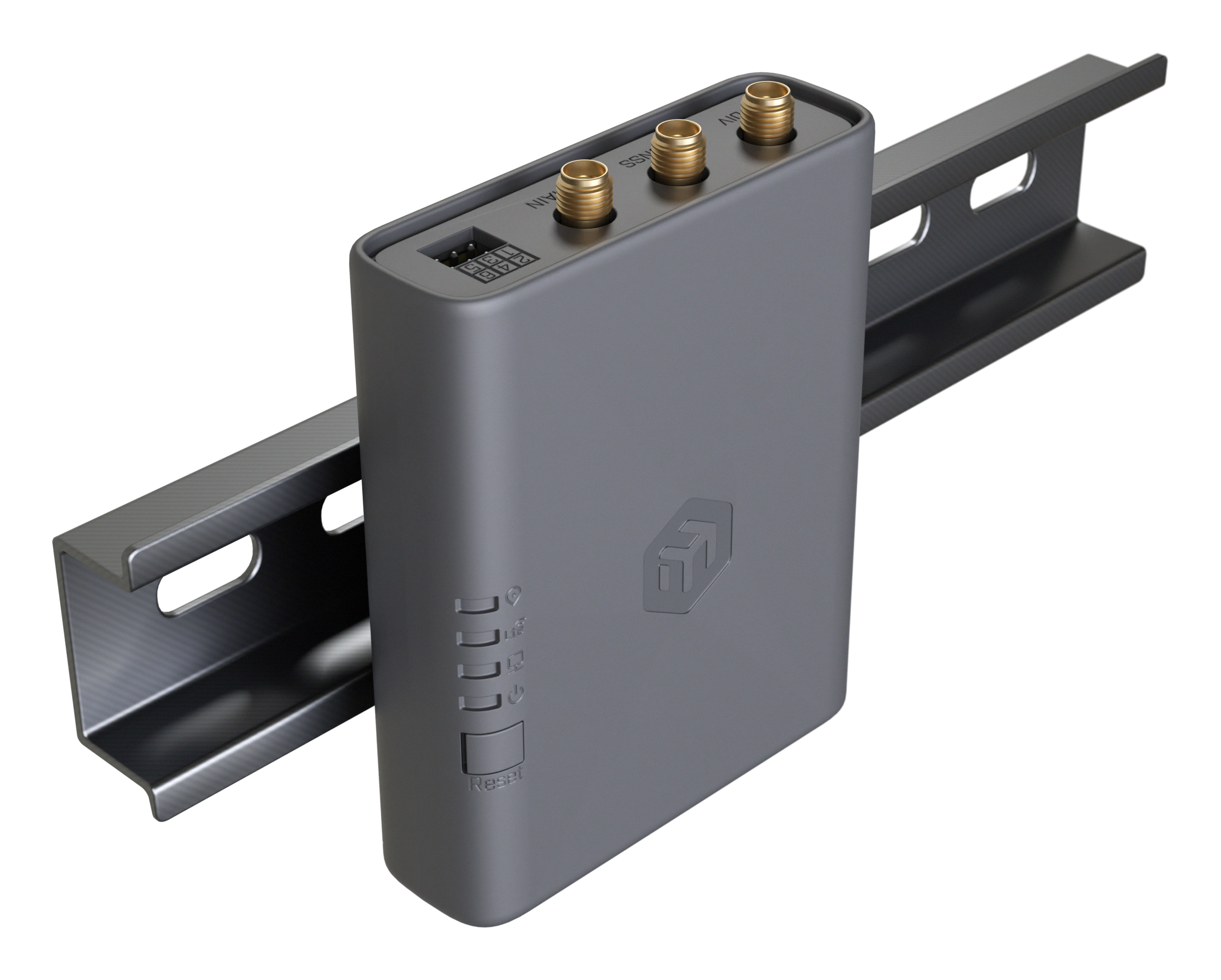

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
- Use it as a primary gateway, a backup link, or an IoT data collection node - everything is powered by RouterOS for maximum flexibility.
KNOT Embedded LTE4 is made for environments where space is limited but reliability is critical:
- Smart city infrastructure (parking, sensors, metering)
- Coffee and vending machine monitoring
- Industrial automation cabinets
- Environmental & utility monitoring
- Vehicle or asset tracking with GNSS
- Retail kiosks, payment terminals, digital signage
- LTE backup connectivity for existing Ethernet devices
- IoT gateways for BLE sensors and beacons
Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments - from smart city deployments to industrial automation and mobile tracking.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | EC25-EU&KNe (KNOT Embedded LTE4) | |
| 1x | 24V 0,8A Netzteil | (5V 0.8A power adapter) |
| 1x | K-91 Befestigungsset | (K-91 Fastening set) |
- Bitte beachten, das Gerät verfügt über keine externe Antennen. Passendes Zubehör ist unten verlinkt.
- Please note that the device does not have an external antenna. Suitable accessories are linked below.
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code EC25-EU&KNe
Architecture ARM 32bit
CPU CPU ARM 32-bit Cortex A7
CPU core count 1
CPU nominal frequency 800 MHz
RouterOS license 3
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 512 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering

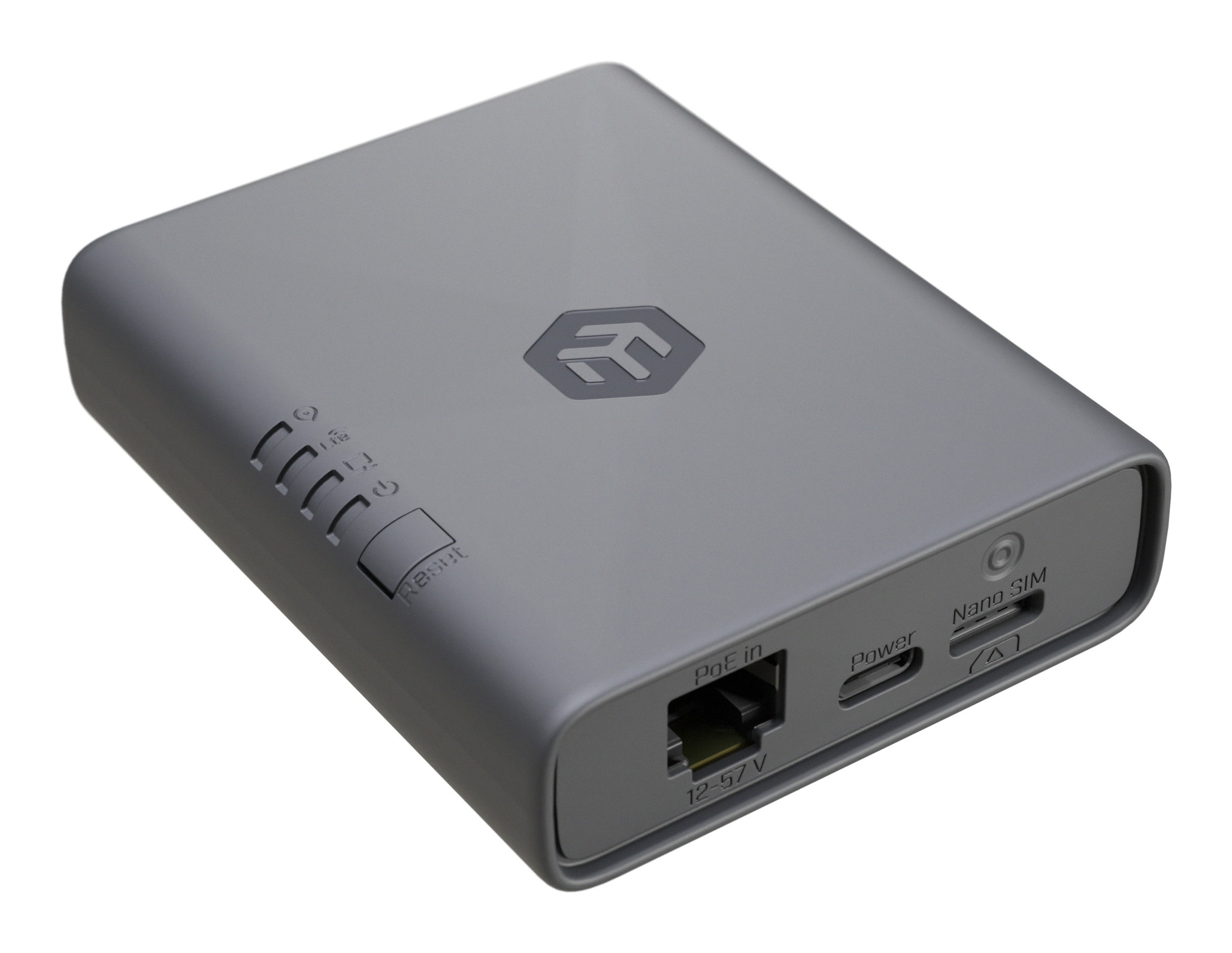

Number of DC inputs 2 (PoE-IN, USB-C)
Max power consumption 7 W
Max power consumption without attachments 7 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 12-57 V
USB C input Voltage 5 V
Mobile
2G Category Class12
2G bands 3 (1800MHz)
8 (900MHz)3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz)
8 (900MHz)LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 1 (2100MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28A (700 MHz)LTE TDD bands 38 (2600MHz)
40 (2300MHz)
41 (2500MHz)TAC 86554604
Ethernet
10/100/1000 Ethernet ports 1
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1
Peripherals
Number of SIM slots 1 Modem (Nano SIM)
Other
CPU temperature monitor Yes
PCB temperature monitor Yes
Bluetooth version 5.4
GPS RF connector type SMA
eSIM Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP 20
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| EC25-EU&KNe | EC25-EU one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 80.2 | 973.9 | 217.4 | 890.5 | 222 | 113.7 |
| Bridging | 25 bridge filter rules | 67.5 | 819.7 | 68.5 | 280.6 | 69.3 | 35.5 |
| Routing | none (fast path) | 80.2 | 973.9 | 226.1 | 926.1 | 233.8 | 119.7 |
| Routing | 25 simple queues | 66.3 | 805.1 | 66.8 | 273.6 | 75.1 | 38.5 |
| Routing | 25 ip filter rules | 47.5 | 576.8 | 47.5 | 194.6 | 47.5 | 24.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
