Hersteller: MikroTik

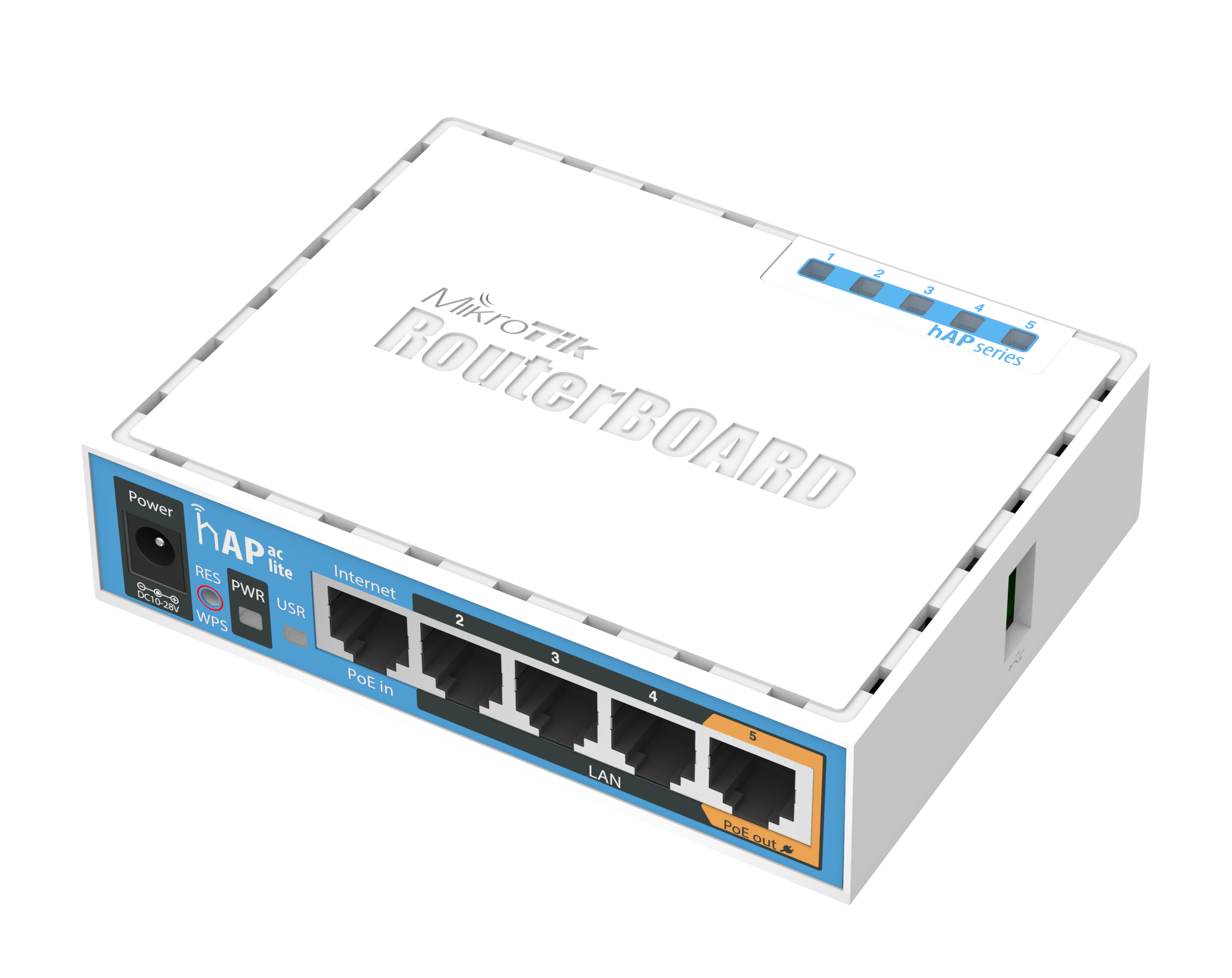

MikroTik RB952Ui-5ac2nD - hAP ac lite

Art.Nr.: RB952Ui-5ac2nD

Hersteller: MikroTik

http://MikroTik RouterBOARD RB952Ui-5ac2nD

59,90 EUR
incl. 19 % USt

  • Sofort versandfähig Sofort versandfähig
  • Gewicht 0,4 kg

Produktbeschreibung

#1: RB952Ui-5ac2nD - hAP ac lite

Der hAP ac lite ist ein Dual-Current Access Point, der WiFi-Abdeckung für 2,4GHz und 5GHz Frequenzen zur gleichen Zeit bietet.

Das Gerät ist ausgestattet mit einer 650MHz CPU, 64MB RAM, fünf 10/100Mbps Ethernet Ports (PoE Ausgang an Port #5), Dual-Chain 802.11b/g/n 2.4GHz Wireless, Single-Chain 802.11a/n/ac 5GHz Wireless, USB Port für 3G/4G Modem und einer RouterOS L4 Lizenz.

Wir verkaufen diese Version: RB952Ui-5ac2nD (International) unterstützt die Frequenzbereiche 2412-2484MHz und 5150MHz - 5875MHz (Der spezifische Frequenzbereich kann durch Länderbestimmungen eingeschränkt sein).


#2: Im Lieferumfang enthalten

  • 1x RB952Ui-5ac2nD (hAP ac lite)
  • 1x 24V 1,2A Netzteil


#3: Spezifikationen - Technische Details

Details
Product code RB952Ui-5ac2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
Dimensions 113 x 89 x 28mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC750

Ethernet

Details
10/100 Ethernet ports 5

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-28 V
Max power consumption 20 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max total out (A) 500 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63



#4: Test-Resultate nach RFC2544

Ethernet test results

RB952Ui-5ac2nD QCA9531 (650Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 217.0 111.1
Bridging 25 bridge filter rules 40.6 493.0 70.1 287.1 70.9 36.3
Routing none (fast path) 40.6 493.0 117.4 480.9 200.8 102.8
Routing 25 simple queues 40.6 493.0 79.6 326.0 90.8 46.5
Routing 25 ip filter rules 40.6 493.0 42.2 172.8 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
