MikroTik RBmAP2nD - mAP
Product.Nr.: RBmAP2nD
Manufacturer: MikroTik
https://mikrotik.com/product/RBmAP2nD
46,50 EUR
incl. 19 % VAT
-
Available, at least 4 on stock
- delivery time available
- weight 0,25 kg
product description

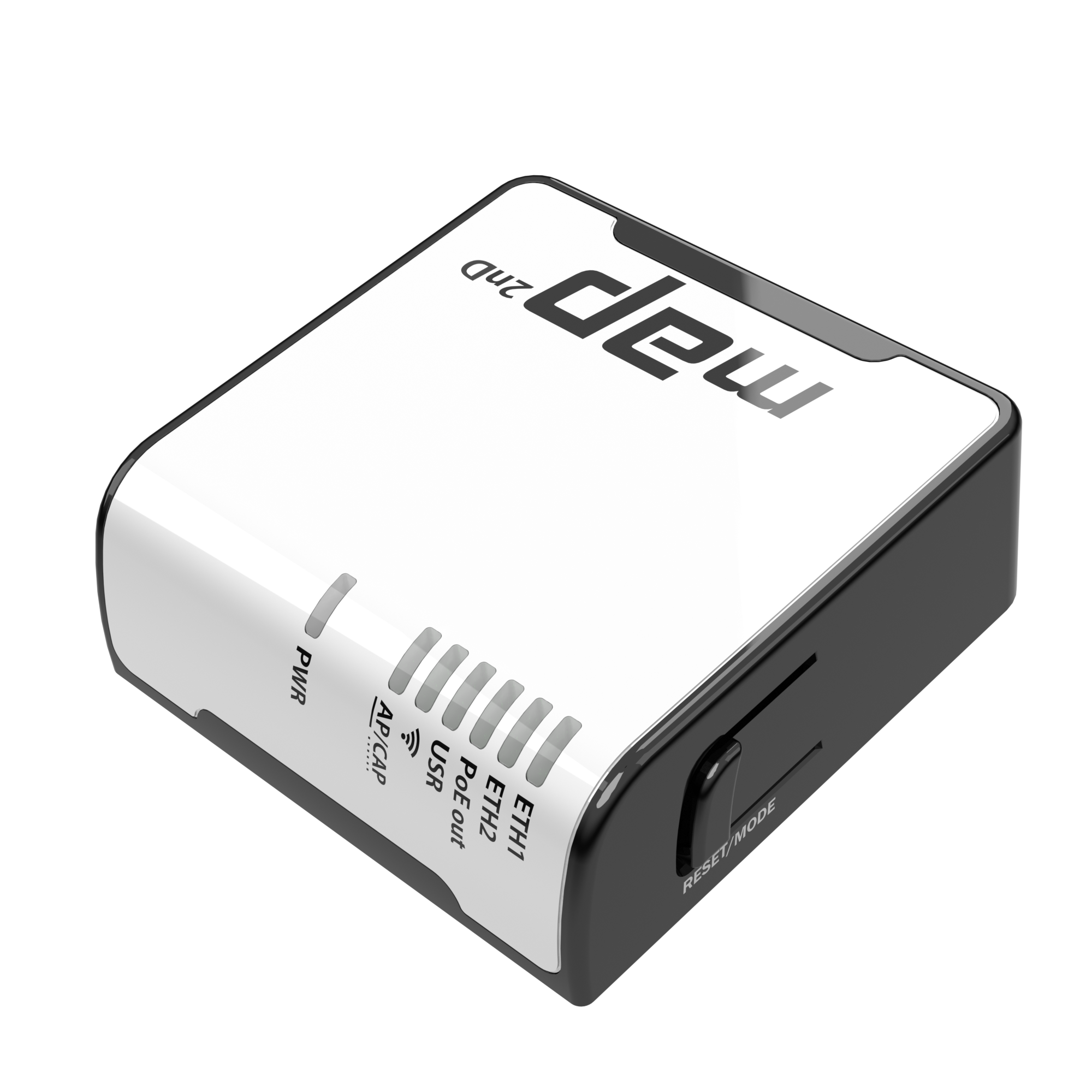

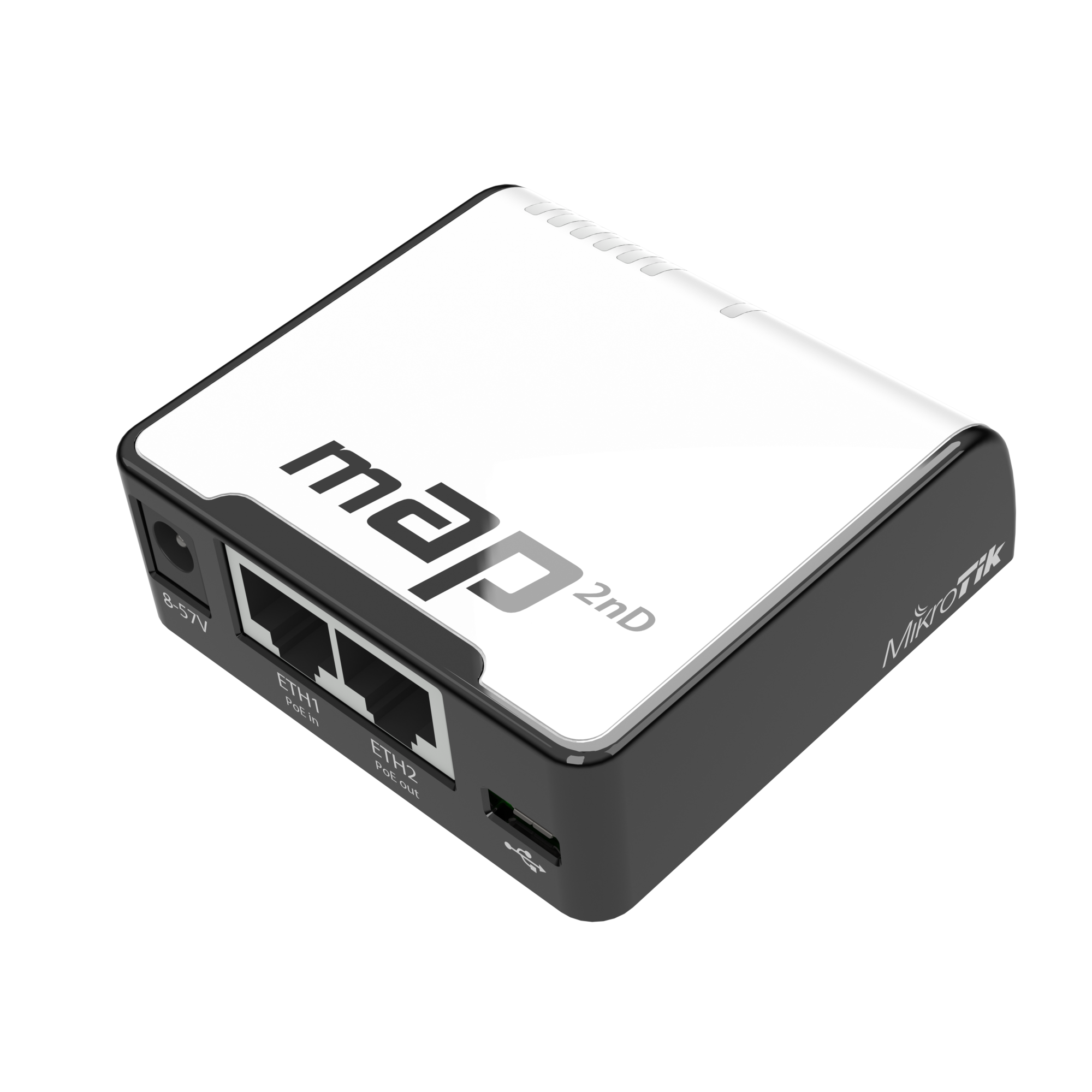

#1: RBmAP2nD - mAP
The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack.
It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBmAP2nD (mAP) | |
| 1x | 24V 0,8A Netzteil | (24V 0.8A power supply) |
| 1x | Befestigungs-Set (K-33) | Mounting kit (K-33) |
| 1x | USB OTG Kabel | (USB OTG cable) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RBmAP2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531-BL3A-R
Dimensions 68x68x19mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
10/100 Ethernet ports 2
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
Powering
MicroUSB input Voltage 5 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-57 V
Max power consumption 5 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 12-57 V
PoE-out
PoE-out ports Ether2
PoE out Passive PoE
Low voltage PoE-Out current limit 0.5 A
Max total out (A) 0.5 A
Certification & Approvals
Certification FCC, IC
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RBmAP2nD | QCA9531 100M two port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 297.6 | 152.4 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 80.4 | 41.2 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 233.1 | 119.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.0 | 192.5 | 131.4 | 67.3 |
| Routing | 25 ip filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 49.1 | 25.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 22 | -96 |
| 11Mbit/s | 22 | -89 |
| 6Mbit/s | 20 | -93 |
| 54Mbit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
#5: Produktinformationen & Hilfe | Product informations & Help
Produktspezifische Links - Product-specific links:
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Abmessungen | Dimensions | Öffnen | Open |
| Bedienungsanleitung | User Manual | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Konformitätserklärung | Declaration of Conformity (DoC) | Öffnen | Open |
| FCC 2,4GHz Genehmigung | FCC 2.4GHz | Öffnen | Open |
