#1: RBcAP2nD - cAP

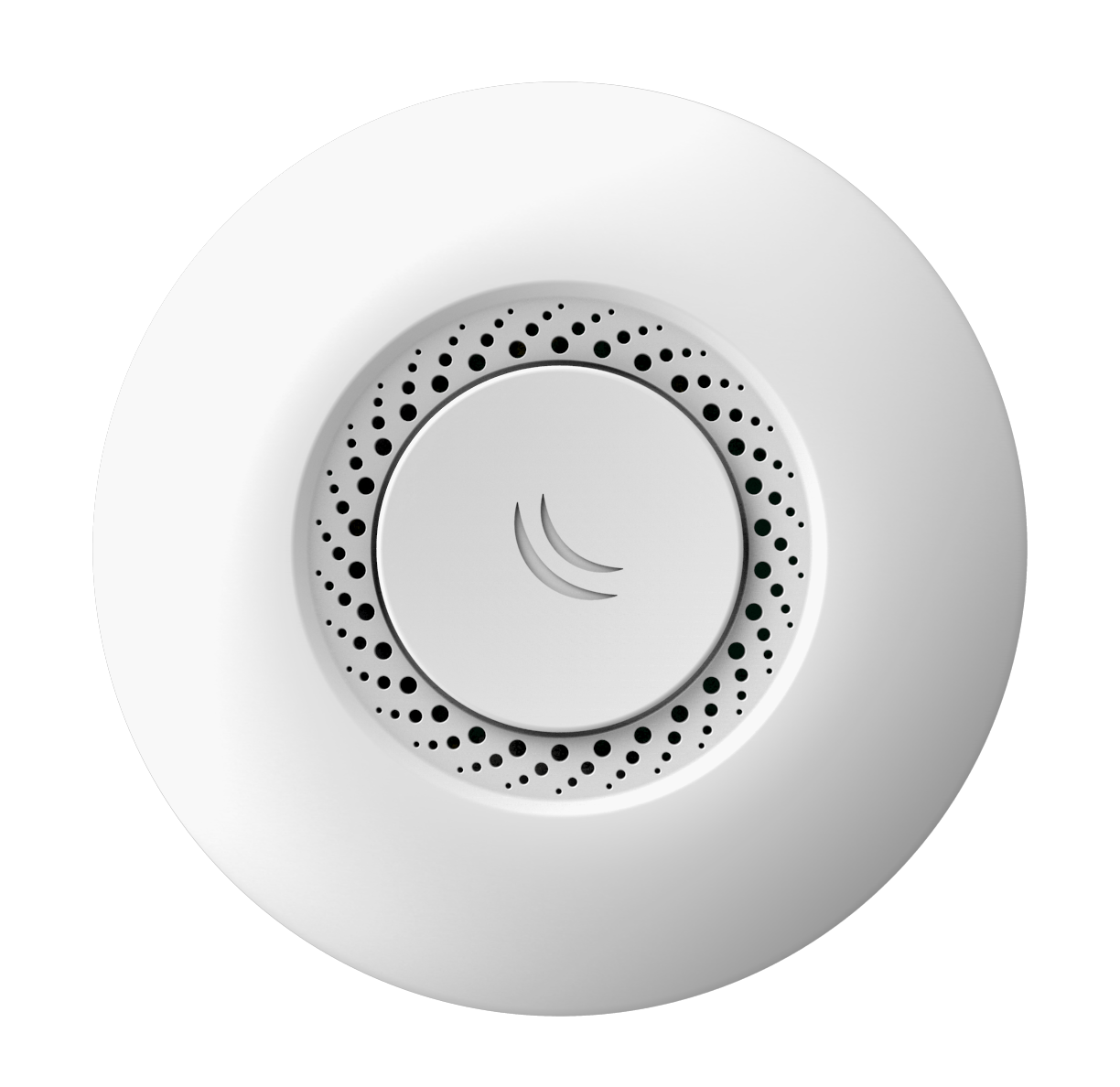

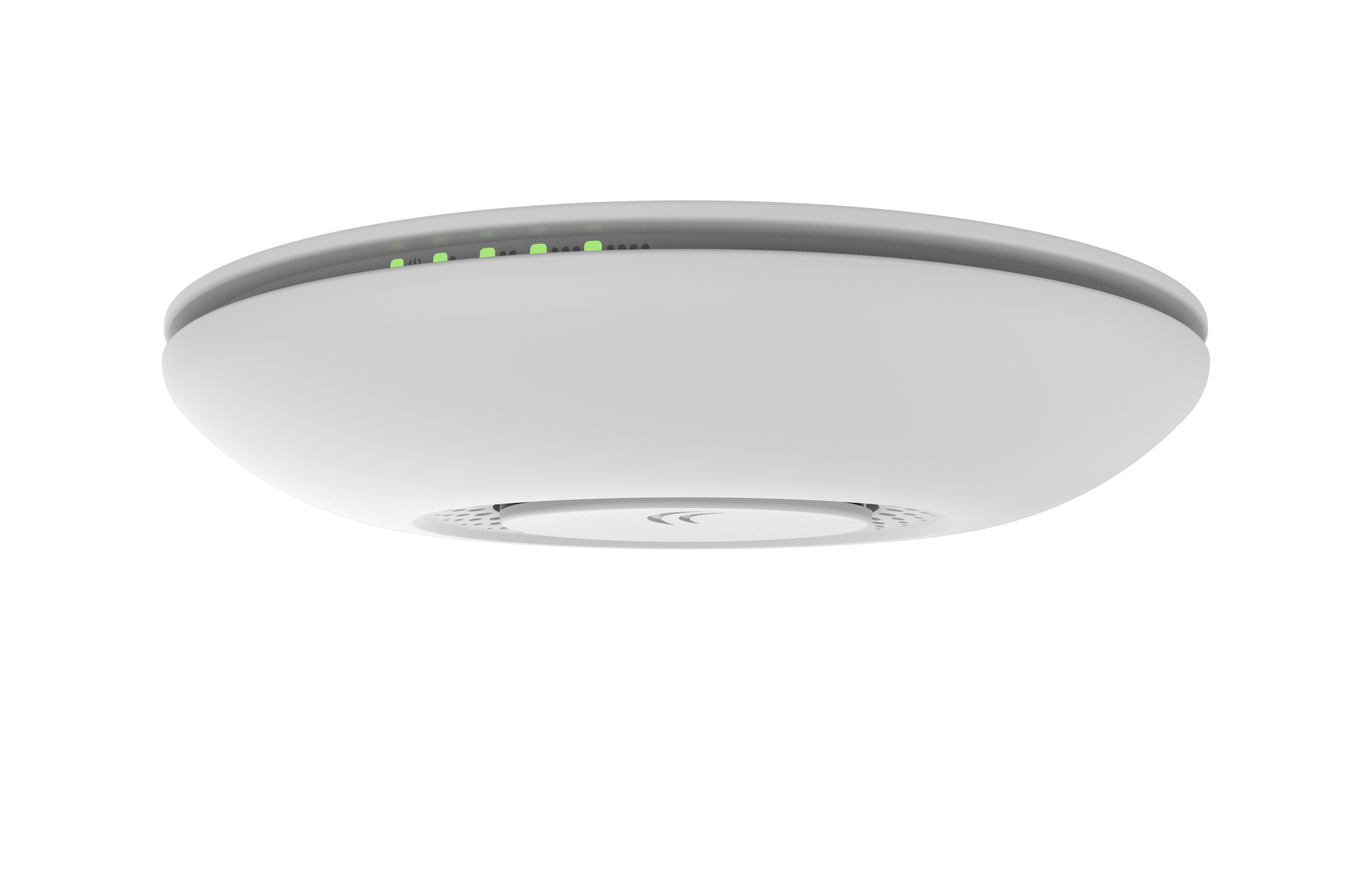

RouterBOARD cAP-2nD (ceiling Access Point) is MikroTiks first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Unlike traditional controller software, which requires a separate PC/Mac to run, their CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

#2: Im Lieferumfang enthalten | Included in delivery

#3: Spezifikationen - Technische Details | Specifications - Technical details

• Product code RBcAP2nD

• Architecture MIPSBE

• CPU QCA9533

• CPU core count 1

• CPU nominal frequency 650 MHz

• Dimensions 185mm diameter, 31mm height

• RouterOS license 4

• Operating System RouterOS

• Size of RAM 64 MB

• Storage size 16 MB

• Storage type FLASH

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 70°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate 300 Mbit/s

• Wireless 2.4 GHz Number of chains 2

• Wireless 2.4 GHz standards 802.11b/g/n

• Antenna gain dBi for 2.4 GHz 2

• Wireless 2.4 GHz chip model QCA9533

• Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

• 10/100 Ethernet ports 1

Powering

• Number of DC inputs 1 (PoE-IN)

• Max power consumption 4 W

• PoE in 802.3af/at

• Cooling type Passive

• PoE in input Voltage 11-57 V

Certification & Approvals

• Certification CE, FCC, IC, EAC, ROHS

• IP IP20

Other

• Mode button Yes

Hinweis/Note:

• Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
• The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

#4: Test Resultate nach RFC2544 | Test results according to RFC2544

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

#4.1: Wlan Spezifikationen | Wireless Specifications
