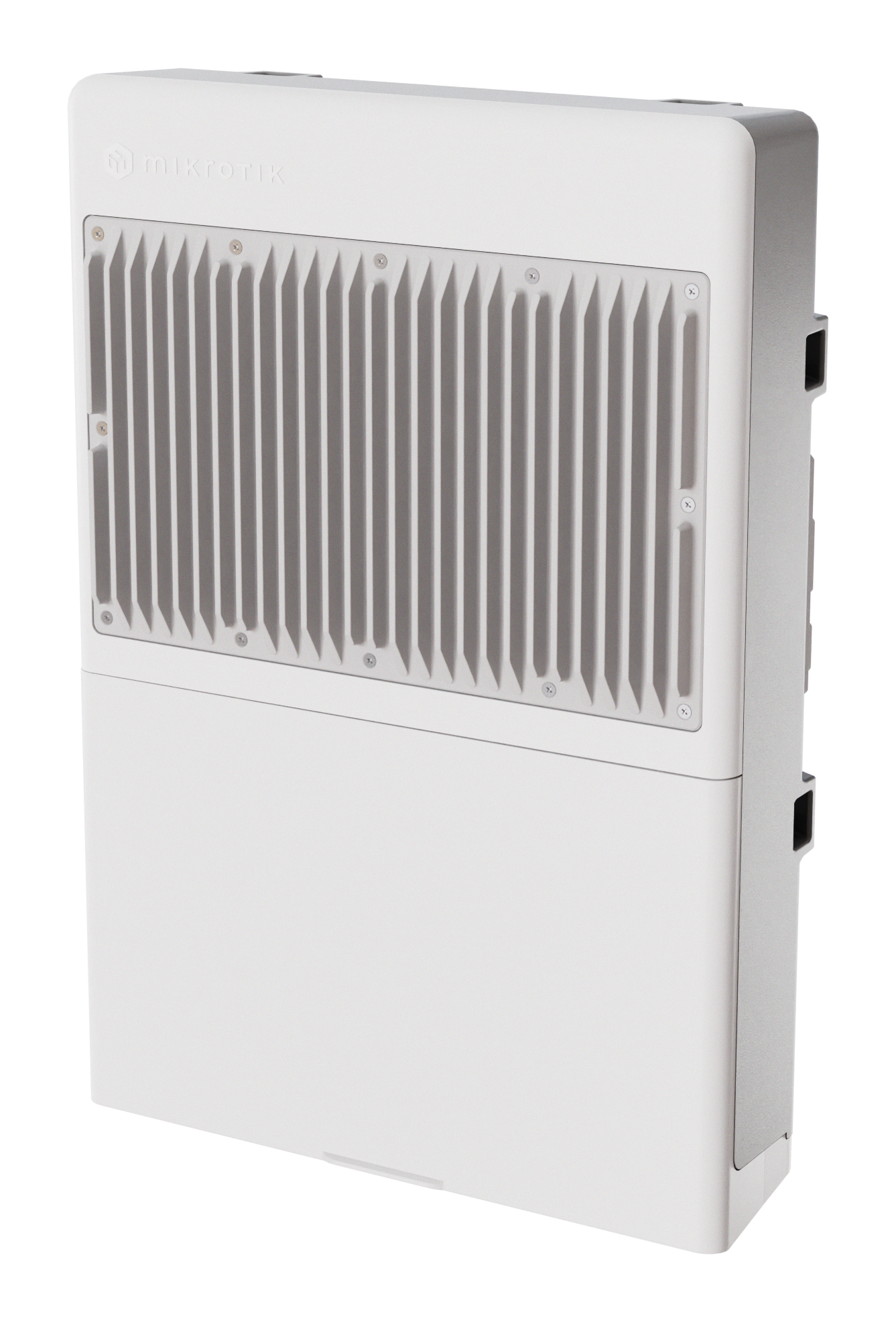

MikroTik CSS610-8P-2S+OUT - netPower Lite 8P
Product.Nr.: CSS610-8P-2S+OUT
Manufacturer: MikroTik
https://mikrotik.com/product/netpower_lite_ups
184,45 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 2,21 kg
product description
#1: CSS610-8P-2S+OUT - netPower Lite 8P
Power cuts shouldn’t mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery – and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite – fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24–57 V DC into the 2-pin terminal.
Just like MikroTiks other outdoor-friendly gear, this switch is built to endure. With an operating range of –40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically – charging slows down first to keep your essential devices online.
Connect a 24 V nominal battery – typically two 12 V units in series – and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.
A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime – the netPower Lite 8P is ready to keep you online…even when the lights go out.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | CSS610-8P-2S+OUT | |
| 2x | Schlauchschelle (Metall) | (Hose clamp) |
| 1x | K-66 Befestigungsset | (K-66 fastening set) |
| 1x | Temperatursensor | (Temperature sensor) |
- Alle verfügbaren MikroTik [SFP/QSFP]-Module finden Sie hier bei uns im Shop: [SFP/QSP]
#3: Spezifikationen - Technische Details | Specifications - Technical details
| Specifications | |
| Product code | CSS610-8P-2S+OUT |
| Switch chip model | 88E6193 |
| Operating System | SwOS |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200,000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 3 (DC jack, 2-pin terminal) |
| DC jack input Voltage | 24-57 V |
| 2-pin terminal input Voltage | 22-30 V |
| Max power consumption | 208 W |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1.0 A |
| High voltage PoE-Out current limit | 0.64 A |
| Total output power | 120 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
| Fiber | |
| SFP+ ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 54 |
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| CSS610-8P-2S+OUT | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,275.7 | 27,635.9 | 6,578.9 | 26,947.4 | 41,666.7 | 21,333.3 |
| Switching | Non blocking Layer 2 capacity | 2,275.7 | 55,271.8 | 6,578.9 | 53,894.7 | 41,666.7 | 42,666.7 |
| Switching | Non blocking Layer 1 throughput | 2,275.7 | 28,000.0 | 6,578.9 | 28,000.0 | 41,666.7 | 28,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,275.7 | 56,000.0 | 6,578.9 | 56,000.0 | 41,666.7 | 56,000.0 |
#5: Produktinformationen & Hilfe | Product informations & Help
| Benutzerhandbuch | User manual | Öffnen | Open |
| Softwarehandbuch [RouterOS] | Software manual [RouterOS] | Öffnen | Open |
| Softwarehandbuch [SwOS] | Software manual [SwOS] | Öffnen | Open |
| Blog [RouterOS, 60GHz, RMA, ...] | Blog [RouterOS, 60GHz, RMA, ...] | Öffnen | Open |
| Software/Updates [RouterOS, SwOS & CHR] | Software/Updates [RouterOS, SwOS & CHR] | Öffnen | Open |
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Kompatibilitätsliste [SFP/QSP] | Compatibility list [SFP/QSFP] | Öffnen | Open |
| Sicherheits- und behördliche Informationen | Safety and regulatory information | Öffnen | Open |
| Konformitätserklärung (CE) | Declaration of conformity (CE) | Öffnen | Open |
