MikroTik RB5009UPr+S+OUT
Product.Nr.: RB5009UPr+S+OUT
Manufacturer: MikroTik
https://mikrotik.com/product/rb5009_out
299,00 EUR
incl. 19 % VAT
-
Sofort versandfähig, geringe Stückzahl
- delivery time sofort lieferbar
- weight 2,2 kg
product description
#1: RB5009UPr+S+OUT
As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here’s our wishlist for the perfect tool:
- easy to deploy
- works well in ANY weather
- provides extensive power redundancy
- can be connected via most common networking interfaces
- has a CPU that is strong enough to take full advantage of the most powerful
- networking software in the world – RouterOS v7
- doesn’t cost a fortune
Adding an IP66-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market!
Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!
When we say “extensive power redundancy”, we really mean it: the unit offers 9 possible ways of powering. There’s a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy!
All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.
When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!
The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!

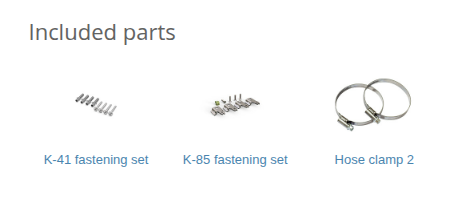

#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RB5009UPr+S+OUT | |
| 1x | K-41 Befestigungsset | (K-41 fastening set) |
| 1x | K-85 Befestigungsset | (K-85 fastening set) |
| 2x | Schlauchschelle (Metall) | (Hose clamp 2) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RB5009UPr+S+OUT
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
CPU Threads count 4
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 15 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 24-57 V
PoE-out
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Low voltage PoE-Out current limit 900 mA
High voltage PoE-Out current limit 440 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 130
Ethernet
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with PoE-out 1
Fiber
SFP+ ports 1
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP 66
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RB5009UPr+S+OUT | 88F7040 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 811.2 | 9851.4 | 2332 | 9551.9 | 5768.4 | 3138 |
| Bridging | 25 bridge filter rules | 811.2 | 9851.4 | 1238.3 | 5072.2 | 1235.6 | 672.2 |
| Routing | none (fast path) | 811.2 | 9851.4 | 2332 | 9551.9 | 4969.4 | 2703.3 |
| Routing | 25 simple queues | 811.2 | 9851.4 | 1126 | 4612 | 1095 | 595.7 |
| Routing | 25 ip filter rules | 771.2 | 9365.6 | 755.9 | 3096.2 | 761 | 414 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RB5009UPr+S+OUT | 88F7040 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 120.9 | 1354.1 | 119.4 | 489.1 | 124.3 | 63.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 126.5 | 1416.8 | 125.3 | 513.2 | 120.3 | 61.6 |
| 256 tunnels | AES-128-CBC + SHA256 | 126.5 | 1416.8 | 125.3 | 513.2 | 120.3 | 61.6 |
| 256 tunnels | AES-256-CBC + SHA1 | 125.8 | 1409 | 123.2 | 504.6 | 114.3 | 58.5 |
| 256 tunnels | AES-256-CBC + SHA256 | 125.8 | 1409 | 123.2 | 504.6 | 114.3 | 58.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
