MikroTik RB952Ui-5ac2nD-TC - hAP ac lite TC
Art.Nr.: RB952Ui-5ac2nD-TC
Hersteller: MikroTik
58,31 EUR
incl. 19 % USt
-
Sofort versandfähig
- Gewicht 0,4 kg
Produktbeschreibung
#1: RB952Ui-5ac2nD-TC - hAP ac lite TC
Der hAP ac lite ist ein Dual-Current Access Point, der WiFi-Abdeckung für 2,4GHz und 5GHz Frequenzen zur gleichen Zeit bietet.

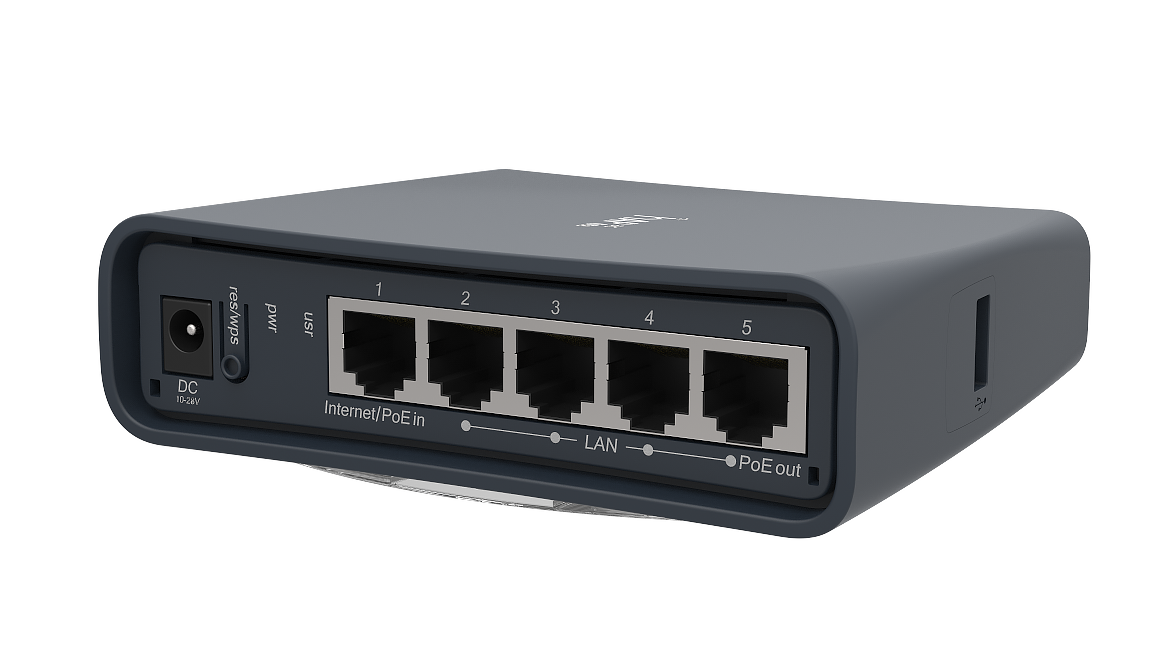

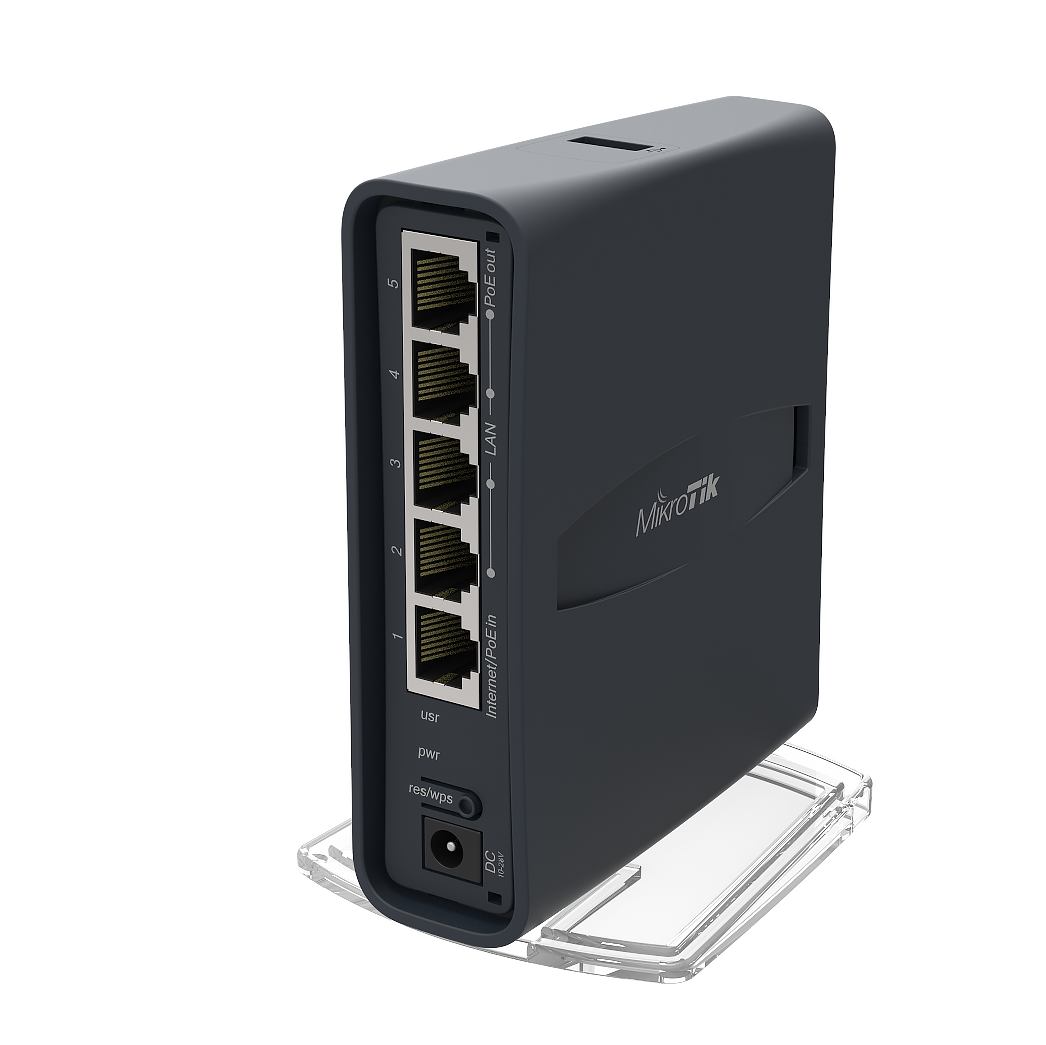

Das Gerät ist ausgestattet mit einer 650MHz CPU, 64MB RAM, fünf 10/100Mbps Ethernet Ports (PoE Ausgang an Port #5), Dual-Chain 802.11b/g/n 2.4GHz Wireless, Single-Chain 802.11a/n/ac 5GHz Wireless, USB Port für 3G/4G Modem und einer RouterOS L4 Lizenz.

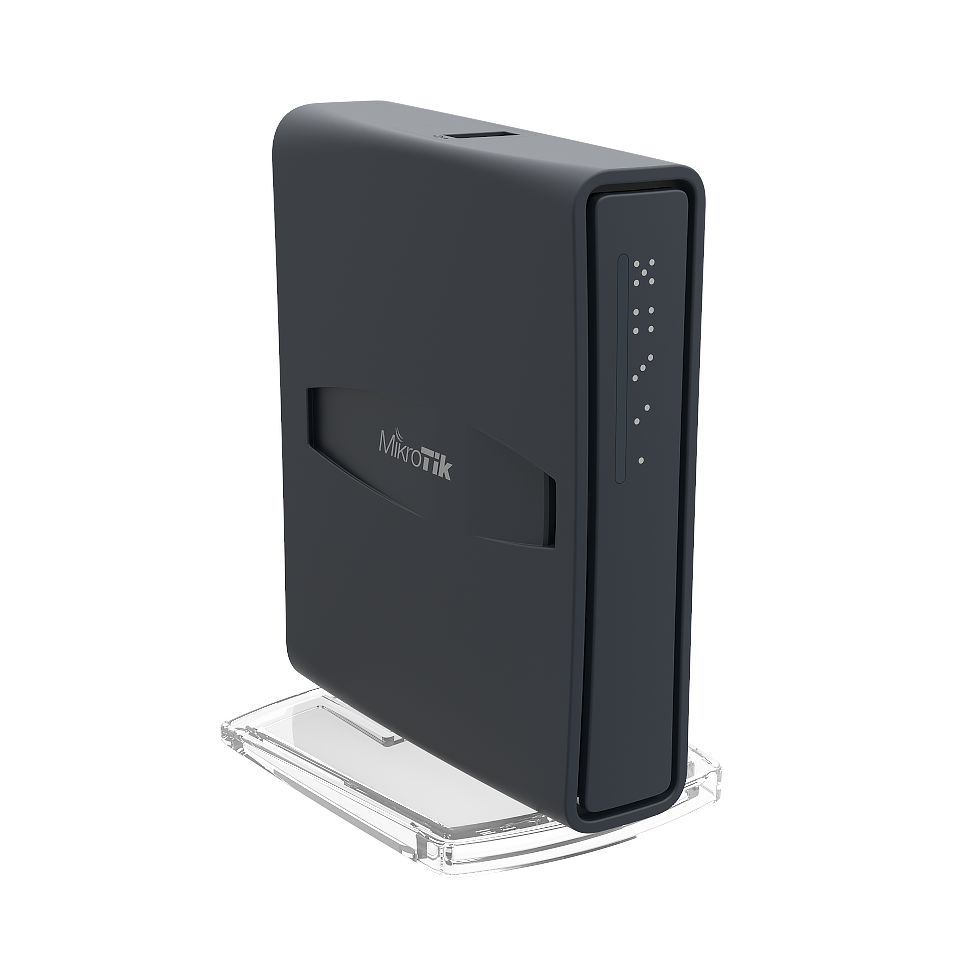

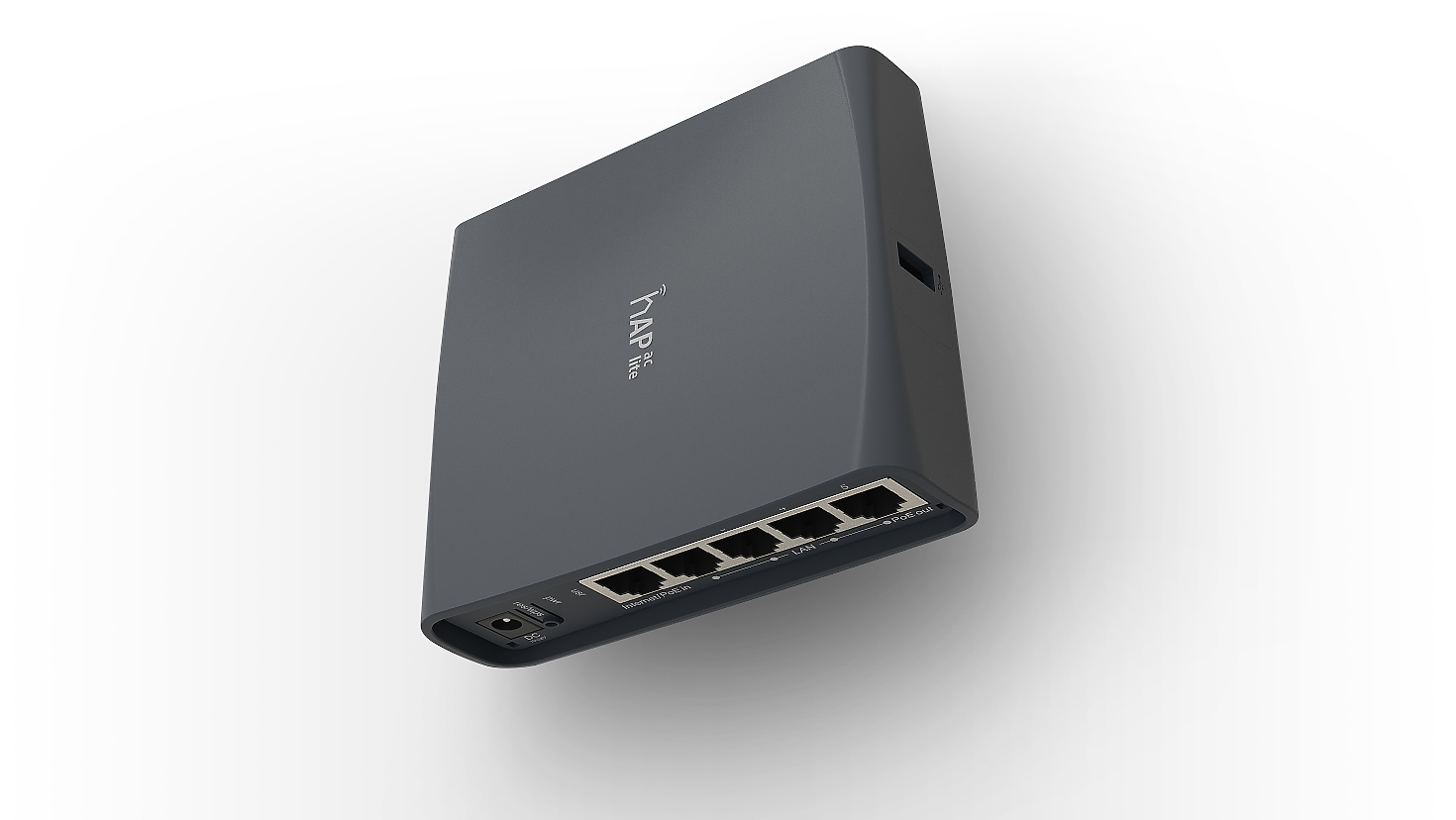

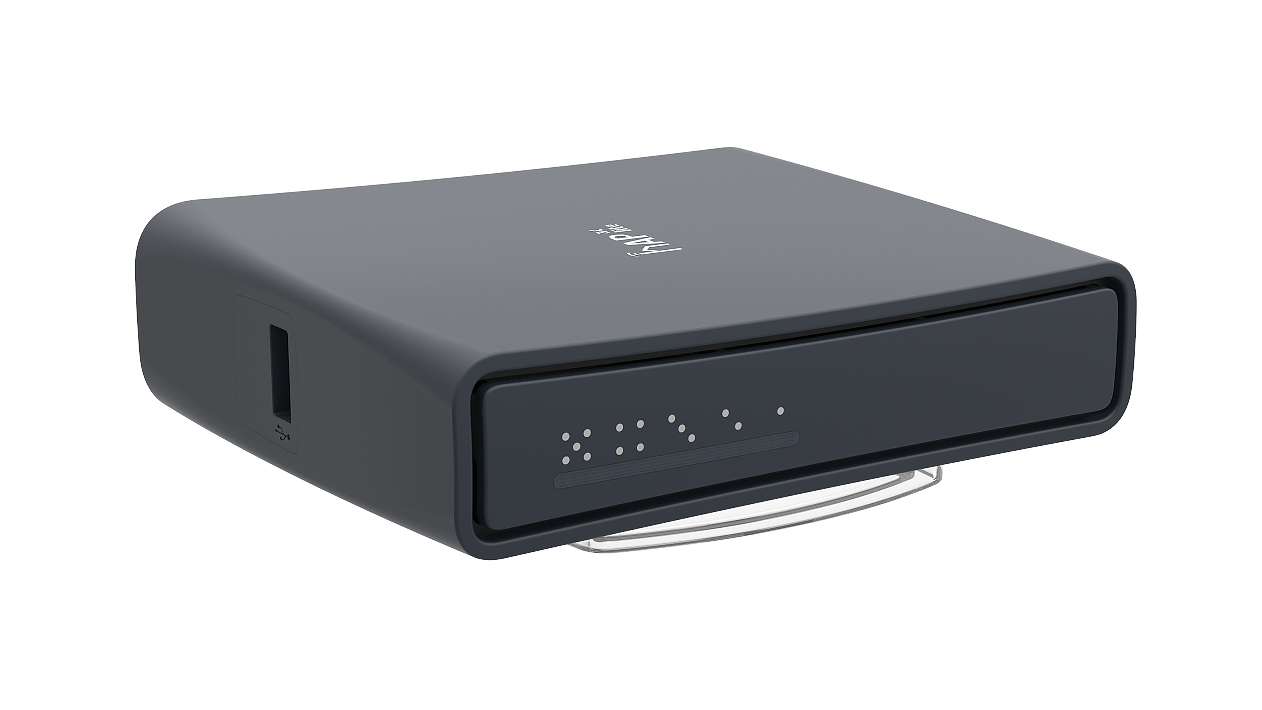

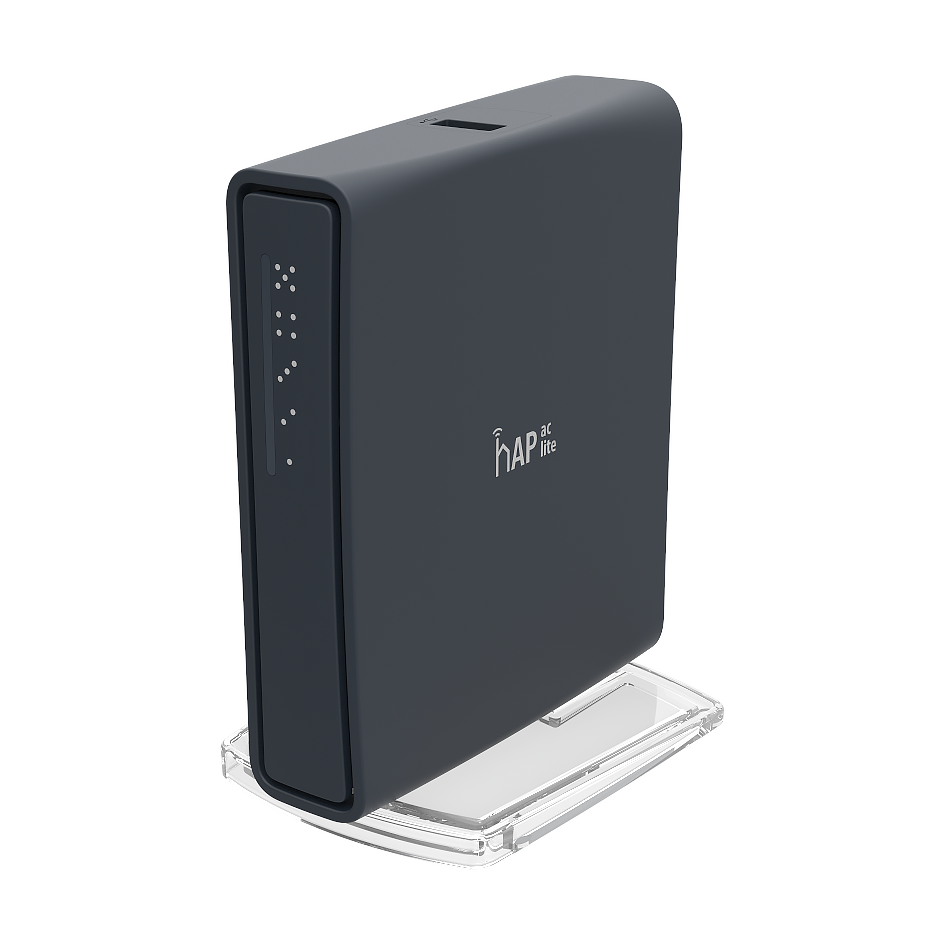

Das neu gestaltete Universalgehäuse ermöglicht eine horizontale (Desktop) oder vertikale (Tower) Aufstellung des Geräts. Ein Montagesatz für die Wandverankerung wird mitgeliefert.
Wir verkaufen diese Version: RB952Ui-5ac2nD-TC (International) unterstützt die Frequenzbereiche 2412-2484MHz und 5150MHz - 5875MHz (Der spezifische Frequenzbereich kann durch länderspezifische Vorschriften eingeschränkt sein).
#2: Im Lieferumfang enthalten
- 1x RB952Ui-5ac2nD-TC (hAP ac lite TC)
- 1x 24V 1.2A Netzteil
- 1x K-47 Wandbefestigungs-Set
#3: Spezifikationen - Technische Details
| Details | |
|---|---|
| Product code | RB952Ui-5ac2nD-TC |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| Dimensions | 34 x 119 x 98mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC750 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 8 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 500 mA |
| Max total out (A) | 500 mA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 23 | -93 |
| 54MBit/s | 20 | -75 |
| MCS0 | 23 | -93 |
| MCS7 | 19 | -71 |
| MCS9 | 16 | -63 |
#4: Test-Resultate nach RFC2544
Ethernet test results
| RB952Ui-5ac2nD-TC | QCA9531 (650Mhz) 100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 217.0 | 111.1 |
| Bridging | 25 bridge filter rules | 40.6 | 493.0 | 70.1 | 287.1 | 70.9 | 36.3 |
| Routing | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 200.8 | 102.8 |
| Routing | 25 simple queues | 40.6 | 493.0 | 79.6 | 326.0 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 40.6 | 493.0 | 42.2 | 172.8 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
#5: Produktvideo & Tipps
- Produktvideo: -
- Hinweise für den Start und Umgang mit RouterOS in unserem Blog: RouterOS, Reset, Netinstall, Winbox, Wiki, Supout.rif, 60GHz Ausrichtung uvm
