Hersteller: MikroTik

MikroTik CCR2004-1G-12S+2XS

Art.Nr.: CCR2004-1G-12S+2XS

Hersteller: MikroTik

587,60 EUR
incl. 19 % USt

  • Sofort versandfähig Sofort versandfähig
  • Gewicht 2,7 kg

Produktbeschreibung

#1: CCR2004-1G-12S+2XS

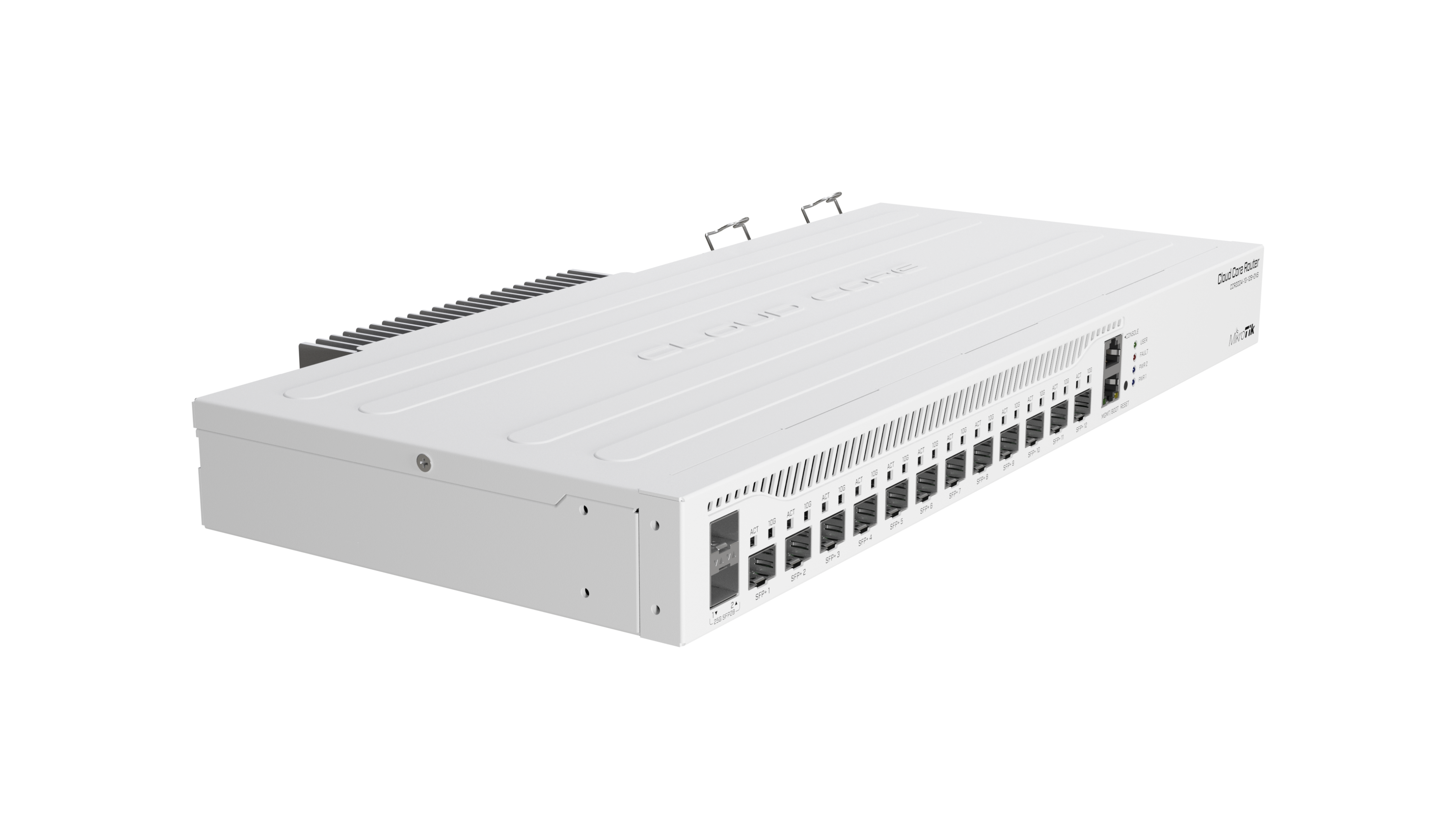

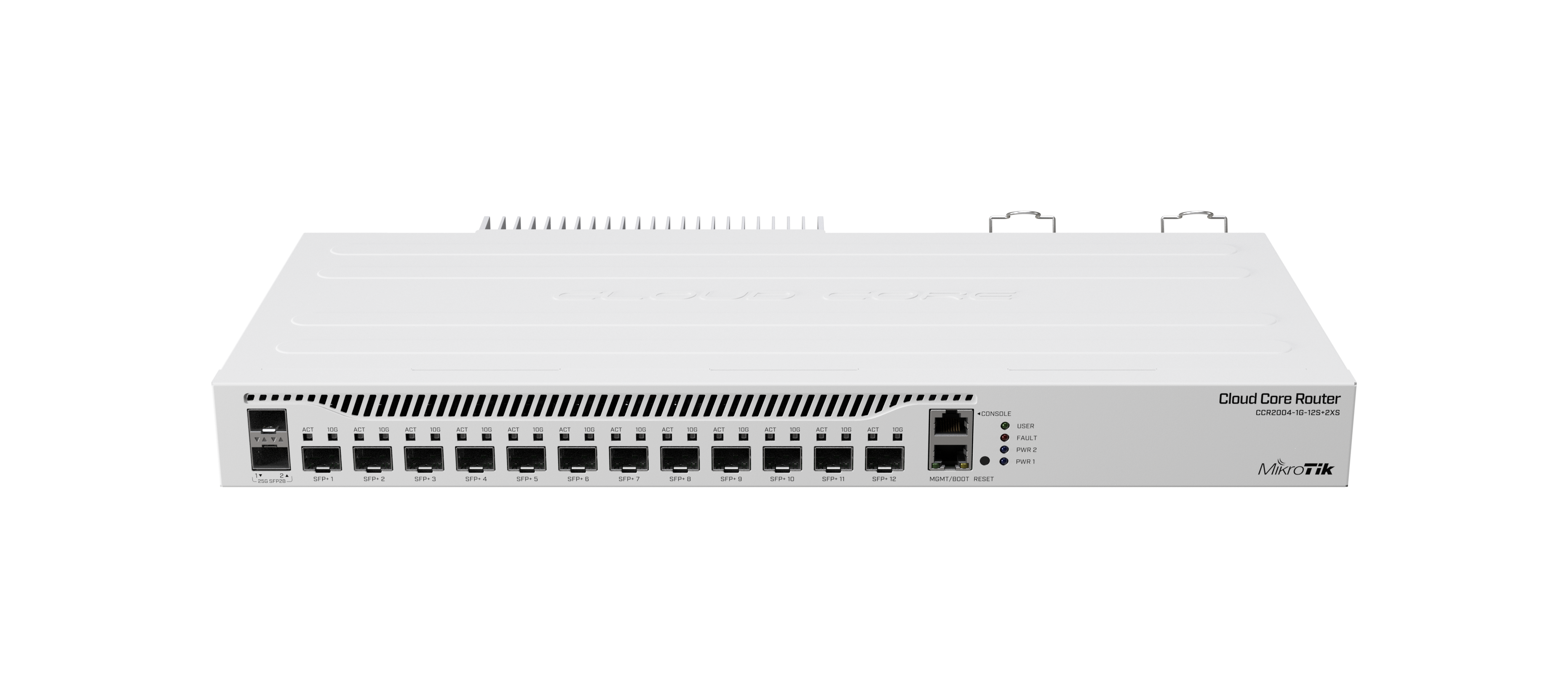

Die Denkweise "Improvisieren. Anpassen. Überwinden." kann sehr hilfreich sein, aber manchmal braucht man einfach ein Gerät, das funktioniert und das Problem ohne zusätzliche Basteleien löst. Der CCR2004-1G-12S+2XS macht genau das - vergessen Sie alle Konnektivitätsprobleme und erweitern Sie Ihr Setup auf jede beliebige Weise. Dieser praktische Router verfügt über 12 x 10G SFP+ und 2 x 25G SFP28 Ports.

Der CCR2004-1G-12S+2XS ist unser Router mit der bisher stärksten Single-Core-Leistung. Er liefert unglaubliche Ergebnisse bei Einzeltunneln (bis zu 3,4 Gbit/s) und BGP-Feed-Verarbeitung.

Seien Sie auf alles vorbereitet: 10G, 40G und jetzt 25G! Gepaart mit MikroTik Multiport-Produkten wie CRS317-1G-16S+RM, CRS312-4C+8XG-RM und CRS326-24S+2Q+RM wird Ihr Netzwerk-Setup keine Grenzen mehr kennen. In puncto Leistung ist der CCR2004-1G-12S+2XS auf Augenhöhe mit den renommierten Routern CCR1009/CCR1016. Und mit der doppelt redundanten Stromversorgung können Sie unerwartete Ausfallzeiten vergessen! Mit seiner durchdachten Port-Konfiguration ist der neue CCR2004-1G-12S+2XS die perfekte Ergänzung für jedes professionelle Netzwerk-Arsenal - er wird Ihnen in kniffligen Situationen viel Zeit sparen! Größe des RAM im RouterOS v7 4GB ECC.

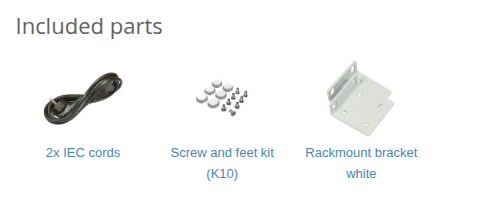

#2: Im Lieferumfang enthalten

  • 1x CCR2004-1G-12S+2XS
  • 2x Kaltgerätekabel (IEC Cords)
  • 1x Schrauben und Füßchen-Set (K10)
  • 2x Rack-Montagewinkel (weiss)


#3: Spezifikationen - Technische Details

Details
Product code CCR2004-1G-12S+2XS
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
Dimensions 443 x 224 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details

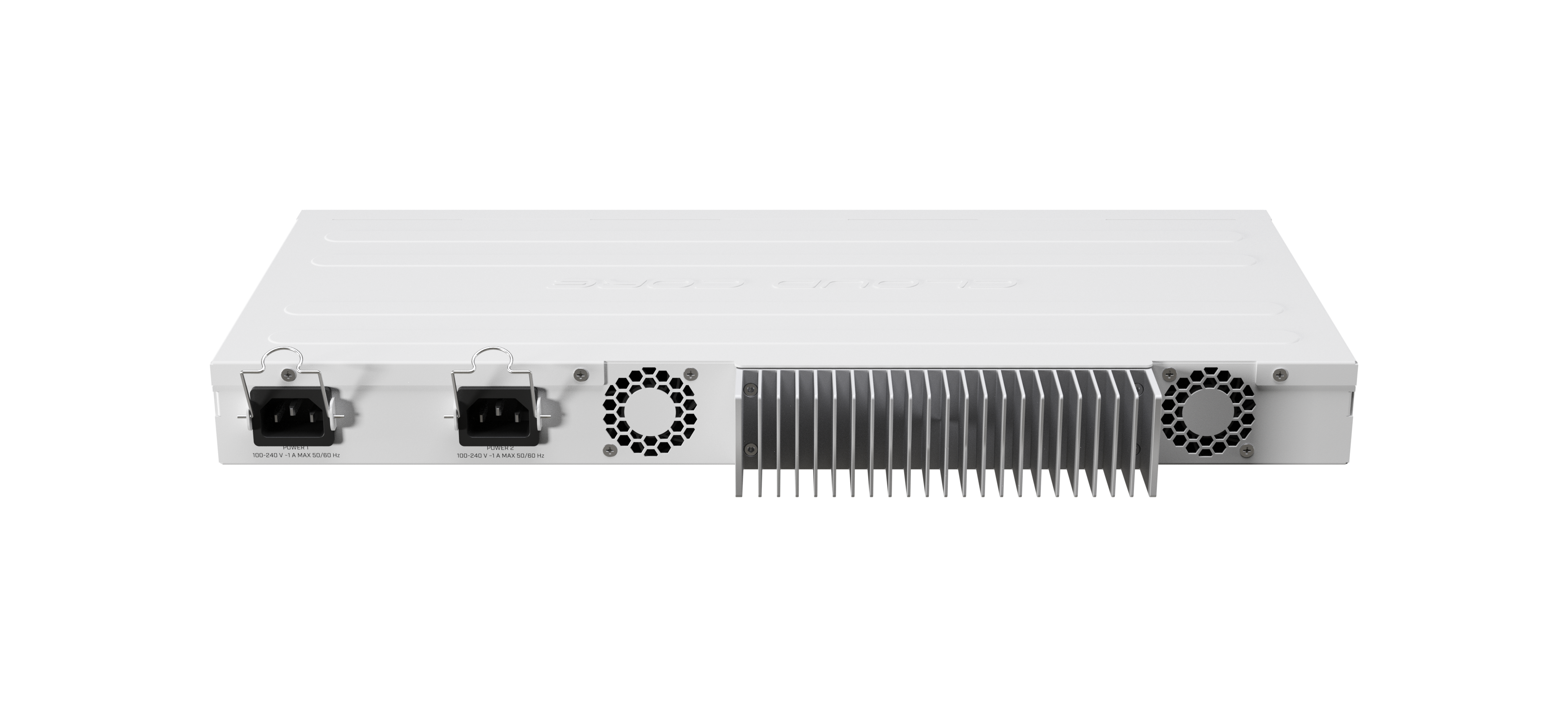

Number of AC inputs 2
AC input range 100-240
Max power consumption 49 W
Max power consumption without attachments 32 W
Cooling type 2 fans

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 12
Number of 25G SFP28 ports 2

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20


#4: Test-Resultate nach RFC2544

Ethernet test results

CCR2004-1G-12S+2XS AL32400 All port test (CCR2004-1G-12S+2XS)
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 3174.4 38549.7 6626.7 27142.9 10972.5 5969
Bridging 25 bridge filter rules 1763.6 21417 1794.3 7349.6 1773.9 965
Routing none (fast path) 3138.7 38116 5790.3 23717.1 11159.7 6070.9
Routing 25 simple queues 1849.3 22458 1876.9 7688 1883.8 1024.8
Routing 25 ip filter rules 1177.8 14303.7 1185.1 4854.3 1169.7 636.3
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

CCR2004-1G-12S+2XS AL32400 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 203 2273.6 204.1 836 202.2 103.5
256 tunnels AES-128-CBC + SHA1 232.4 2602.9 230.5 944.1 222.2 113.8
256 tunnels AES-128-CBC + SHA256 232.4 2602.9 230.5 944.1 222.2 113.8
256 tunnels AES-256-CBC + SHA1 232.3 2601.8 227.3 931 238.1 121.9
256 tunnels AES-256-CBC + SHA256 232.3 2601.8 227.3 931 238.1 121.9
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



#5: Produktvideo & Tipps
