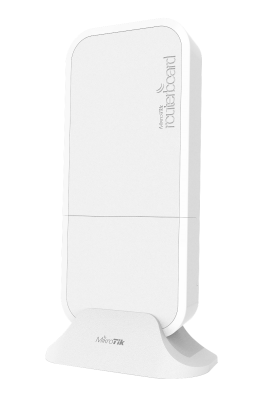

MikroTik RBwAPG-60ad - wAP 60G
Product.Nr.: RBwAPG-60ad
Manufacturer: MikroTik
https://mikrotik.com/product/wap_60g
117,81 EUR
incl. 19 % VAT
-
- weight 0,6 kg
#1: RBwAPG-60ad - wAP 60G

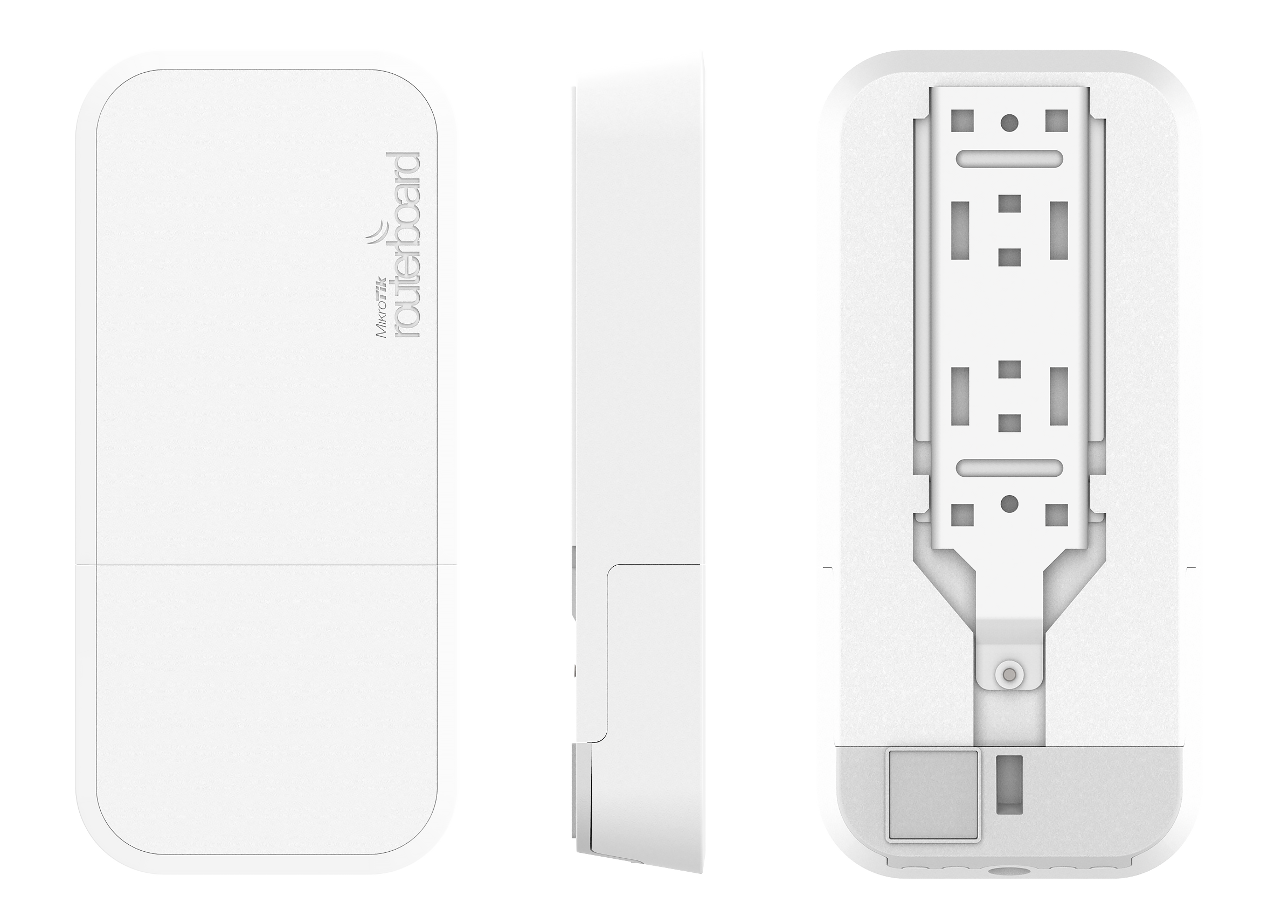

The wAP 60G is weatherproof integrated 60 GHz wireless unit, that can be used indoors or outdoors as Point-to-Point or CPE unit
The box includes a wall mounting kit, straps for pole mounting, power supply, PoE injector and also table stand for using the device indoors. Penetrates some windows depending on material.
wAP 60G connects to 60 GHz AP for distances of 200m+
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBwAPG-60ad (wAP 60G) | |
| 1x | 24V 0,38A Netzteil | (24V 0.38A power supply) |
| 1x | K-52 Befestigungs-Set | (K-52 fastening set) |
| 1x | Schlauchschelle (Metall) | (Metal ring) |
| 1x | Plastik-Kabelbinder-Set | (Plastic zip tie) |

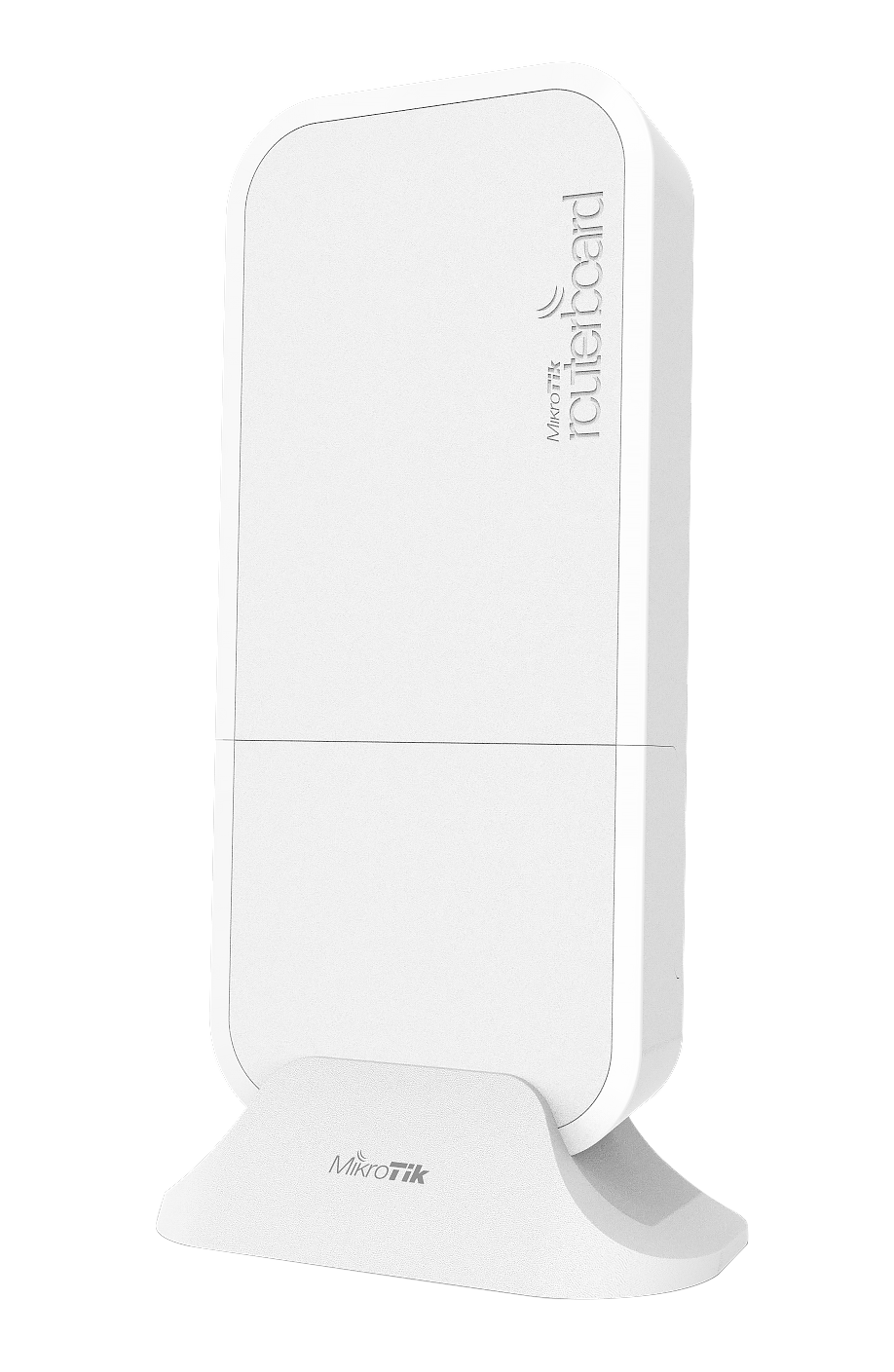

| 1x | wAP Tischstandfuß | (wAP desktop stand) |
| 1x | wAP Deckenhalterung | (wAP ceiling mount bracket |
| 1x | Gigabit PoE Injektor | (Gigabit PoE injector) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RBwAPG-60ad
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
CPU Threads count 4
Dimensions 185 x 85 x 30 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 5 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 12-57 V
Ethernet
10/100/1000 Ethernet ports 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 55
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RBwAPG-60ad | IPQ-4019 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81,2 | 986.1 | 234,9 | 962.2 | 1482,6 | 759.1 |
| Bridging | 25 bridge filter rules | 81,2 | 986.1 | 227,7 | 932.7 | 231,9 | 118.7 |
| Routing | none (fast path) | 81,2 | 986.1 | 235,1 | 963.0 | 1421,8 | 728.0 |
| Routing | 25 simple queues | 81,2 | 986.1 | 235,1 | 963.0 | 458,3 | 234.6 |
| Routing | 25 ip filter rules | 81,2 | 986.1 | 234,9 | 962.2 | 236,8 | 121.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RBwAPG-60ad | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#5: Produktinformationen & Hilfe | Product informations & Help
Produktspezifische Links - Product-specific links:
| Kurzanleitung | Quick Guide | Öffnen | Open |
| Blockdiagramm | Block Diagram | Öffnen | Open |
| Konformitätserklärung | Declaration of Conformity (DoC) | Öffnen | Open |
| Bedienungsanleitung | User Manual | Öffnen | Open |
| Kurzanleitung | Quick Guide | Öffnen | Open |
Sonstige, hilfreiche Links - Other useful links:
| Softwarehandbuch [RouterOS] | Software manual [RouterOS] | Öffnen | Open |
| Software/Updates [RouterOS, SwOS & CHR] | Software/Updates [RouterOS, SwOS & CHR] | Öffnen | Open |
| Kompatibilität mit SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56-DD | Compatibility with SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56-DD | Öffnen | Open |
| Blog [RouterOS, 60GHz, RMA, ...] | Blog [RouterOS, 60GHz, RMA, ...] | Öffnen | Open |
RBwAPG-60ad-Brochure.pdf (0.82 MB)
RBwAPG-60ad-Block-Diagramm.pdf (0.01 MB)
