MikroTik RBwAPG-5HacD2HnD-BE - wAP ac (black)

Product.Nr.: RBwAPG-5HacD2HnD-BE

Manufacturer: MikroTik

86,87 EUR
incl. 19 % VAT

  • Zur Zeit nicht lagernd, bitte per E-Mail anfragen. Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
  • delivery time End of Life - Discontinued - Nichtmehr lieferbar!
  • weight 0,7 kg

product description

#1: RBwAPG-5HacD2HnD - wAP ac (white)

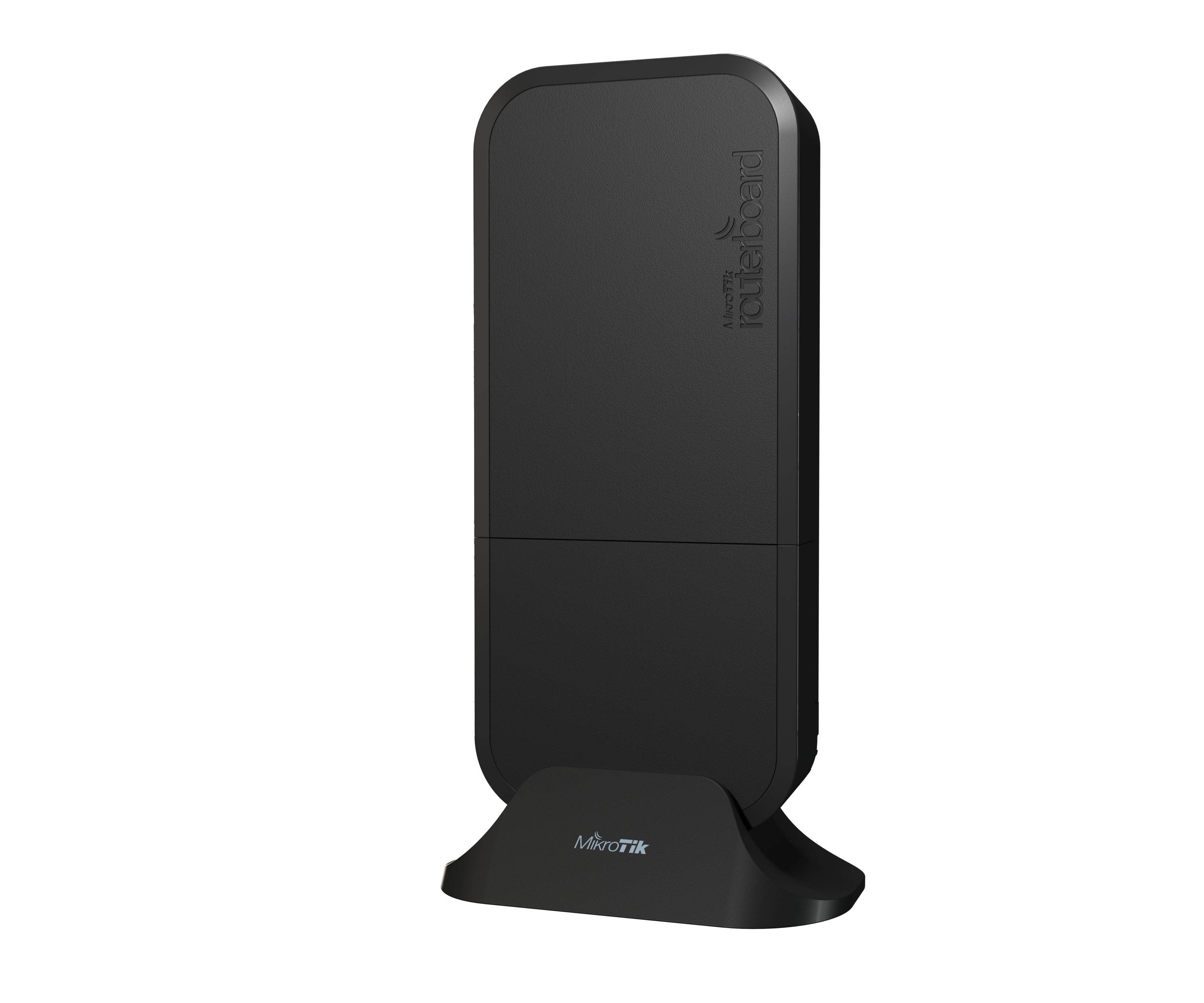

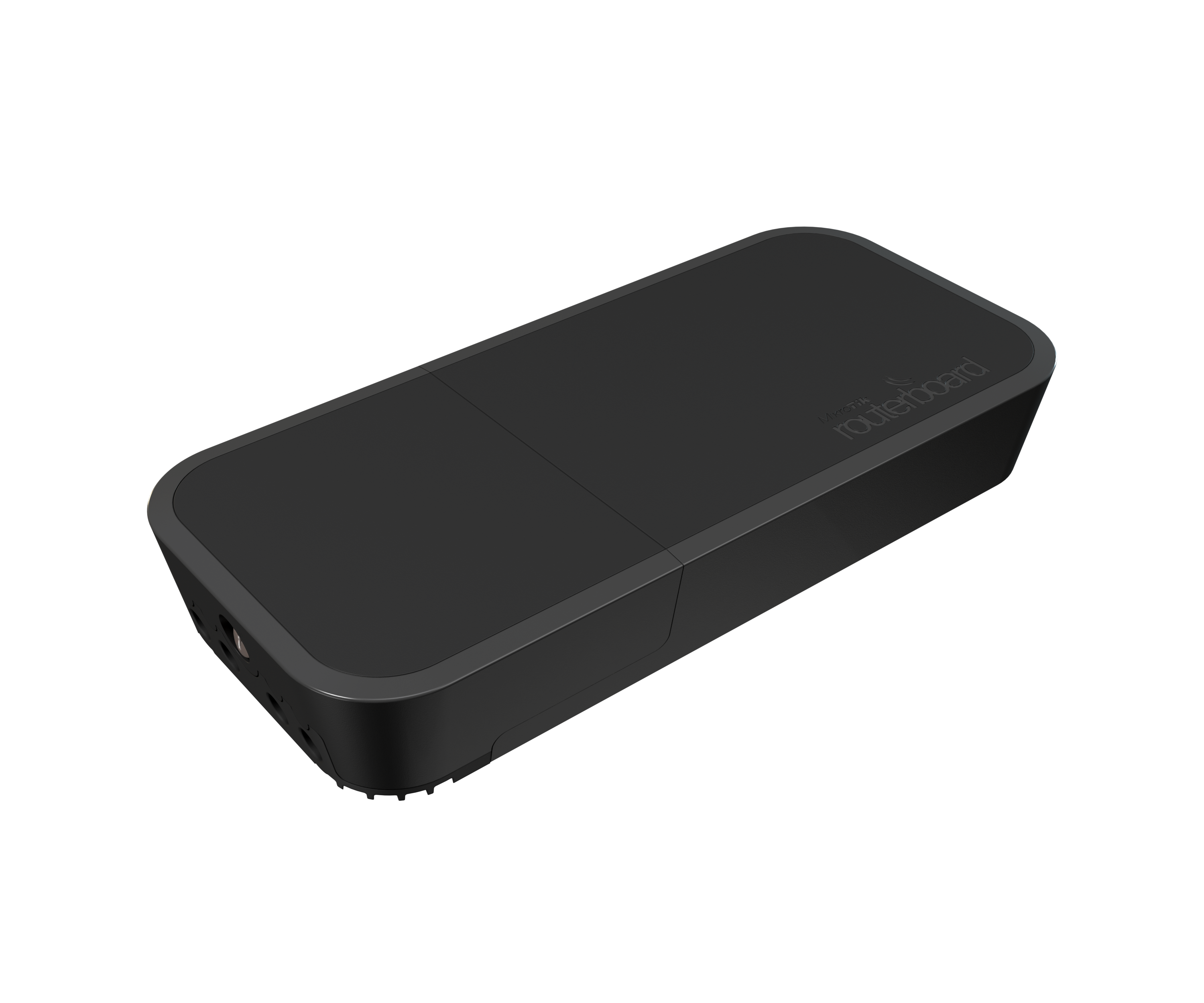

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need a capable wireless connection. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else since this frequency is less cluttered.

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner.

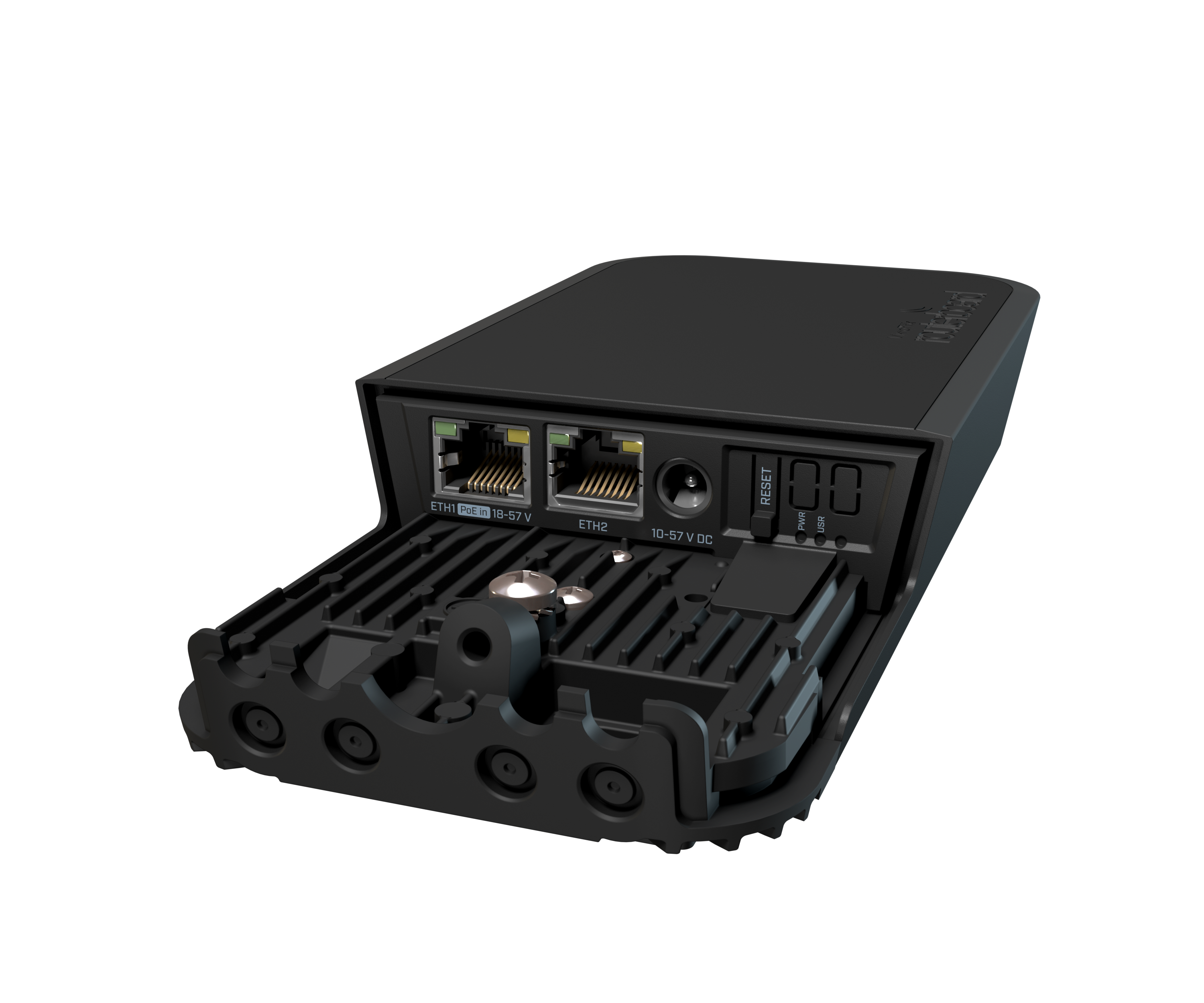

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP ac attracts less attention and blends into any environment. It looks unobtrusive and sleek, available in two colors - black (RBwAPG-5HacD2HnD-BE) and white (RBwAPG-5HacD2HnD).


#2: Included in delivery

  • 1x RBwAPG-5HacD2HnD-BE (wAP ac BE)
  • 1x 24V 0.8A power adapter
  • 1x Gigabit PoE injector
  • 1x K-52 fastening set
  • 1x wAP desktop stand
  • 1x wAP ceiling mount bracket
  • 1x wAP mount
  • 1x Metal ring (one)



#3: Specifications - Technical details

Details
Product code RBwAPG-5HacD2HnD-BE
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 488-896 (auto) MHz
Switch chip model IPQ-4018
Dimensions 185 x 85 x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200

Ethernet

Details
10/100/1000 Ethernet ports 2

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 10 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 25 -96
54MBit/s 19 -78
MCS0 25 -96
MCS7 18 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 20 -80
MCS0 24 -96
MCS7 19 -75
MCS9 17 -70



#4: Test results according to RFC2544

Ethernet test results

RBwAPG-5HacD2HnD-BEr3 IPQ-4018 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162.5 1973.4 469.9 1924.7 1484.8 760.2
Bridging 25 bridge filter rules 162.1 1968.5 352.9 1445.5 359.2 183.9
Routing none (fast path) 162.5 1973.4 469.9 1924.7 1488 761.9
Routing 25 simple queues 162.5 1973.4 469.9 1924.7 506.3 259.2
Routing 25 ip filter rules 162.2 1969.8 240.8 986.3 242.9 124.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBwAPG-5HacD2HnD-BEr3 IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
