MikroTik R11e-LTE7
Product.Nr.: R11e-LTE7
Manufacturer: MikroTik
https://mikrotik.com/product/r11e_lte7
59,20 EUR
incl. 19 % VAT
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- delivery time auf Anfrage: sales@mikrotik-store.eu
- weight 0,03 kg
product description

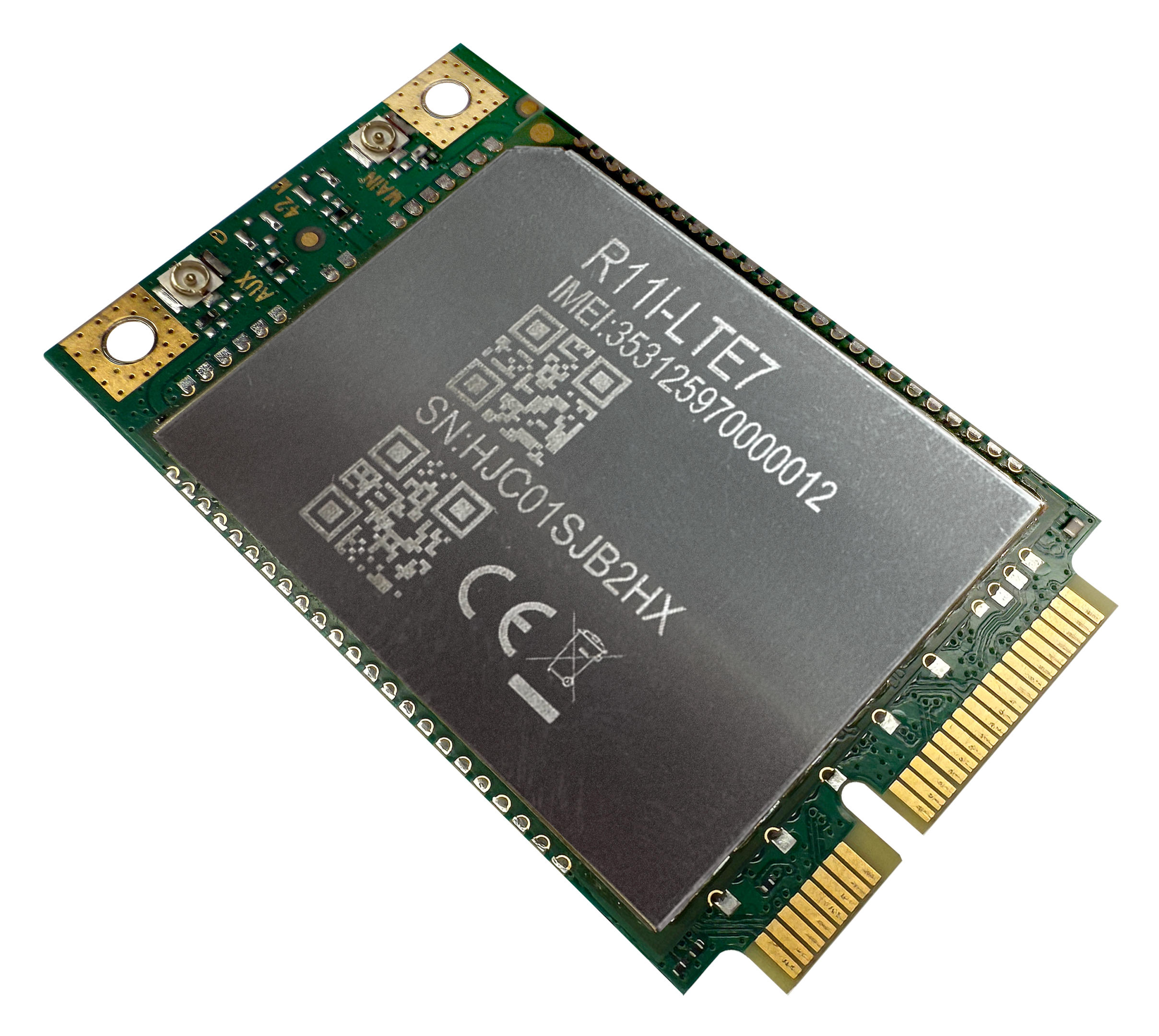

#1: R11e-LTE7
The next-generation miniPCIe LTE CAT7 modem for your RouterBOARDs. Drop-in replacement for FG621-EA – now offering 300 Mbps down / 100 Mbps up, with added Band 32 & Band 28 support.
Perfect for LtAP, RBM33G, or any system with miniPCIe or USB (if you’re using an adapter). Compared to the previous FG621 version, this miniPCIe unit has a smaller form-factor, so it should fit better inside more devices. Upgrade your mobile connectivity without changing the whole setup!
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | R11e-LTE7 | |
- Alle verfügbaren MikroTik [SFP/QSFP]-Module finden Sie hier bei uns im Shop: [SFP/QSP]
#3: Spezifikationen - Technische Details | Specifications - Technical details
- Product codeR11e-LTE7
- MTBFApproximately 100'000 hours at 25C
- Tested ambient temperature-10°C to 55°C
- Max power consumption5 W
- 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands1 (2100MHz)
5 (850MHz)
8 (900MHz)
3 (1800 MHz) - LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL2x2
- MIMO UL1x1
- LTE FDD bands1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28 (700MHz)
32 (1500 MHz) - LTE TDD bands38 (2600MHz)
40 (2300MHz)
41 (2500MHz) - TAC35312597
- CertificationCE, ROHS
- IP00
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
-
#5: Produktinformationen & Hilfe | Product informations & Help
| Benutzerhandbuch | User manual | Öffnen | Open |
| Softwarehandbuch [RouterOS] | Software manual [RouterOS] | Öffnen | Open |
| Blog [RouterOS, 60GHz, RMA, ...] | Blog [RouterOS, 60GHz, RMA, ...] | Öffnen | Open |
| Software/Updates [RouterOS, SwOS & CHR] | Software/Updates [RouterOS, SwOS & CHR] | Öffnen | Open |
