MikroTik CCR2004-16G-2S+
Product.Nr.: CCR2004-16G-2S+
Manufacturer: MikroTik
https://mikrotik.com/product/ccr2004_16g_2splus
434,35 EUR
incl. 19 % VAT
-
Sofort versandfähig
- delivery time sofort lieferbar
- weight 2,7 kg
product description
#1: CCR2004-16G-2S+
Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

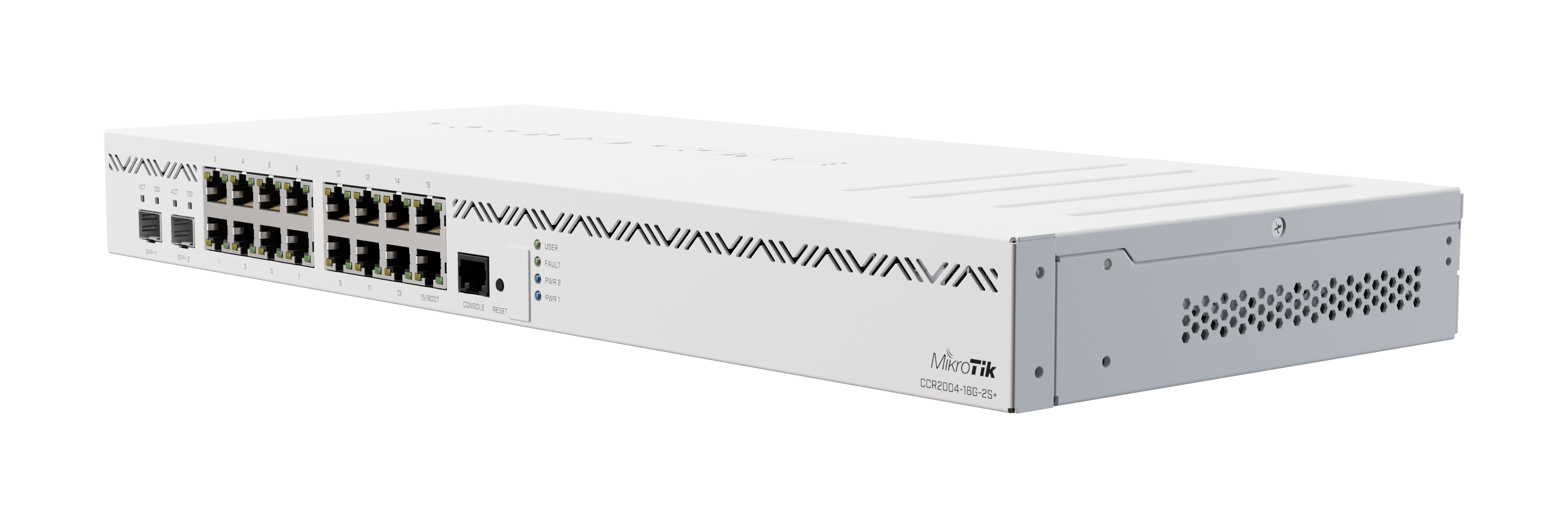

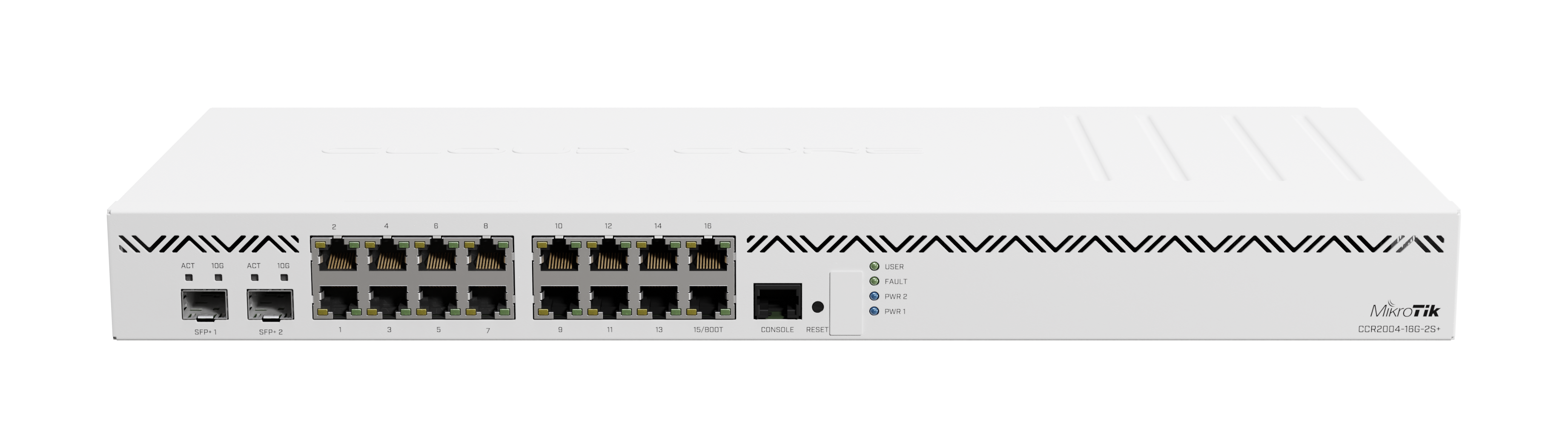

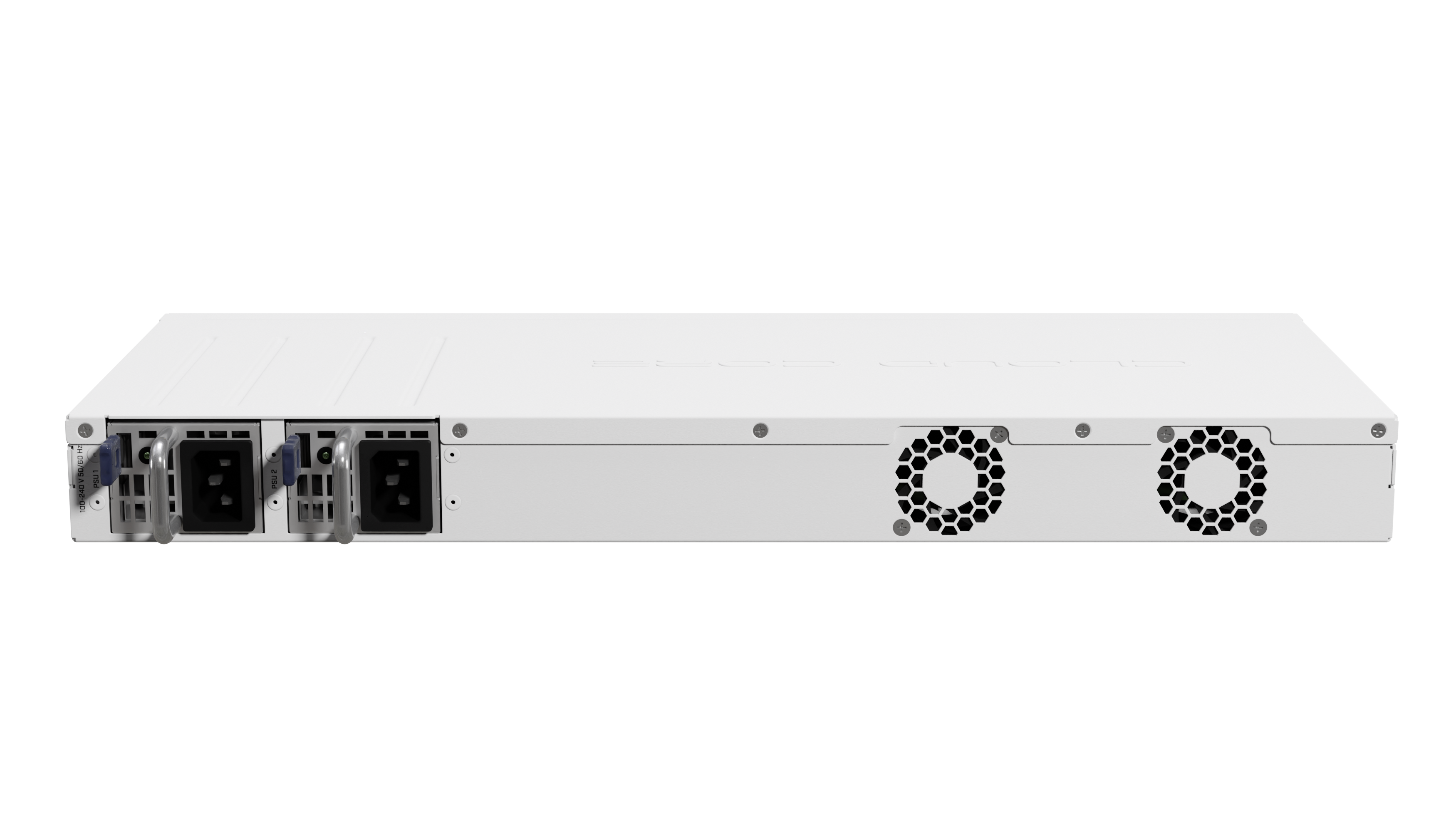

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages, and a USB port. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016.
The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.
With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter

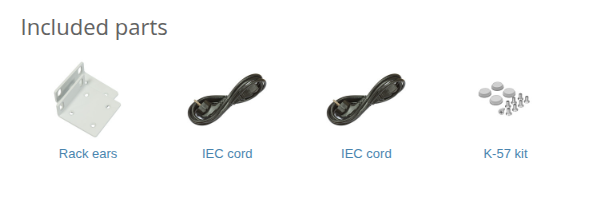

#2: Im Lieferumfang enthalten | Included in delivery
| 1x | CCR2004-16G-2S+ | |
| 1x | Winkelset für die Rackmontage | (Rack ears) |
| 2x | Kaltgerätekabel | (IEC Cords) |
| 1x | K-57 Set (Schrauben und Füßchen) | (K-57 kit (screws and feet) |
- Hinweis: Ein USB-Port ist nicht enthalten | Note: A USB port is not included.
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code CCR2004-16G-2S+
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
CPU Threads count 4
Switch chip model 88E6191X
Dimensions 443 x 210 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
Powering
Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 48 W
Max power consumption without attachments 35 W
Cooling type 2 fans
Ethernet
10/100/1000 Ethernet ports 16
Fiber
SFP+ ports 2
Peripherals
Serial console port RJ45
Number of USB ports 1
Other
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP IP20
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| CCR2004-16G-2S+r2 | AL32400 all port test (CCR2004-16G-2S+) | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 2925.9 | 35532.1 | 6775.1 | 27750.8 | 9776.7 | 5318.5 |
| Bridging | 25 bridge filter rules | 1396.6 | 16960.3 | 1410.7 | 5778.2 | 1375.2 | 748.1 |
| Routing | none (fast path) | 2925.9 | 35532.1 | 6749 | 27643.9 | 8260.6 | 4493.8 |
| Routing | 25 simple queues | 1186.3 | 14406.4 | 1933 | 7917.6 | 1196.9 | 651.1 |
| Routing | 25 ip filter rules | 722.2 | 8770.4 | 1114.7 | 4565.8 | 724.4 | 394.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| CCR2004-16G-2S+r2 | AL32400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 203 | 2273.6 | 204.1 | 836 | 202.2 | 103.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 232.4 | 2602.9 | 230.5 | 944.1 | 222.2 | 113.8 |
| 256 tunnels | AES-128-CBC + SHA256 | 232.4 | 2602.9 | 230.5 | 944.1 | 222.2 | 113.8 |
| 256 tunnels | AES-256-CBC + SHA1 | 232.3 | 2601.8 | 227.3 | 931 | 238.1 | 121.9 |
| 256 tunnels | AES-256-CBC + SHA256 | 232.3 | 2601.8 | 227.3 | 931 | 238.1 | 121.9 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
