MikroTik RBD52G-5HacD2HnD-TC - hAP ac²
Art.Nr.: RBD52G-5HacD2HnD-TC
Hersteller: MikroTik
https://mikrotik.com/product/hap_ac2
74,97 EUR
incl. 19 % USt
-
Sofort versandfähig
- Lieferzeit sofort lieferbar
- Gewicht 0,4 kg
Produktbeschreibung
#1: RBD52G-5HacD2HnD-TC - hAP ac²

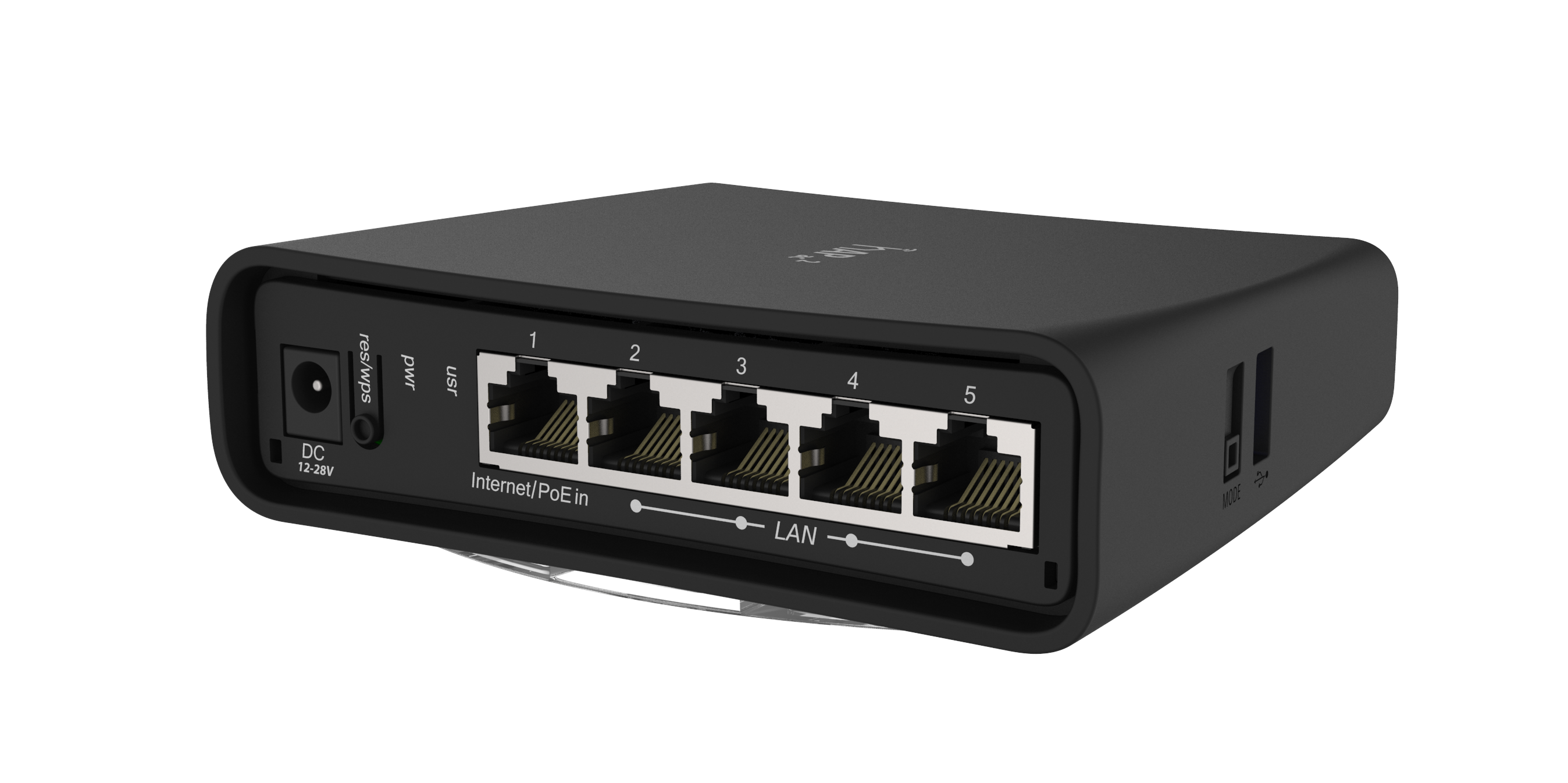

Der hAP ac² ist ein Dual-Band-Access-Point, der gleichzeitig WLAN-Abdeckung für die Frequenzbänder 2,4 GHz und 5 GHz bietet. Fünf 10/100/1000-Ethernet-Anschlüsse stellen Gigabit-Verbindungen für Ihre kabelgebundenen Geräte bereit, der USB-Anschluss kann für externe Speichermedien oder ein 4G/LTE-Modem genutzt werden, und das Gerät unterstützt IPsec-Hardwarebeschleunigung.

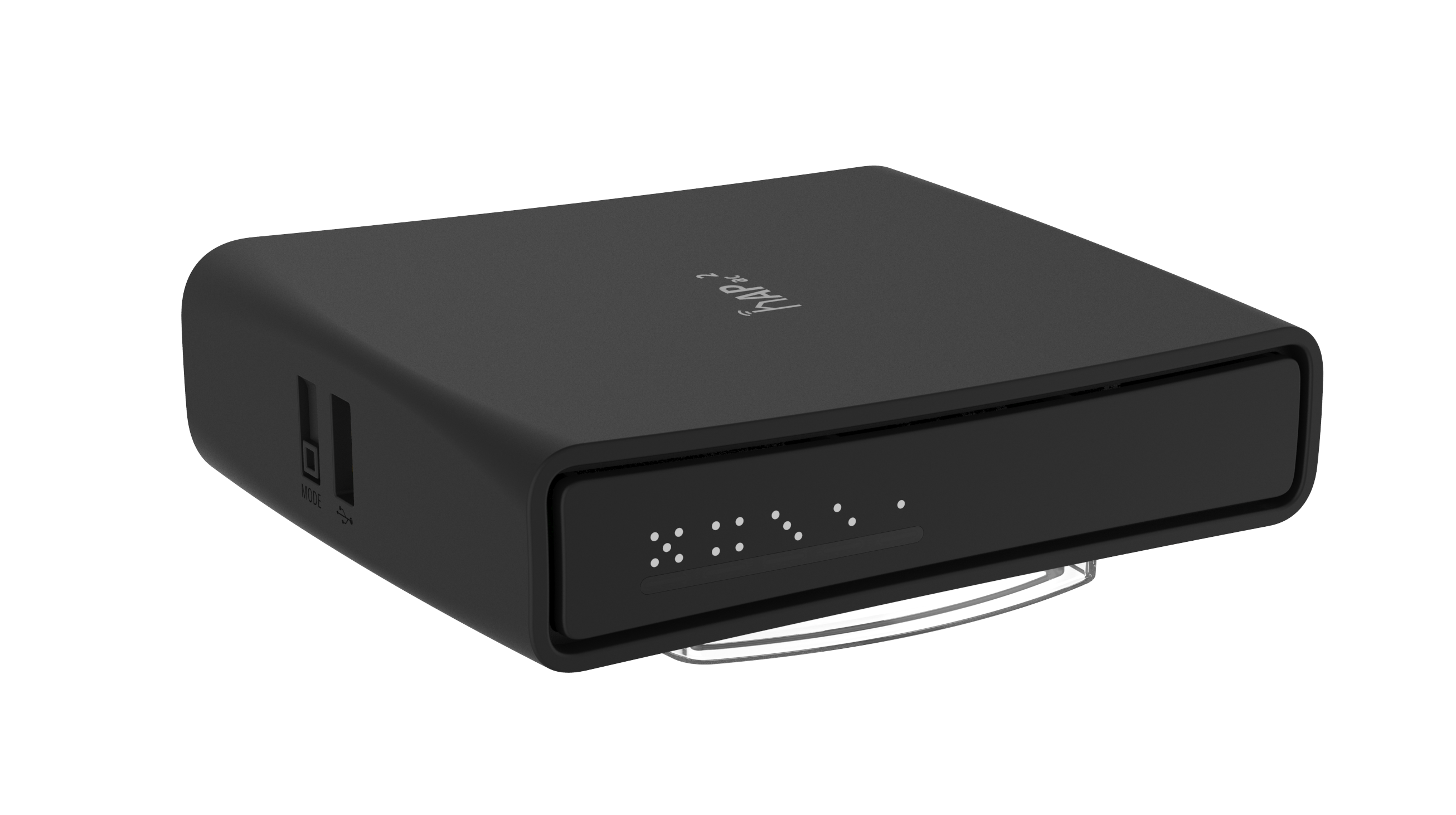

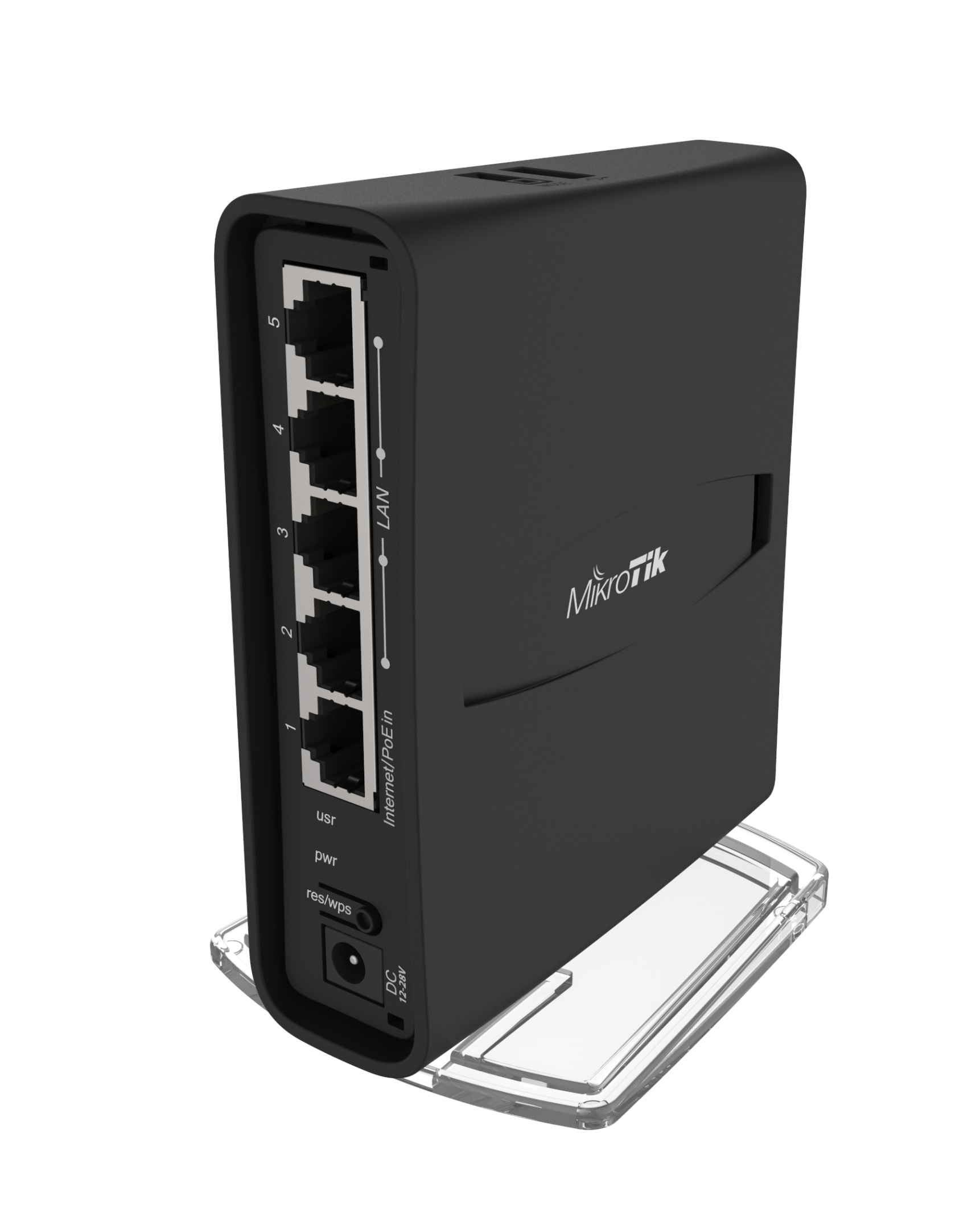

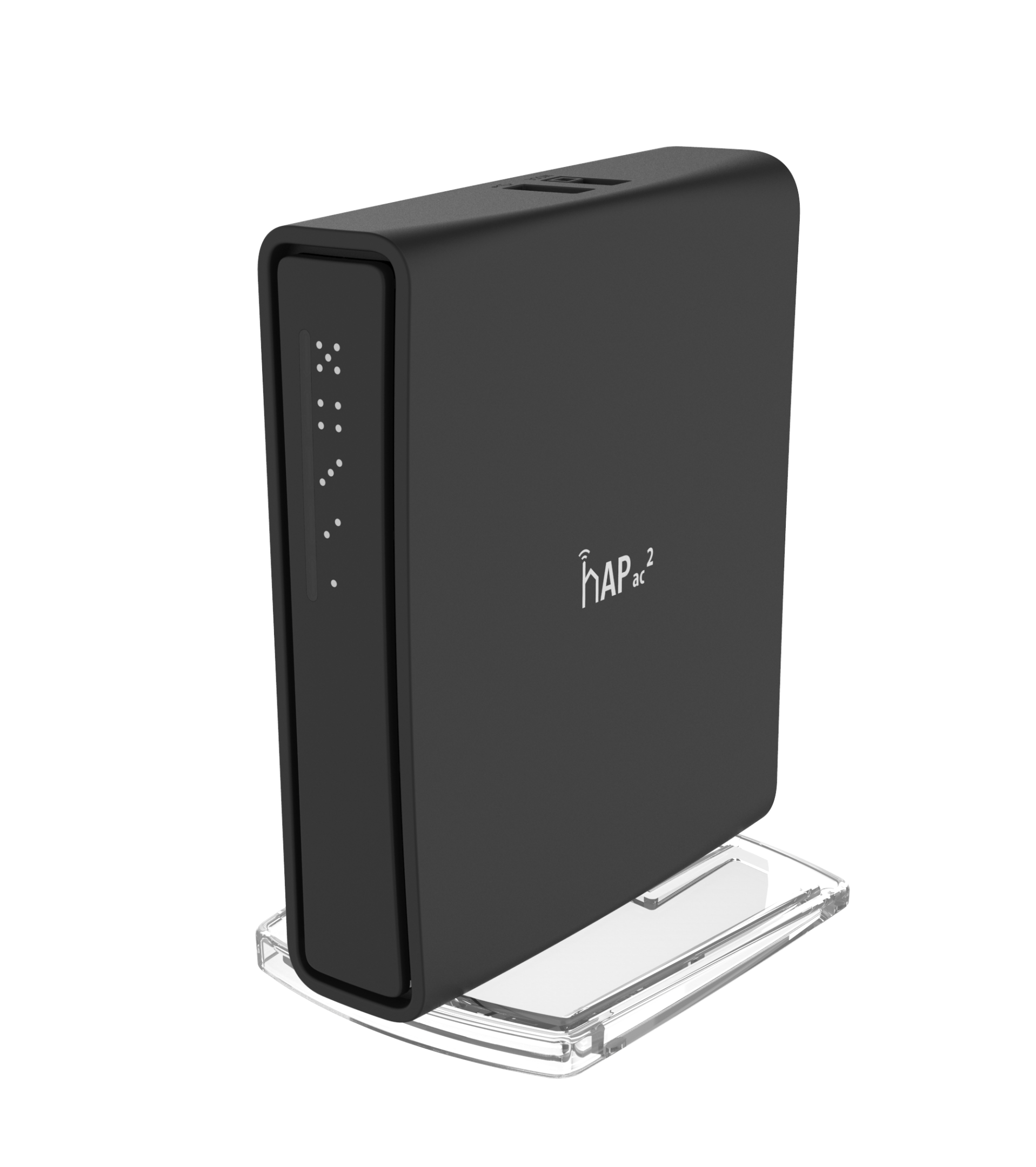

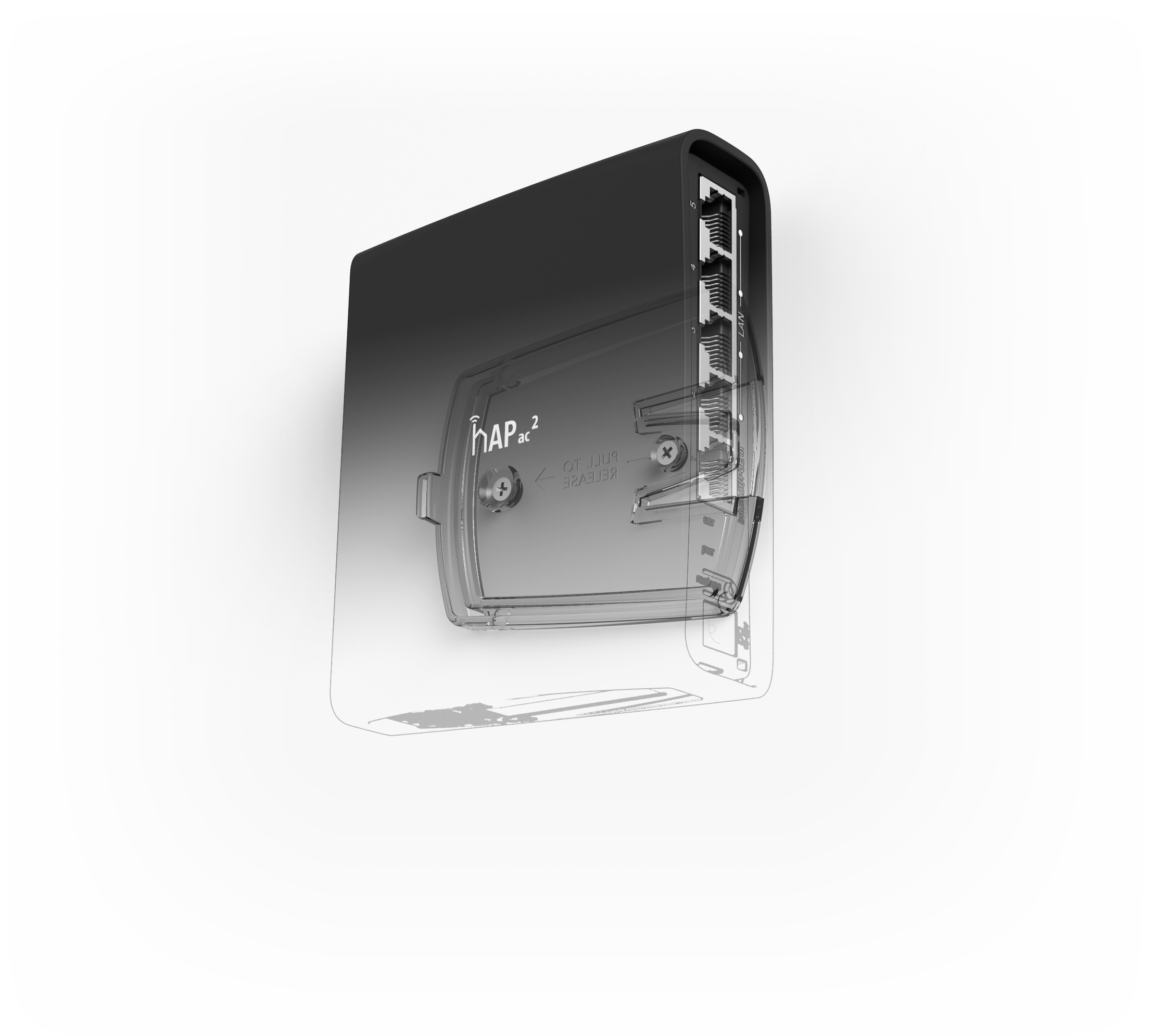

Dank des neuen universellen Gehäusedesigns kann das Gerät entweder horizontal (Tischaufstellung) oder vertikal (Tower-Gehäuse) aufgestellt werden. Ein Befestigungsset für die Wandmontage ist im Lieferumfang enthalten.
- Der hAP ac² (International) unterstützt die Frequenzbereiche 2412–2484 MHz und 5150–5875 MHz (der spezifische Frequenzbereich kann durch länderspezifische Vorschriften eingeschränkt sein).
Tel.: +49 7161 984 99 55
Produktvideo/Product video | Broschüre/Brochure | Newsletter
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | RBD52G-5HacD2HnD-TC (hAP ac²) | |
| 1x | 24V 0,8A Netzteil | (24V 0.8A power adapter) |
| 1x | K-47 Wandbefestigungsset | (K-47 wall mount set) |
| 1x | hAP Basisstandhalterung | (hAP base case) |
#3: Spezifikationen - Technische Details | Specifications - Technical details
Product code RBD52G-5HacD2HnD-TC
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 488-896 (auto) MHz
CPU Threads count 4
Switch chip model IPQ-4018
Dimensions 34 x 119 x 98mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 50°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200
Ethernet
10/100/1000 Ethernet ports 5
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-30 V
Max power consumption 21 W
Max power consumption without attachments 16 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 18-28 V
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Other
Mode button Yes
Hinweis/Note:
- Auf dem Gerät ist ein Betriebssystem vorinstalliert und lizenziert. Es ist kein separater Kauf erforderlich, und das Produkt ist sofort einsatzbereit. Das Gerät umfasst kostenlose Software-Updates für die gesamte Lebensdauer des Produkts oder für mindestens 5 Jahre ab Kaufdatum.
- The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
| RBD52G-5HacD2HnD-TCr2 | IPQ-4018 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1484.8 | 760.2 |
| Bridging | 25 bridge filter rules | 162.1 | 1968.5 | 352.9 | 1445.5 | 359.2 | 183.9 |
| Routing | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1488 | 761.9 |
| Routing | 25 simple queues | 162.5 | 1973.4 | 469.9 | 1924.7 | 506.3 | 259.2 |
| Routing | 25 ip filter rules | 162.2 | 1969.8 | 240.8 | 986.3 | 242.9 | 124.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RBD52G-5HacD2HnD-TCr2 | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
#4.1: Wlan Spezifikationen | Wireless Specifications
| 2.4Ghz | Transmit (dBm) | Receive Sensitivity |
| 1Mbit/s | 27 | -100 |
| 11Mbit/s | 27 | -94 |
| 6Mbit/s | 27 | -96 |
| 54Mbit/s | 24 | -78 |
| MCS0 | 27 | -96 |
| MCS7 | 23 | -73 |
| 5GHz | Transmit (dBm) | Receive Sensitivity |
| 6Mbit/s | 26 | -96 |
| 54Mbit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
