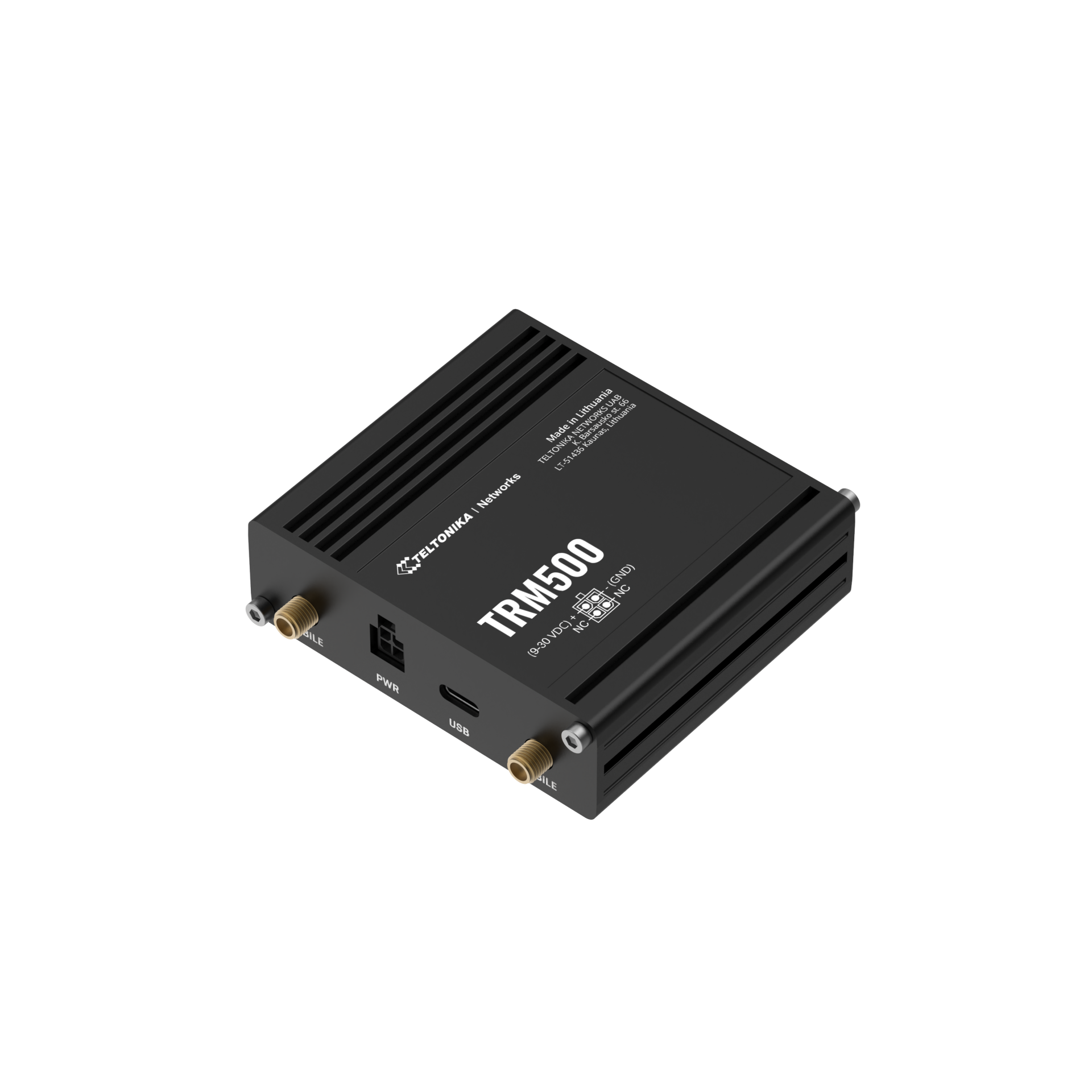

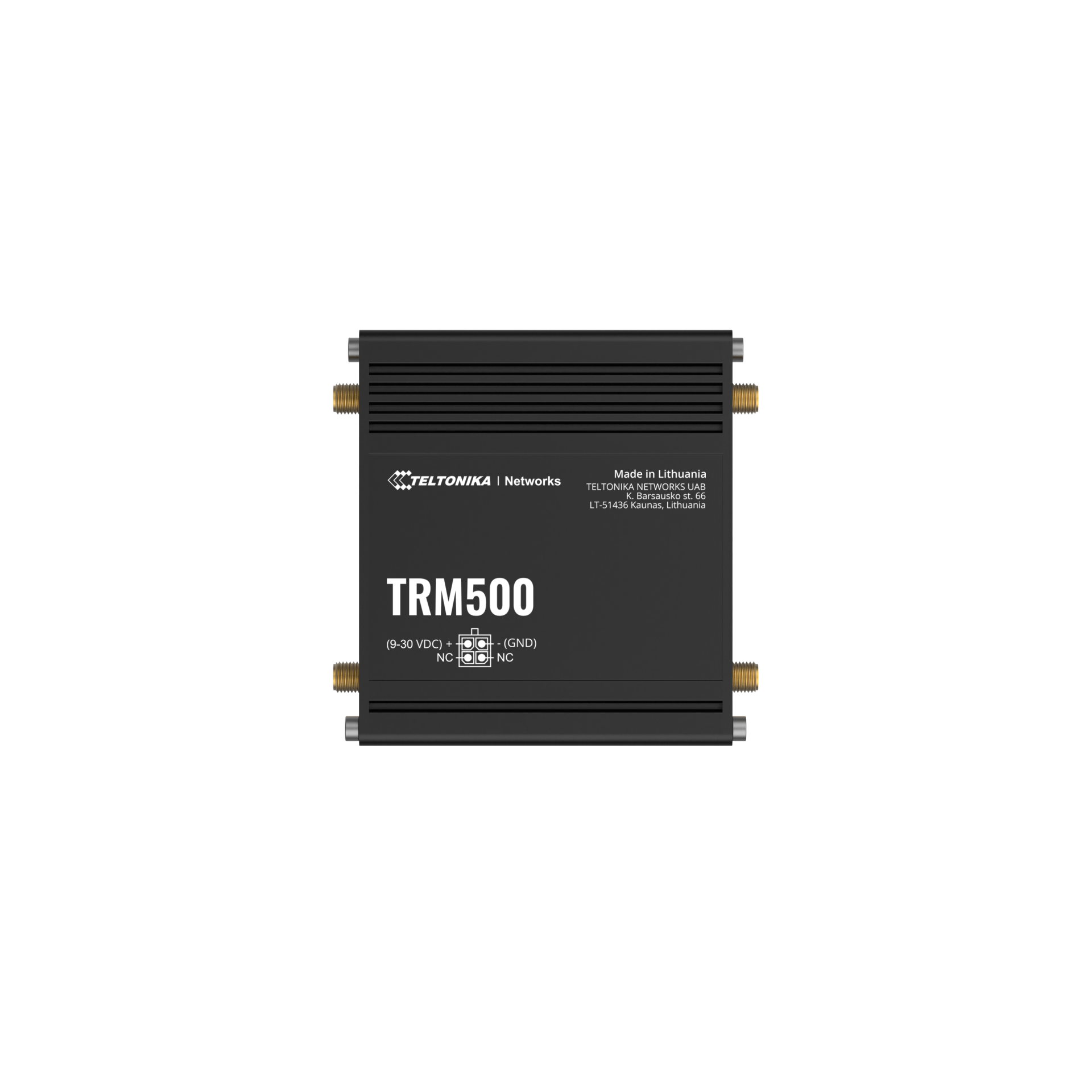

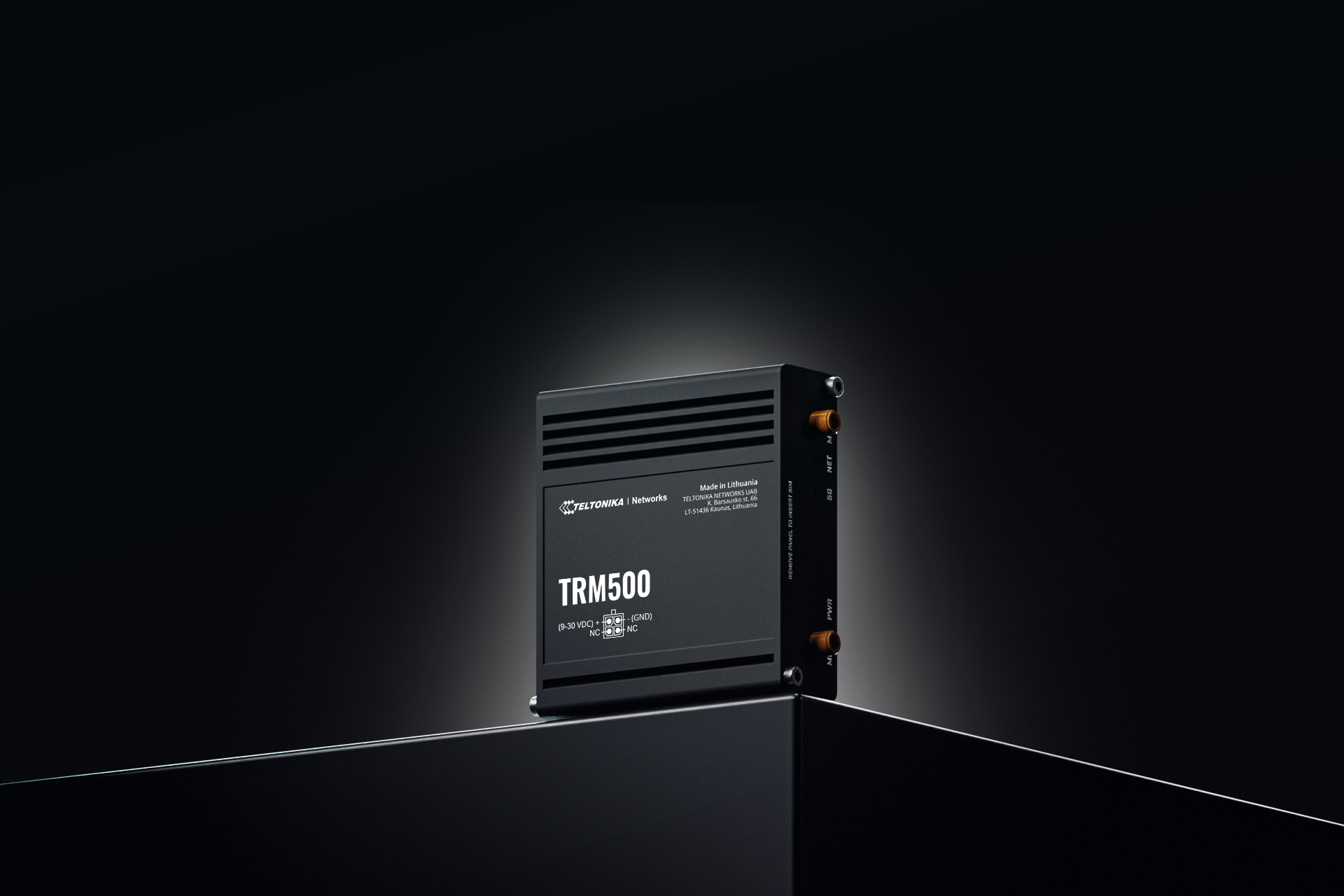

#1: TRM500

5G MODEM WITH USB TYPE-C

The TRM500 is a compact and lightweight 5G modem with ultra-high cellular speeds of up to 3.4 Gbps. This industrial-grade 5G modem features backward compatibility with 4G (Cat 19) and 3G networks, four SMA antennas for enhanced coverage, DIN rail mounting options, and a USB Type-C interface for simultaneous network data and powering.



#2: Im Lieferumfang enthalten | Content of delivery

• TRM500
• 9 W PSU
• 4x 5G Mobile antenna (swivel, SMA male)
• 1x hex key
• SIM Adapter kit
• QSG (Quick Start Guide)
• USB Type-C cable (0.8 m)
• Packaging box



#3: Features

Mobile
Mobile module

5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

3GPP Release

Release 16

TRM SOFTWARE
Management Software

Windows Connection Manager, Modem Manager (Linux)

USB Serial Driver

Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13

GNSS Driver

Android 4.x ~ 13

RIL Driver

Android 4.x ~ 13

NDIS Driver

Windows 7/8/8.1/10/11

MBIM Driver

Windows 8/8.1/10/11, Linux 3.18~6.3

Gobinet Driver

Linux 2.6/3.x/4.1~4.14

QMI_WWAN Driver

Linux 3.4~6.3

Power

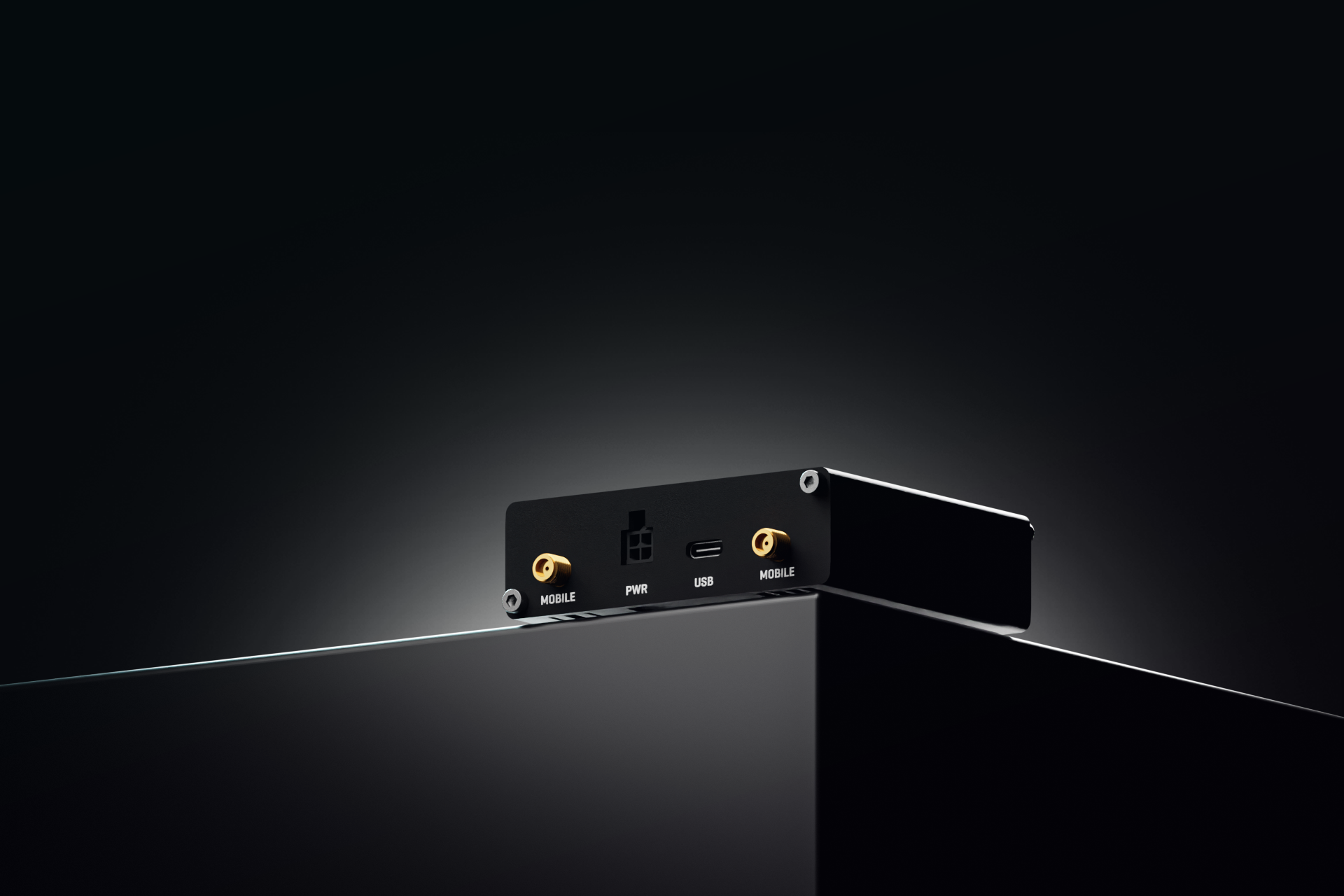

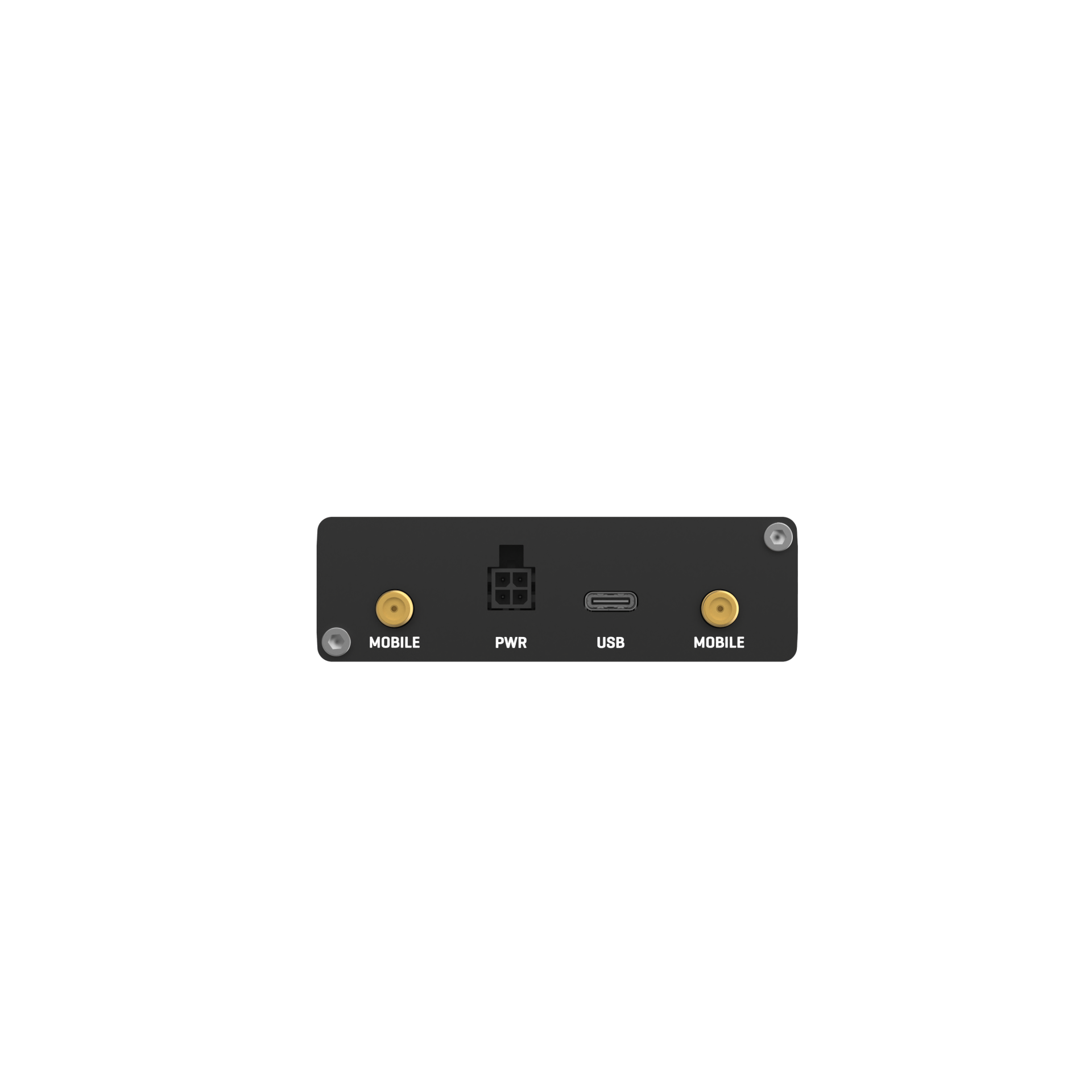

Connector

1 x 4-pin industrial DC power socket

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Input voltage range

4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max

USB Type-C: 5 VDC

Power consumption

Idle: < 5 W, Max: < 12 W

Physical Interfaces

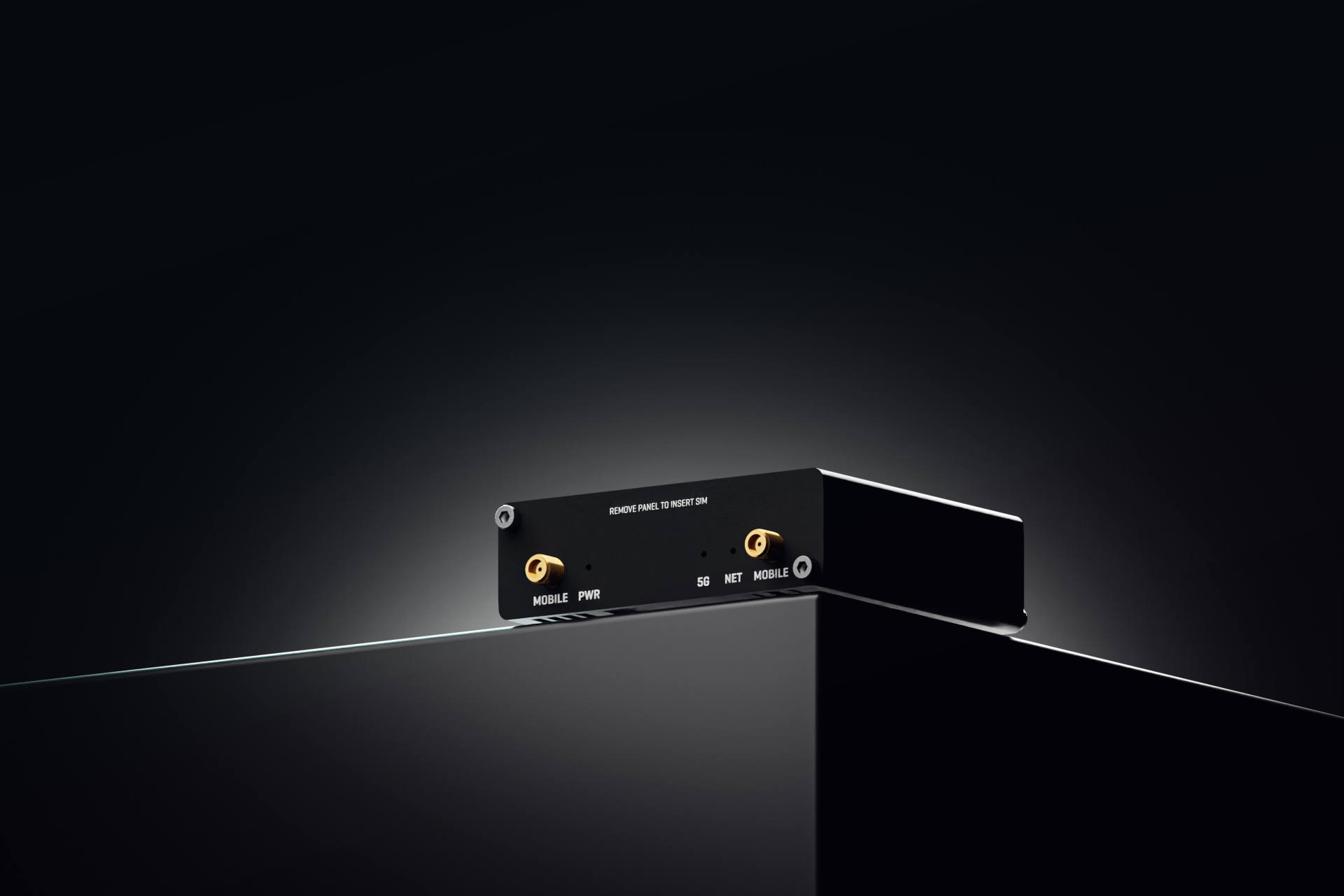

Status LEDs

1 x Power LED, 1 x 5G LED, 1 x Network LED

SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

1 x 4-pin power connector

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Antennas

4 x SMA for Mobile

Other

1 x Virtual network interface via USB Type-C (For power and network data)

Physical Specification
Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

83 x 25 x 85.4 mm

Weight

94.5 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals
Regulatory

CE, UKCA, RCM, CB, WEEE

EMC Emissions & Immunity
Standards

EN 55032:2015+A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 301 489-1 V2.2.3

EN 301 489-52 V1.2.1

AS/NZS CISPR 32:2015+A1:2020

ESD

EN 61000-4-2: 2009

Radiated Immunity

EN IEC 61000-4-3: 2020

EFT

EN 61000-4-4: 2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5: 2014+A1: 2017

CS

EN 61000-4-6: 2014

DIP

EN IEC 61000-4-11:2020

RF
Standards

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 301 908-25 V15.1.1

AS/CA S042.1:2022

AS/CA S042.4:2022

AS/CA S042.5:2022+A1:2022

FCC Part 22

Draft EN 301 908-25 V15.1.1_0.0.21

Safety
Standards

CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020

RCM: AS/NZS CISPR 32: 2015+A1:2020

CB: EN IEC 62368-1:2020+A11:2020

---
