#1: FTC21-ups

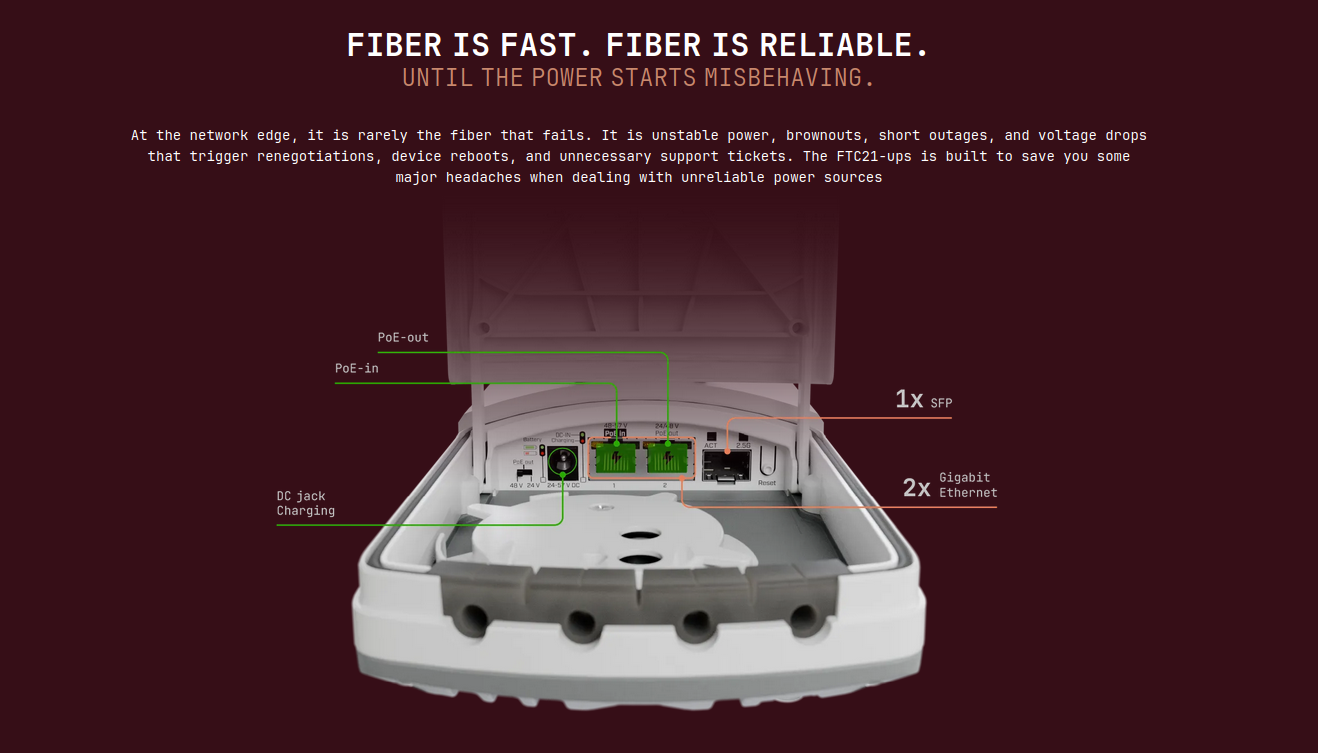

Fiber is fast. Fiber is reliable - Until the power starts misbehaving.

At the network edge, it is rarely the fiber that fails. It is unstable power, brownouts, short outages, and voltage drops that trigger renegotiations, device reboots, and unnecessary support tickets. The FTC21-ups is built to save you some major headaches when dealing with unreliable power sources

Not just a converter - The FTC21 is not just a simple media converter. It runs a full version of SwOS Lite, offering advanced management features

• Interface monitoring and management
• VLAN support
• SNMP reporting
• Basic traffic shaping
• Advanced packet filtering with Access Control Lists - allowing for packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header conditions.

Built-in batteries

What makes the FTC21-ups different is what happens when power becomes unstable. Inside, there is a pair of Li-Ion NCA 18650 batteries. Not for running your network all night, but for surviving short outages, brownouts, and those moments when everything almost crashes.

It keeps the link up when the power is flickering, preventing unnecessary device renegotiation.

The battery is intelligently managed

• Inactive during shipping;
• Activated on first power-up;
• Can be put into ship mode remotely via SwOS when necessary.

Real-world battery runtime examples (20 °C) - Estimated from measured battery behavior. Actual runtime depends on load and temperature.

#2: Im Lieferumfang enthalten | Included in delivery

• 1x FTC21-ups
• 1x 48V 0,95A Netzteil/power adapter
• 1x Gigabit PoE Injektor/Injector
• 1x Schlauchschelle/Hose clamp

   Übersicht/Overview:

• Alle verfügbaren MikroTik [SFP/QSFP]-Module finden Sie hier bei uns im Shop: [SFP/QSP]

#3: Spezifikationen - Technische Details | Specifications - Technical details

Specifications

•     Product code FTC21-ups
•     Switch chip model 88E6341
•     MTBF Approximately 100'000 hours at 25C
•     Tested ambient temperature -40°C to 70°C

Powering

•     Number of DC inputs 2 (DC jack, PoE-IN)
•     DC jack input Voltage 24-57 V
•     Max power consumption 28 W
•     Max power consumption without attachments 3 W
•     PoE in 802.3af/at
•     Cooling type Passive
•     PoE in input Voltage 48-57 V

PoE-out

•     PoE-out ports Ether2
•     PoE out Passive PoE up to 57V
•     Low voltage PoE-Out current limit 0.625 A
•     High voltage PoE-Out current limit 0.315 A
•     Max total out (A) 0.625 A
•     Total output current 0.625
•     Total output power 15

Ethernet

•     10/100/1000 Ethernet ports 2
•     Number of 1G Ethernet ports with PoE-out 1

Fiber

•     SFP ports 1 (2.5G supported)

Other

•     PCB temperature monitor Yes

Certification & Approvals

•     Certification CE, EAC, ROHS
•     IP 67

• The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
