Teltonika TSW100 - Industrial PoE+ Ethernet Switch
Art.Nr.: TSW100010000
Hersteller: Teltonika
https://www.teltonika-networks.com/products/ethernet-switches/tsw100
22,49 EUR
incl. 19 % USt
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- Lieferzeit auf Anfrage: sales@telto-store.eu
- Gewicht 0,78 kg
Produktbeschreibung

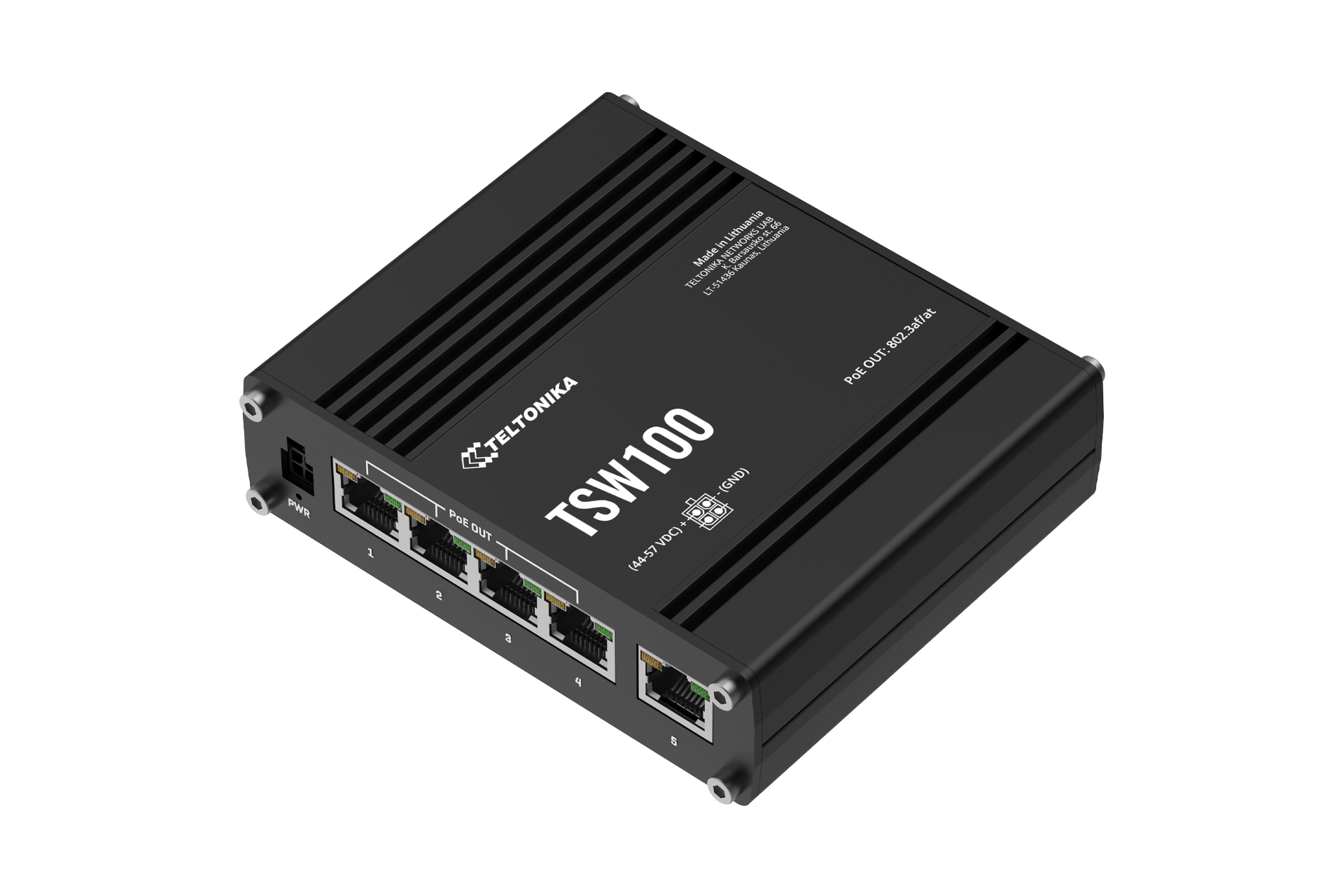

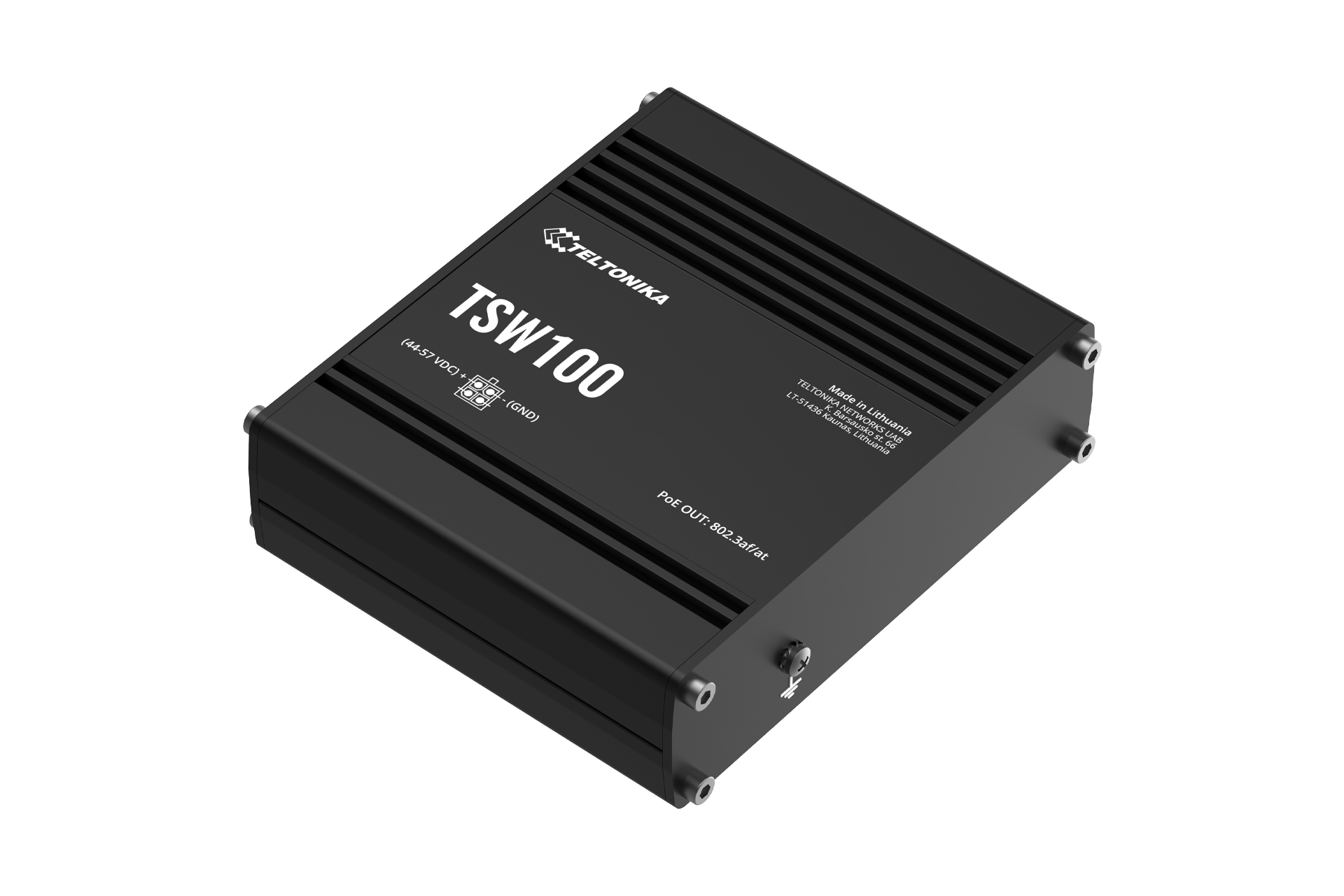

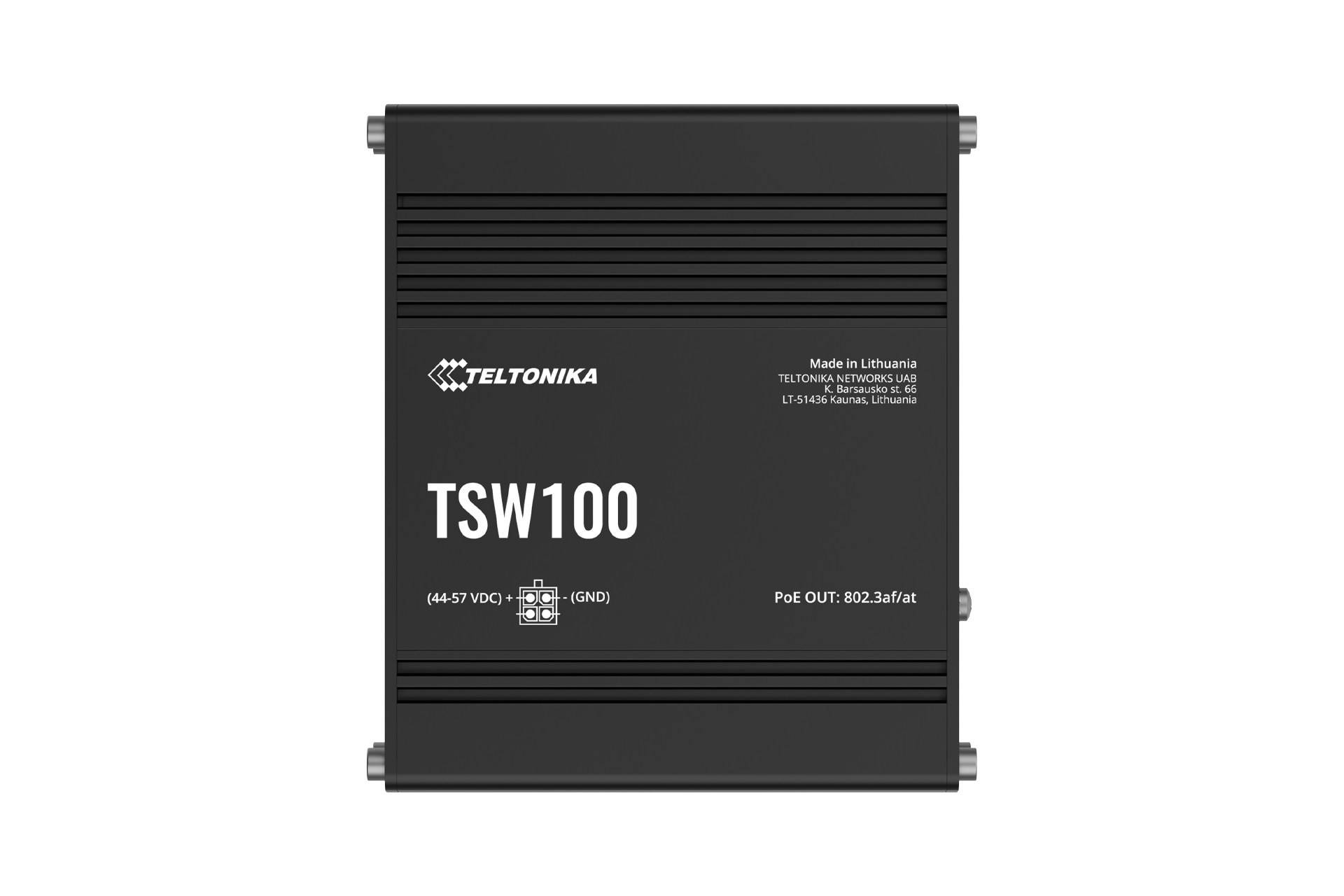

#1: TSW100
INDUSTRIAL POE+ ETHERNET SWITCH
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
#2: Im Lieferumfang enthalten
- 62 W PSU
- TSW100
- QSG (Quick Start Guide)
- Packaging box
#3: Features
INDUSTRIAL PROTOCOLS
Profinet
Profinet Class A conformance (available with optional order code)
Ethernet
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
POE OUT
PoE+ ports
Port 1 - 4
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****)
PoE Max Power per Port (at PSE)
30 W
PoE Power Budget (at PSE)
120 W
Power
Connector
4-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-Out input voltage range
44 – 57 VDC
Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

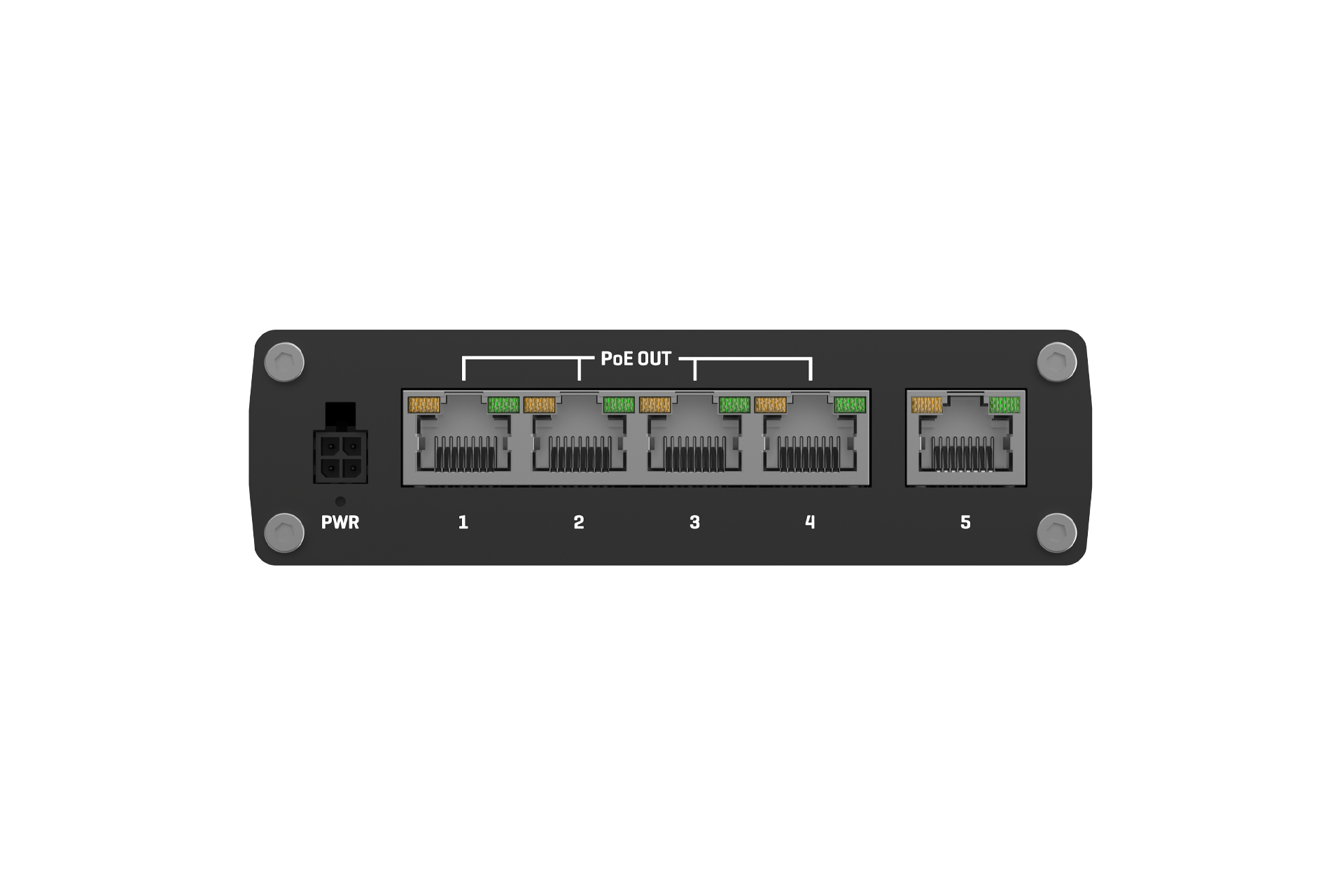

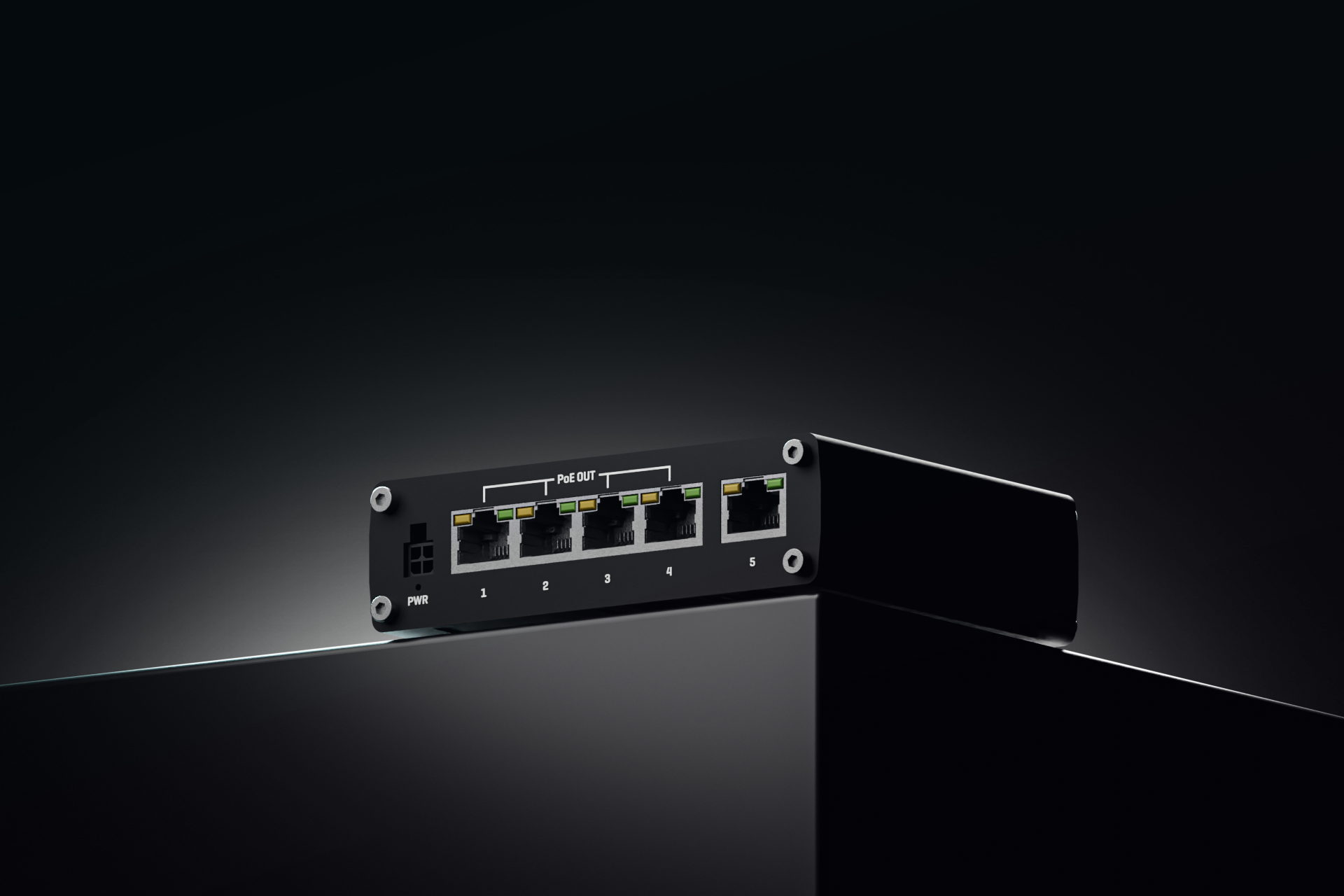

Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 4-pin power connector
Other

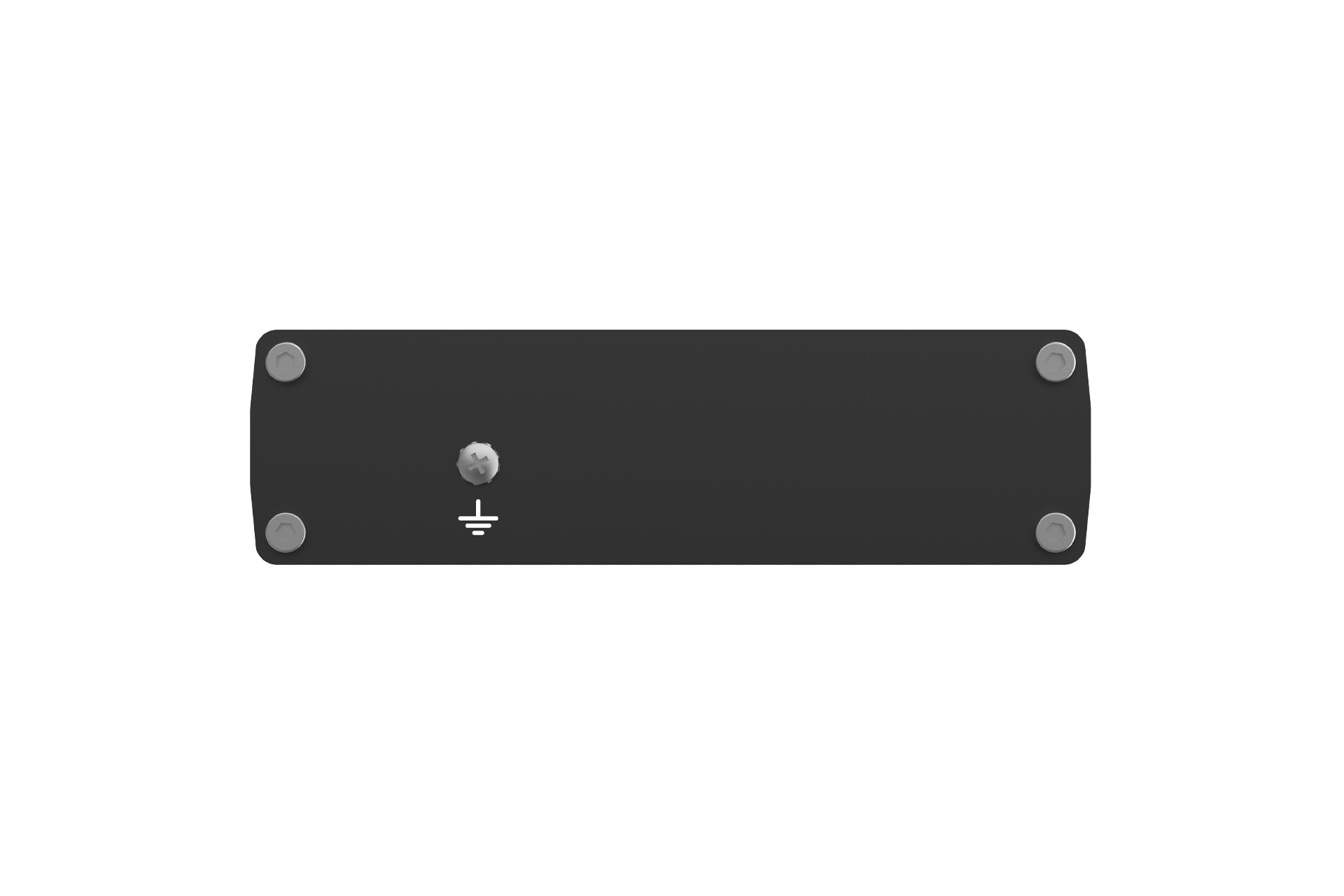

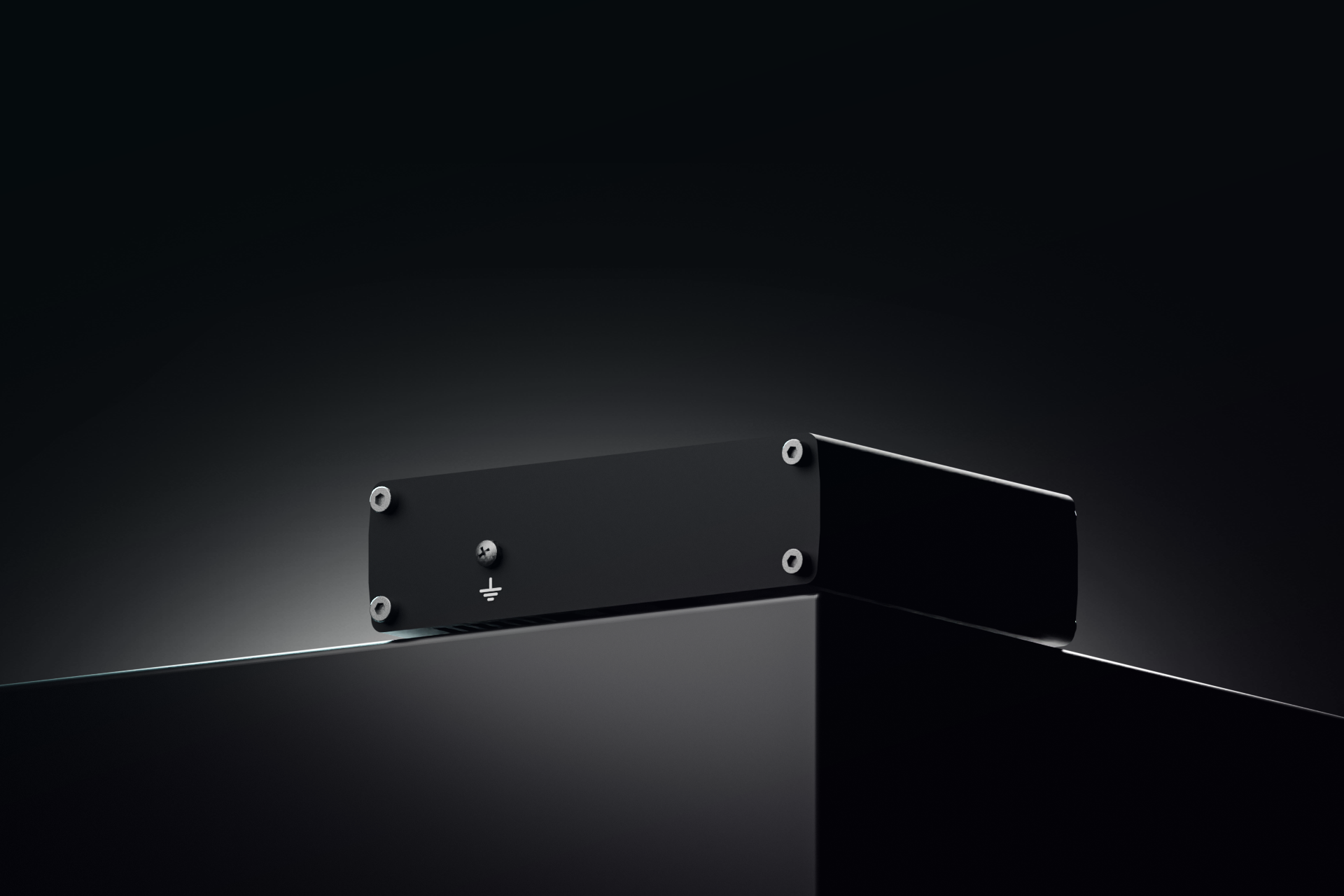

1 x Grounding screw
Physical Specification
Casing material
Full aluminum housing
Dimensions (W x H x D)
115 x 32.2 x 101.2 mm
Weight
350 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory & Type Approvals
Regulatory
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC Emissions & Immunity
Standards
EN 55032:2015
EN 55035:2017
EN 301 489-1 V2.2.3
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2004
Safety
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
Performance Specifications
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
