Hersteller: MikroTik

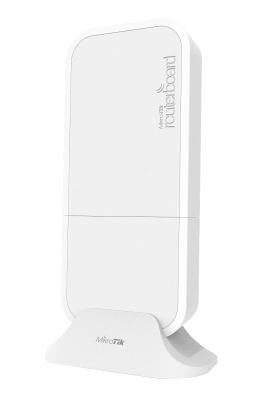

MikroTik RBwAPG-60ad-A - wAP 60G AP

Art.Nr.: RBwAPG-60ad-AP

Hersteller: MikroTik

119,00 EUR
incl. 19 % USt

  • Sofort versandfähig Sofort versandfähig
  • Gewicht 0,6 kg

Produktbeschreibung

#1: RBwAPG-60ad-A - wAP 60G AP

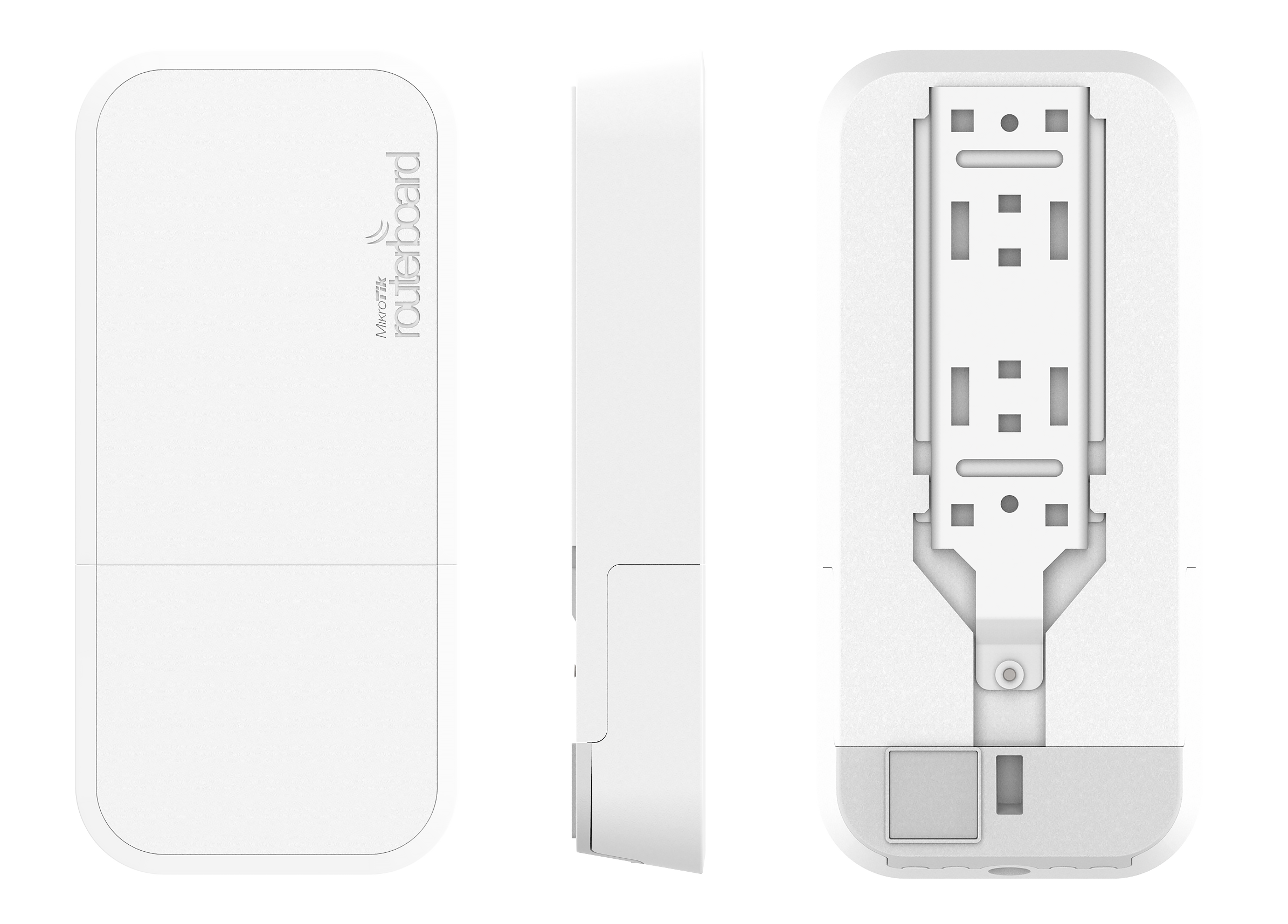

Der wAP 60G AP ist ein wetterfestes integriertes 60-GHz-Wireless-Gerät, das im Innen- und Außenbereich in verschiedenen Szenarien eingesetzt werden kann - als Basisstation, Point-to-Point oder CPE. Die Box enthält ein Wandmontage-Kit, Gurte für die Mastmontage, Netzteil, PoE-Injektor und auch einen Tischständer für die Verwendung des Geräts in Innenräumen. Durchdringt je nach Material einige Fenster.

Der wAP 60G AP unterstützt bis zu acht gleichzeitige Clients auf Entfernungen von 200m+.


#2: Im Lieferumfang enthalten

  • 1x RBwAPG-60ad-A (wAP 60G AP)
  • 1x Schlauchschelle (Metall)
  • 1x Kabelbinder (Plastik)

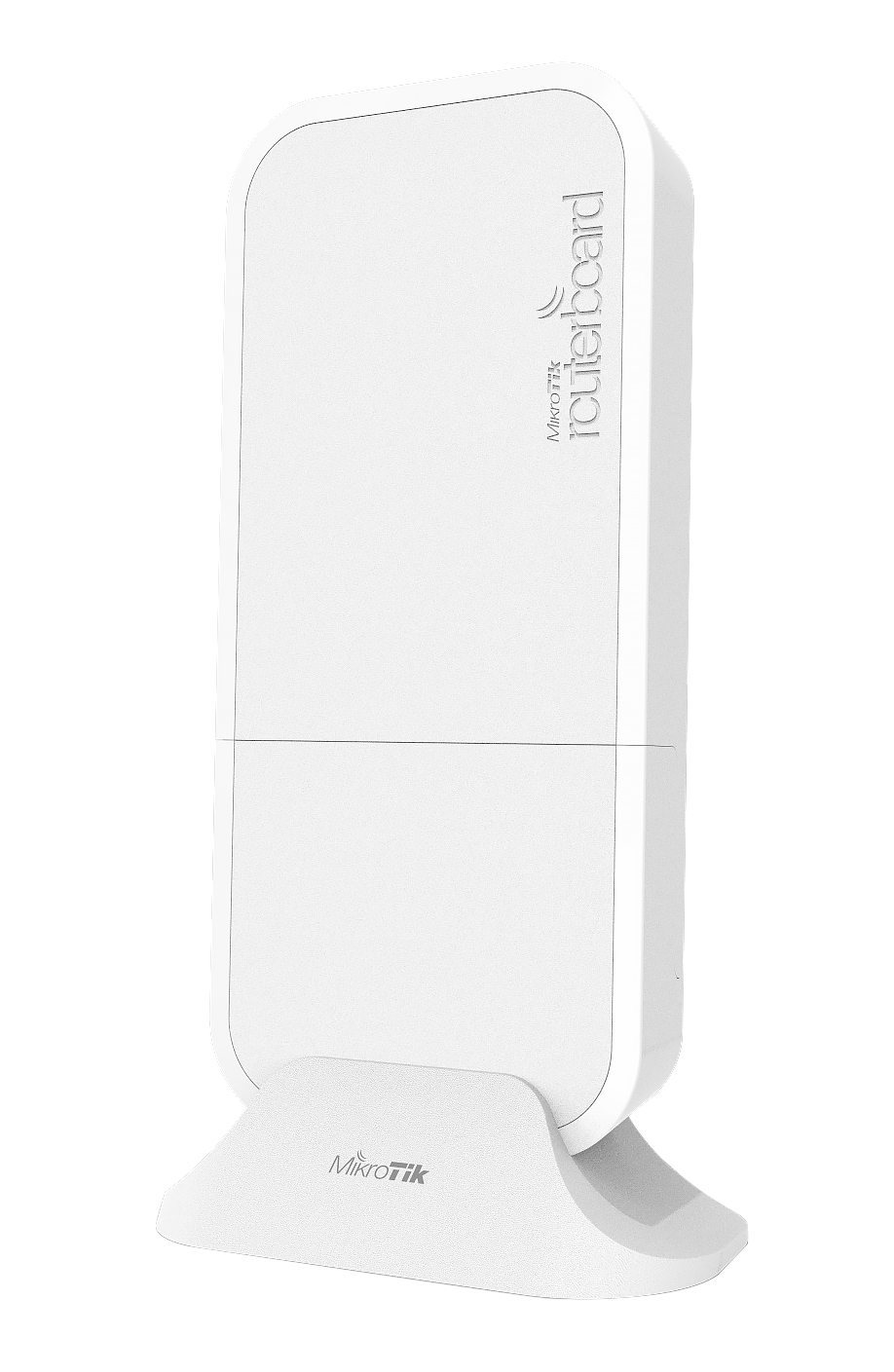

  • 1x wAP Desktop Standfuß
  • 1x 24V 0.38A Netzteil
  • 1x wAP Deckenhalterung
  • 1x Gigabit PoE Injektor


#3: Spezifikationen - Technische Details

Details
Product code RBwAPG-60ad-A
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 185 x 85 x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-57 V
Max power consumption 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 11-57 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 55



#4: Test-Resultate nach RFC2544

Ethernet test results

RBwAPG-60ad-A IPQ-4019 1G one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81,2 986.1 234,9 962.2 1482,6 759.1
Bridging 25 bridge filter rules 81,2 986.1 227,7 932.7 231,9 118.7
Routing none (fast path) 81,2 986.1 235,1 963.0 1421,8 728.0
Routing 25 simple queues 81,2 986.1 235,1 963.0 458,3 234.6
Routing 25 ip filter rules 81,2 986.1 234,9 962.2 236,8 121.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBwAPG-60ad-A IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



#5: Produktvideo & Tipps
