MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G - KNOT LR8G kit

MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G - KNOT LR8G kit

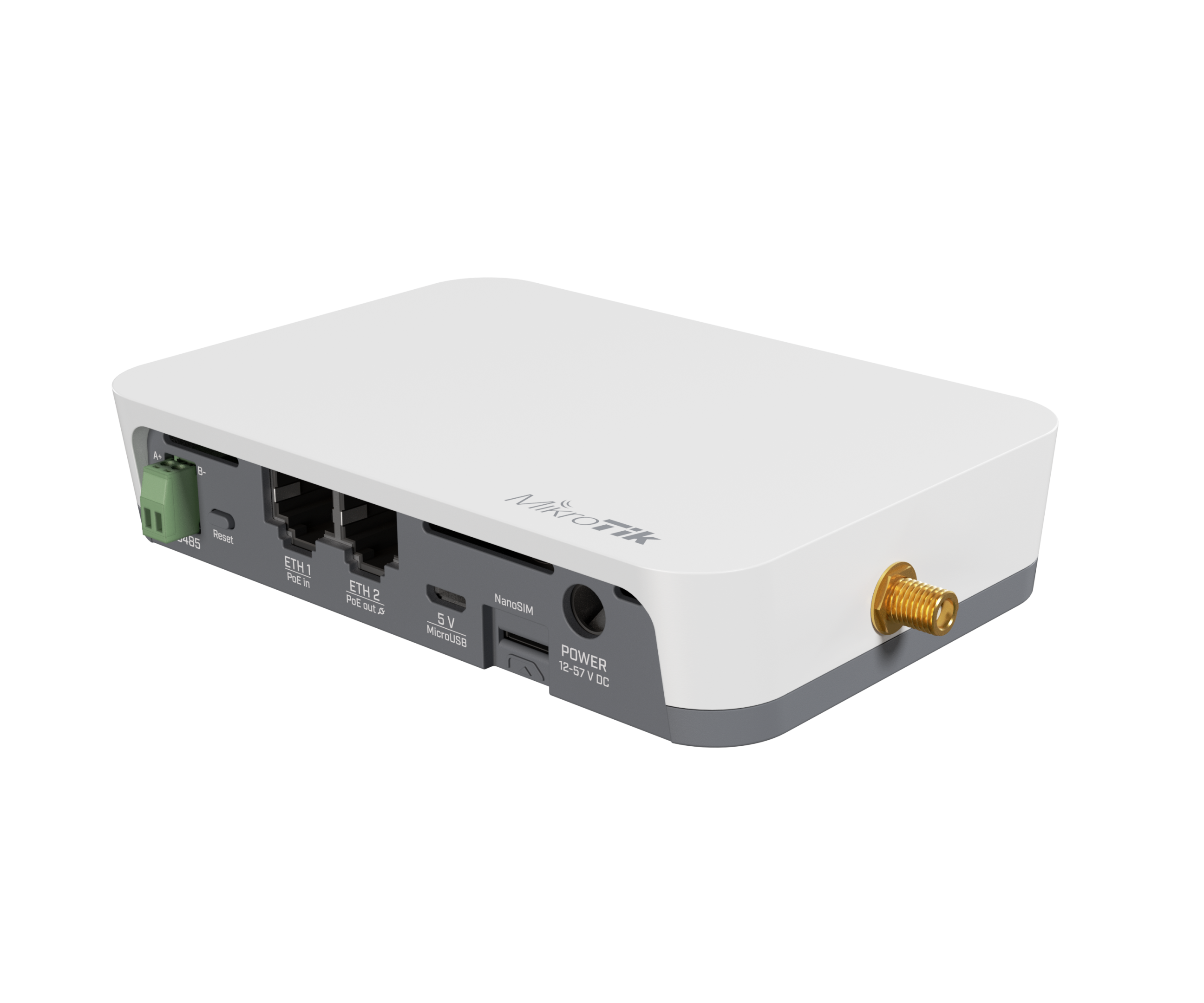

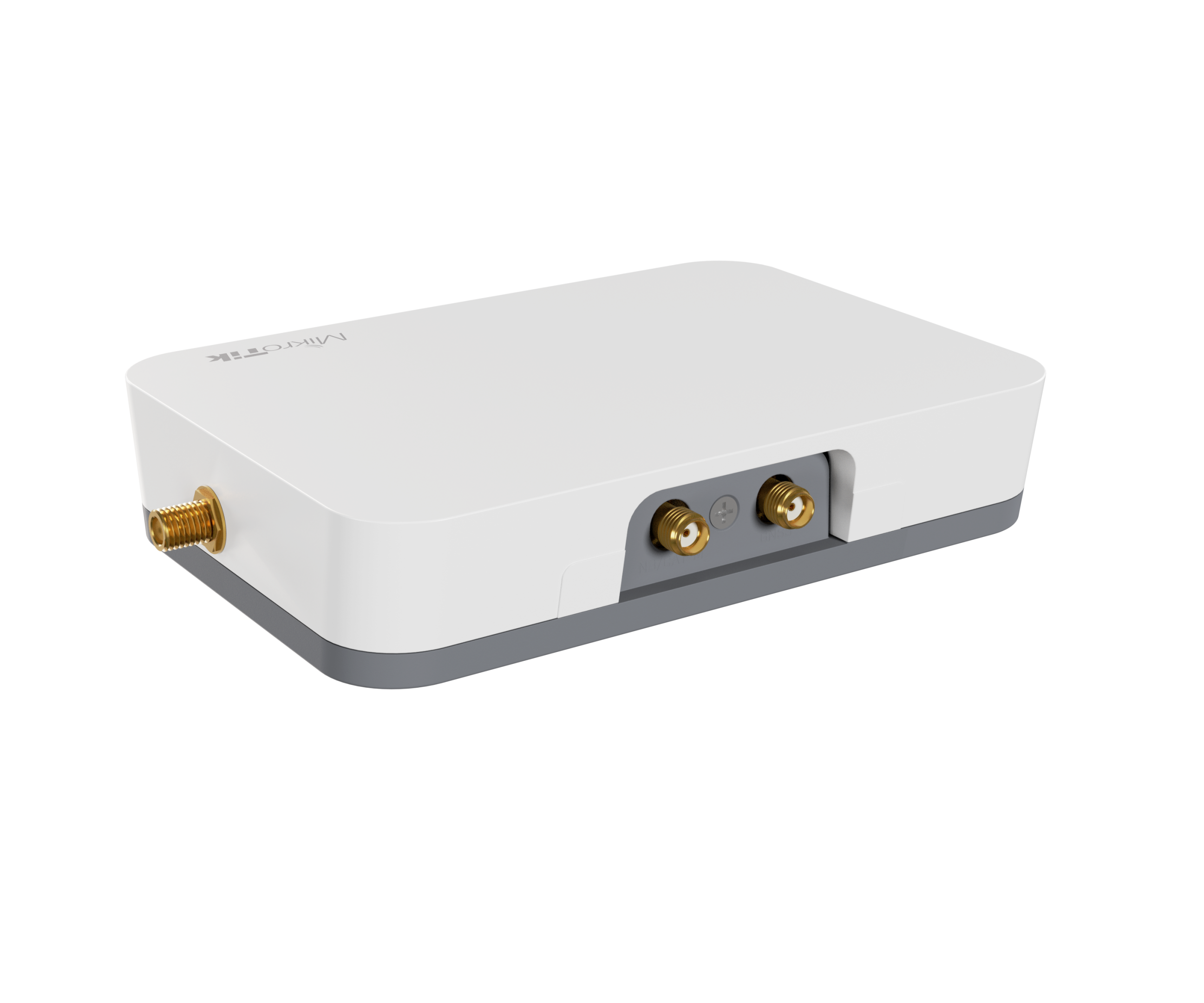

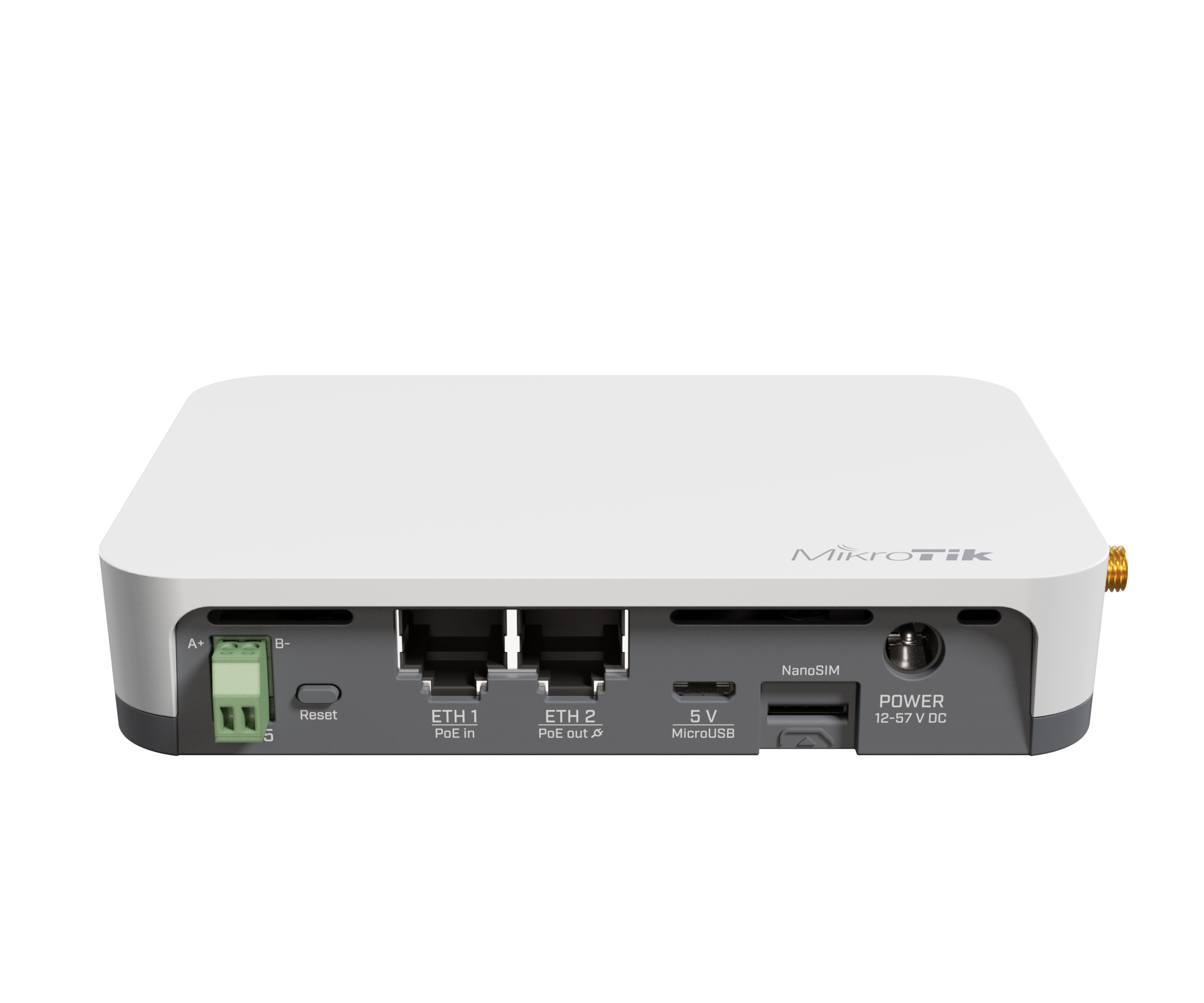

Name: MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G - KNOT LR8G kit
Brand: MikroTik
SKU: RB924iR-2nD-BT5&BG770A&R11e-LR8G
Price: 161.35 EUR
Availability: OutOfStock

Art.Nr.: RB924iR-2nD-BT5&BG770A&R11e-LR8G

Hersteller: MikroTik

https://mikrotik.com/product/knot_lr8g_kit

161,35 EUR
incl. 19 % USt

zzgl. Versandkosten

Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
Lieferzeit auf Anfrage: sales@mikrotik-store.eu
Gewicht 0,3 kg

Produktbeschreibung

#1: RB924iR-2nD-BT5&BG770A&R11e-LR8G - KNOT LR8G kit

The KNOT LR8G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment. CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.

Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR8G ties everything together and keeps everything connected.

Key Features & Upgrades

• Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.

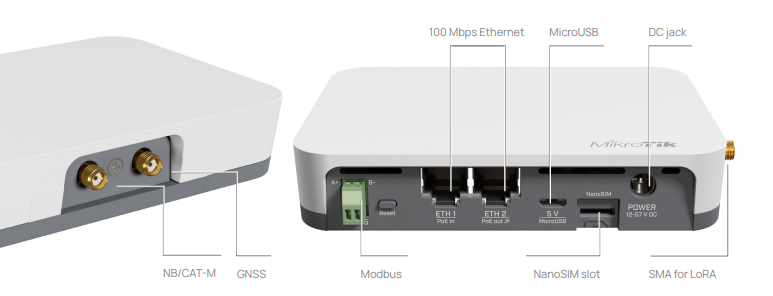

• Versatile Powering
Choose from PoE-in, DC jack, or MicroUSB – including PoE-out on Ether2 for powering other devices.

• SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.

• Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.

• Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.

• Powered by RouterOS v7
– for full control, custom scripting, and advanced routing features.

At just 6W consumption and small footprint (122 × 87 × 26 mm), the KNOT LR8G is perfect for deployments where space, power, and budget are limited – but performance can’t be.

#2: Im Lieferumfang enthalten | Included in delivery

1x RB924iR-2nD-BT5&BG770A&R11e-LR8G
1x Netzteil (power adapter) 24V 1.2A
1x K-47 Wandbefestigungs-Set (wall mount set)
1x DIN-Schienen-Montagesatz (DIN rail mount set)
1x USB OTG Kabel (cable)

#3: Spezifikationen - Technische Details | Specifications - Technical details

Details

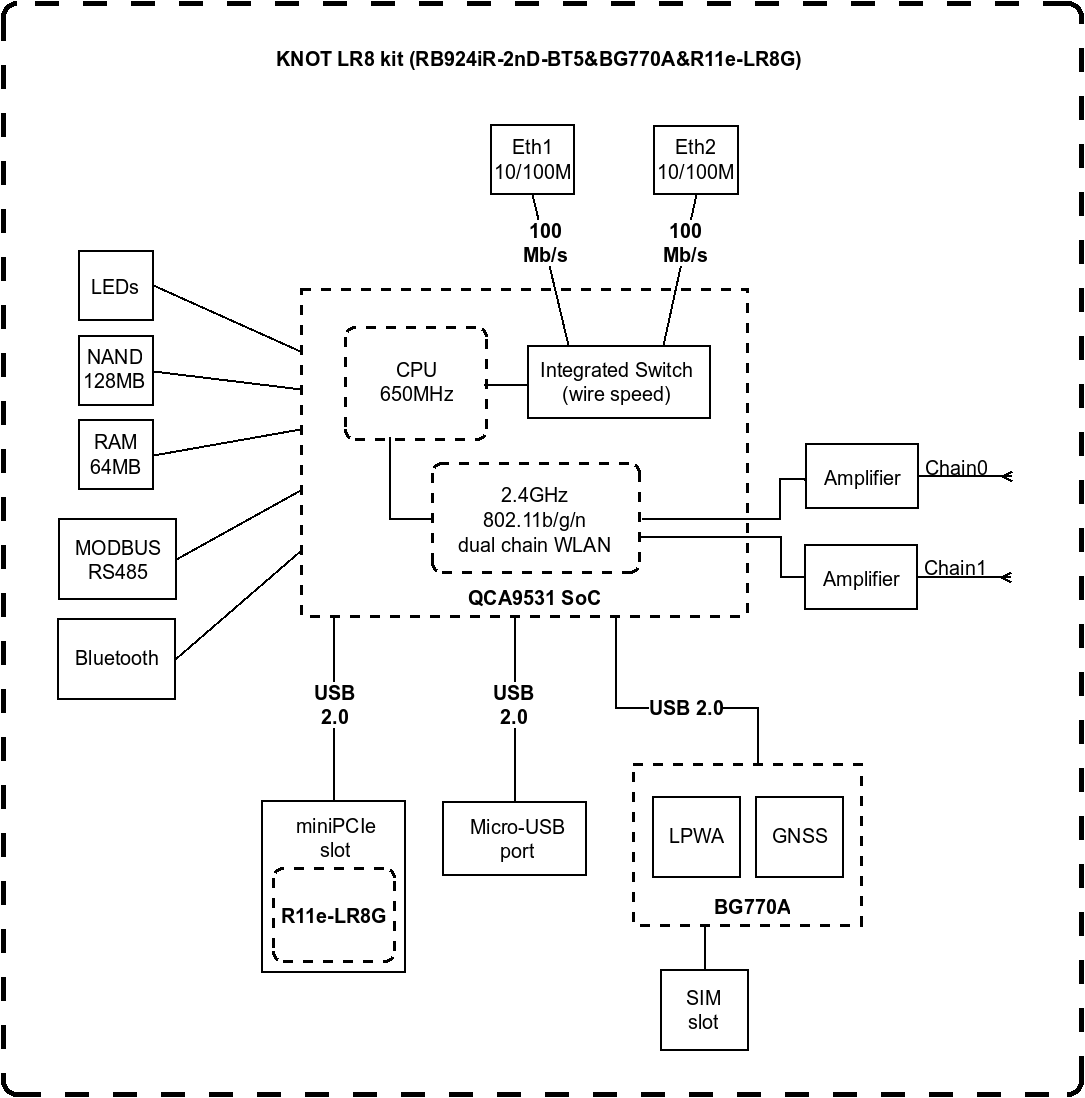

Product code	RB924iR-2nD-BT5&BG770A&R11e-LR8G
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
MicroUSB input Voltage	5 V
Number of DC inputs	3 (DC jack, MicroUSB, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	23 W
Max power consumption without attachments	6 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	18-57 V

PoE-out

Details
PoE-out ports	Ether2
PoE out	Passive PoE
Low voltage PoE-Out current limit	650 mA
High voltage PoE-Out current limit	450 mA
Total output power	12

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	2

Peripherals

Details
Number of SIM slots	1 Smart card (Nano SIM)
MiniPCI-e slots	1
Serial console port	RS485
Number of USB ports	1
USB slot type	microUSB type AB
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Bluetooth version	5.2
Bluetooth RF connector type	uUFL
GPS RF connector type	SMA

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

#4: Test Resultate nach RFC2544 | Test results according to RFC2544

Ethernet test results

RB924iR-2nD-BT5&BG770A&R11e-LR8G		QCA9531 100M two port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	16.3	197.9	47.0	192.5	297.6	152.4
Bridging	25 bridge filter rules	16.3	197.9	47.0	192.5	80.4	41.2
Routing	none (fast path)	16.3	197.9	47.0	192.5	233.1	119.3
Routing	25 simple queues	16.3	197.9	47.0	192.5	131.4	67.3
Routing	25 ip filter rules	16.3	197.9	47.0	192.5	49.1	25.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
