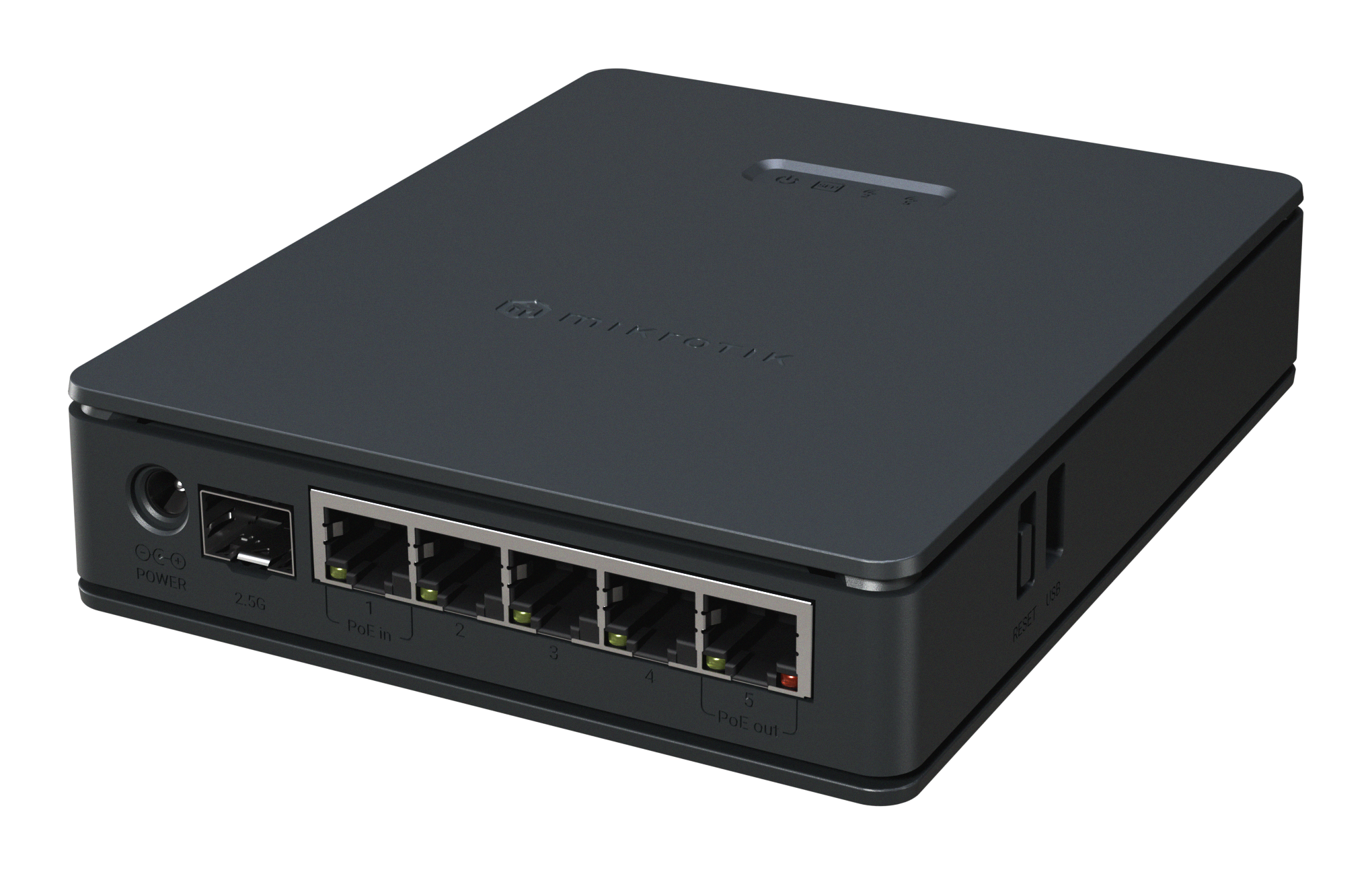

MikroTik E62iUGS-2axD5axT - hAP ax S
Art.Nr.: E62iUGS-2axD5axT
Hersteller: MikroTik
https://mikrotik.com/product/hap_ax_s
73,53 EUR
incl. 19 % USt
Produktbeschreibung
#1: E62iUGS-2axD5axT - hAP ax S

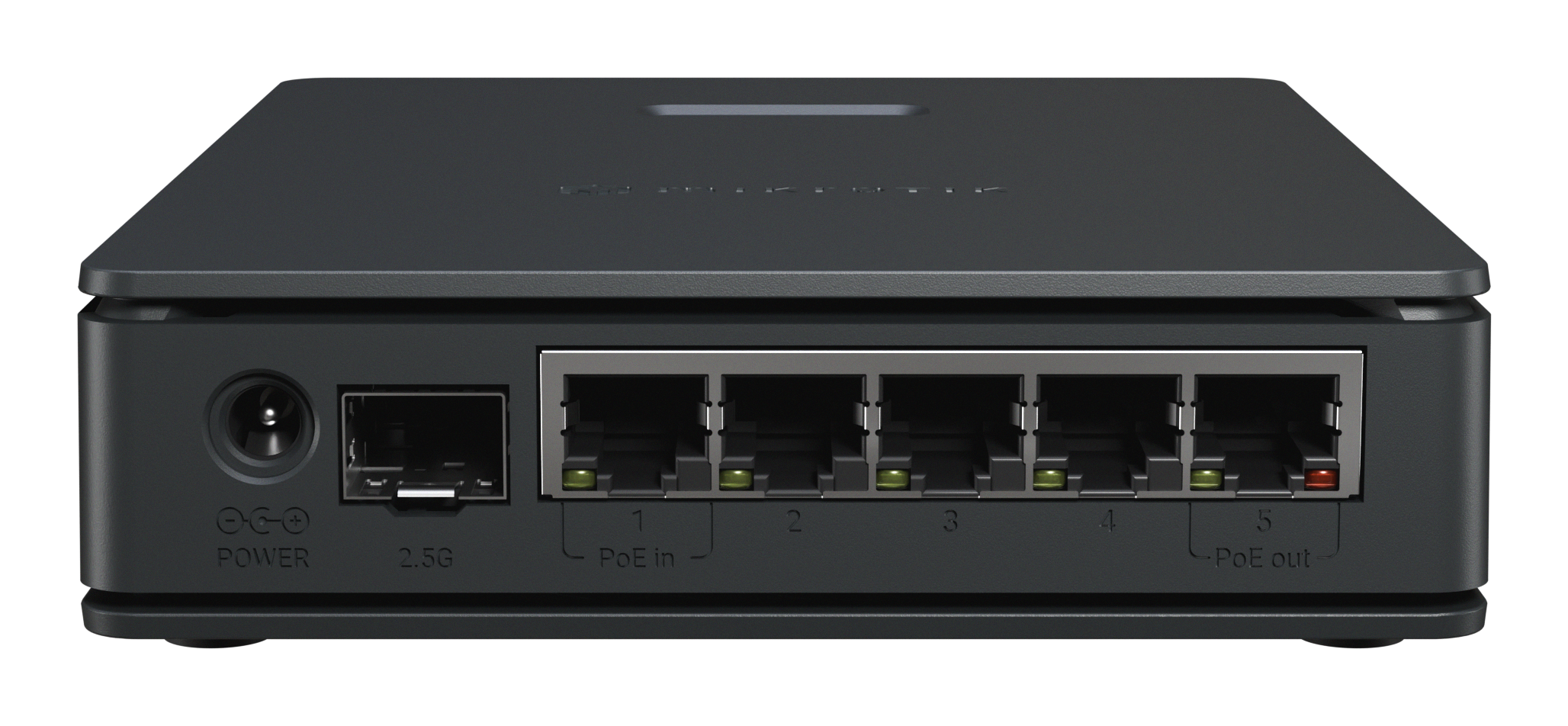

Lernen Sie den neuen hAP ax S kennen – den bislang kostengünstigsten Wi-Fi 6-Access Point von MikroTik. Er kostet weit weniger als die meisten massenproduzierten Router der Mittelklasse und bietet dabei sofort nach dem Auspacken weitaus mehr Flexibilität und Langlebigkeit! Unter dem schlanken Gehäuse verbergen sich eine Dual-Core-ARM-CPU, Dualband-Wi-Fi 6, USB, fünf Gigabit-Ethernet-Ports und ein 2,5-Gigabit-SFP-Käfig. Sie können eine direkte Glasfaserverbindung zu Hause herstellen oder ein Hochgeschwindigkeits-NAS für blitzschnellen lokalen Zugriff anschließen.
Triple-chain 5 GHz: the key to stable, gigabit-class Wi-Fi
Der neue hAP ax S verfügt über einen Triple-Chain-5-GHz-Funk, der einen realen Durchsatz von etwa 800–900 Mbit/s erreicht. Das bedeutet reibungsloses Streaming, schnellere Downloads und stabile Leistung auf mehreren Geräten – selbst in überfüllten Umgebungen. Er eignet sich auch perfekt als dedizierter Wi-Fi 6 VR-Streaming-Zugangspunkt für PC-VR-Headsets und bietet eine höhere Auflösung und geringere Latenz ohne Kabel. Im Gegensatz zu Einzweck-„Gaming“-Zugangspunkten bietet Ihnen der hAP ax S die volle Leistung, Flexibilität und Zukunftssicherheit von RouterOS v7!
Profitieren Sie von zwei Stromversorgungsoptionen - DC-Buchse oder PoE-in – und einem passiven PoE-out-Port zur Stromversorgung eines weiteren MikroTik-Geräts, z. B. eines zusätzlichen AP oder eines kompakten Desktop-Switches. Damit eignet er sich ideal für Heimnetzwerke und kleine Büros, in denen eine übersichtliche Kabelverwaltung wichtig ist.
Your network, your rules
Trotz des niedrigen Preises läuft auf dem hAP ax S eine Vollversion von RouterOS v7, der flexibelsten Netzwerksoftware auf dem Markt. In Zeiten wachsender Herausforderungen hinsichtlich Datensicherheit und Datenschutz bietet Ihnen RouterOS vollständige Kontrolle - ohne Abonnements, ohne Upselling, ohne gesperrte Funktionen. Ganz gleich, ob Sie Ihr erstes WLAN-Netzwerk über die MikroTik-App konfigurieren oder komplexe Topologien aufbauen, RouterOS v7 wächst mit Ihnen. VLANs, Firewalls, VPN-Tunnel, Traffic Shaping, Skripting, SMS-Automatisierung – die Möglichkeiten sind endlos. Beispiel: Sie können IoT-Geräte ganz einfach in separate Subnetze isolieren, um Ihr Heimnetzwerk vor unerwünschten Zugriffen über den Smart-Kühlschrank oder die auffälligen LED-Lichthubs zu schützen.
#2: Im Lieferumfang enthalten | Included in delivery
| 1x | E62iUGS-2axD5axT (hAP ax S) | |
| 1x | 24V 1,5A Netzteil | (24V 1.5A power adapter) |
- Alle verfügbaren MikroTik [SFP/QSFP]-Module finden Sie hier bei uns im Shop: [SFP/QSP]
#3: Spezifikationen - Technische Details | Specifications - Technical details
| Details | |
|---|---|
| Product code | E62iUGS-2axD5axT |
| Architecture | ARM 32-bit |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7529CT |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 5.5 |
| Wireless 2.4 GHz chip model | MT7916 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1800 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 8.07 |
| Wireless 5 GHz chip model | MT7976 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX2400 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details | |
|---|---|

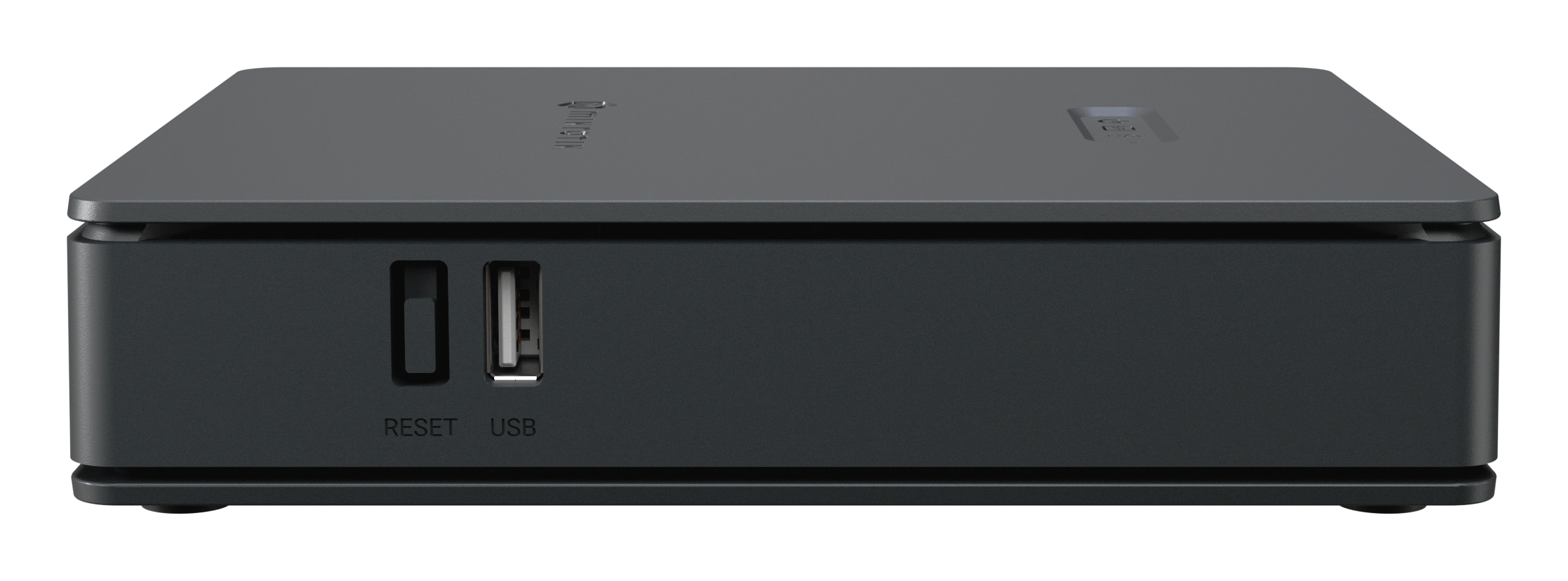

| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 34 W |
| Max power consumption without attachments | 11 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 0.6 A |
| Max total out (A) | 0.6 A |
| Total output current | 0.6 |
| Total output power | 16.8 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 24 | -100 |
| 11MBit/s | 24 | -94 |
| 6MBit/s | 23 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 22 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 15 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 23 | -96 |
| 54MBit/s | 21 | -81 |
| MCS0 | 23 | -96 |
| MCS7 | 20 | -77 |
| MCS9 | 20 | -72 |
| MCS11 | 18 | -69 |
#4: Test Resultate nach RFC2544 | Test results according to RFC2544
Ethernet test results
| E62iUGS-2axD5axT | EN7562CT 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219 |
| Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5 |
| Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1 |
| Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5 |
| Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| E62iUGS-2axD5axT | EN7562CT IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
