#1: TSW040

8-port PoE+ Switch

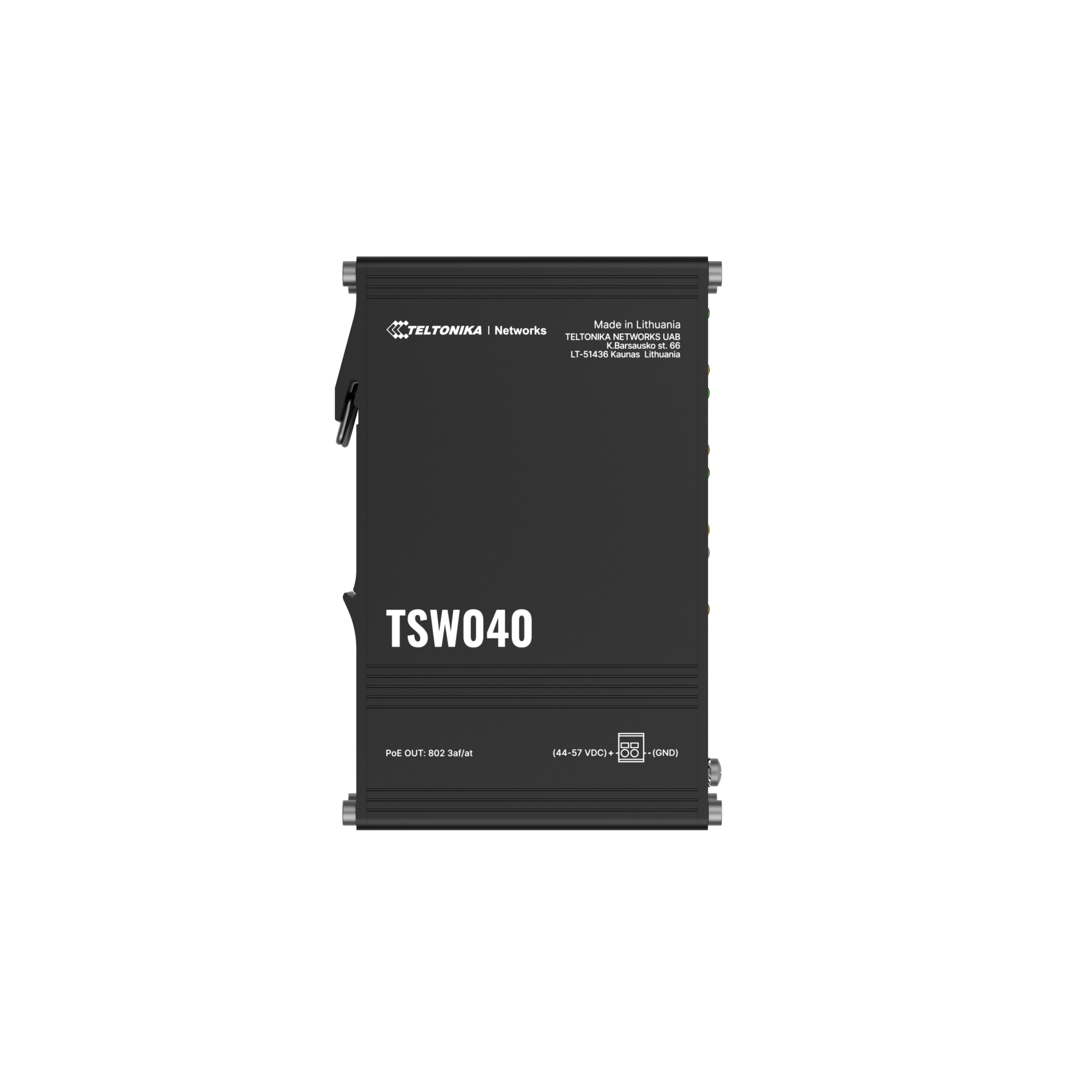

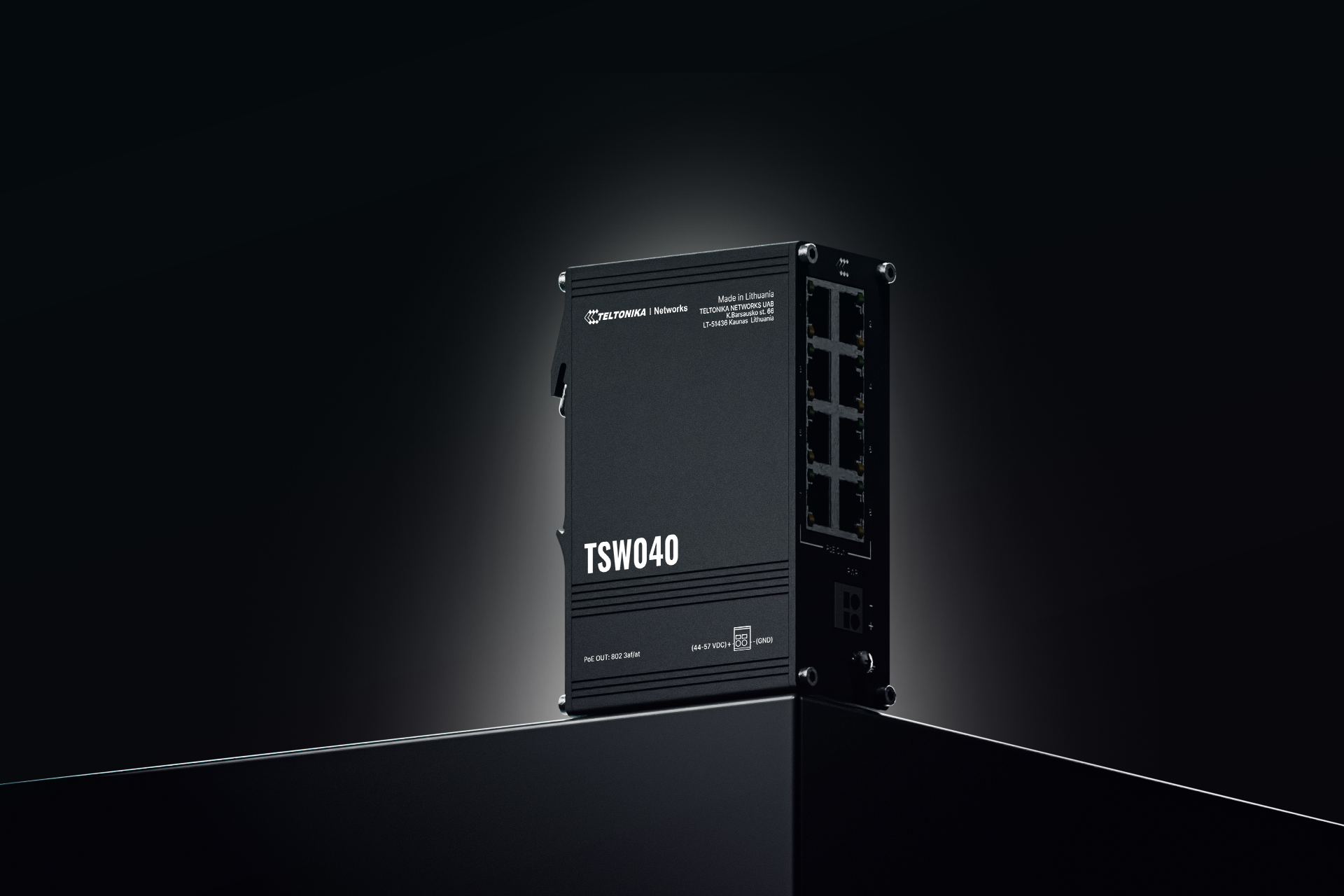

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.



#2: Im Lieferumfang enthalten

• TSW040
• QSG (Quick Start Guide)
• Packaging box



#3: Features

INDUSTRIAL PROTOCOLS
Profinet

Profinet Class A conformance (available with optional order code)

Ethernet
Ethernet

8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT
PoE+ ports

Port 1 - 8

PoE standards

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PSE ports, over spare pairs (Mode B)

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

240 W

Power
Connector

2-pin industrial DC power socket

Input voltage range

7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

PoE-Out input voltage range

44 – 57 VDC

Power consumption

Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical Interfaces
Ethernet

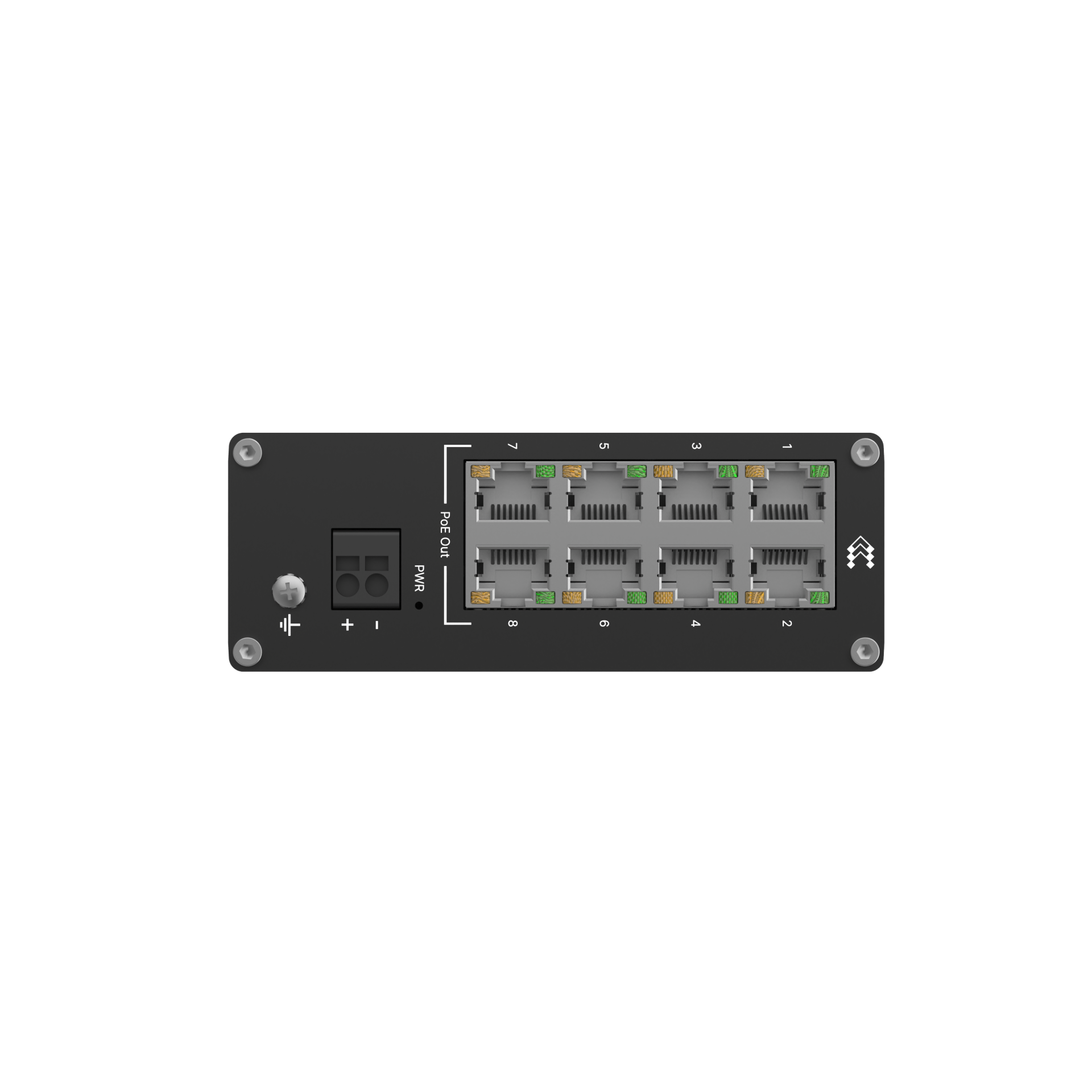

8 x RJ45 ports, 10/100 Mbps

Status LEDs

1 x Power LED, 16 x ETH status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

Physical Specification
Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

113.1 x 41.2 x 74.6 mm

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Weight

280 g

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Performance Specifications
Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes



---
