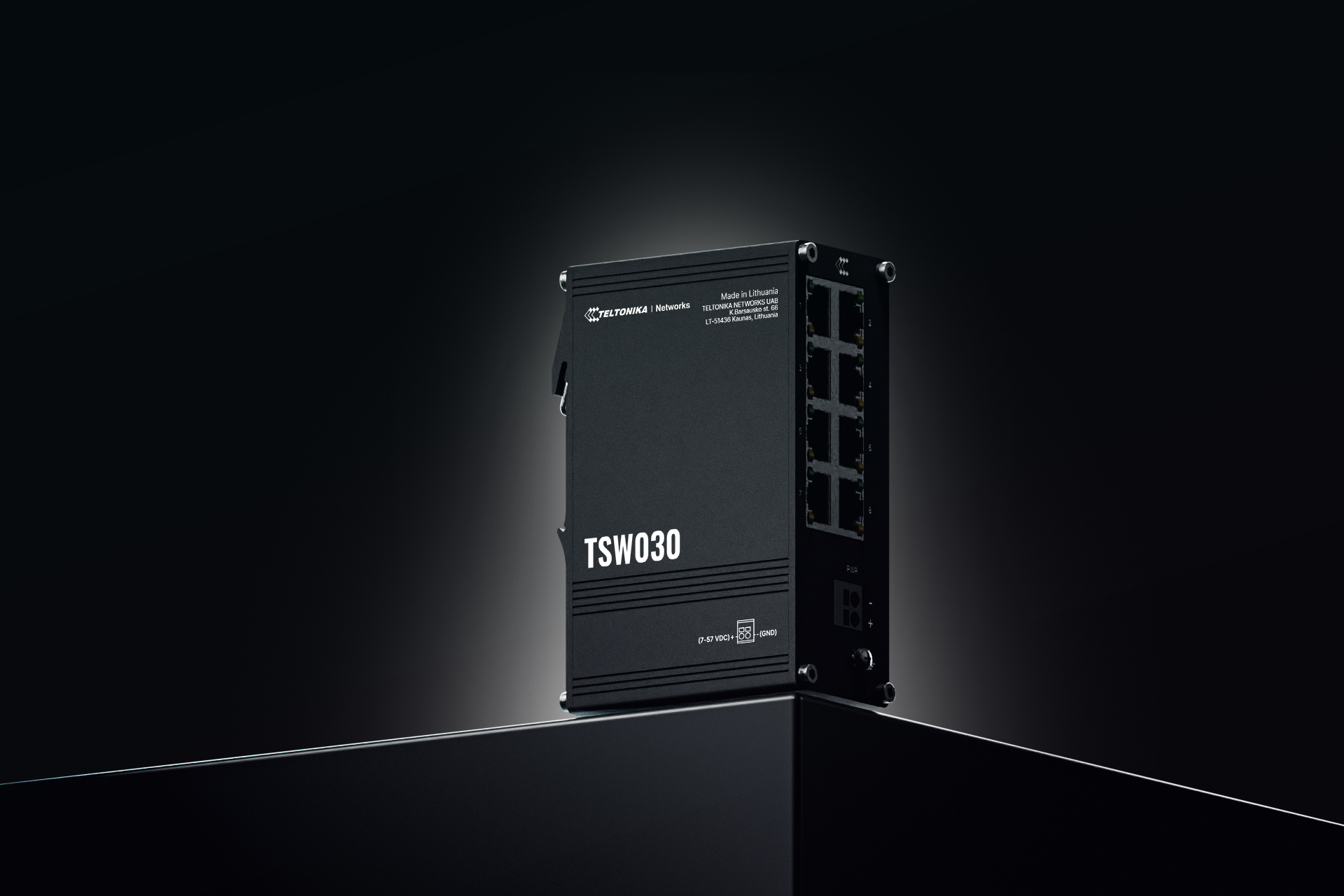

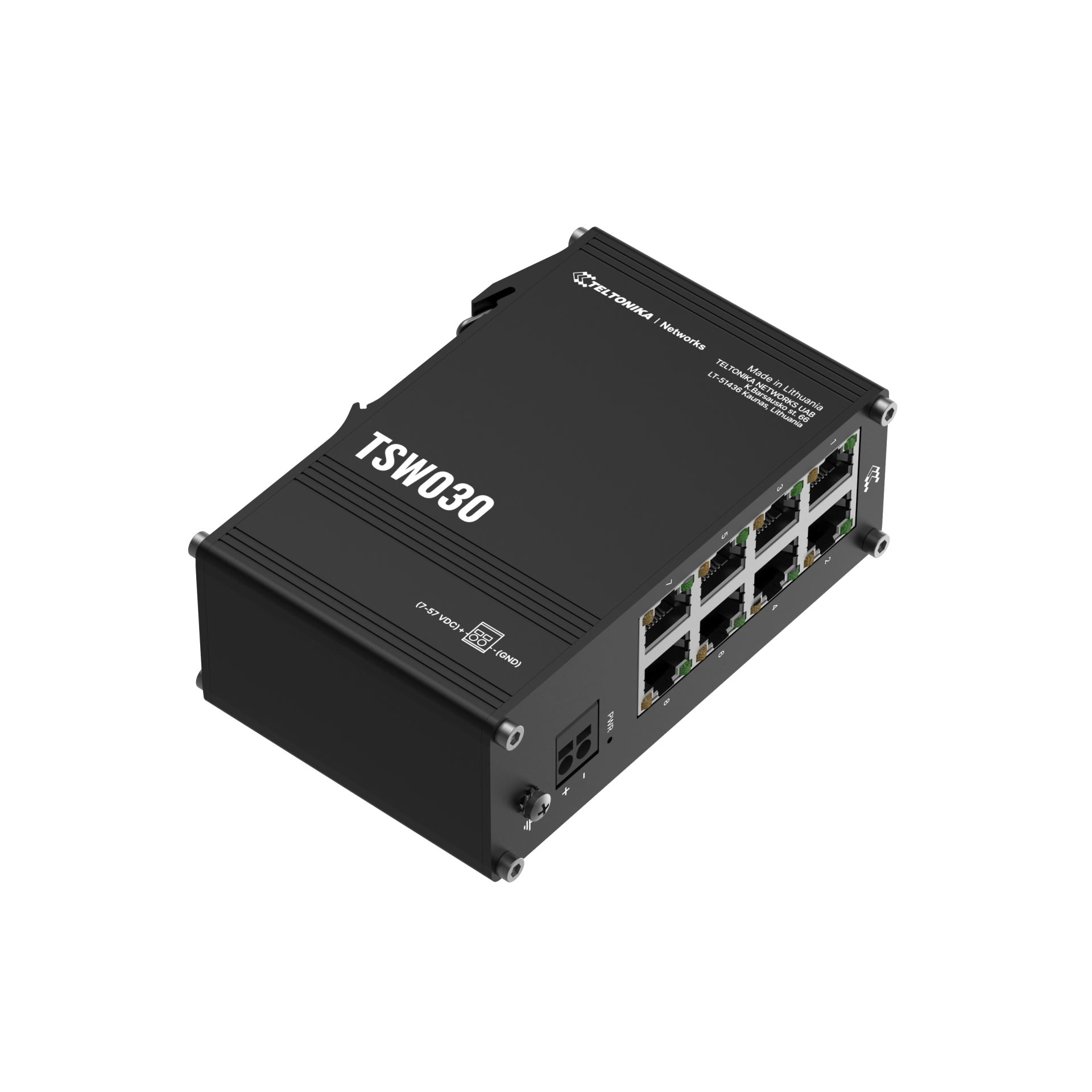

#1: TSW030

8-port Ethernet Switch

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.



#2: Content of delivery

• TSW030
• QSG (Quick Start Guide)
• Packaging box



#3: Features

INDUSTRIAL PROTOCOLS
Profinet

Profinet Class A conformance (available with optional order code)

Ethernet
Ethernet

8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Power
Connector

2-pin industrial DC power socket

Input voltage range

7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

Power consumption

Idle: 0.5 W / Max: 1.5 W

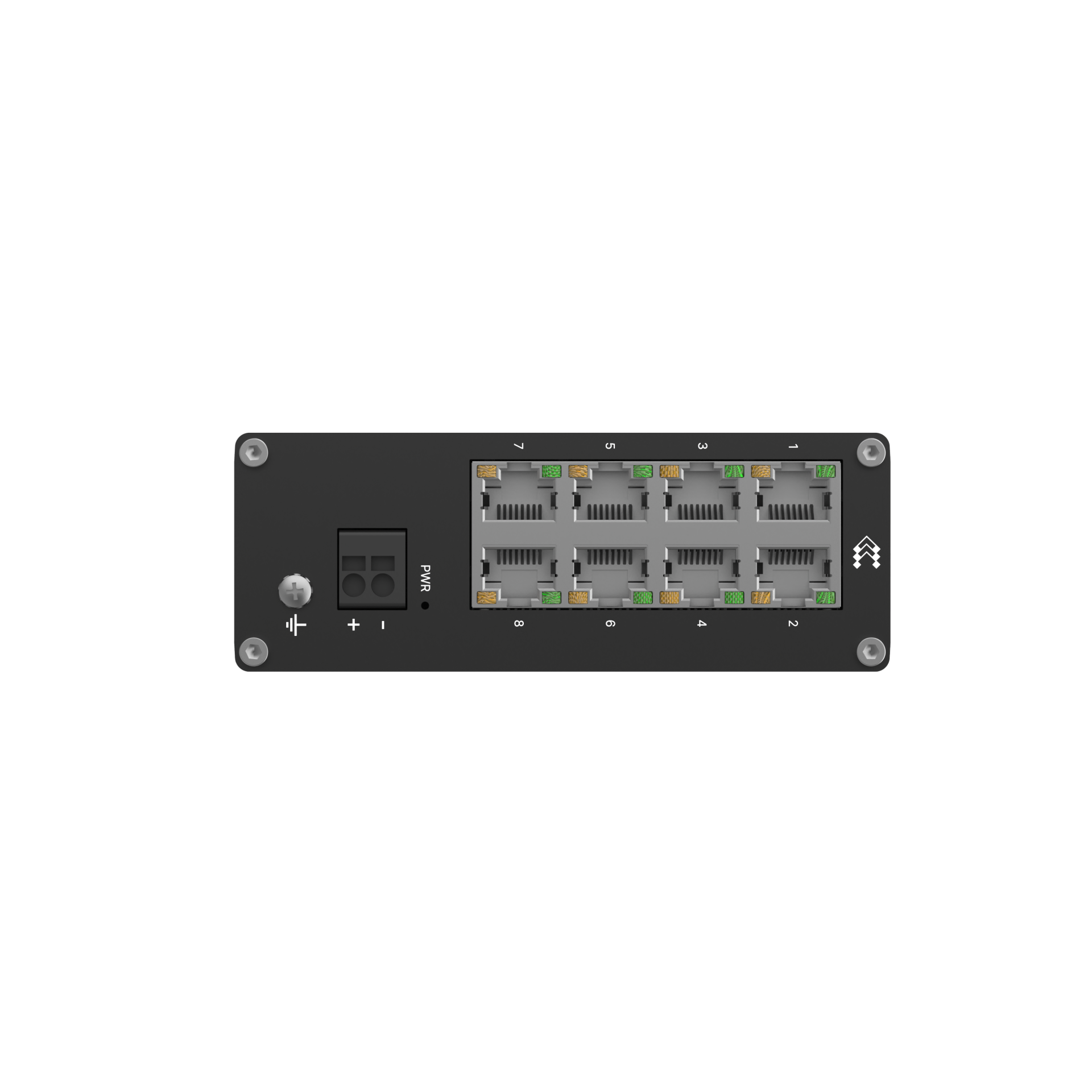

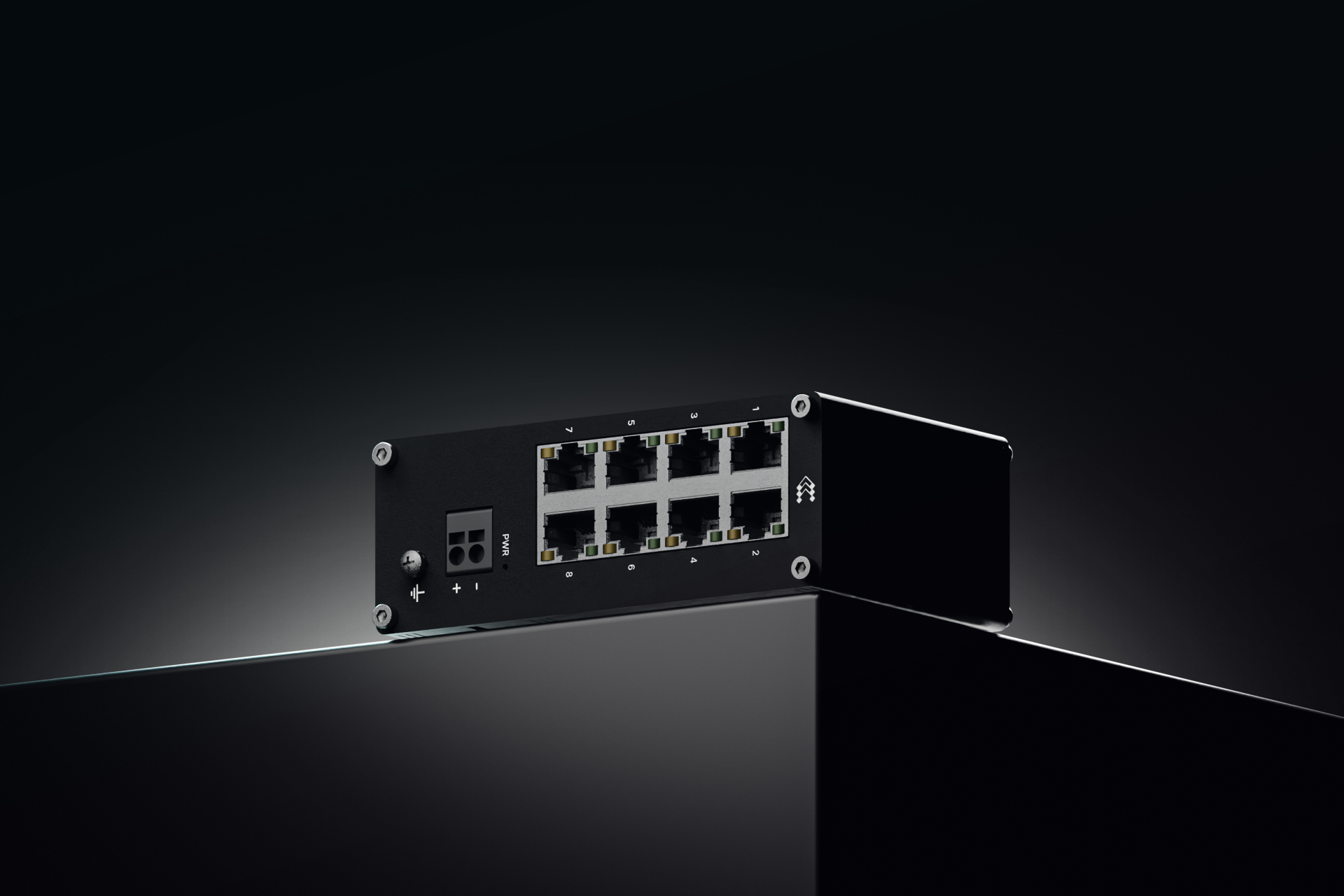

Physical Interfaces
Ethernet

8 x RJ45 ports, 10/100 Mbps

Status LEDs

1 x Power LED, 16 x ETH status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

Physical Specification
Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

113.1 x 41.2 x 74.6 mm

Weight

256 g

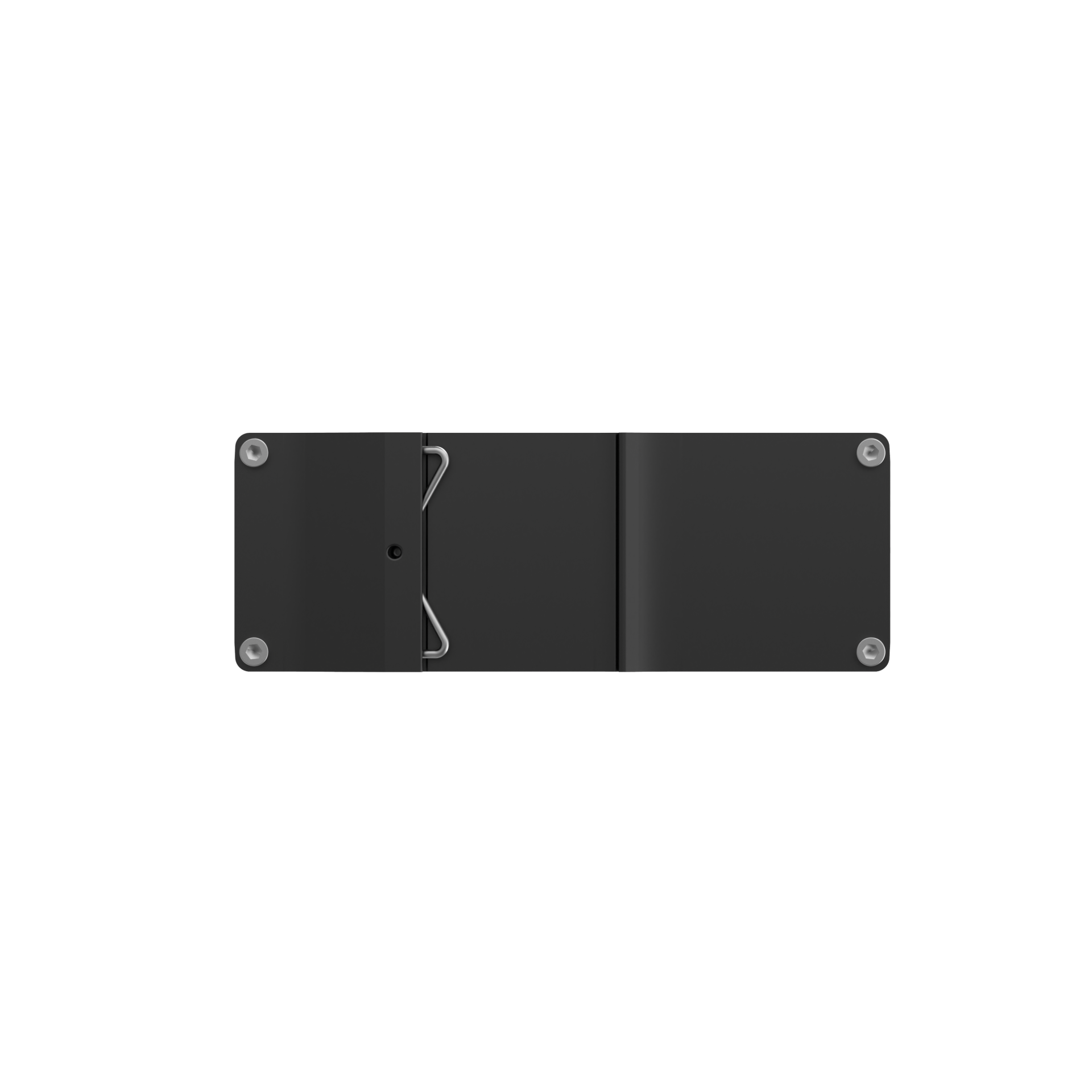

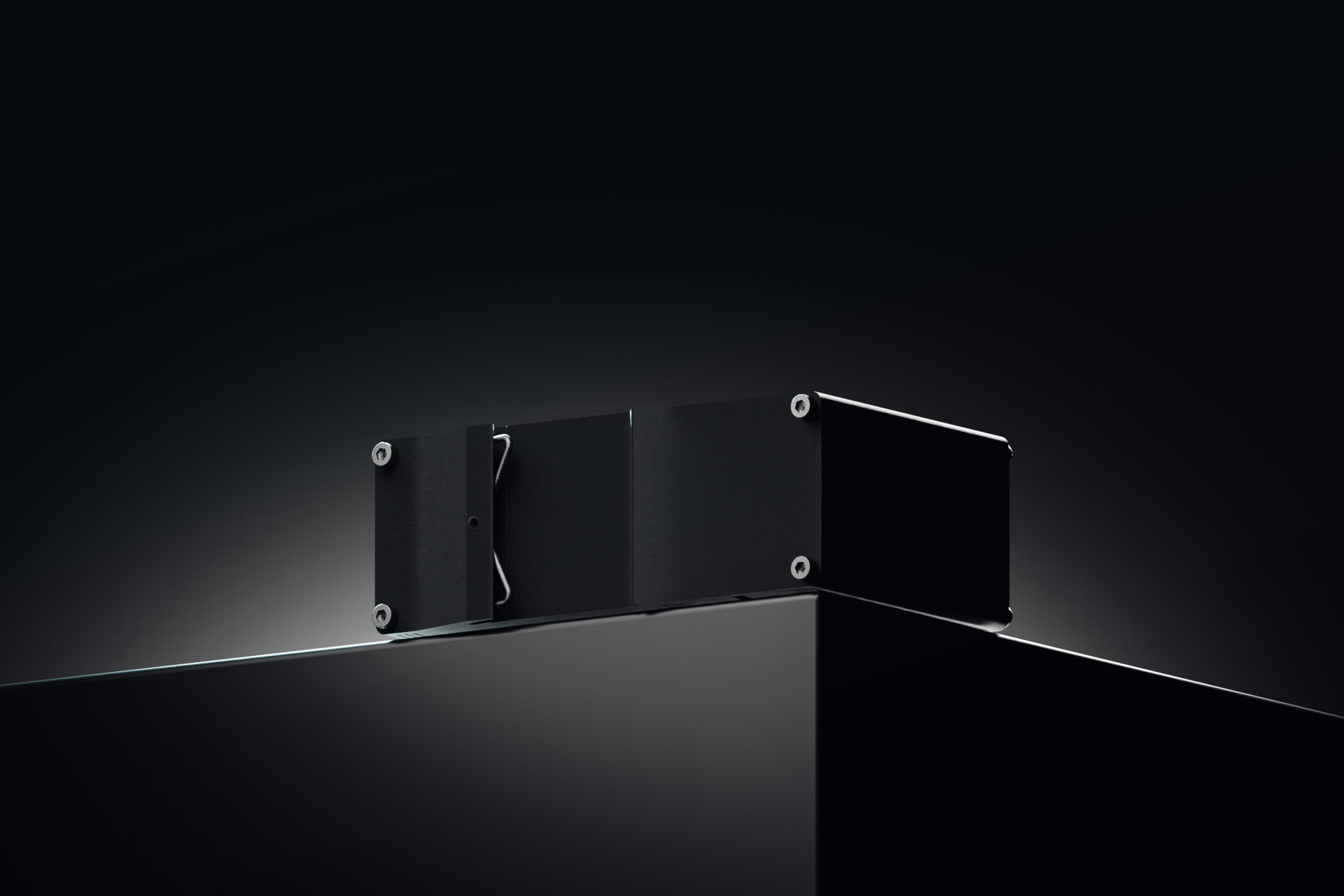

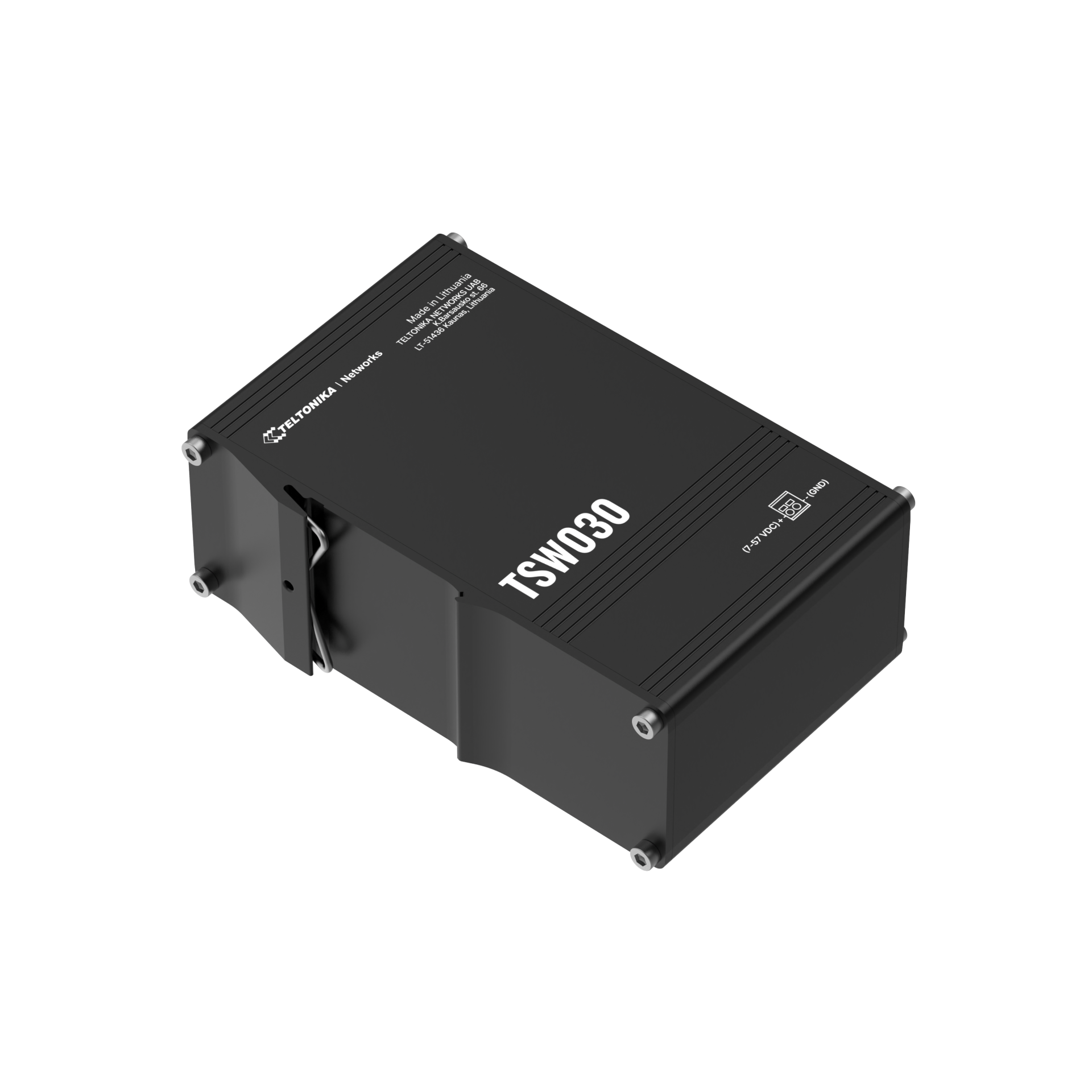

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals
Regulatory

UL Safety

Performance Specifications
Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Safety (Ordinary Locations)
Standards

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)



---
