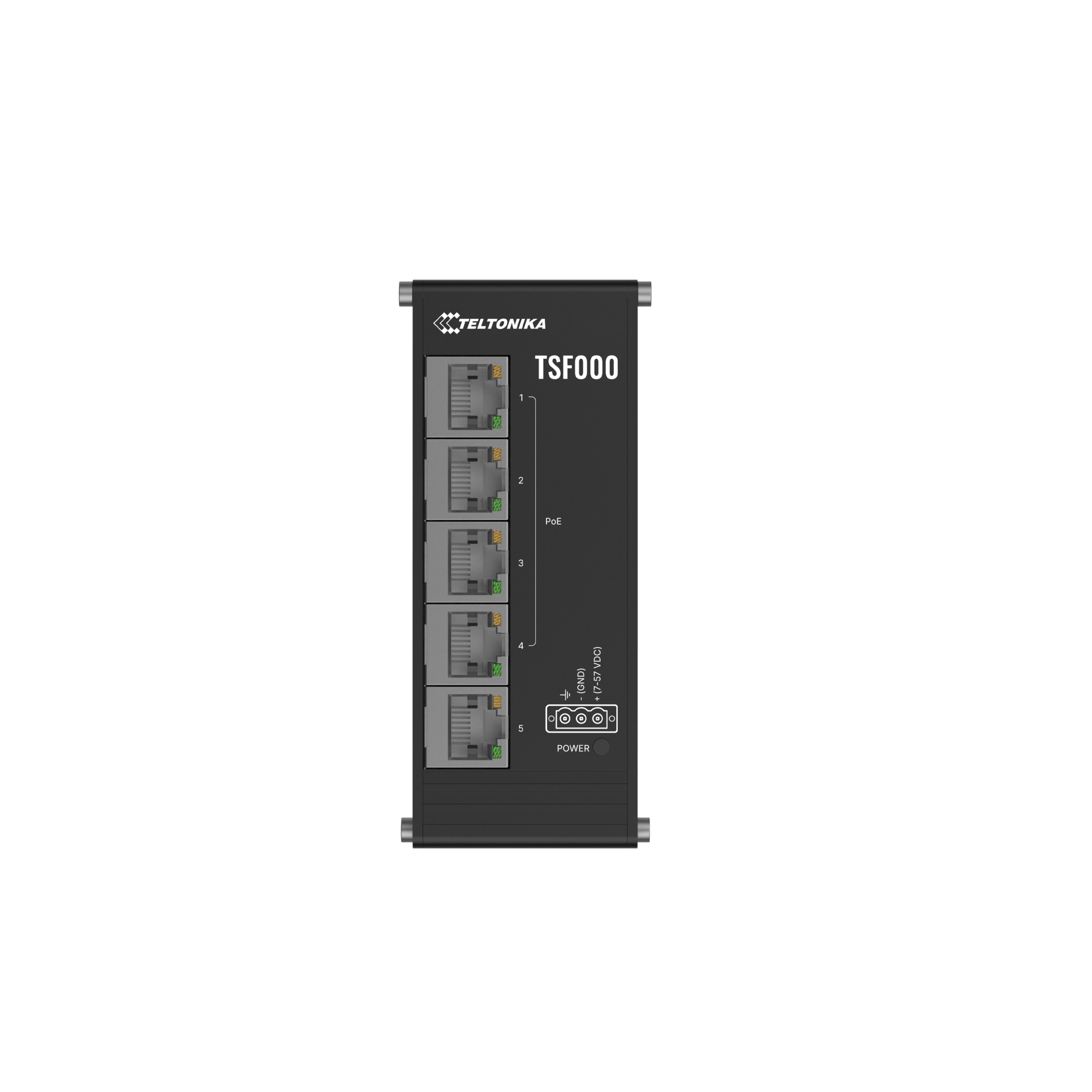

#1: TSF000

LOW PROFILE POE+ SWITCH

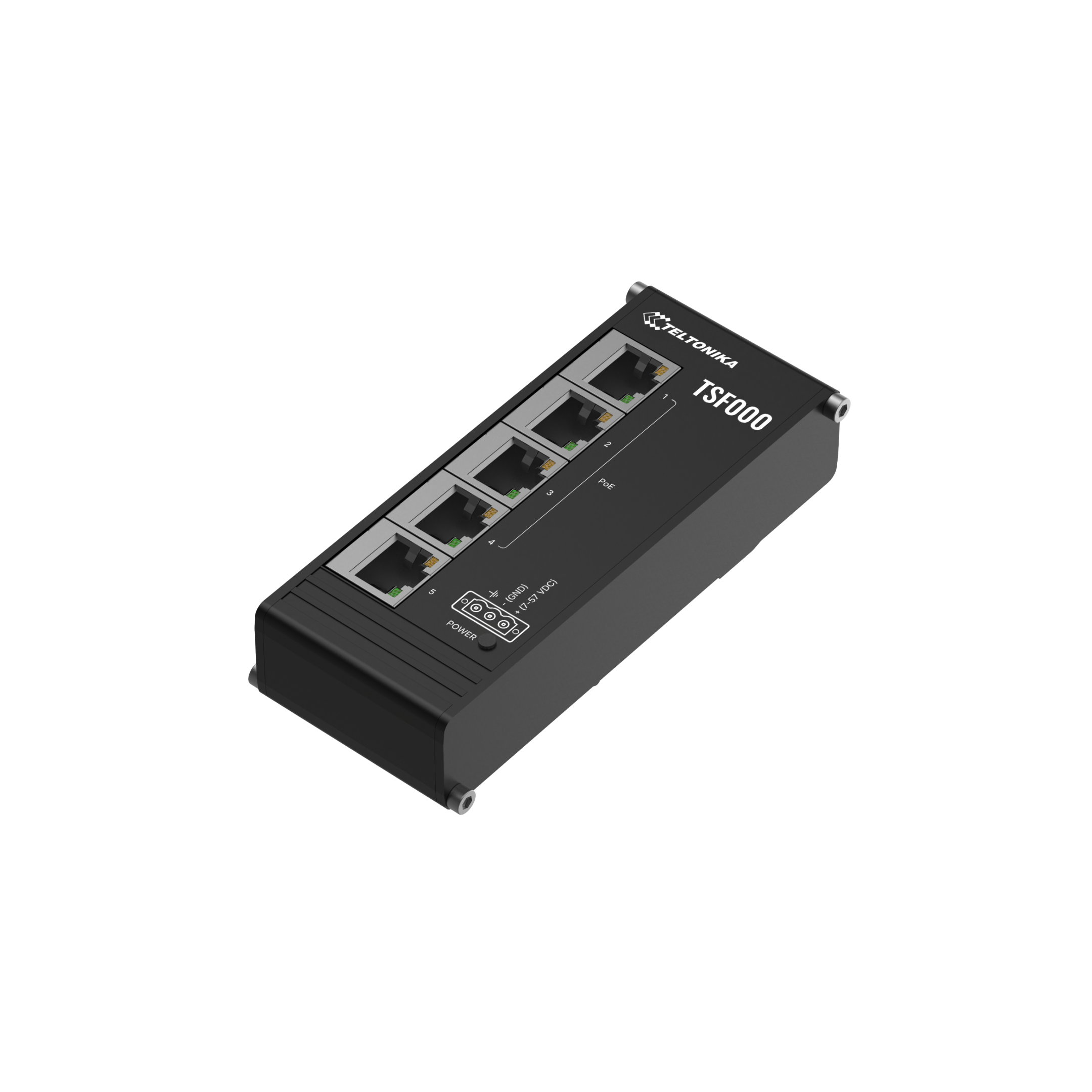

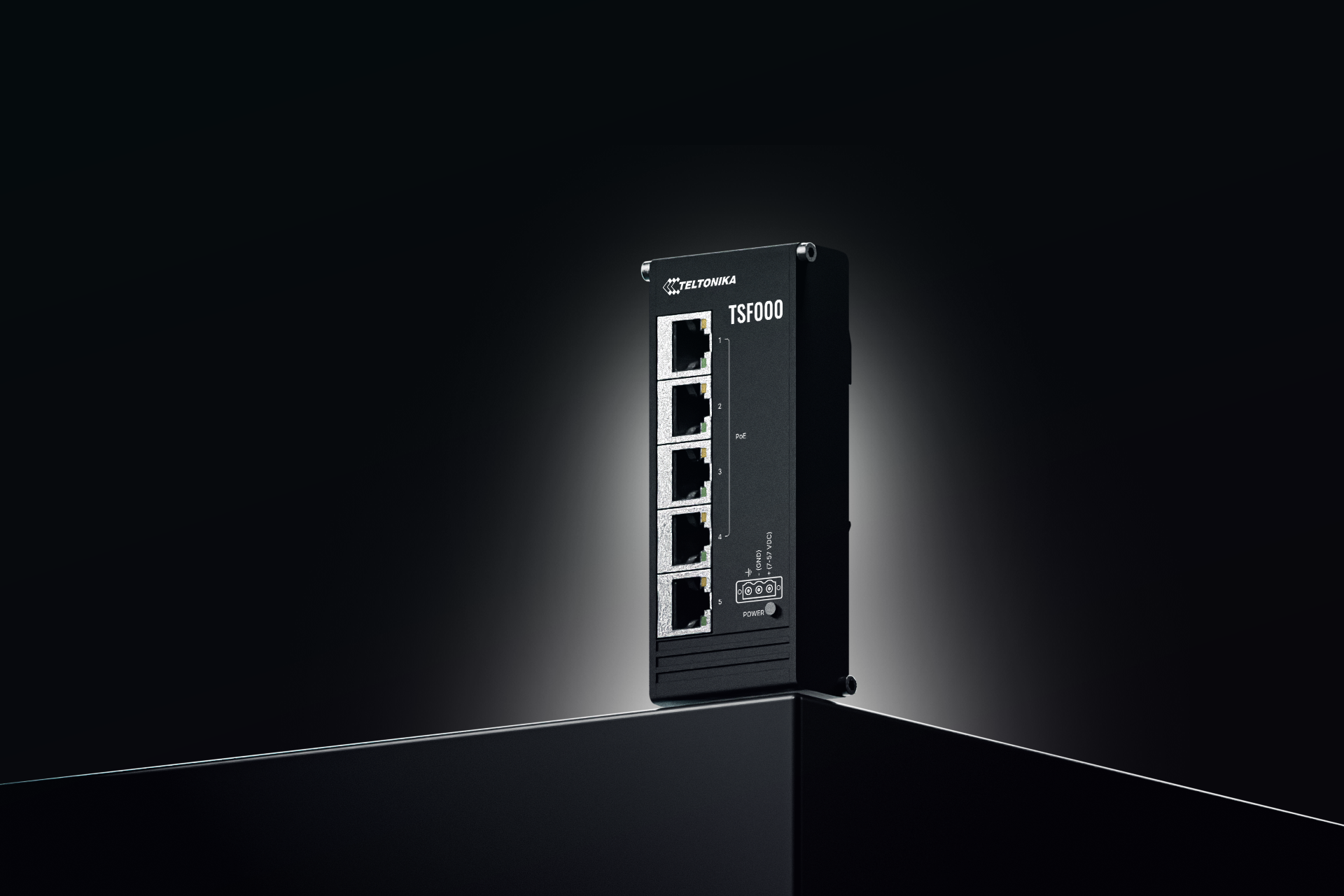

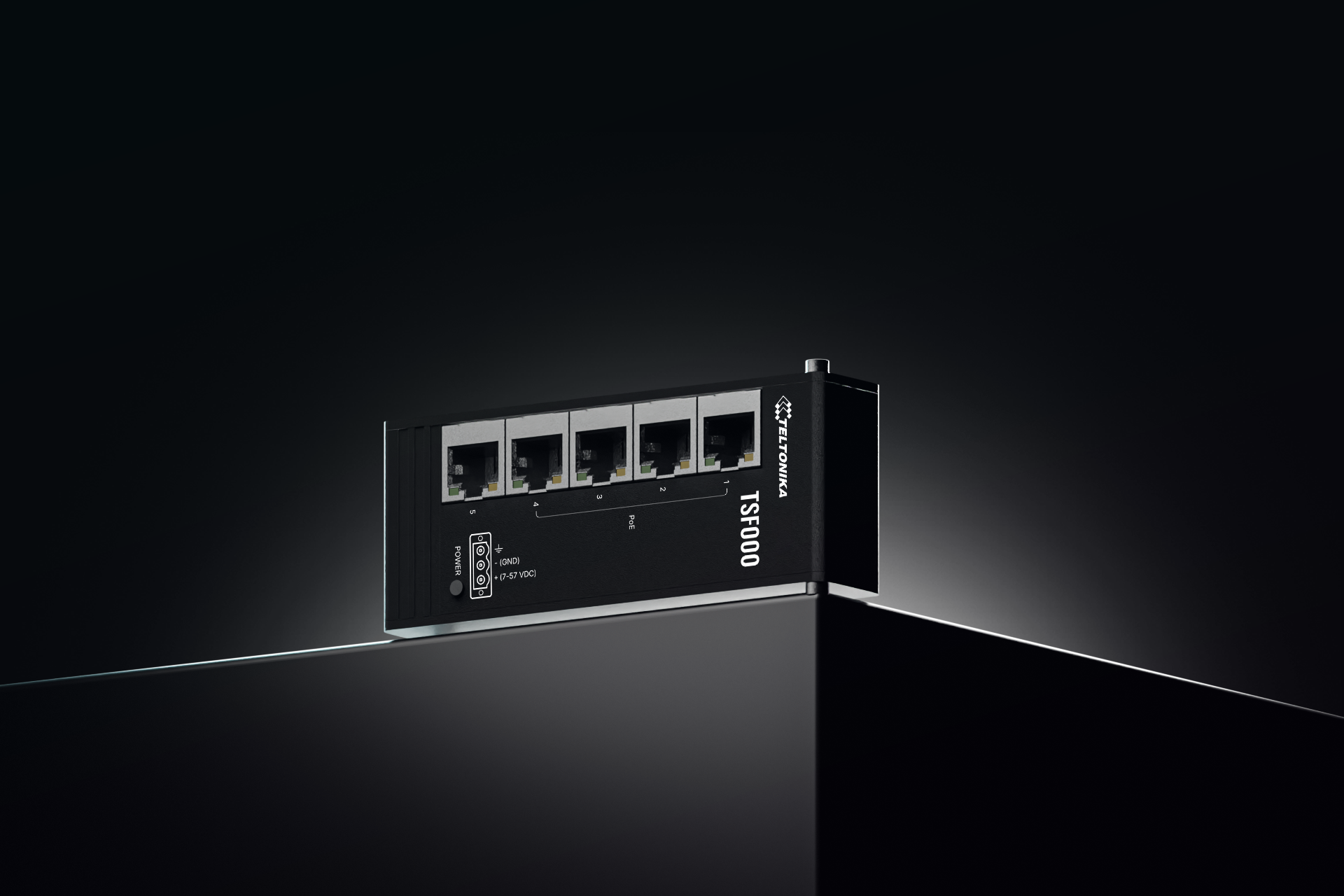

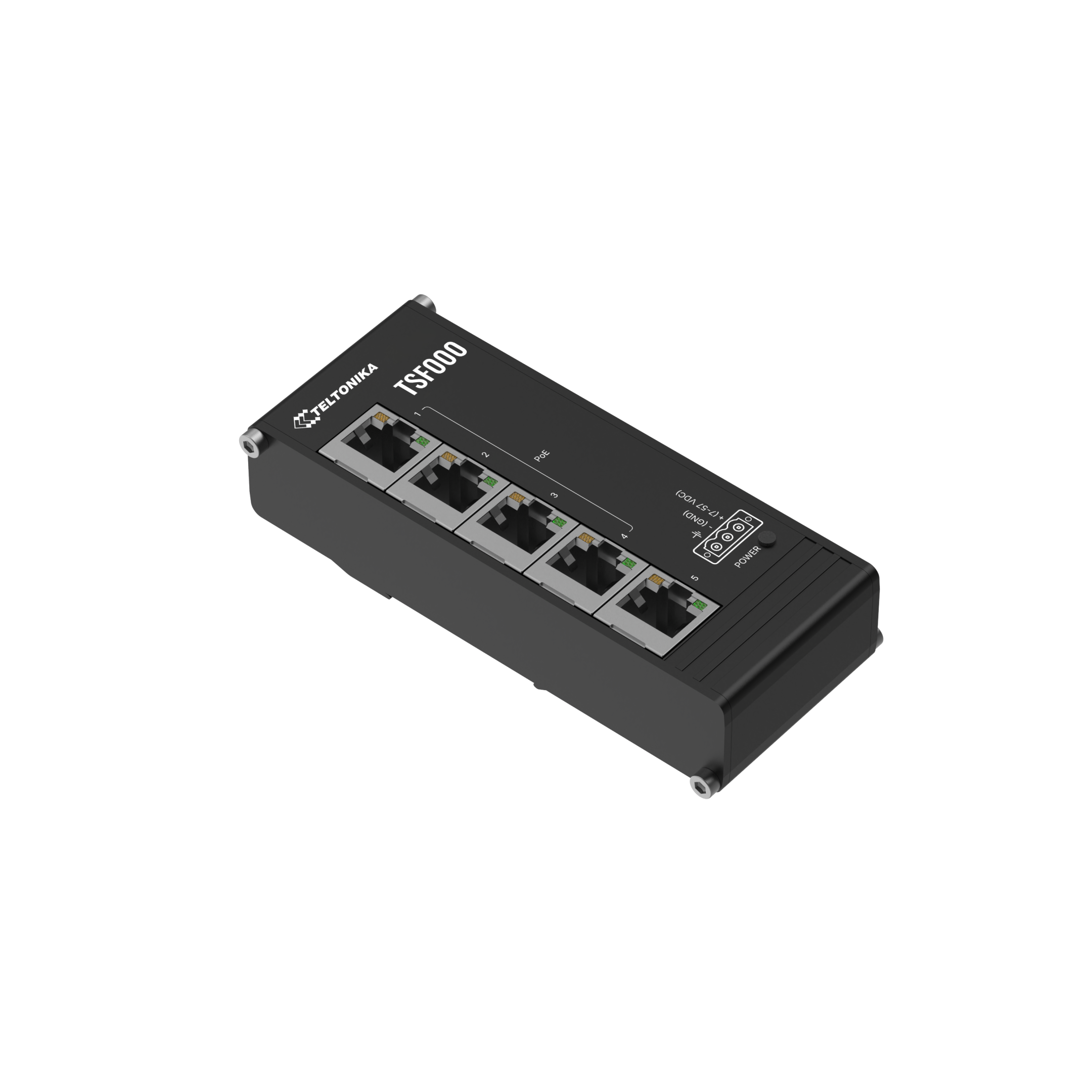

The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.



#2: Content of delivery

• TSF000
• 3-pin power connector
• QSG (Quick Start Guide)
• Packaging box

Projektpreise - Verfügbarkeit Mass Packing anfragen! - Project discounts - Availability request for Mass Packing!

#3: Features

INDUSTRIAL PROTOCOLS
Profinet

Profinet Class A conformance (available with optional order code)

Ethernet
Ethernet

5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3x, 802.3az, 802.3p 802.3Q

POE OUT
PoE ports

Port 1- 4

PoE standards

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

120 W

Power
Connector

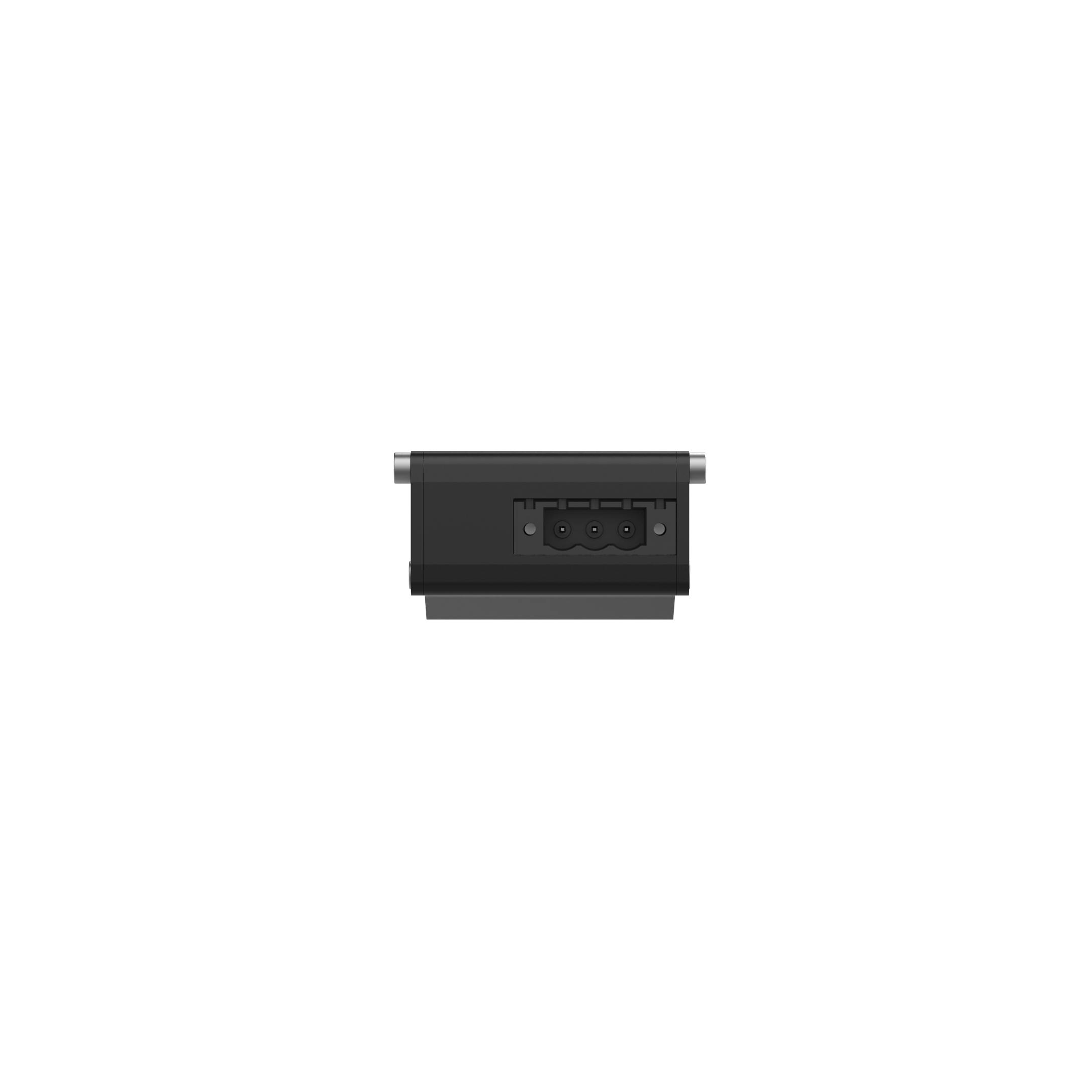

3-pin industrial DC power socket

Input voltage range

7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,

surge protection: min 64.4V/max 71.2V breakdown voltage,

93.6V maximum reverse voltage @4.3A maximum reverse surge current

PoE-Out input voltage range

44 - 57 VDC

Power consumption

Idle: 1 W / Max: 1.5 W / PoE Max: 121 W

Physical Interfaces
Ethernet

5 x RJ45 ports, 10/100 Mbps

Status LEDs

1 x Power LED, 10 x ETH status LEDs

Power

1 x 3-pin industrial DC power socket

Grounding

Grounding terminal on power connector

Physical Specification
Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

113 x 28 x 50 mm

Weight

142 g

Mounting options

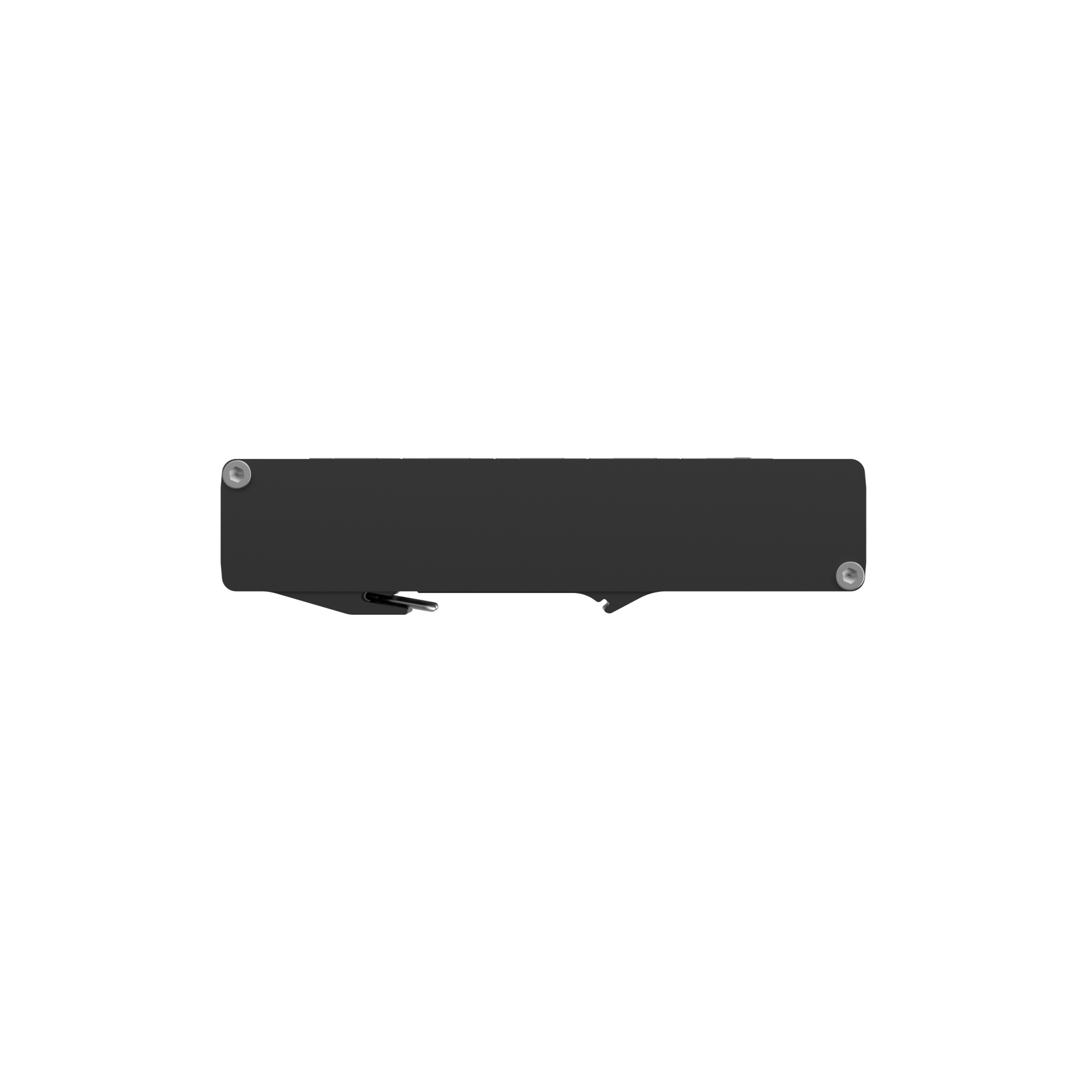

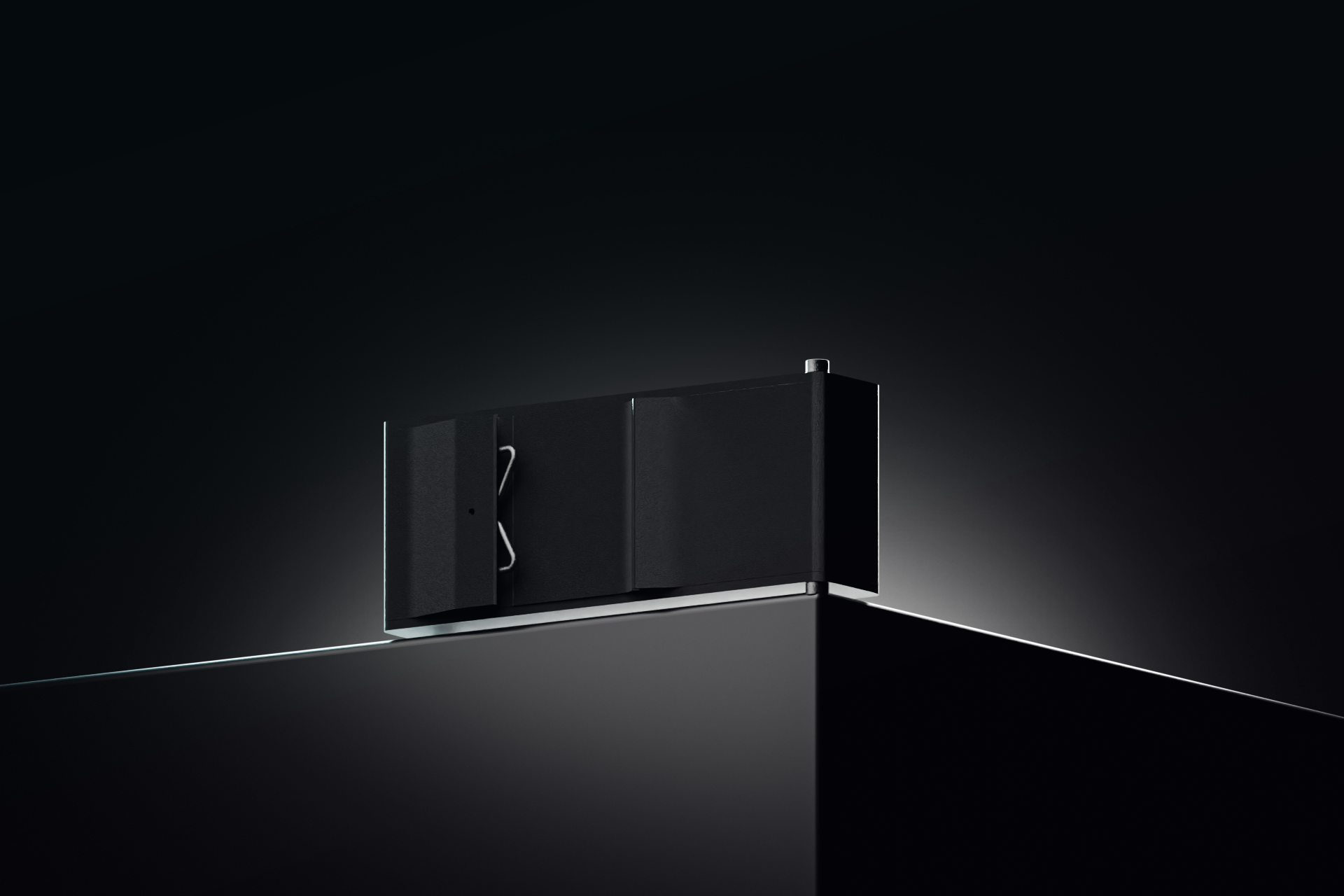

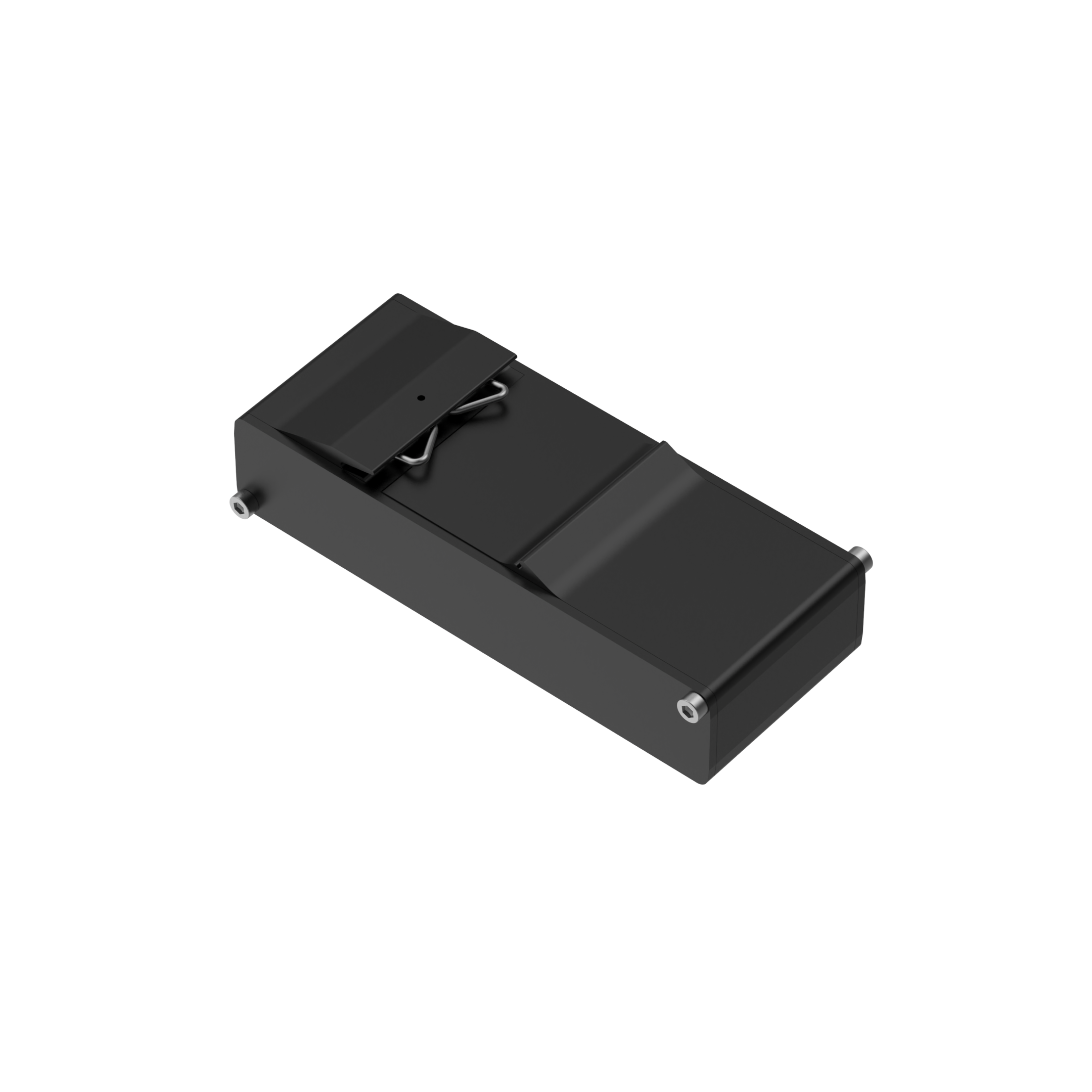

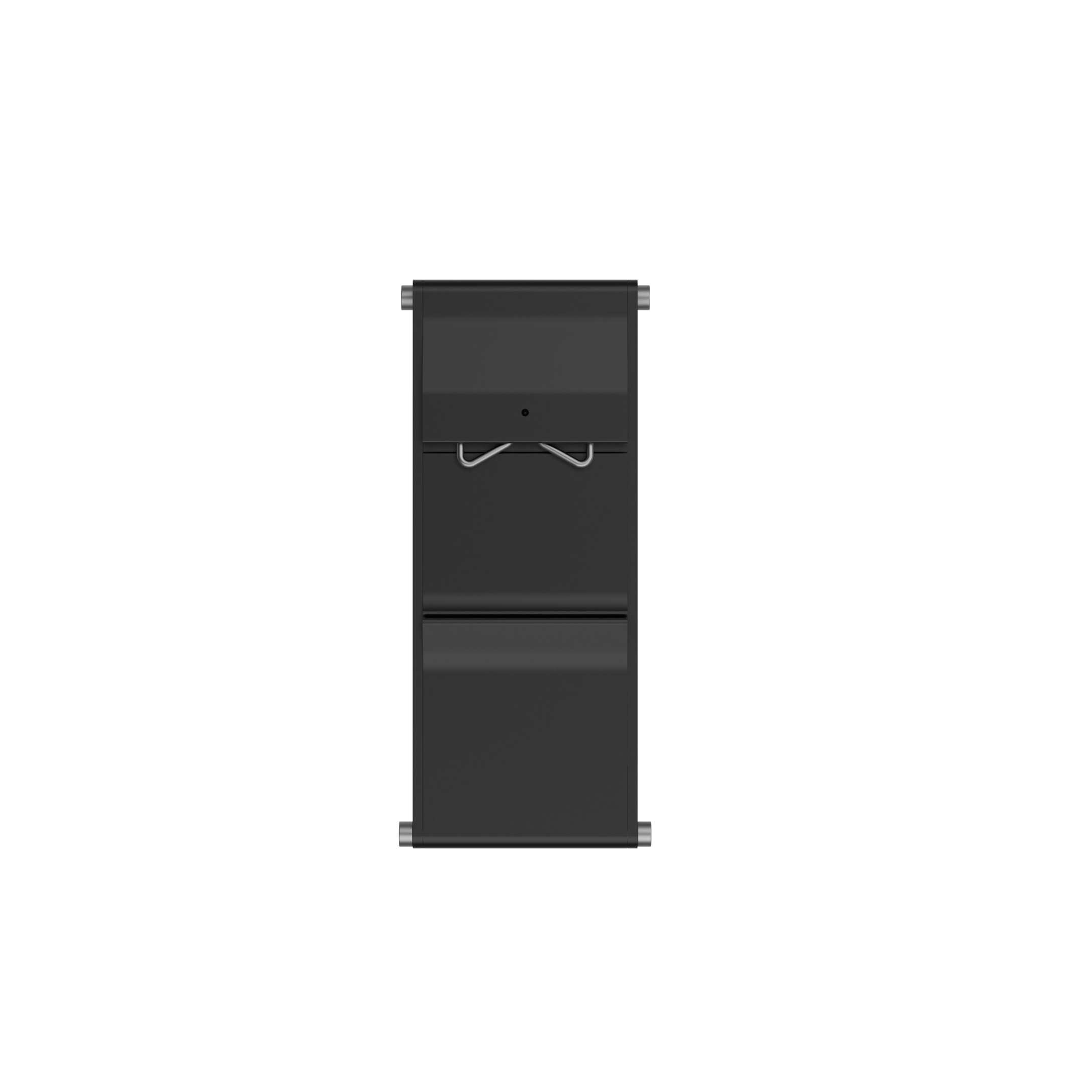

Integrated DIN rail bracket

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals
Regulatory

CE, UKCA, RCM, CB, FCC, IC, WEEE

Performance Specifications
Bandwidth (Non-blocking)

10 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes



---
