Teltonika Calyx 4G - Embedded Cellular Raspberry Pi HAT+
Art.Nr.: EBD021000000
Hersteller: Teltonika
https://www.teltonika-networks.com/products/embedded-systems/calyx
58,30 EUR
incl. 19 % USt
-
Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
- Lieferzeit auf Anfrage: sales@telto-store.eu
- Gewicht 0,1 kg
Produktbeschreibung
#1: Calyx - 4G Cat4

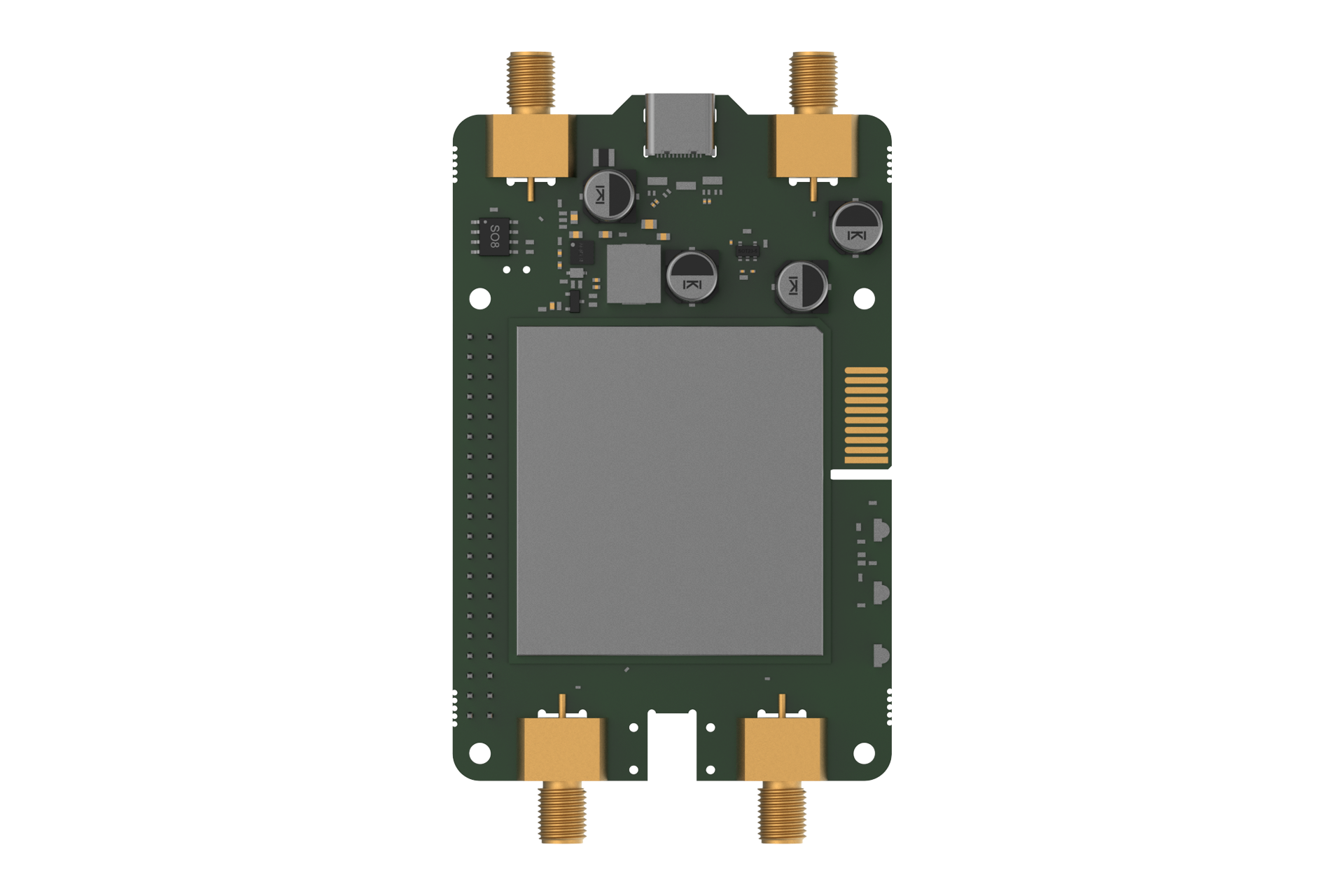

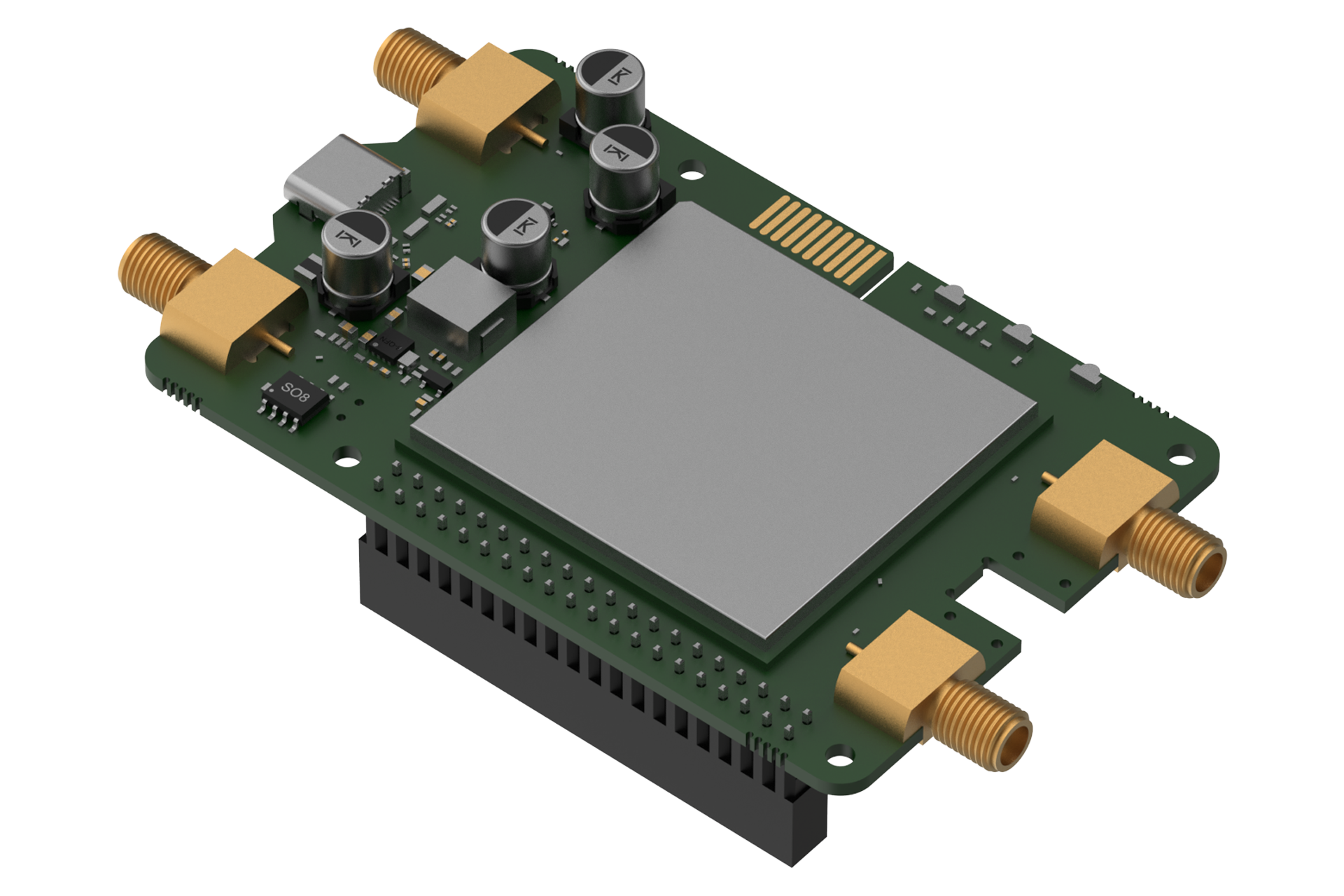

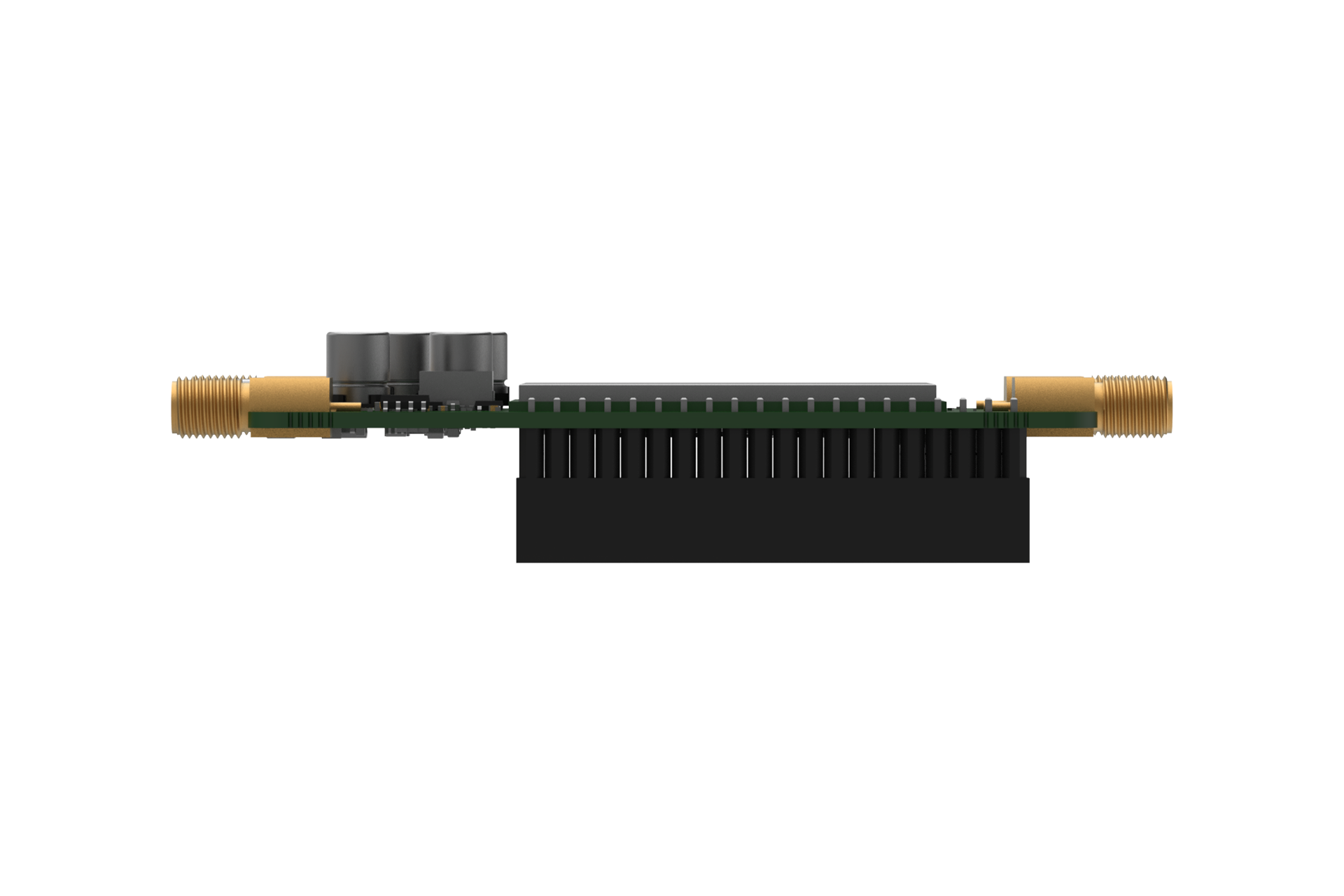

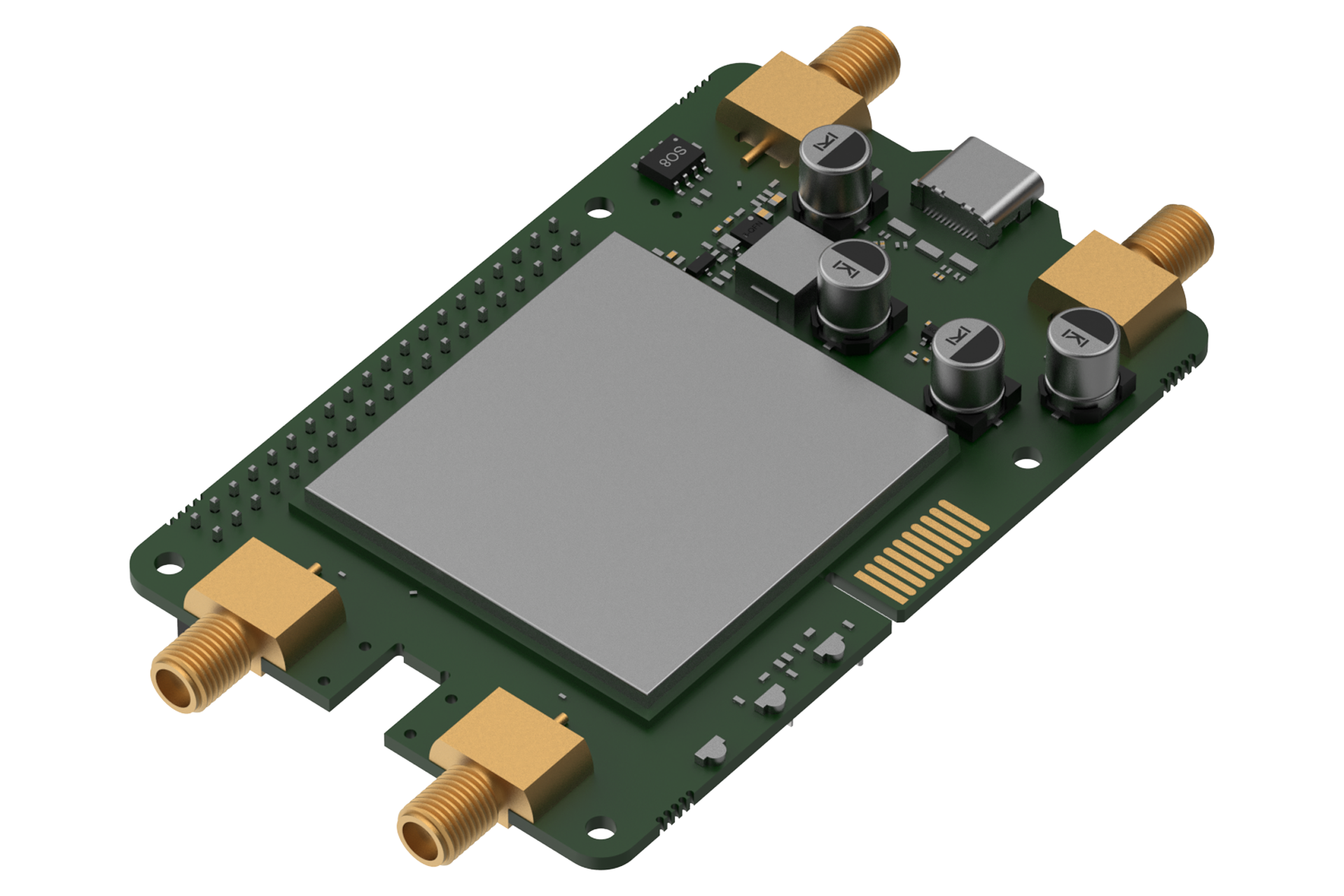

Embedded Cellular Raspberry Pi HAT+
CALYX embedded Raspberry Pi HAT+ is purpose-built to provide seamless mobile internet to your embedded systems. Available in three variants – 4G Cat 4, 5G Redcap, and full-fledged 5G – CALYX provides cellular connection to your Raspberry Pi 4 or 5 wherever Wi-Fi or Ethernet are unavailable or unreliable.
CALYX mounts directly on top of your SBC computer, saving space and ensuring clean integration. Equipped with features like GPIO modem control and PCM audio support, CALYX offers compact and feature-rich cellular expansion for integrators and developers.
#2: Im Lieferumfang enthalten | Content of delivery
- Calyx (4G Cat4)
- Fasteners kit
- 40-pin GPIO header extender
- USB Type-C to USB Type-A accessory
- QSG (Quick Start Guide)
- Packaging box
#3: Features
Mobile
Calyx 4G / EBD021
Mobile module
4G LTE-FDD (Cat 4) – 75Mbps DL, 50Mbps UL; LTE-TDD (Cat 4) – 65Mbps DL, 35Mbps UL; DC-HSPA+ – 42Mbps DL, 5.76Mbps UL; 3G – 384 kbps DL, 384 kbps UL, 2G EDGE – 236.8 kbps DL, 236.8 kbps UL, 2G GPRS – 85.6 kbps DL, 85.6 kbps UL
3GPP Release
Release 9
Calyx 5G / EBD050
Mobile module
5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE Cat 19 up to 1.6 Gbps DL/ 200 Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release
Release 16
Calyx 5G Red Cap / EBD070
Mobile module
5G Sub-6Ghz SA 223 Mbps DL/123 Mbps UL; 4G LTE (Cat 4) up to 195 Mbps DL/105 Mbps UL
3GPP Release
Release 17
USB
Data rate
USB 2.0 - Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070
USB 3.0 - Calyx 5G / EBD050
40-pin GPIO header
PWR_KEY
Modem turn on/off. Digital Input, 0 - 3.3 V logic level, active High, to activate use pulse (≥500 ms)
Modem wakeup
Wake up modem from a sleep mode.
-
Digital Input, 0 - 3.3 V logic level, active High - Calyx 4G / EBD021;
-
Digital Input, 0 - 3.3 V logic level, active Low - Calyx 5G / EBD050; Calyx 5G Red Cap / EBD070
Modem reset
Resets the modem. Digital Input, 0 - 3.3 V logic level, active High
Power
USB type C
5 VDC
40-pin GPIO header
On a 40-pin header, 5 VDC and 3.3 VDC
Physical Interfaces
Status LEDs
1 x Power, NET IND, NET STAT
SIM
1 x SIM slot (Nano SIM - 4FF), push-pull
Power
On a 40-pin header/USB power
USB
USB Type-C receptacle
Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070
Antennas
2 x SMA for Mobile
Calyx 5G / EBD050
Antennas
4 x SMA for Mobile
Physical Specification
Weight
57 g
Mounting options
WIth included mounting kit
Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070
Dimensions (W x H x D)
56 x 23.11 x 95.48 mm
Calyx 5G / EBD050
Dimensions (W x H x D)
56 x 23.11 x 100.8 mm
Operating Environment
Operating temperature
-40 °C to 75 °C
Regulatory & Type Approvals
Calyx 4G / EBD021; Calyx 5G / EBD050
Regulatory
CE, UKCA, EAC, UCRF, RCM, CB, WEEE
Calyx 5G Red Cap / EBD070
Regulatory
CE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB, WEEE
EMC Emissions & Immunity
Calyx 4G / EBD021
Standards
EN 55032:2015+ A11:2020 + A1:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021+A2:2024
EN 301 489-1 V2.2.3
EN 301 489-17 V3.3.1
EN 301 489-52 V1.2.1
Calyx 5G / EBD050
Standards
EN 55032:2015+ A11:2020 + A1:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021+A2:2024
EN 301 489-1 V2.2.3
EN 301 489-3 V2.3.2
EN 301 489-17 V3.3.1
EN 301 489-19 V2.2.1
EN 301 489-52 V1.2.1
Calyx 5G Red Cap / EBD070
Standards
EN 55032:2015+ A11:2020 + A1:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021+A2:2024
EN 301 489-1 V2.2.3
EN 301 489-17 V3.3.1
EN 301 489-19 V2.2.1
EN 301 489-52 V1.2.1
47 CFR Part 15, Subpart B
RF
Calyx 4G / EBD021; Calyx 5G / EBD050
Standards
EN 301 908-1 V15.2.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.2.1
EN 301 908-25 V15.1.1
Calyx 5G Red Cap / EBD070
Standards
EN 301 908-1 V15.2.1
EN 301 908-13 V13.2.1
EN 301 908-25 V15.1.1
Safety
Standards
CE: EN IEC 62311:2020
RCM: AS/NZS 62368.1:2022
CB: EN IEC 62368-1:2020+A11:2020
