#1: TSF010

FLAT ETHERNET SWITCH

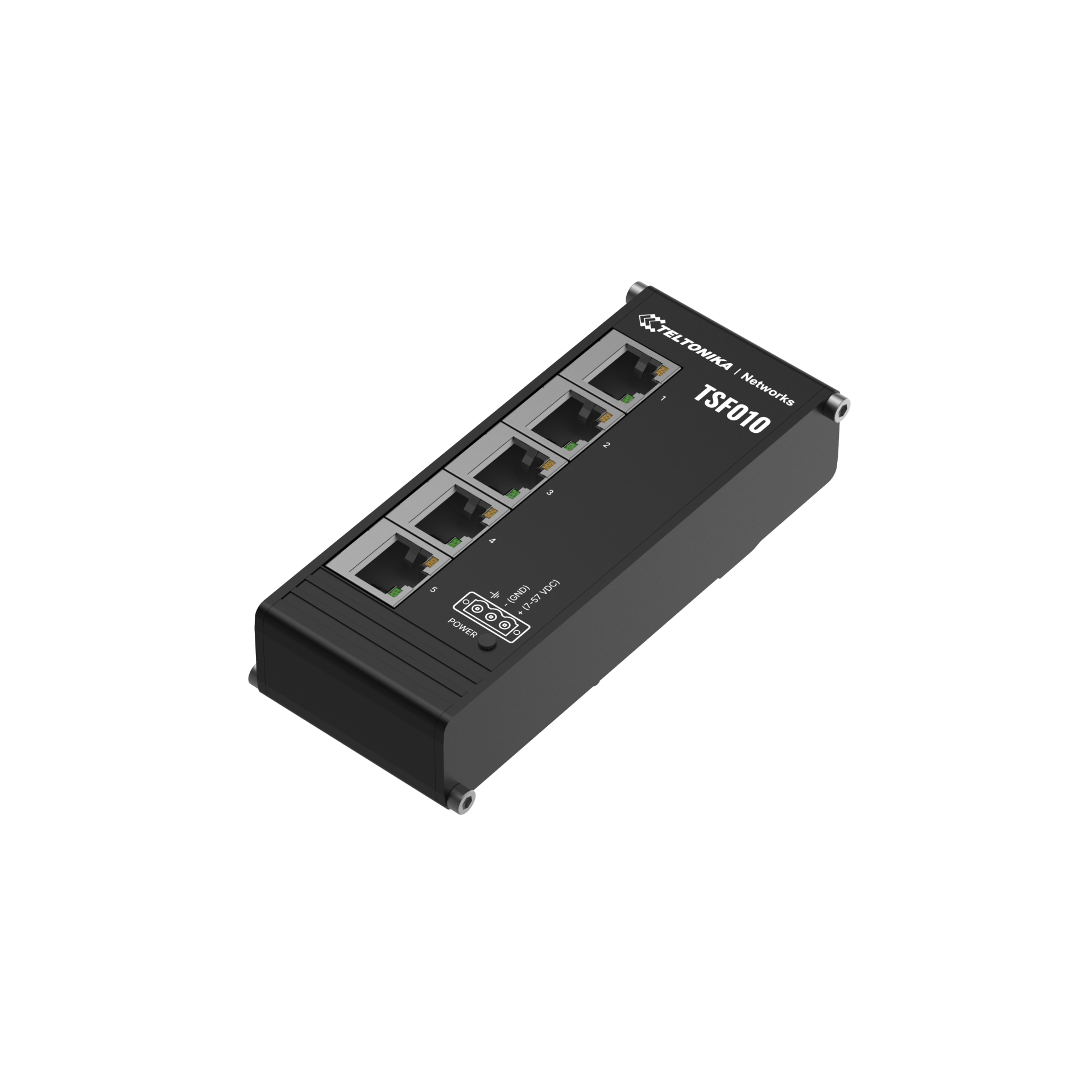

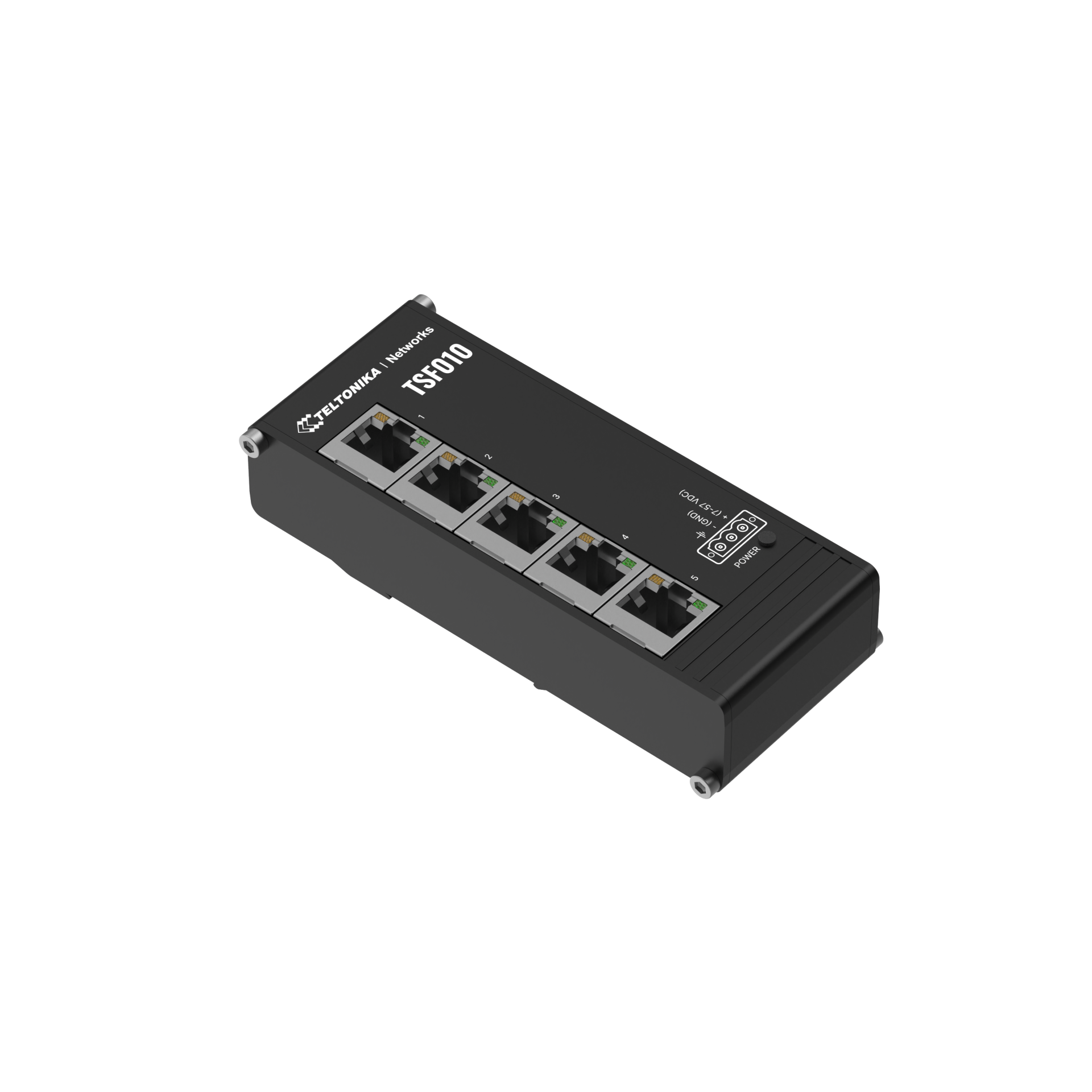

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input supports both a flexible AC range and a wide DC voltage range, making it a reliable, unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

#2: Im Lieferumfang enthalten

• TSF010
• 3-pin power connector
• QSG (Quick Start Guide)
• Packaging box

#3: Features

Profinet Class A conformance

5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

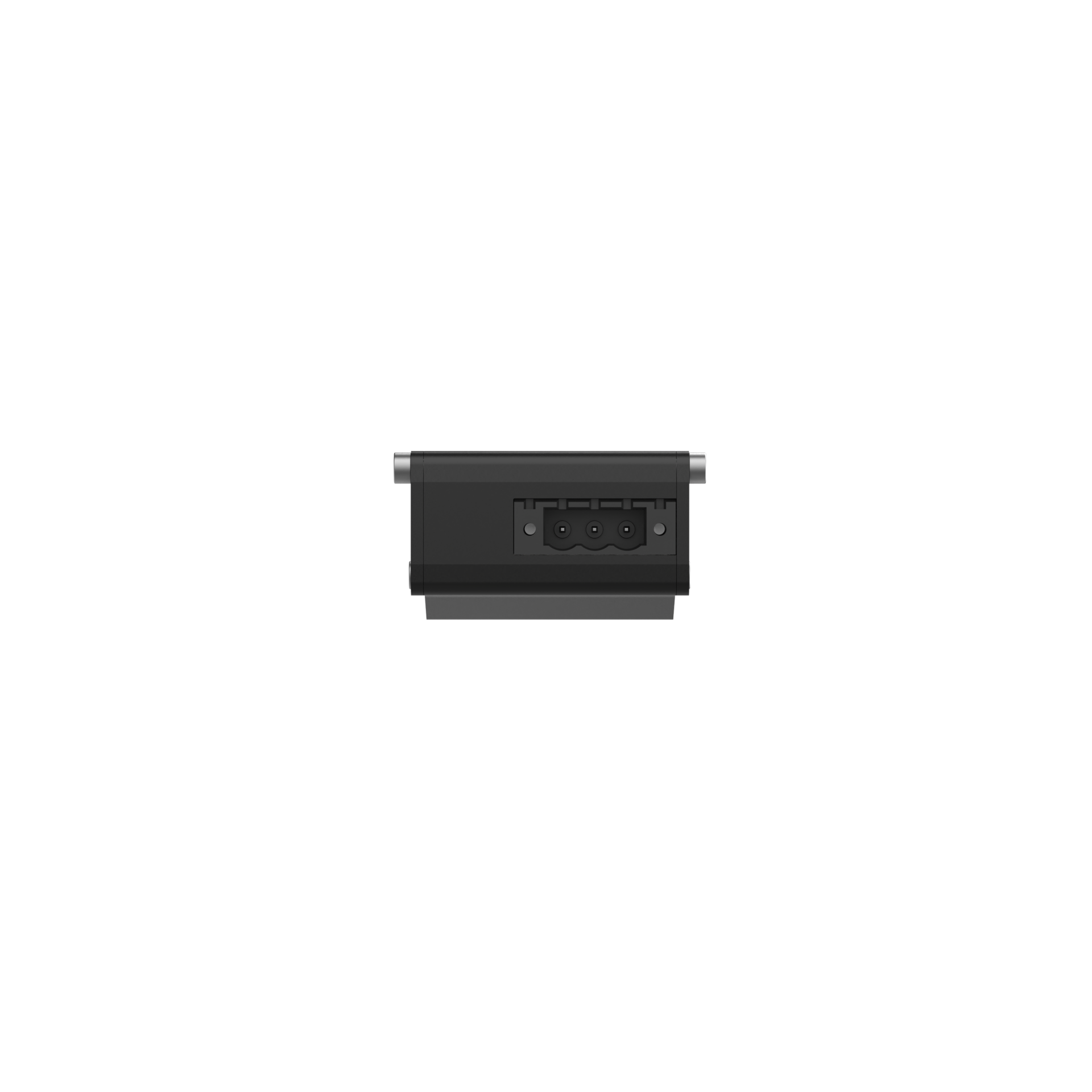

3-pin industrial DC power socket

7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,

surge protection: min 64.4V/max 71.2V breakdown voltage,

93.6V maximum reverse voltage @4.3A maximum reverse surge current

Idle: 1 W / Max: 1.5 W

5 x RJ45 ports, 10/100 Mbps

1 x Power LED, 10 x ETH status LEDs

1 x 3-pin industrial DC power socket

Grounding terminal on power connector

Anodized aluminum housing and panels

113 x 28 x 50 mm

142 g

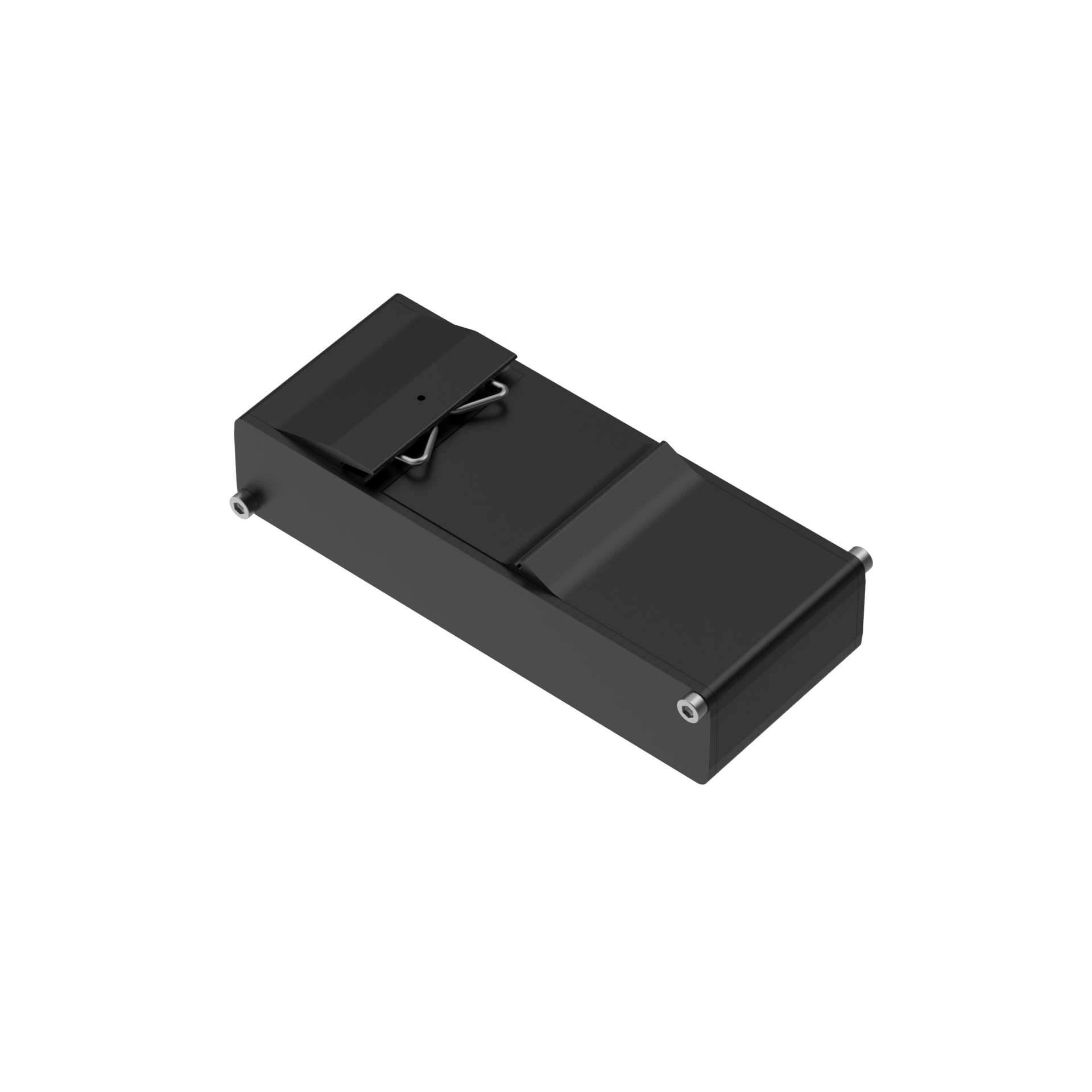

Integrated DIN rail bracket

-40 °C to 75 °C

5% to 95% non-condensing

IP30

10 Gbps

128 KB

2K entries

9216 bytes
