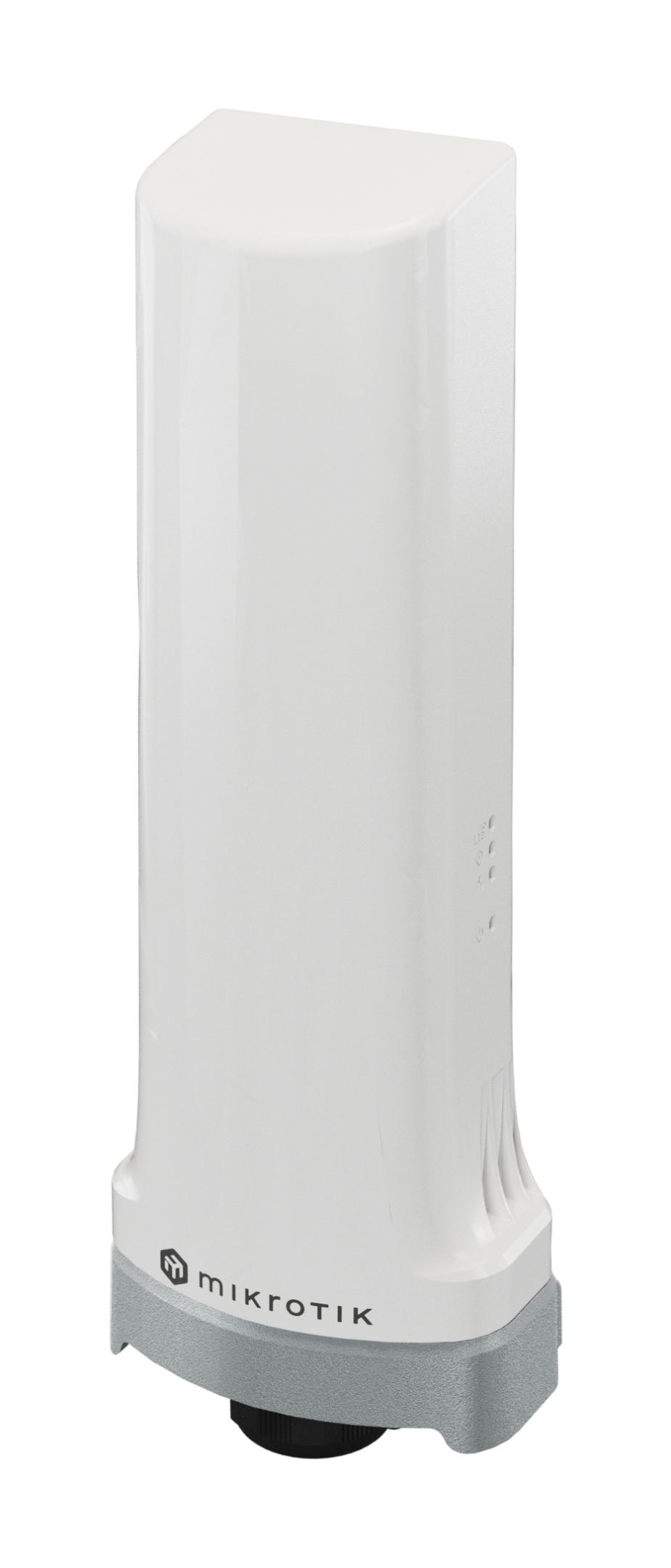

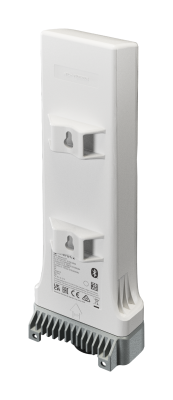

MikroTik KNOT Gateway LR8

#1 KNOT Gateway LR8

With the new KNOT Gateway, you can follow tagged equipment, pallets, containers, tools, and other assets as they pass through warehouses and terminals. But there’s more: you can tie various generations of tech together! The KNOT Gateway brings remote meters, sensors, and other IoT devices into your network with BLE and long-range sub-GHz connectivity.

Whatever language your IoT devices speak, the KNOT gets the conversation going!

• BLE 5.1 - Turn Bluetooth broadcasts into useful, actionable data: track tagged assets, monitor telemetry, filter advertisements, and use RouterOS scripting to decide what happens next.
• Long-range IoT - Go beyond Bluetooth with 868 MHz LoRa® on KNOT Gateway LR8 or 915 MHz Wi-Fi HaLow on KNOT Gateway HL9 – two sub-GHz options for IoT deployments that need to reach even further.
• Three ways back to your servers - Use Gigabit Ethernet, 2.4 GHz Wi-Fi, or LTE Cat 1 bis for backhaul. Put the gateway where your devices are, without depending on Ethernet being available there.
• RouterOS does the rest - Filter data locally, build your own logic with scripts, publish information using MQTT or HTTP, and integrate it into your preferred IoT platform with custom dashboards, notifications, and reports.

Build where it makes sense

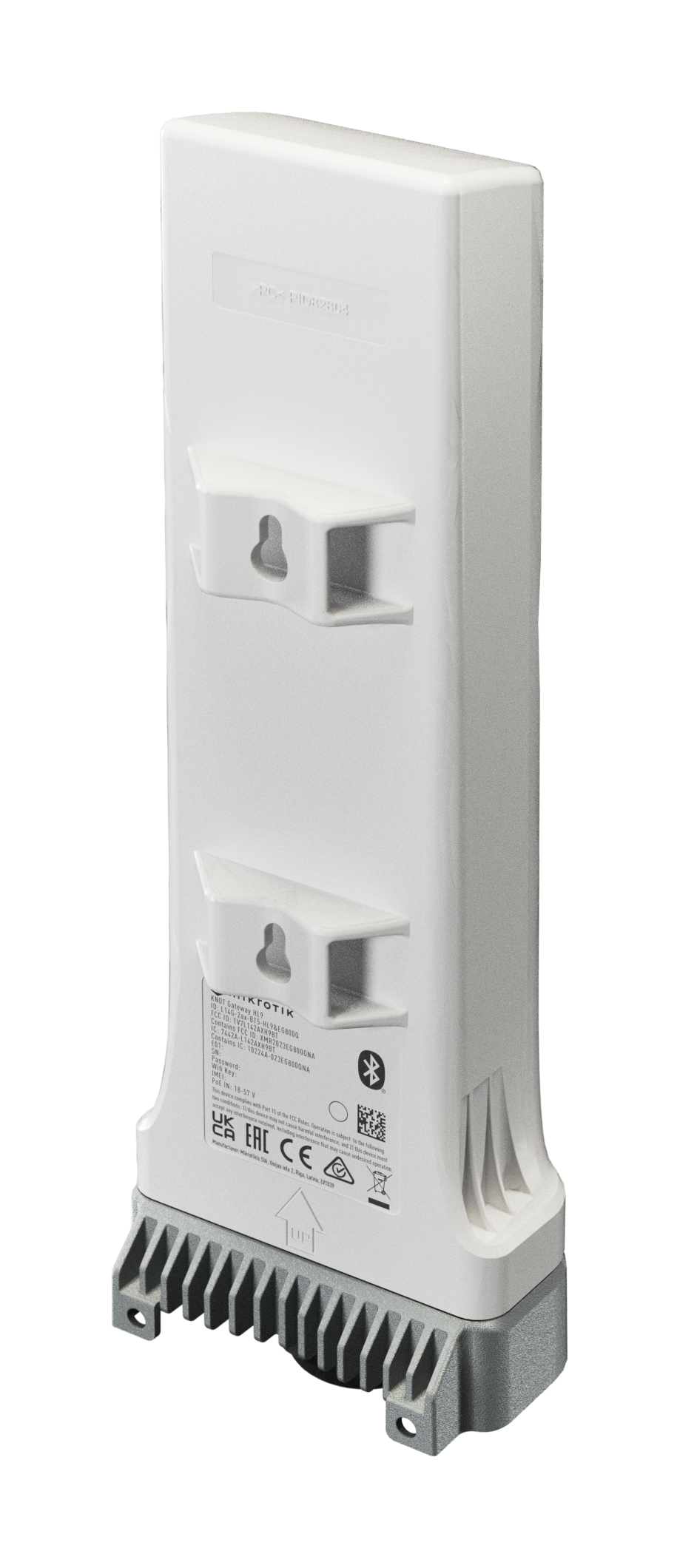

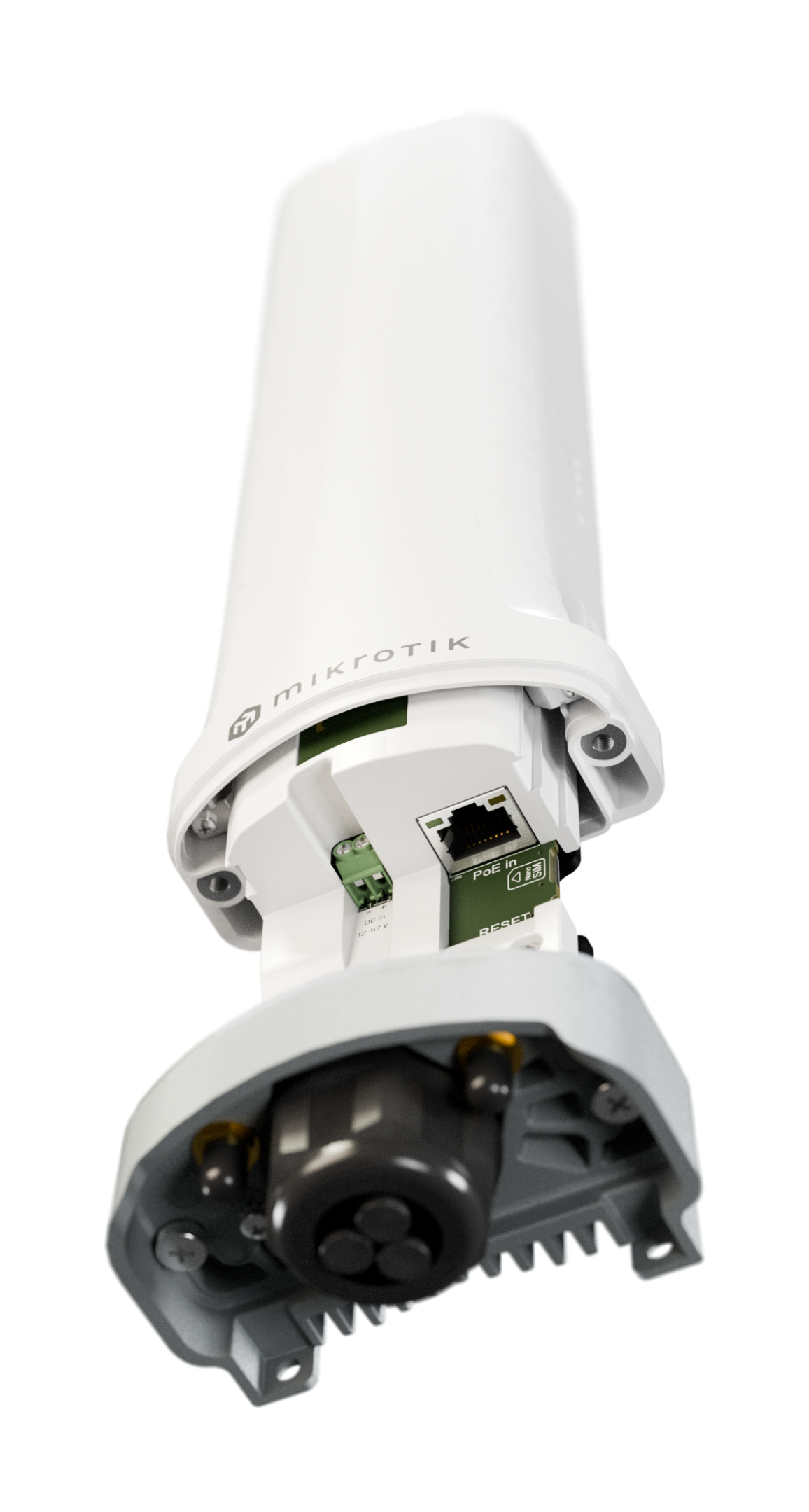

• IP66 protection, PoE-in, 12–57 V DC input, surge protection, and integrated antennas for BLE, Wi-Fi, LTE, Sub-GHz, and GNSS let you place KNOT closer to the devices it’s actually serving. External antenna connectors for BLE and Sub-GHz give you extra flexibility when the installation calls for it.
• And eSIM/MikroTik connectivity gives you even more flexibility – no need for an existing internet connection. You can active data via a simple MikroTik account login!
• MikroTik Connectivity offers preloaded eSIM profiles all over the world, multi-operator switching, and reliable remote management with multi-network access for roaming and backup purposes.

Overview

• Gigabit Ethernet
• PoE-In & surge protection
• IP66
• BLE 5.1
• Dual-core ARM64 CPU
• CAT1 bis LTE modem
• Multi- GNSS GPS
• SIM/eSIM

#2 Content of delivery

#3 Technische Details

• Product code L14G-2ax-BT5-LR8&EG800K

• Architecture ARM 64bit

• CPU IPQ-5010

• CPU core count 2

• CPU nominal frequency 800 MHz

• CPU Threads count 2

• RouterOS license 4

• Operating System RouterOS v7

• Size of RAM 256 MB

• Storage size 128 MB

• Storage type NAND

• MTBF Approximately 200'000 hours at 25C

• Tested ambient temperature -40°C to 50°C

Powering

• Number of DC inputs 2 (PoE-IN, 2-pin terminal)

• 2-pin terminal input Voltage 12-57 V

• Max power consumption 9 W

• PoE in 802.3af/at

• Cooling type Passive

• PoE in input Voltage 18-57 V

Mobile

• LTE Category CAT 1 bis (DL: 10Mbps; UL: 5Mbps)

• MIMO DL 1x1

• MIMO UL 1x1

• LTE FDD bands 1 (2100MHz)
   3 (1800MHz)
   5 (850MHz)
   7 (2600MHz)
   8 (900 MHz)
   20 (800MHz)
   28 (700MHz)

• TAC 86684606

Wireless specifications

• Wireless 2.4 GHz Max data rate 287 Mbit/s

• Wireless 2.4 GHz Number of chains 1

• Wireless 2.4 GHz standards 802.11b/g/n/ax

• Antenna gain dBi for 2.4 GHz 3.9

• Wireless 2.4 GHz chip model IPQ-5010

• Wireless 2.4 GHz generation Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports 1

Peripherals

• Number of SIM slots 1 Modem (Nano SIM)

Other

• CPU temperature monitor Yes

• Bluetooth version 5.1

• Bluetooth RF connector type uUFL

• eSIM Yes

Certification & Approvals

• Certification CE, EAC, ROHS

• IP 66

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Ethernet test results

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)

• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes

• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

#4 Dokumente

• Broschüre

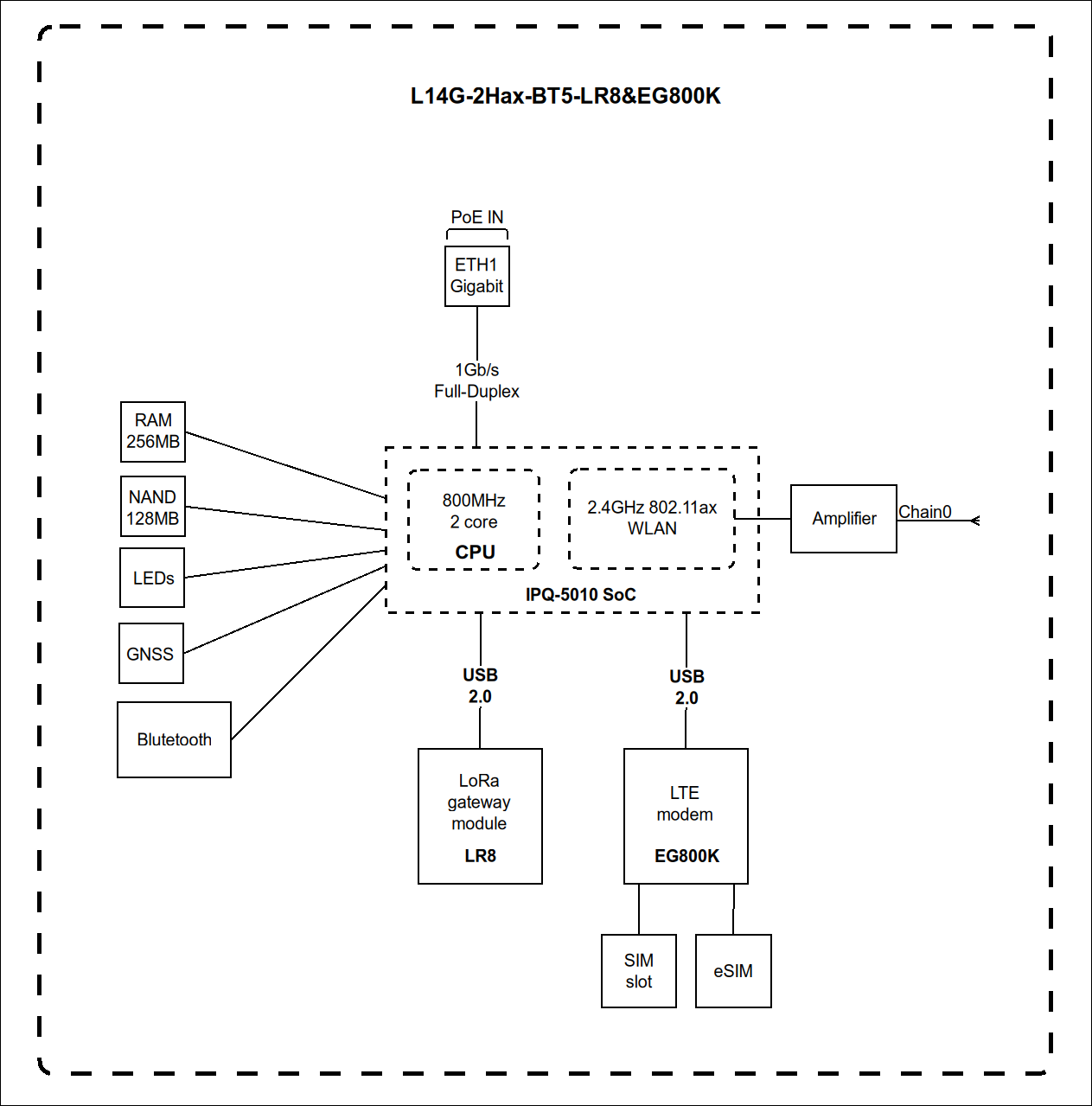

• Block Diagram
