MikroTik CSS606-1G-2Gi-3S+OUT

Name: MikroTik CSS606-1G-2Gi-3S+OUT
Brand: MikroTik
SKU: CSS606-1G-2Gi-3S+OUT
Price: 129.29 EUR
Availability: OutOfStock

Art.Nr.: CSS606-1G-2Gi-3S+OUT

Hersteller: MikroTik

https://mikrotik.com/product/gperx6

129,29 EUR
incl. 19 % USt

zzgl. Versandkosten

Zur Zeit nicht lagernd, bitte per E-Mail anfragen.
Lieferzeit auf Anfrage: sales@mikrotik-store.eu
Gewicht 2,1 kg

Produktbeschreibung

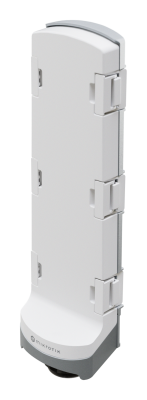

#1: CSS606-1G-2Gi-3S+OUT

The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple.

On the surface, it’s straightforward:

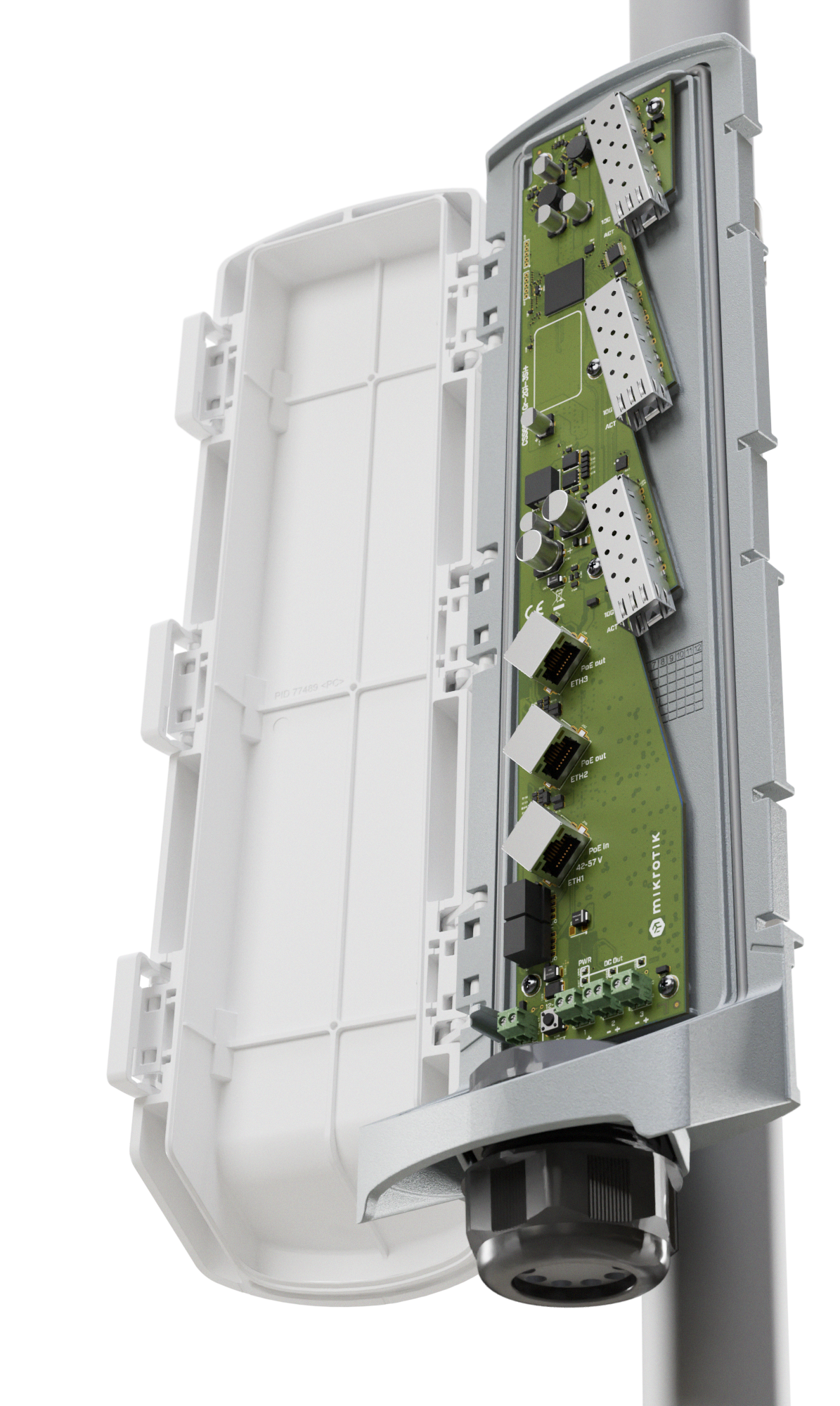

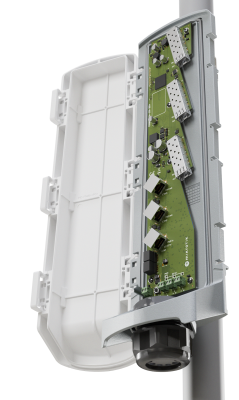

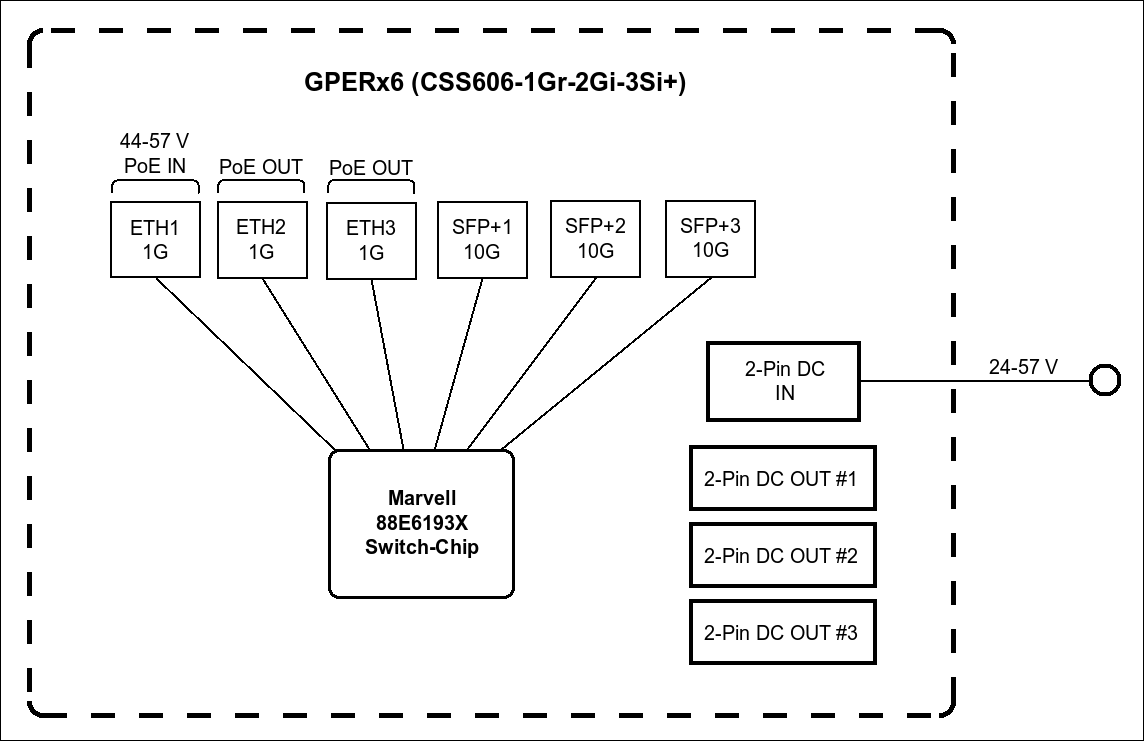

3 Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
3× 10G SFP+ cages for long-distance fiber
3 DC outputs for devices that don’t use PoE, for example, IoT setups

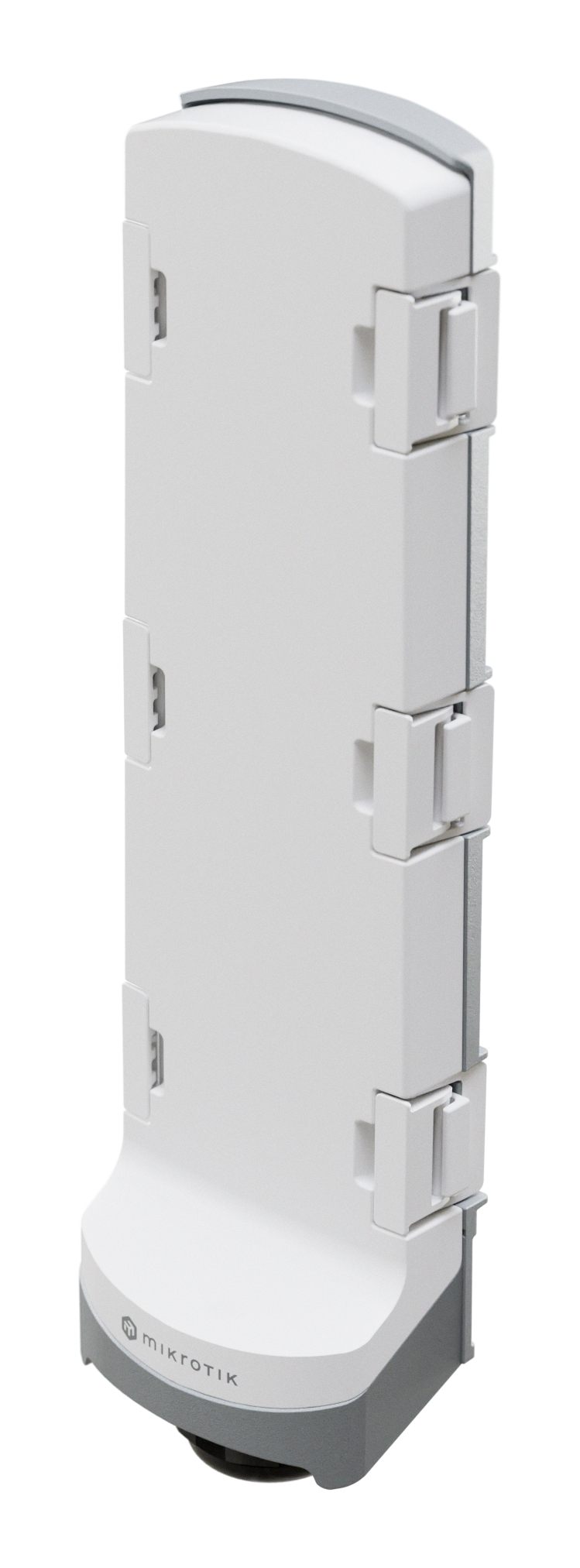

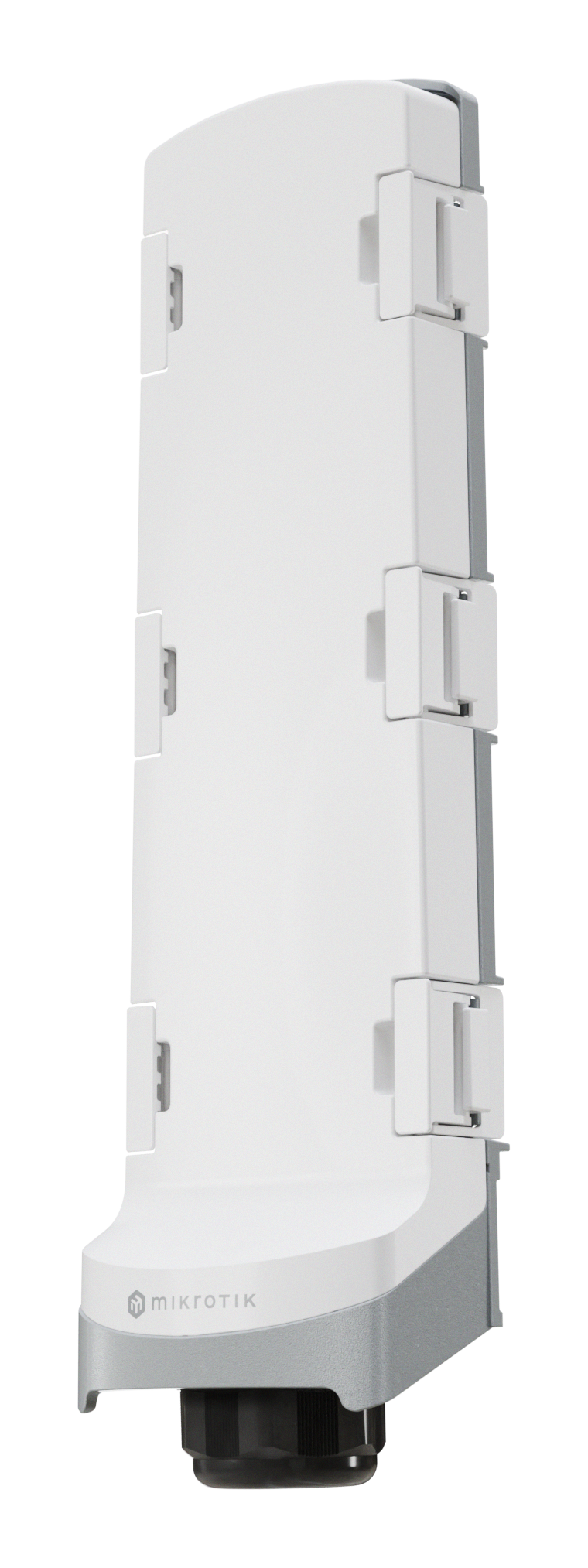

Heavy-duty IP66 enclosure with handy mounting hardware
A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)

But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!

#2: Im Lieferumfang enthalten | Included in delivery

1x CSS606-1G-2Gi-3S+OUT

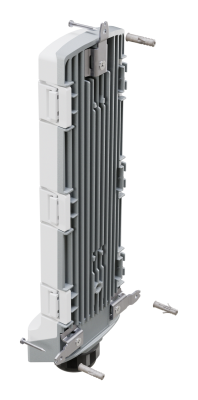

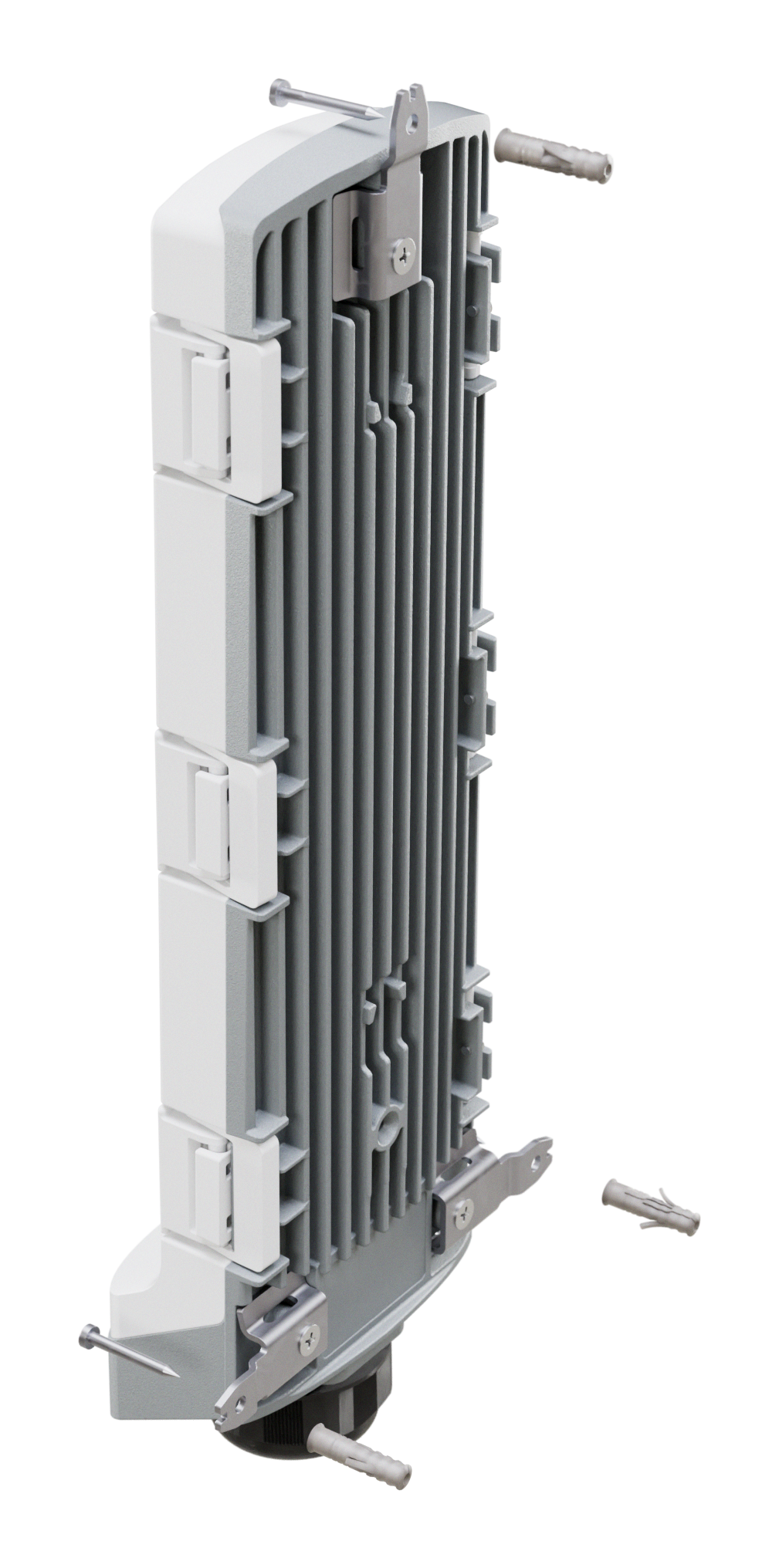

1x K-93 Befestigungsset (fastening set)

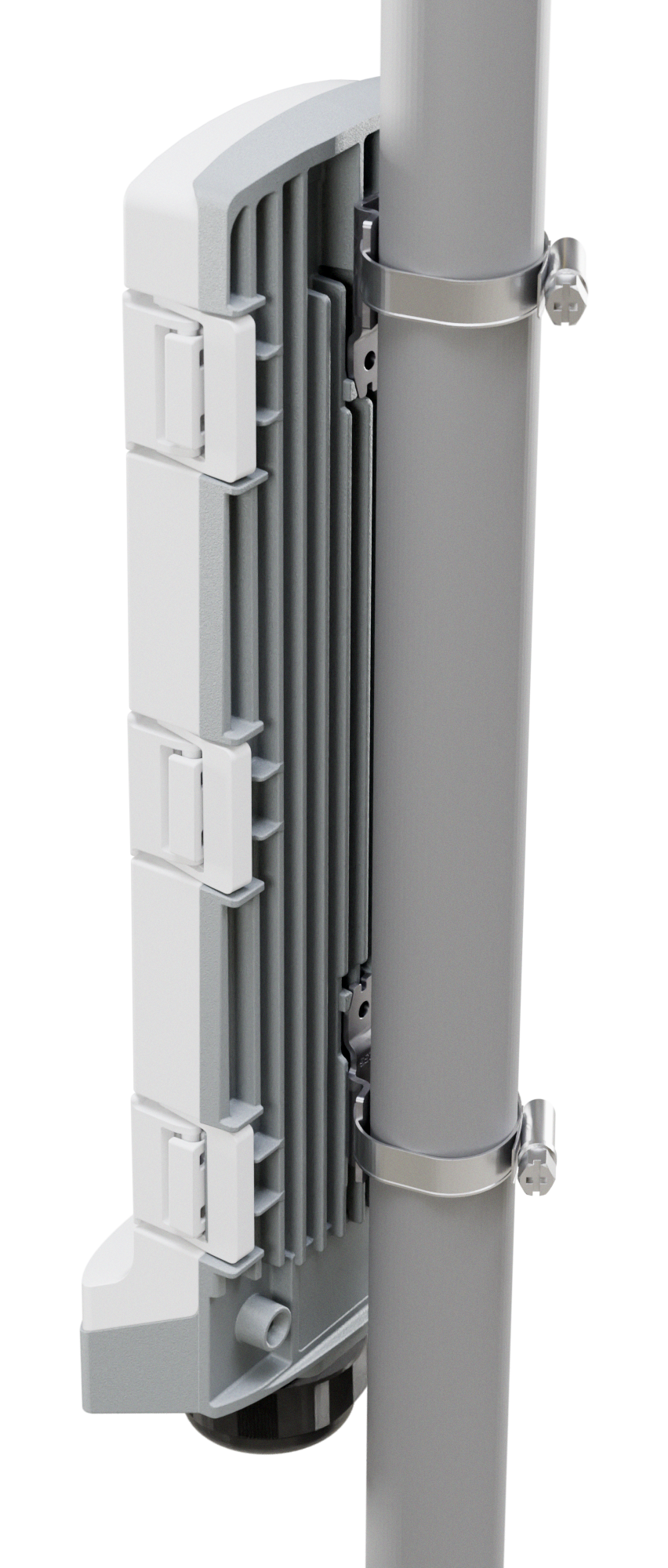

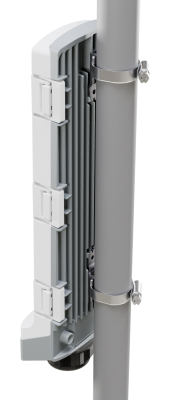

2x Schlauchschellen (hose clamps)

#3: Spezifikationen - Technische Details | Specifications - Technical details

Details
Product code	CSS606-1G-2Gi-3S+OUT
Switch chip model	88E6193X
Operating System	SwOS
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	160 W
Max power consumption without attachments	6 W
PoE in	802.3 bt
Cooling type	Passive
PoE in input Voltage	42-57 V

PoE-out

Details
PoE-out ports	Ether2-Ether3
PoE out	Passive PoE up to 57V
Low voltage PoE-Out current limit	1.2 A
High voltage PoE-Out current limit	0.625 A
Max total out (A)	2.4 A
Total output power	150

Ethernet

Details
10/100/1000 Ethernet ports	3
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	1
Number of 1G Ethernet ports with PoE-out	2

Fiber

Details
SFP+ ports	3

Other

Details
CPU temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	66

#4: Test Resultate nach RFC2544 | Test results according to RFC2544

Switching results

CSS606-1G-2Gi-3S+OUT
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	2,682.1	32,570.9	7,753.8	31,759.4	49,107.1	25,142.9
Switching	Non blocking Layer 2 capacity	2,682.1	65,141.7	7,753.8	63,518.8	49,107.1	50,285.7
Switching	Non blocking Layer 1 throughput	2,682.1	33,000.0	7,753.8	33,000.0	49,107.1	33,000.0
Switching	Non blocking Layer 1 capacity	2,682.1	66,000.0	7,753.8	66,000.0	49,107.1	66,000.0
