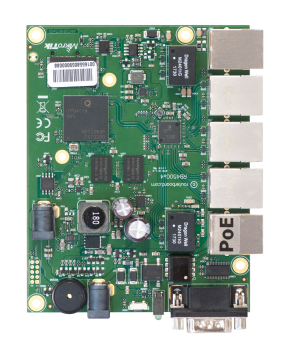

#1: RB450Gx4 (Komplettsystem)

#2: Im Lieferumfang enthalten | Included in delivery

#3: Spezifikationen - Technische Details | Specifications - Technical details

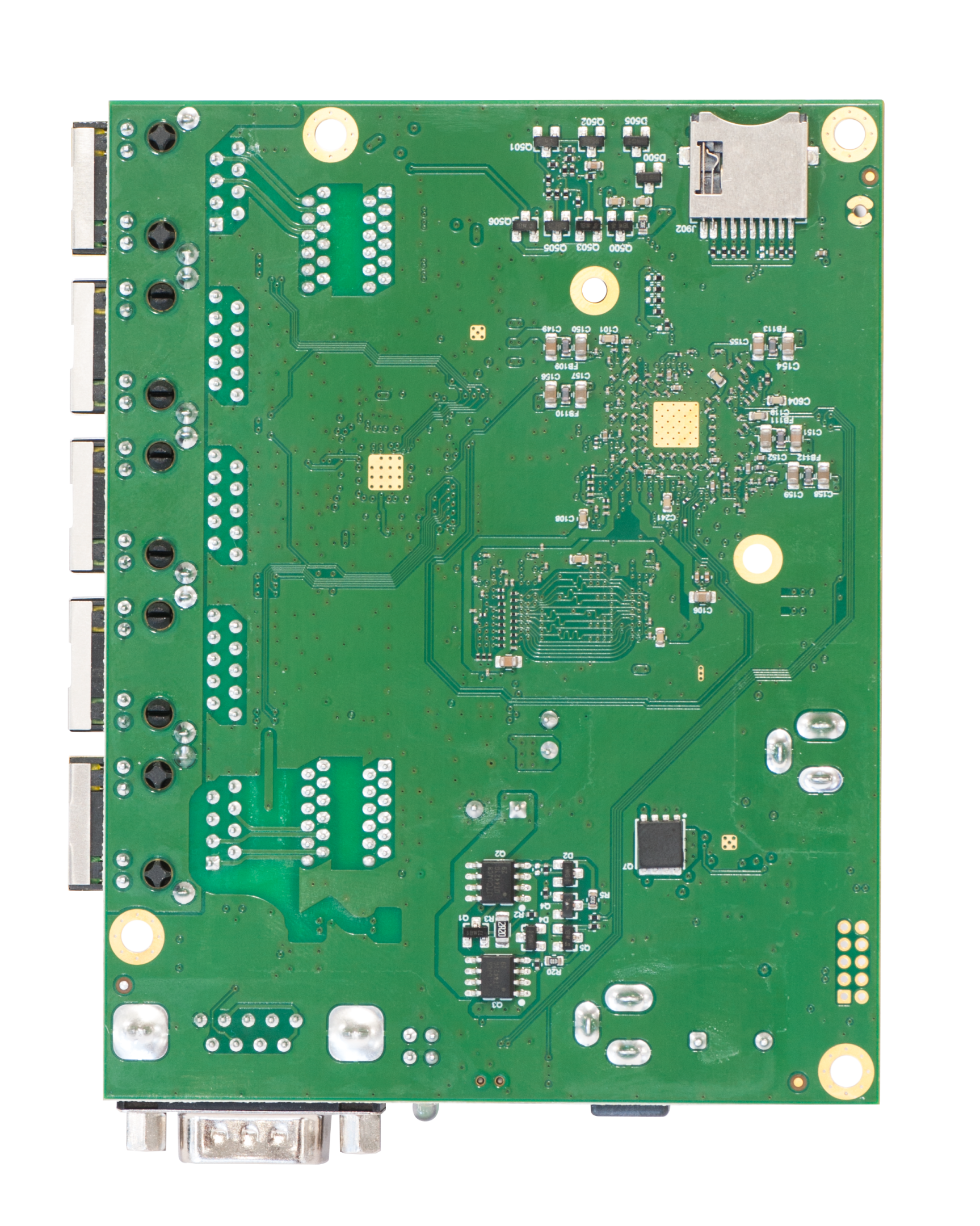

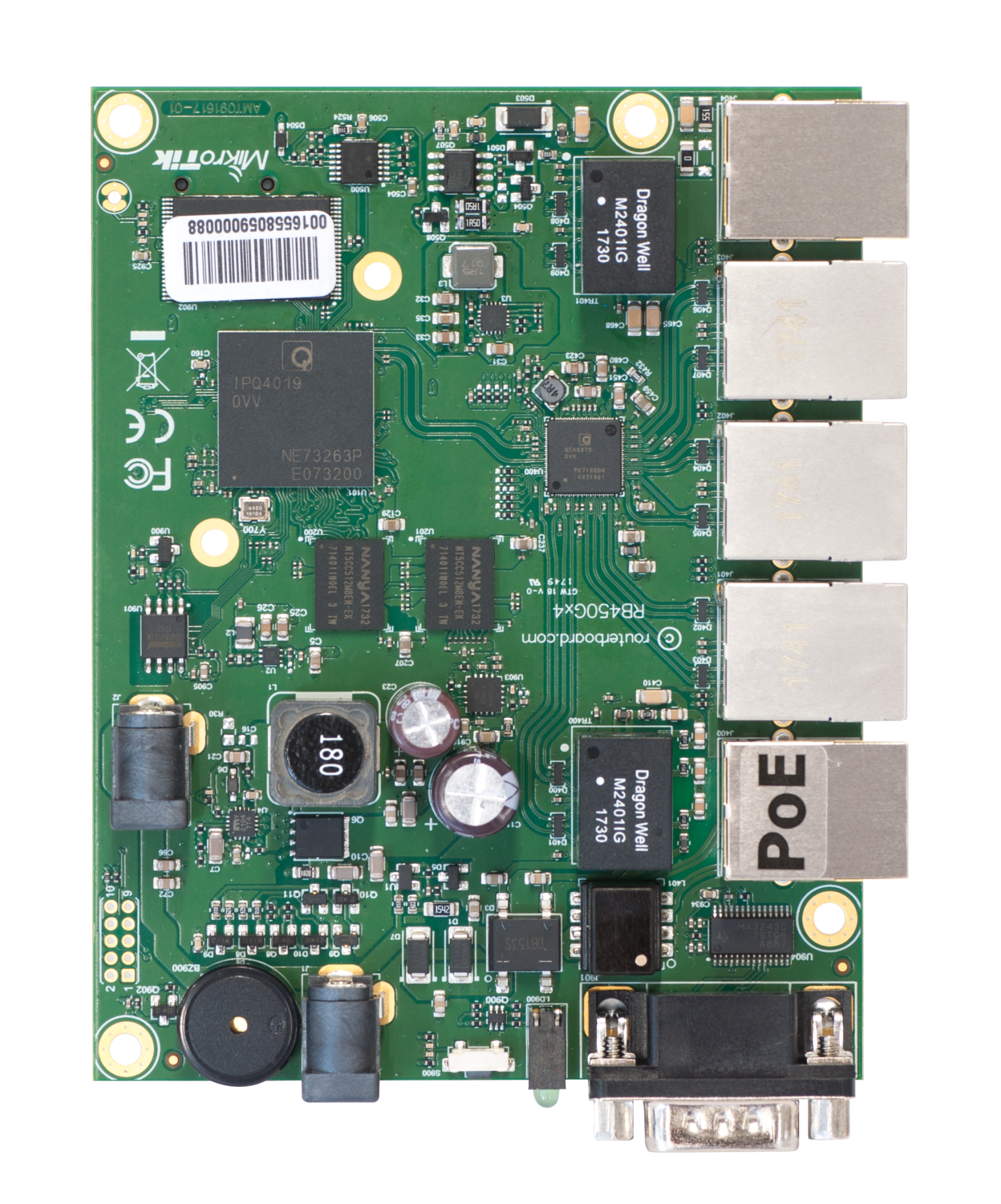

RB450Gx4

• Product code RB450Gx4

• Architecture ARM 32bit

• CPU IPQ-4019

• CPU core count 4

• CPU nominal frequency 448-896 (auto) MHz

• CPU Threads count 4

• Switch chip model IPQ-4019

• Dimensions 90 x 116 mm

• RouterOS license 5

• Operating System RouterOS

• Size of RAM 1 GB

• Storage size 512 MB

• Storage type NAND

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 3 (DC jack, PoE-IN)

• DC jack input Voltage 10-57 V

• Max power consumption 16 W

• Max power consumption without attachments 4 W

• PoE in 802.3af/at

• Cooling type Passive

• PoE in input Voltage 12-57 V

PoE-out

• PoE-out ports Ether5

• PoE out Passive PoE

• Low voltage PoE-Out current limit 500 mA

• High voltage PoE-Out current limit 500 mA

• Max total out (A) 500 mA

Ethernet

• 10/100/1000 Ethernet ports 5

Peripherals

• Memory card type microSD

• Serial console port RS232

Other

• PCB temperature monitor Yes

• Voltage Monitor Yes

• Beeper Yes

Certification & Approvals

• Certification CE, EAC, ROHS

• IP IP00

Note

• The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

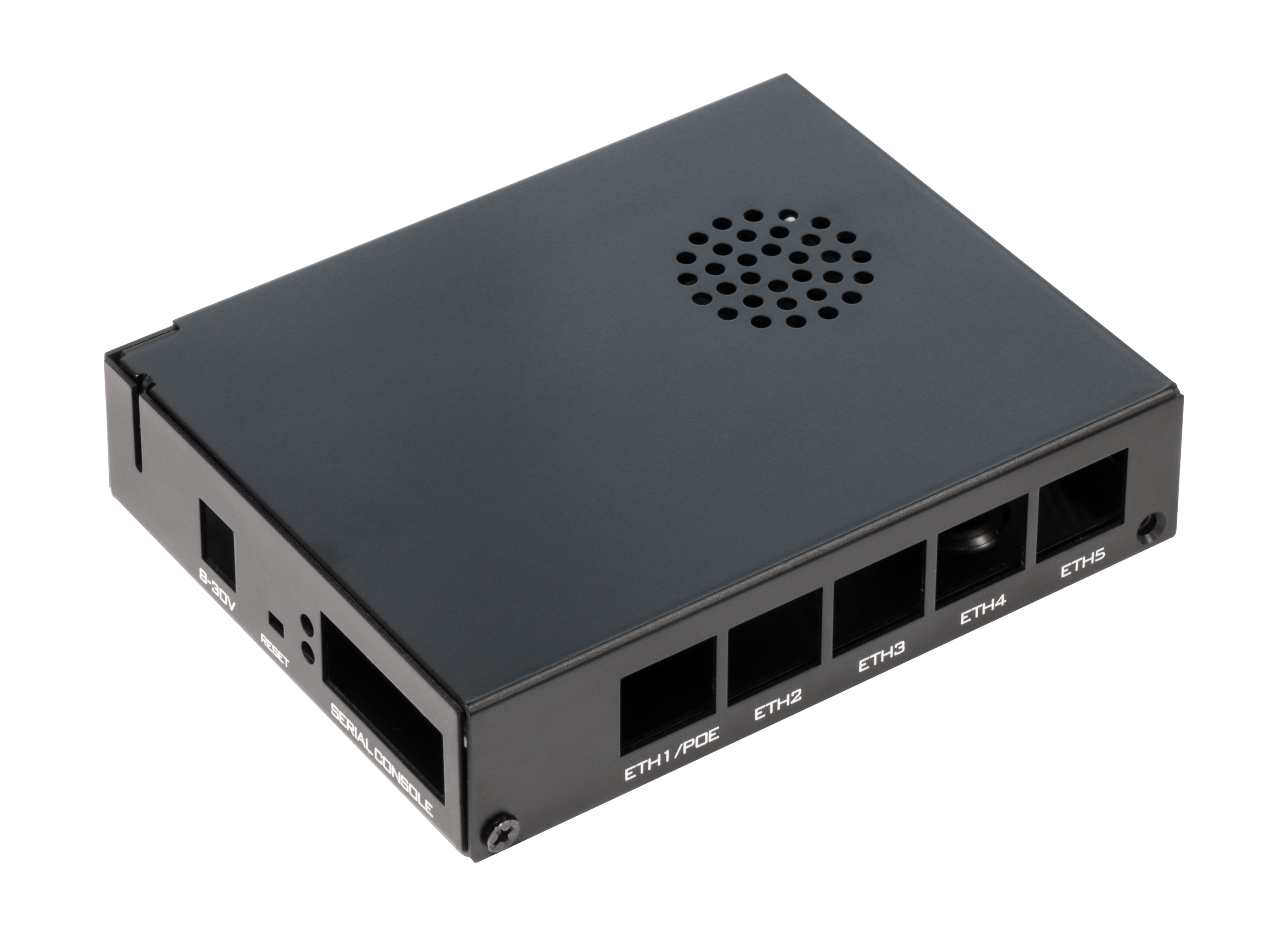

CA150

• Product code CA150

• Color Black

• Material Aluminium

• Purpose Indoor

#4: Test Resultate nach RFC2544 | Test results according to RFC2544

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

#5: Produktinformationen & Hilfe | Product informations & Help

Produktspezifische Links:

Sonstige, hilfreiche Links:
